Default A really stupid idea?

I think this is a dumb idea but maybe on an off handed chance it might work. You know those thermometers that take a reading from your temple, well, since they have a metal temp sensor could it be possible that they could work as a tire thermometer? With the sensor I think you be reading actual rubber temp.
wannafbody is offline   Reply With Quote
Old 12-13-2013, 03:13 AM   #2
Junior Member

Join Date: Dec 2010
Location: Phoenix
Posts: 146
Total Cats: 3
Default

Might work in theory, but since they are designed to read temperatures from a human body, they are probably only accurate over a very narrow range (probably 90-110F), which is not the range you are going to care about for warmed-up race tires. That's just a guess though.
Nate99 is offline   Reply With Quote
Old 12-13-2013, 05:53 AM   #3
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,196
Total Cats: 260
Default

That is a dumb idea.

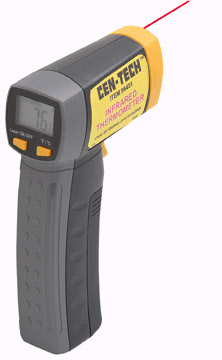

$37 at harbor freight. Works awesome.

I've used it to check tire temp, turbo temp, intercooler temp hotside and coldside, anything, you name it.
Attached Thumbnails
A really stupid idea?-temp-gun1.jpg
Erat is offline   Reply With Quote
Old 12-13-2013, 08:24 AM   #4
Elite Member
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

Please correct me if I'm wrong here, but I was told NOT to use non-contact thermometers to check tire temps.
Apparently only contact type tire pyrometers produce a reliable reading.

Also, I bought mine at
Wholesale Product Snapshot Product name is Laser Infrared IR Thermometer 480 Centidegree

Only $14.67 (free shipping), and works like a charm..
Godless Commie is offline   Reply With Quote
Old 12-13-2013, 09:04 AM   #5
Junior Member

Join Date: Feb 2012
Location: Atlanta, Ga
Posts: 265
Total Cats: 36
Default

You want to check the temp below the surface (1/8" to 1/16"). You could use a laser to display or log real-time temps (and even better would be lasers on each edge and in the middle per tire).
carnut169 is offline   Reply With Quote
Old 12-13-2013, 01:54 PM   #6
Senior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

I already have a laser but was of the impression that they weren't really effective. Anyone else have an opinion on either one?
wannafbody is offline   Reply With Quote
Old 12-13-2013, 02:09 PM   #7
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

It's easy enough to check. Get a thermometer and a real tire pyrometer, test them both at the same time.

My guess is there is a bit of difference between a $9 thermometer and a $200 tire pyrometer, else the latter would be closer in price to the former.
thenuge26 is offline   Reply With Quote
Old 12-13-2013, 02:43 PM   #8
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by thenuge26 View Post
It's easy enough to check. Get a thermometer and a real tire pyrometer, test them both at the same time.

My guess is there is a bit of difference between a $9 thermometer and a $200 tire pyrometer, else the latter would be closer in price to the former.
Naw dawg, its just marketing. Just like android and mac.
Leafy is offline   Reply With Quote
Old 12-13-2013, 02:49 PM   #9
Junior Member
iTrader: (1)

Meeners's Avatar

Join Date: Jul 2008
Posts: 194
Total Cats: 0
Default

Quote:
Originally Posted by wannafbody View Post
I think this is a dumb idea but maybe on an off handed chance it might work. You know those thermometers that take a reading from your temple, well, since they have a metal temp sensor could it be possible that they could work as a tire thermometer? With the sensor I think you be reading actual rubber temp.
You should just try it and compare it to laser and post your findings.
Meeners is offline   Reply With Quote
Old 12-13-2013, 02:49 PM   #10
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

Have you considered buying a purpose built tire thermometer? I feel like that would work really well...

[song]do you know the way to use ebay?[/song]
fooger03 is offline   Reply With Quote
Old 12-13-2013, 05:46 PM   #11
Junior Member

Join Date: Sep 2009
Location: Bergen, Norway
Posts: 129
Total Cats: 12
Default

IR thermometers will work fine for checking tire temps. A rubbery surface will be what is closest to its preset emissivity correction which usually is ε-0.95. This is also why the manual states to use tape on reflective surfaces, although it doesn`t state reflective in the IR range, which is a whole other thing than the visual range of light we see.

They will however not give correct readings on clear metal like on intercoolers or turbo cold sides as the low emissivity of the surface will reflect the surroundings more than read the actual heat radiation in the IR spectrum. This will make people happy as the intercooler always will seem to have just slightly higher than ambient temps...

Also, the laser does nothing, only there to show you where you are pointing the IR sensor.
lassi is offline   Reply With Quote
Old 12-13-2013, 10:29 PM   #12
Senior Member
iTrader: (3)

Join Date: Jun 2008
Location: Port Orchard, WA
Posts: 620
Total Cats: 4
Default

^This... the IR thermometer we used at the race shop was a bit more expensive and it had to be recalibrated for different surfaces. It made a fair amount of difference if you didn't.
Rennkafer is offline   Reply With Quote
Old 12-14-2013, 12:48 PM   #13
Senior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

I tried the temple thermometer on a cold tire and it didn't work. So that doesn't look too promising. For HPDE the inexpensive IR reader should be close enough.
wannafbody is offline   Reply With Quote
Old 12-16-2013, 01:04 PM   #14
Junior Member

Join Date: Mar 2012
Posts: 322
Total Cats: 23
Default

"Accurate" depends on what info you want.

If you want a temperature to compare to tire manufacture specs of operating temp. etc, then you should be using the tire pyrometer.

But, if you need a consistent number given to compare each session on track, then the IR temp sensor is fine. This describes 90% of the useful information you'll need.

It may read 150* and is actually 155*, but if the inside edge is 250* that's accurate enough info.
M.Adamovits is offline   Reply With Quote
Old 12-18-2013, 10:29 PM   #15
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

If you aren't going to use a probe-type thermocouple that measures the true tire temperature ~1/4" below the surface of the tire, don't waste your time with tire temps at all. IR thermometers are a joke unless you are taking the data in real time (i.e. you have three of them mounted in the fenderwell feeding data to an onboard logger while mid-corner).
