Default ReLowered+Extra Lower Steering Column

My uber-seat project is 95% finished. All that's left to do is figure out how to bolt the seatback to the rearwall of the cockpit.

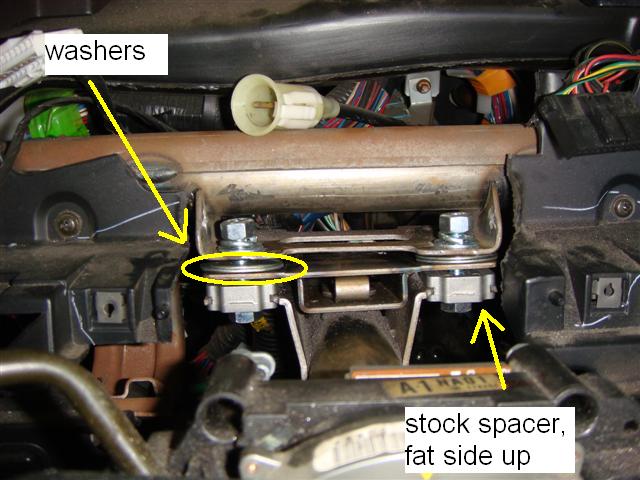

For big guys to get a little more legroom with the stock seat, it's customary to remove 2 steering column spacers that raise the wheel about 1.5"... makes a huge difference. But my new seat has me sitting about 5" lower than what would be stock. So I've replaced the stock spacers and added a couple extra washers. I figure the wheel is about .5-75" lower than stock.

When removing the bolts that hold the column up, I snapped one off and the threads on the tac-welded nut were hosed. I dremeled off the nuts and got some grade8 bolts for the fix.
Attached Thumbnails

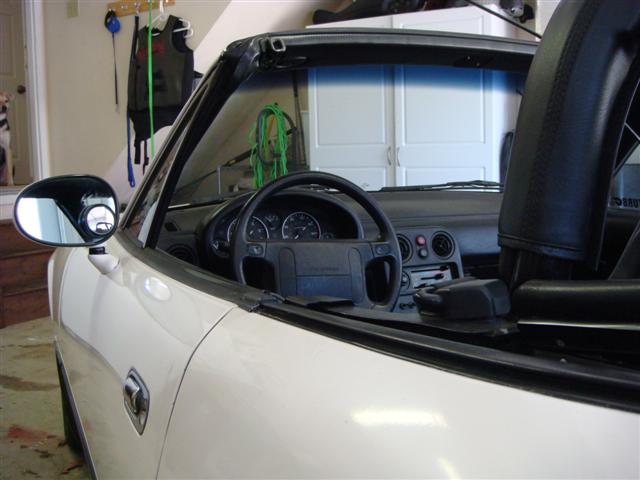

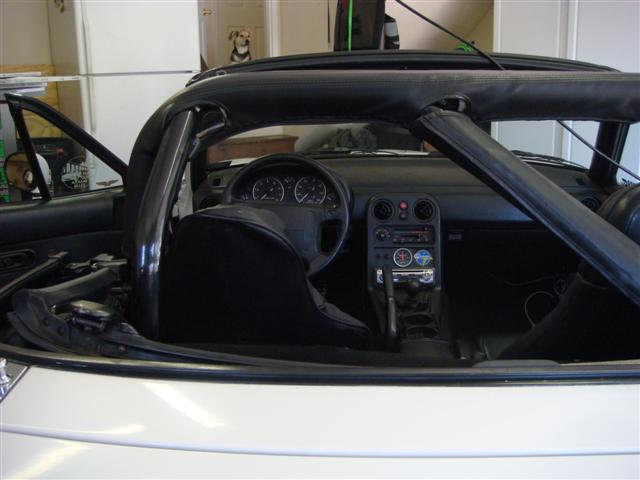

ReLowered+Extra Lower Steering Column-dsc00960-small-.jpg   ReLowered+Extra Lower Steering Column-dsc00964-small-.jpg   ReLowered+Extra Lower Steering Column-dsc00965-small-.jpg
samnavy is offline   Reply With Quote
Old 03-09-2008, 01:16 PM   #2
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

interesting.
Doppelgänger is offline   Reply With Quote
Old 03-09-2008, 09:27 PM   #3
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

After a 20 mile drive, it's perfect or height. I could actually stand to have it come back towards me an inch or two, but I guess I'll have to get used to it.
samnavy is offline   Reply With Quote
Old 03-09-2008, 09:48 PM   #4
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

So your saying that if I remove those 2 spacers the steering wheel will go up 1.5"?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 03-10-2008, 02:49 AM   #5
I'm Miserable!
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

Quote:
Originally Posted by levnubhin View Post
So your saying that if I remove those 2 spacers the steering wheel will go up 1.5"?
looks like it
miataz is offline   Reply With Quote
Old 03-10-2008, 06:08 PM   #6
Newb

Join Date: Jan 2008
Posts: 18
Total Cats: 0
Default

how tall are you?
candela is offline   Reply With Quote
Old 03-10-2008, 06:27 PM   #7
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

He said a while back he's like 6'3" to 6'5", something ridiculous.
cjernigan is offline   Reply With Quote
Old 03-10-2008, 08:39 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,814
Total Cats: 1,780
Default

Sam is big. in more ways than one.
Braineack is offline   Reply With Quote
Old 03-10-2008, 08:50 PM   #9
Junior Member
iTrader: (1)

Sentic's Avatar

Join Date: Feb 2008
Location: Sweden
Posts: 435
Total Cats: 5
Default

Braineak >> If I wasn't new on the forum, i surely would have put that quote in my sign
Sentic is offline   Reply With Quote
Old 03-10-2008, 08:58 PM   #10
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,322
Default

Quote:
Originally Posted by Braineack View Post
Sam is big. in more ways than one.


Savington is offline   Reply With Quote
Old 02-07-2012, 03:00 PM   #11
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

I'm bumping this up for the other lardos like me in here who would like the wheel position up a bit. I'm hoping it helps with the smaller wheels blocking half the cluster.
