Default Rewiring power windows to always work

How do I make the power windows work even if the car is off?

Googling isnt turning up any positive results.
Saml01 is offline   Reply With Quote
Old 01-10-2009, 09:18 PM   #2
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

make sure they have a constant +12v source instead of the switched one?
Oscar is offline   Reply With Quote
Old 01-10-2009, 09:20 PM   #3
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

This is something I've ALWAYS wanted to do. AbeFM did it. Like Oscar said, find the wire that's switched 12V and run it to fused 12V that's always on.
patsmx5 is offline   Reply With Quote
Old 01-10-2009, 09:23 PM   #4
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

if you pull the switch and probe the harness, you want to find the wire that is +12 when the car is on and not +12 when teh car is off. be sure it's not one of the window outputs, but I think those will always be unpowered unless you move the switch up or down.
y8s is offline   Reply With Quote
Old 01-10-2009, 09:25 PM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

question: why do you guys want to do that?
18psi is offline   Reply With Quote
Old 01-10-2009, 09:25 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Replace the relays while you are at it. Writeup on m.net, makes them work 1000% better/faster.
Braineack is offline   Reply With Quote
Old 01-10-2009, 09:28 PM   #7
Elite Member
Thread Starter
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by Braineack View Post
Replace the relays while you are at it. Writeup on m.net, makes them work 1000% better/faster.
How about a link.

I have been googling and cant find ****. Miata.net garage doesnt have anything either.

Quote:
Originally Posted by y8s View Post
if you pull the switch and probe the harness, you want to find the wire that is +12 when the car is on and not +12 when teh car is off. be sure it's not one of the window outputs, but I think those will always be unpowered unless you move the switch up or down.
Thats what I would do if I was the first to do it, but if someone has already walked down this road why would I waste my time?
Saml01 is offline   Reply With Quote
Old 01-10-2009, 09:37 PM   #8
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by Saml01 View Post
but if someone has already walked down this road why would I waste my time?
To learn something on your own so that you can think for yourself once in a while instead of blindly following others?
patsmx5 is offline   Reply With Quote
Old 01-10-2009, 09:41 PM   #9
Elite Member
Thread Starter
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Not gonna get into it.

Anyone have a link?
Saml01 is offline   Reply With Quote
Old 01-10-2009, 09:43 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Braineack is offline   Reply With Quote
Old 01-10-2009, 09:49 PM   #11
Junior Member
iTrader: (7)

Join Date: Apr 2007
Location: South of Houston, Texas
Posts: 329
Total Cats: 0
Default

Quote:
Originally Posted by patsmx5 View Post
To learn something on your own so that you can think for yourself once in a while instead of blindly following others?
Why you be bustin' ***** mang?
mikef85 is offline   Reply With Quote
Old 01-10-2009, 10:05 PM   #12
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

lol. I was kidding with you sam... Hence the smiley.
patsmx5 is offline   Reply With Quote
Old 01-10-2009, 10:12 PM   #13
Elite Member
Thread Starter
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by Braineack View Post

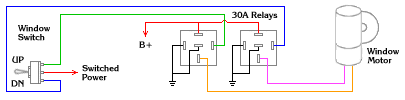

needs four 12Vdc SPDT relays...
Awesome. Thanks.

But my windows speed is fine.

I guess ill track down where the power windows power comes from and swap it to a constant 12 volt.

Quote:
Originally Posted by patsmx5 View Post
lol. I was kidding with you sam... Hence the smiley.
Its cool.
Saml01 is offline   Reply With Quote
Old 01-10-2009, 10:19 PM   #14
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

My drivers side window moves slower than mike's car. I seriously gotta figure out what's wrong with it one day.
patsmx5 is offline   Reply With Quote
Old 01-10-2009, 10:36 PM   #15
Junior Member
iTrader: (7)

Join Date: Apr 2007
Location: South of Houston, Texas
Posts: 329
Total Cats: 0
Default

Quote:
Originally Posted by patsmx5 View Post
My drivers side window moves slower than mike's car. I seriously gotta figure out what's wrong with it one day.
You're forgetting about my DD...C6 Z06.
mikef85 is offline   Reply With Quote
Old 01-10-2009, 11:23 PM   #16
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Saml01 View Post
How do I make the power windows work even if the car is off?

Googling isnt turning up any positive results.
Run a full time +12v lead to the current switched +12v lead.

IMO, a dumb *** idea in most cars, but probably not too much of an extra security risk in the miata so do if if you feel like it. My dad had a classic benz that had what appeared to be 5 power window switches on the driver's door. The 5th switch was actually a toggle that allowed any of the 4 window switches to function with the ignition off if the toggle was depressed with the window switch. Pretty neat.
Ben is offline   Reply With Quote
Old 01-11-2009, 12:58 PM   #17
Elite Member
Thread Starter
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by Ben View Post
Run a full time +12v lead to the current switched +12v lead.

IMO, a dumb *** idea in most cars, but probably not too much of an extra security risk in the miata so do if if you feel like it. My dad had a classic benz that had what appeared to be 5 power window switches on the driver's door. The 5th switch was actually a toggle that allowed any of the 4 window switches to function with the ignition off if the toggle was depressed with the window switch. Pretty neat.
I was thinking about this last night, but then why the need for the elaborate relays?
Saml01 is offline   Reply With Quote
Old 01-11-2009, 03:14 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Like I said and the link states, the relays provide more juice to the motors, making the windows work better x100. My last miata it took about 15 miutes for the window to raise back up on a well greased track.
Braineack is offline   Reply With Quote
Old 01-12-2009, 11:05 AM   #19
Elite Member
Thread Starter
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by Braineack View Post
Like I said and the link states, the relays provide more juice to the motors, making the windows work better x100. My last miata it took about 15 miutes for the window to raise back up on a well greased track.
I need to look at the madracki diagrams and see how the windows are wired into the car from the factory. My windows are fine, they go up and down pretty quickly. I'm mostly curious where their power originates so I can switch that to a constant 12 volt.
Saml01 is offline   Reply With Quote
Old 01-12-2009, 11:22 AM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

if it's anything like the NA, it's directly powered form the ignition switch.






page 22: http://www.madracki.com/miata/images/wiring/97sys.pdf

looks the same.
Braineack is offline   Reply With Quote
