Default Rollbar install help

Hard Dog, M1Hardcore, Hardtop, Doube Diag on a 95Miata

Got pretty much everything done, bar is installed, buttoned up and even went on a quick test drive....ssssssaaaaaawweeetnessss

BUT:

1-need dummy proof instructions/diagram on how to get the top of my seatbelts setup right. Every which way I tried, they just kinda bind up and dont work too well.

2-would like to see some good pics, or again dummy proof instructions/diagram on how to cut the seatbelt tower trim


I know posting pics would make me seem alot less of a tool, but I'm tired, car is outside, camera is dead, so hopefully tomm I'll get some up.

Your expertise is as always appreciated

Last edited by TonyV; 03-08-2009 at 11:57 AM.
TonyV is offline   Reply With Quote
Old 03-08-2009, 12:08 AM   #2
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Seatbelt will never roll up well, just how it is. For the trim, Im sure there is a printout somewhere, but I just started small and kept cutting outward till I got close to the right size. I didnt care too much how mine looked though, its behind the seat. Any cuts that arent pretty or a bit too much, you can put some trim (rubber hose split down the side, or that wire loom stuff) on the edges.
NA6C-Guy is offline   Reply With Quote
Old 03-08-2009, 01:05 AM   #3
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Can people please take some pics of how they cut their trim panels, please i beg you.
Saml01 is offline   Reply With Quote
Old 03-08-2009, 08:40 AM   #4
Elite Member
Thread Starter
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

I have 2 holes in the tabs on the rollbar over the seatbelt tower.

The larger one is aligned with the hole in the seatbelt tower, and to my understanding I'm supposed to use that hole with the original hardware. BUT I cannot find an orientation where it will work at all

The smaller hole is further inwards, and lines up with nothing. However, I was able to temp. rig the seatbelt to that hole using a bolt/nut I had. The location is much better, but of course its no where near OEM

Lastly, I have 2 bolts that were thicker than the bolts used to mount the rollbar. Cant find any info on them
TonyV is offline   Reply With Quote
Old 03-08-2009, 03:04 PM   #5
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

I'm heading over to work on my car some today. I will take pictures of the panels and the seatbelt tabs. Maybe they will help out. Hell, I even cut my boot to clear the bars, but you're on your own on that one.
RotorNutFD3S is offline   Reply With Quote
Old 03-08-2009, 03:52 PM   #6
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Here are some trim pictures. I snapped these this morning just for you.
Picasa Web Albums - John - Roll Bar Trim

I started with the cutouts that Hard Dog provides. After that it was trim, fit, trim, fit... It took awhile to get the panels to fit well. Go slow, be patient, take a break if you get frustrated, blah blah...
ZX-Tex is offline   Reply With Quote
Old 03-08-2009, 05:25 PM   #7
Elite Member
Thread Starter
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

Quote:
Originally Posted by ZX-Tex View Post
Here are some trim pictures. I snapped these this morning just for you.
Picasa Web Albums - John - Roll Bar Trim

I started with the cutouts that Hard Dog provides. After that it was trim, fit, trim, fit... It took awhile to get the panels to fit well. Go slow, be patient, take a break if you get frustrated, blah blah...



saaaaweeeet man

seriously appreciate the effort in taking/posting pics. Thats exactly what I needed to see, and also helped alot with the seatbelt. Seems I am missing hardware

thanks a bunch


ps--sam will be just as happy to see these pics as well
TonyV is offline   Reply With Quote
Old 03-08-2009, 07:18 PM   #8
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

LOL, you people make me feel like ****. Mine look so horribly ghetto. Maybe I'll go snap some pics to show how rushed I did, and how NOT to do it.
NA6C-Guy is offline   Reply With Quote
Old 03-08-2009, 07:34 PM   #9
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Haha, I forgot about the driver side. It came out so badly I just said **** it and cut it in half and threw the other part away. You can clearly tell I took my time and made sure everything was snug. Wonder if it would look better if I removed it all and masked off and painted everything down in there black.

Oops, saw slipped...
Name:  Ugly.jpg
Views: 1
Size:  159.6 KB

Thats only a tiny gap...

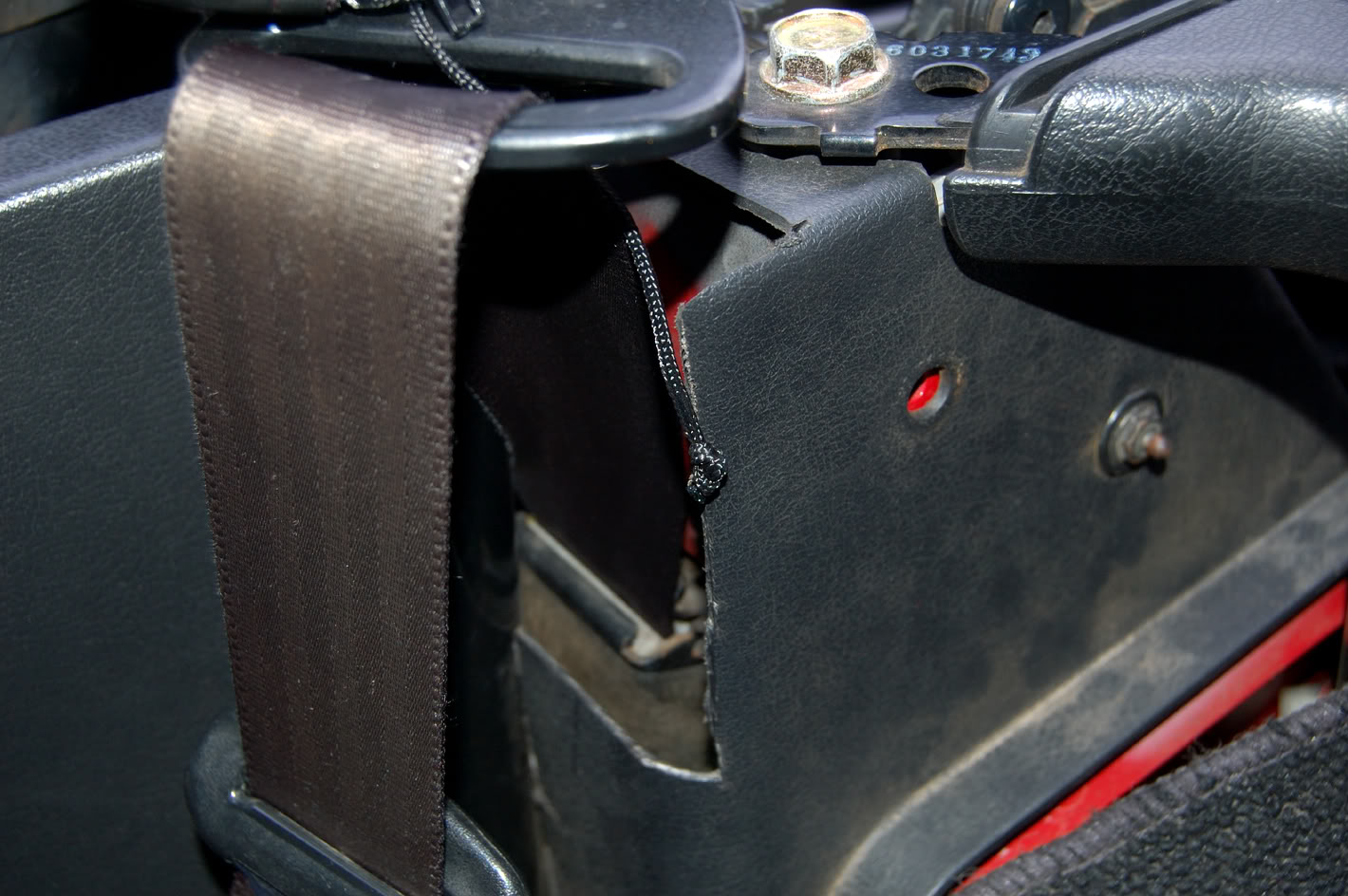

Name:  Ugly2.jpg
Views: 1
Size:  195.6 KB

Thats not too bad...


**** it!

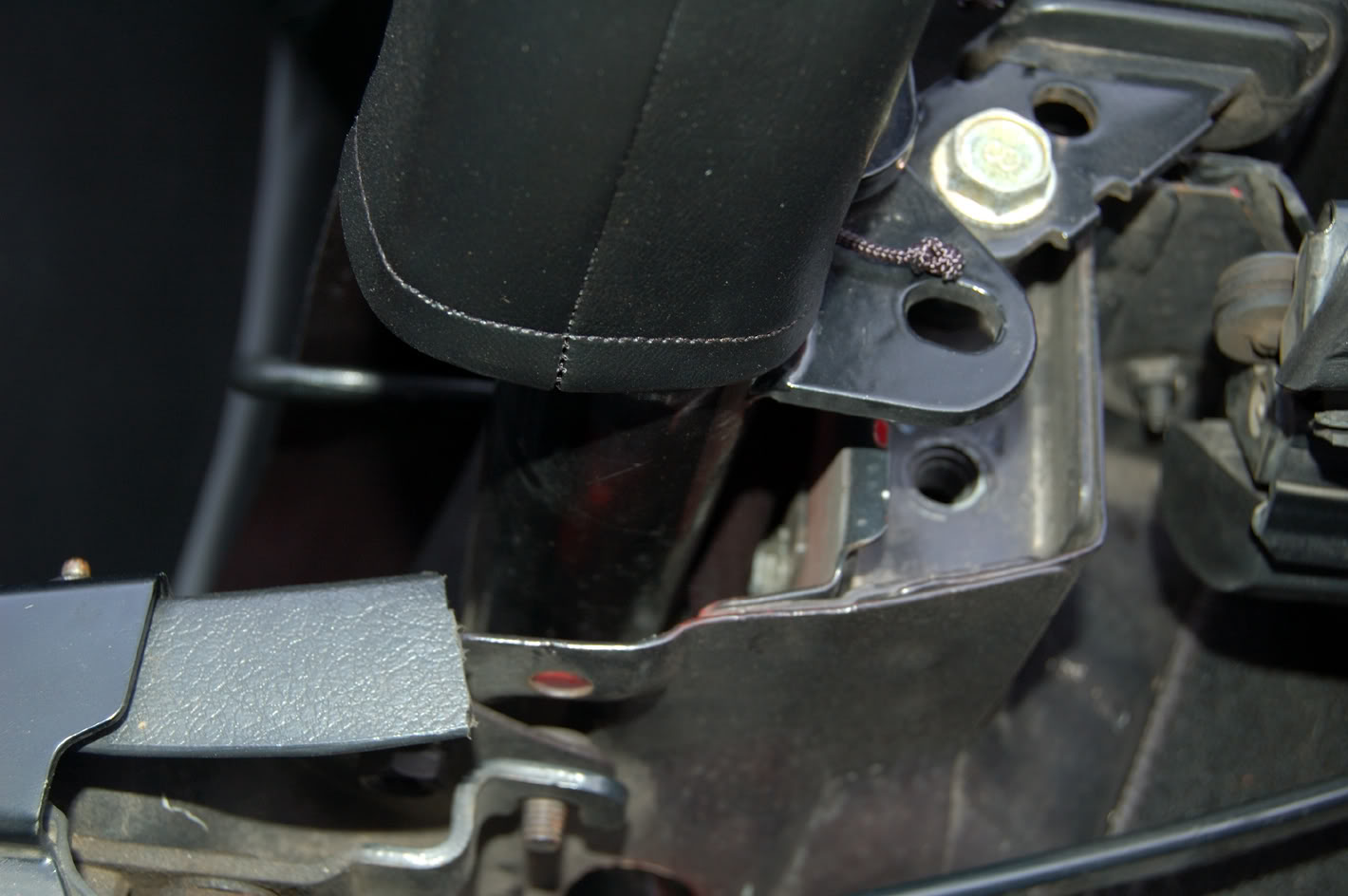

Name:  Ugly4.jpg
Views: 1
Size:  129.0 KB

You can see my interior panel trimming skills are top notch.
