Default Rollbar Install - What exactly are the "Seat belt tabs"?

Hi everyone,

Before bolting in my Harddog M1 Hardtop, I wanted to make sure I have everything correct to ensure my seat belts retract once installed. The instructions given the website are kind of confusing when it comes to the seat belt tabs that need to be modified. Does someone mind circling which part I either need to trim, bend, or cut off completely?



Also, the picture shows that hes using a dremel on the rivet. does that entire plate thing need to get removed?

The car is a 91' NA, so it mentioned simply bending something, but again, not sure what that is exactly. Thanks!

-Kris

Instructions for reference:
Seat Belt Reel and Guide Installation Instructions
Attached Thumbnails
Rollbar Install - What exactly are the "Seat belt tabs"?-seatbelttab.jpg
itskrees is offline   Reply With Quote
Old 06-24-2013, 12:44 AM   #2
Junior Member

Join Date: Jul 2011
Location: Vancouver, BC
Posts: 50
Total Cats: 0
Default

The tab that is sticking out by the s in his shirt. Bend it flat like the surrounding metal.
Screaming04 is offline   Reply With Quote
Old 06-24-2013, 12:53 AM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Skokie, IL
Posts: 213
Total Cats: 4
Default

That's what I was thinking, but wouldn't it still stay in place since I'm bolting the small 10mm bolt back on to secure it?
itskrees is offline   Reply With Quote
Old 06-24-2013, 12:58 AM   #4
Junior Member

Join Date: Jul 2011
Location: Vancouver, BC
Posts: 50
Total Cats: 0
Default

That tab fits in a hole on the mounting plate. It prevents you from leaning the mechanism toward the center of the car.
Screaming04 is offline   Reply With Quote
Old 06-24-2013, 03:29 AM   #5
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Glancing at those instructions, it almost looks like there's a red line for you to cut. Mine's still there, can't remember if that tab is flat or not though. I'm honestly no help.
curly is offline   Reply With Quote
Old 06-24-2013, 10:16 AM   #6
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Flatten the tabs as stated above in post #2.
Do not reinstall the 10mm bolt, per instructions.
On your '91, you do not need to cut the upper bracket off.

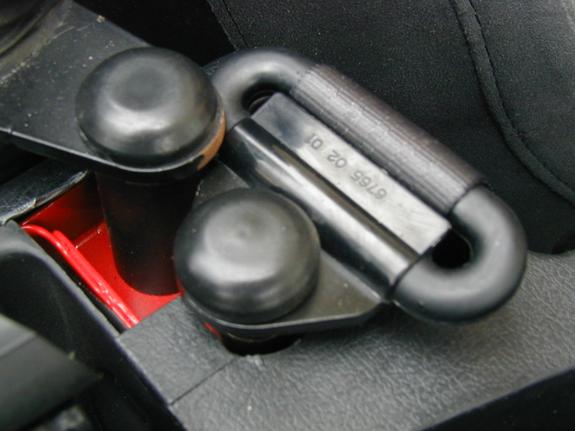

You will need to trim the inside of the harness guide as pictured in the instructions so that the guide can turn forward again (helps the seat belt reel function as best as it can):



Trim each guide on the side that will contact the spacer as seen below:

Attached Thumbnails
Rollbar Install - What exactly are the "Seat belt tabs"?-beltguide.jpg   Rollbar Install - What exactly are the "Seat belt tabs"?-7205120002_large.jpg
RotorNutFD3S is offline   Reply With Quote
Old 06-24-2013, 10:24 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Welcome to the world of floppy-dick seat belt retraction...
