Default SBK's *build* thread

This is dedicated to the red 90 that im putting back togethor after it being off the road for 2 years.

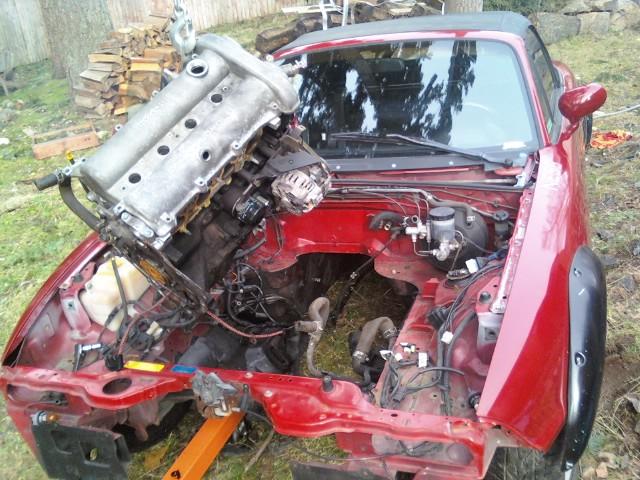

1. I first started by removing the old engine

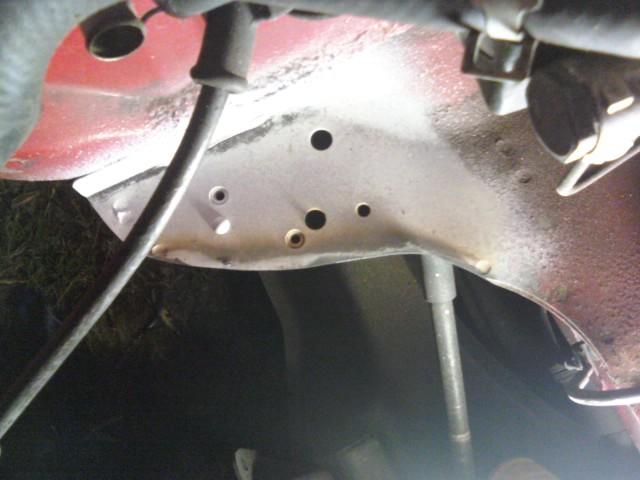

2. Then after that i decided to trim the sheet metal near the steering column

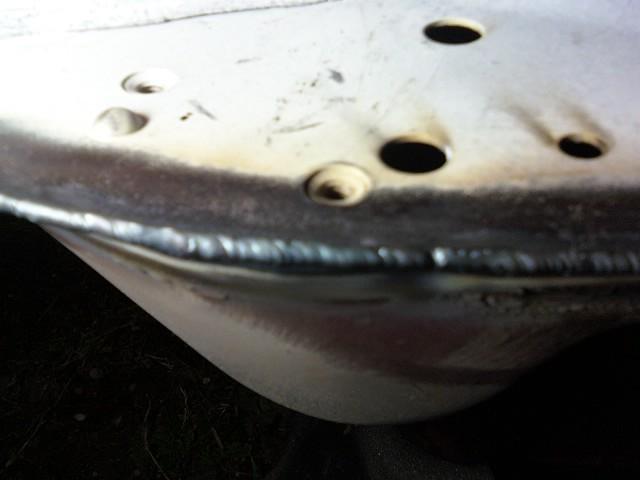

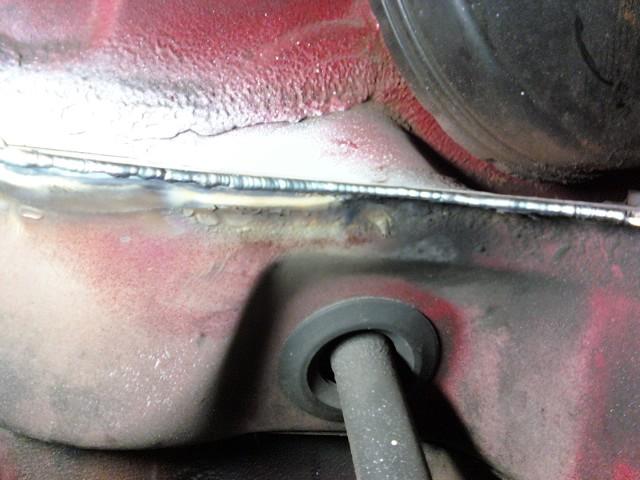

3. Welded it for strength

4. Painted it ( dont have a pic of it sorray )

5. labled the wiring harness ( no pic )

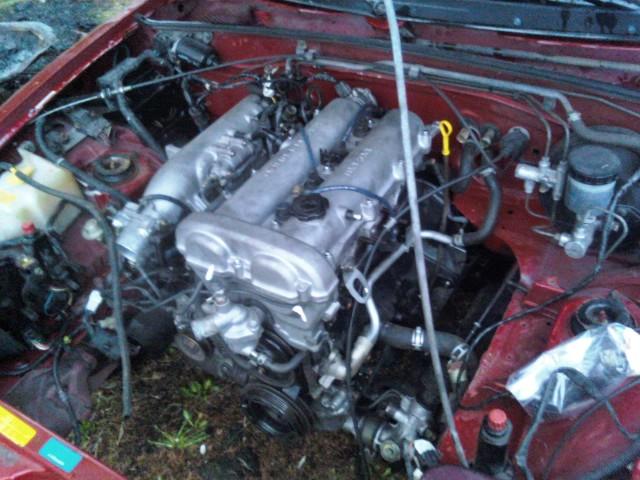

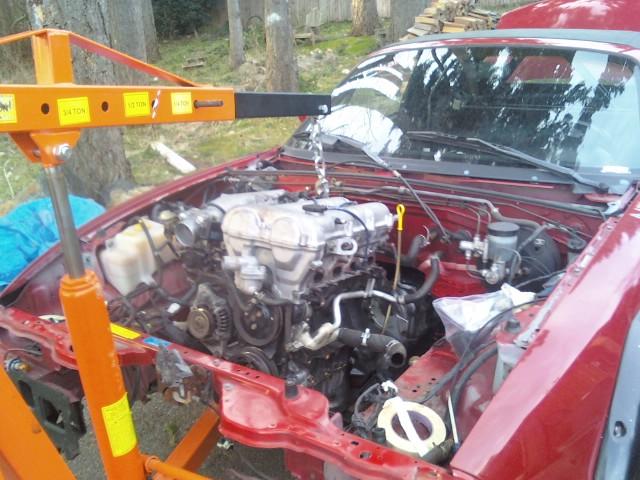

6. Drop new engine in

7. Get the motor mounts in and installed

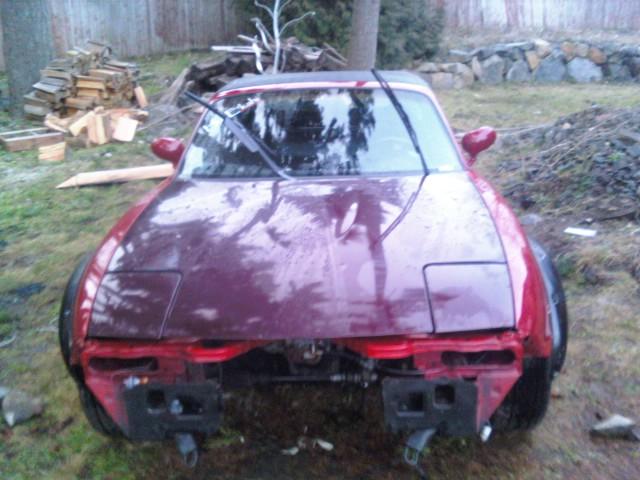

8. Got the hood/headlightes installed still need to find some front bumper brackets that support the reinforcement

Up next is new torsen unit install
Attached Thumbnails
SBK's *build* thread-oldenginepull.jpg   SBK's *build* thread-miatacutmetal.jpg   SBK's *build* thread-miataweld.jpg   SBK's *build* thread-miataweld2.jpg   SBK's *build* thread-miatanewengineinstall.jpg

SBK's *build* thread-miatanewengine.jpg   SBK's *build* thread-miataclean.jpg
SKMetalworks is offline   Reply With Quote
Old 02-28-2009, 10:20 PM   #2
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

why did you cut and weld the sheet metal?
thesnowboarder is offline   Reply With Quote
Old 03-03-2009, 10:01 PM   #3
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

More room for a downpipe when i build a custom one for the t25

Today i hooked up all the intake manifold goodies and IAC lines. Also got in the coil, new spark plugs/wires

Things left do to;

Rear end
Clutch lines
starter wires
speedo cable
radiator


I need a front thermostat pigtail cause the wire on the harness just pulled out of the plug
SKMetalworks is offline   Reply With Quote
Old 03-03-2009, 10:42 PM   #4
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by sbkcocker499 View Post

I need a front thermostat pigtail cause the wire on the harness just pulled out of the plug
Mine did the same thing when I was doing my build. I just took it apart and fixed it, pretty simple to do.
Vashthestampede is offline   Reply With Quote
Old 03-05-2009, 01:27 AM   #5
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

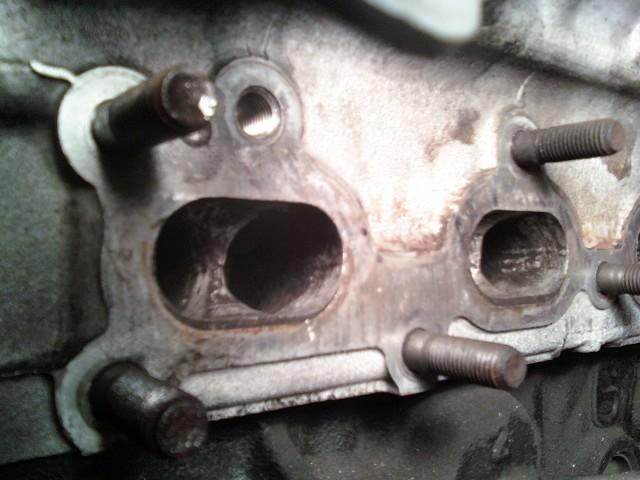

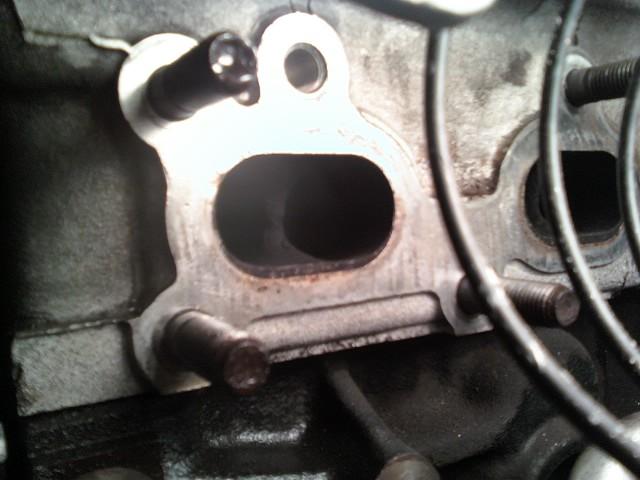

Just got done cleaning the exhaust ports with a stone cone shaped dremel. I was pretty conservative with shaving. Im going to go back in there with some sandpaper heads and polish them up a bit. I thought about porting but decided to hold off on that till i take the head off on my next exhaust port cleaning.

Pics
Attached Thumbnails
SBK's *build* thread-exhaust-ports.jpg   SBK's *build* thread-exhaust-ports-stage1.jpg
SKMetalworks is offline   Reply With Quote
Old 03-05-2009, 03:08 PM   #6
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Damn dude, lookin good. I'm especially impressed with the welding. Looks good. I cant wait to come help you with your megasquirt and check out your projects.
wayne_curr is offline   Reply With Quote
Old 03-05-2009, 10:16 PM   #7
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

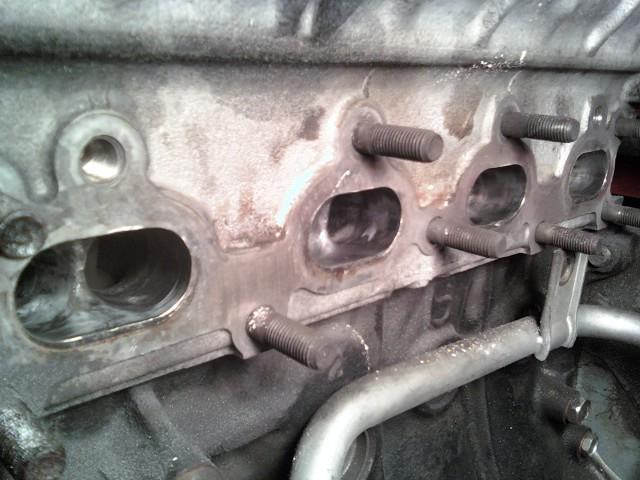

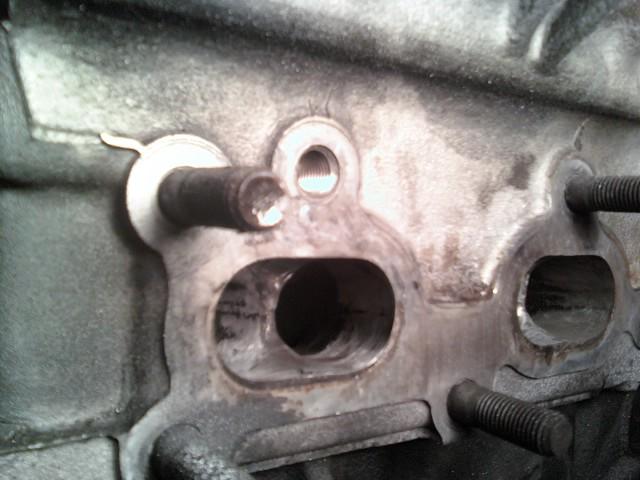

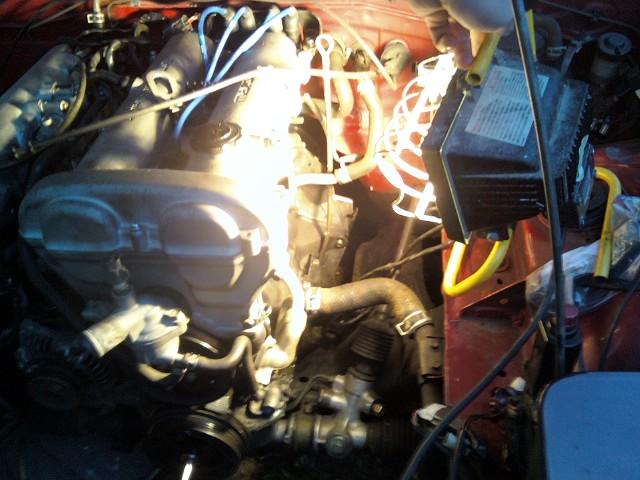

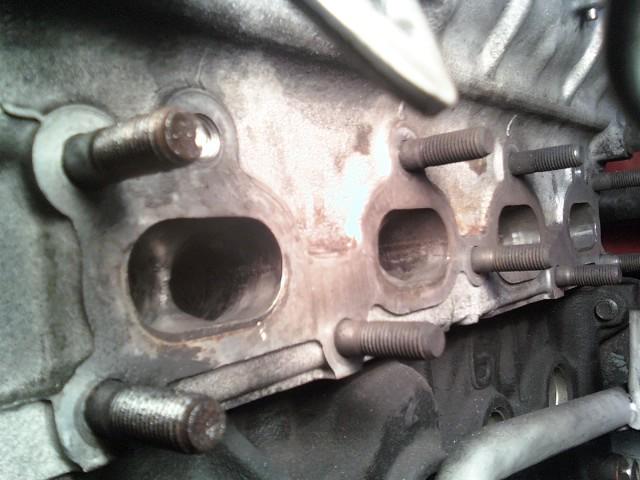

Went back today determined to get the polishing done. Well heres what i got.


Also recieved my rebuild kit for the t25 i have





Did i mention i did the polishing with the engine in the car
Attached Thumbnails
SBK's *build* thread-exhaust-ports-stage2.jpg   SBK's *build* thread-exhaust-port-stage3.jpg   SBK's *build* thread-exhaust-port-stage4.jpg   SBK's *build* thread-exhaust-port-work.jpg
SKMetalworks is offline   Reply With Quote
Old 03-06-2009, 03:31 AM   #8
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

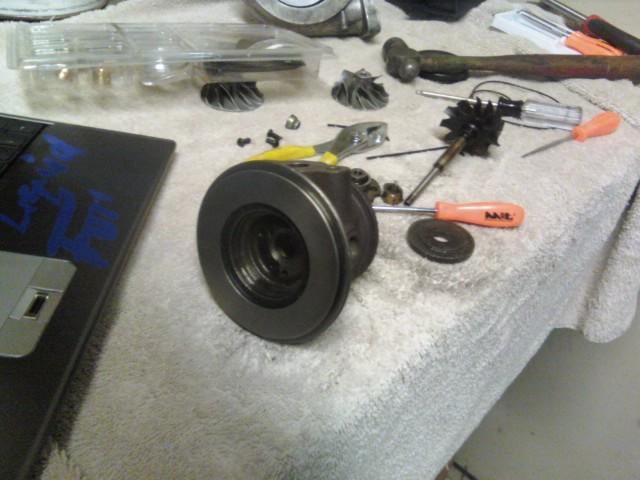

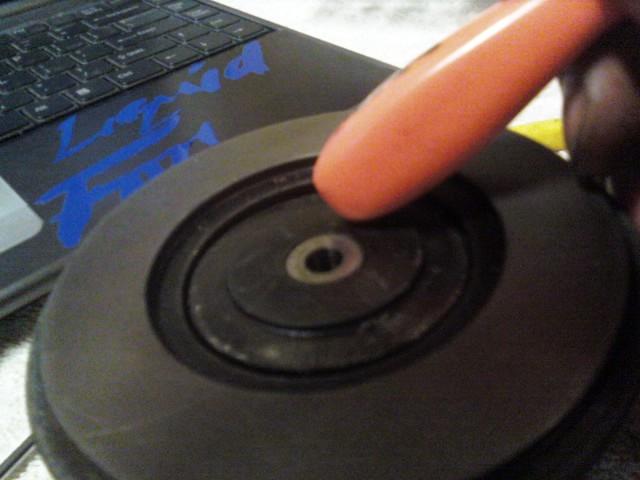

After dinner i decided to jump in with the turbo rebuild. I was thinking about having gpopshop rebuilt it but they want 350$!!! Needless to say i had the kit and decided to roll with it

1. I had some trouble getting that freakin plate off took me 10 minuets no joke.

2. Got it all dissasembled finally

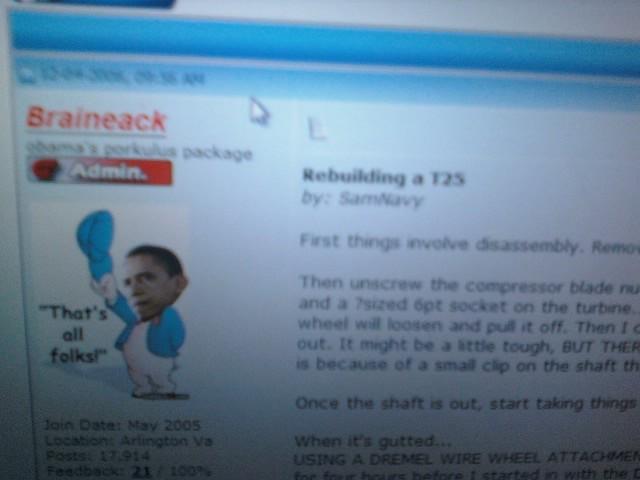

3. My guide (thanks SamNavy/Brain )

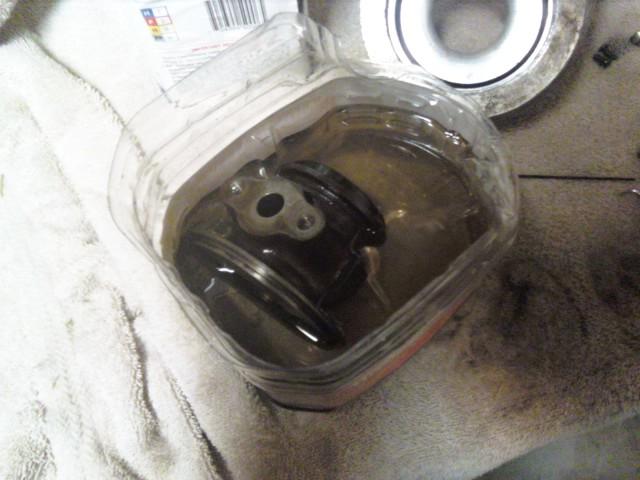

4. Soaked it with mineral spirits for about 40 minuets.

Not shown i took my dremel and went to town. Looks like a brand new turbo with new guts to back it up

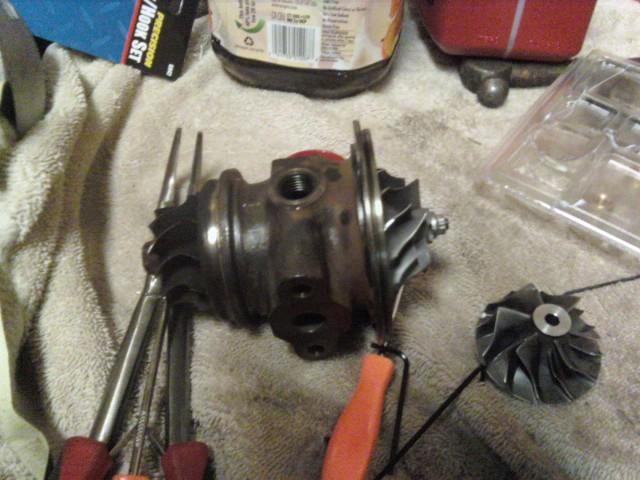

5. Almost done but its gettin late figured id post this and finish it another day

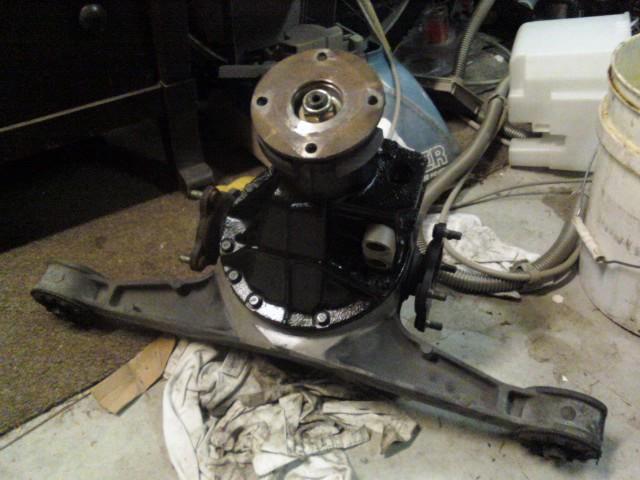

6. My Lovely Torsen unit freshly sanded and repainted !!! its goin in this weekend for sure
Attached Thumbnails
SBK's *build* thread-t25-rebuild.jpg   SBK's *build* thread-t25-rebuild-2.jpg   SBK's *build* thread-t25-rebuild-3.jpg   SBK's *build* thread-t25-rebuild-4.jpg   SBK's *build* thread-t25-rebuild-5.jpg

SBK's *build* thread-torsen.jpg
SKMetalworks is offline   Reply With Quote
Old 03-06-2009, 04:03 AM   #9
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Lookin very good. Very DIY. I like! More pictures!
NA6C-Guy is offline   Reply With Quote
Old 03-06-2009, 08:37 PM   #10
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

will do. Torsens goin in tomorrow.
SKMetalworks is offline   Reply With Quote
Old 03-12-2009, 01:41 AM   #11
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

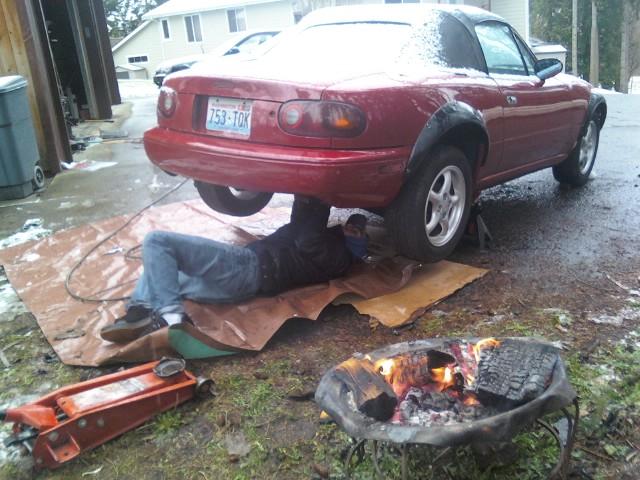

I havent made an update for a while been busy buying a new toy ( airsoft )

Anyway i got the torsen unit in

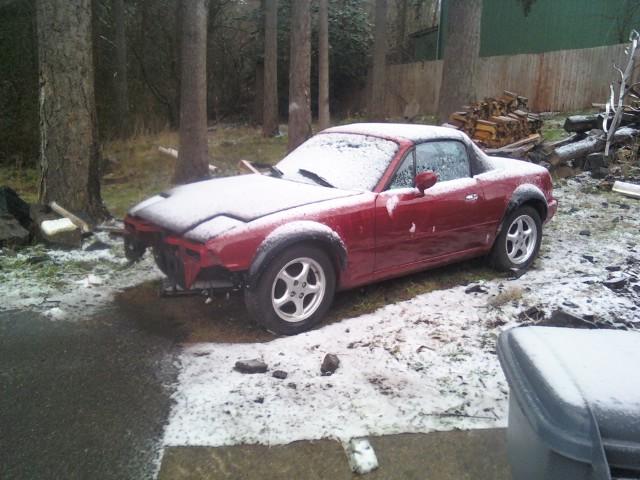

Woke up to see .....

Built a little fire .... to keep my hands warm

My brother got carried away with the air compressor nozzle

I made him torque the bolts to the torsen for punishment

Side note. I found my digital camera! no more shitty quality pictures ( after this post )
Attached Thumbnails
SBK's *build* thread-torsen-1.jpg   SBK's *build* thread-torsen-2.jpg   SBK's *build* thread-torsen-3.jpg   SBK's *build* thread-torsen-4.jpg
SKMetalworks is offline   Reply With Quote
Old 03-12-2009, 01:43 AM   #12
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

That looks cold
Gotpsi? is offline   Reply With Quote
Old 03-12-2009, 03:26 PM   #13
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by Gotpsi? View Post
That looks cold
It is. I've been doing my build in my [barely] heated garage. Mostly just keeps me dry and out of the wind.

Lookin good! Btw, i'll be in the area not this weekend but next weekend if you still need help with your mspnp.
wayne_curr is offline   Reply With Quote
Old 03-12-2009, 04:23 PM   #14
Newb

Join Date: Jan 2009
Posts: 41
Total Cats: 0
Default

Working on your car out in the cold like that...that takes *****.
mrwoolery is offline   Reply With Quote
Old 05-02-2009, 01:51 AM   #15
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

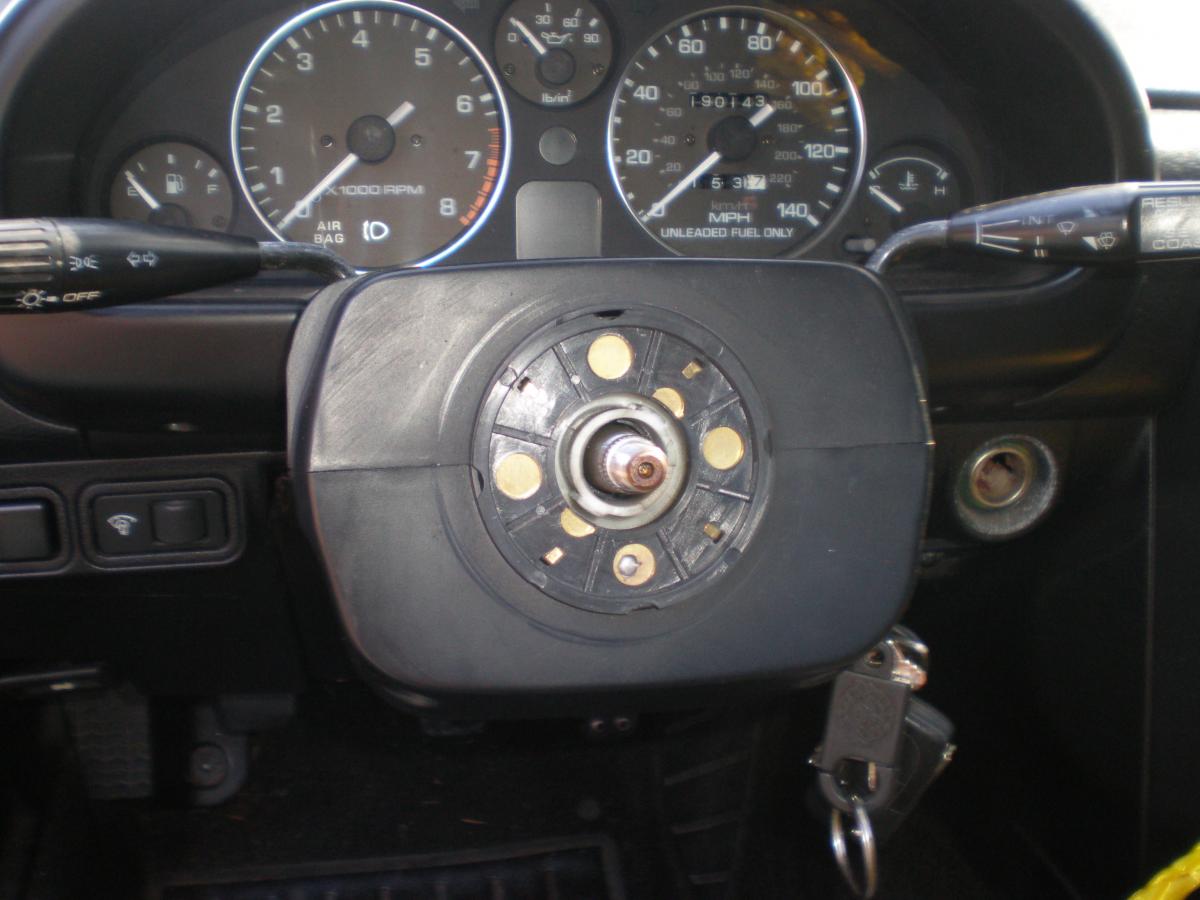

Havent been working on the car much lately. Been real busy at work. Today i got something done and will be getting more stuff done very soon

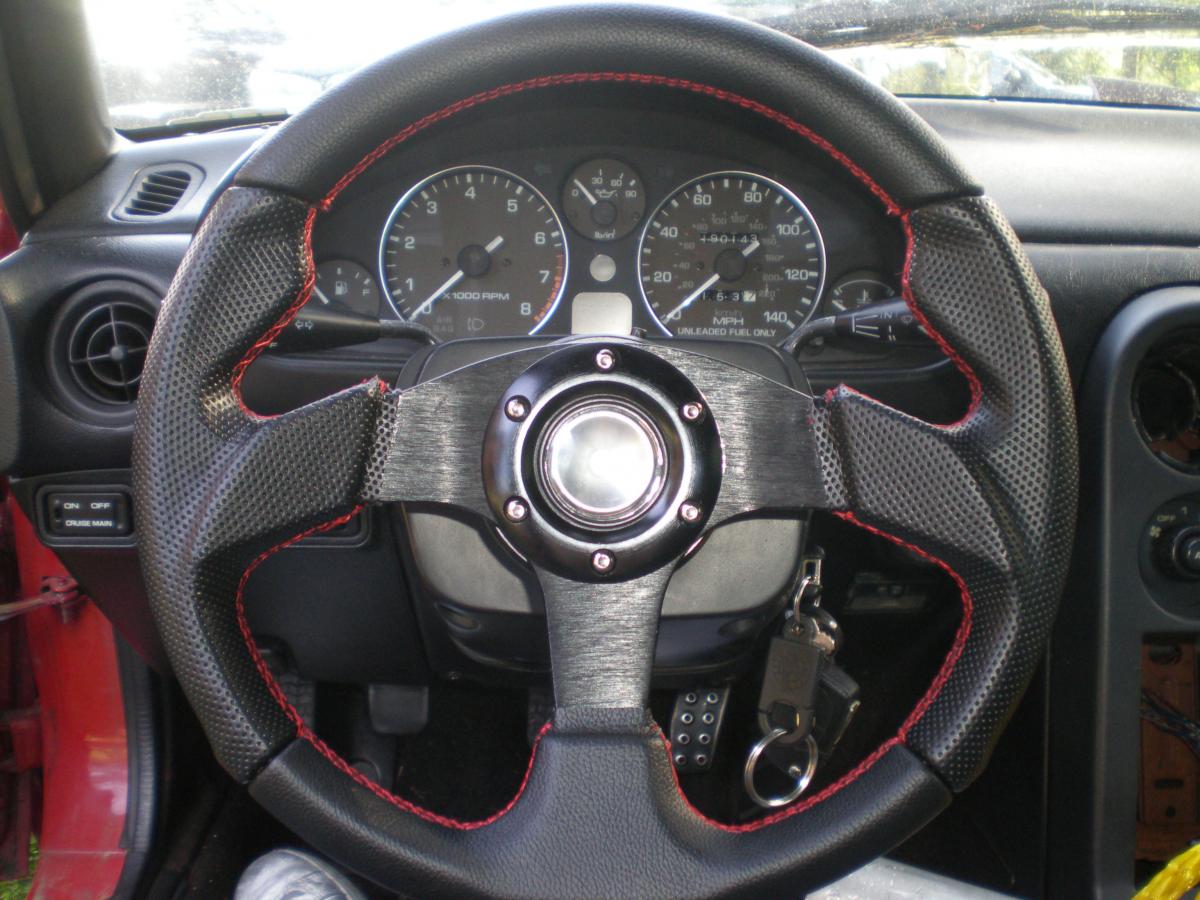

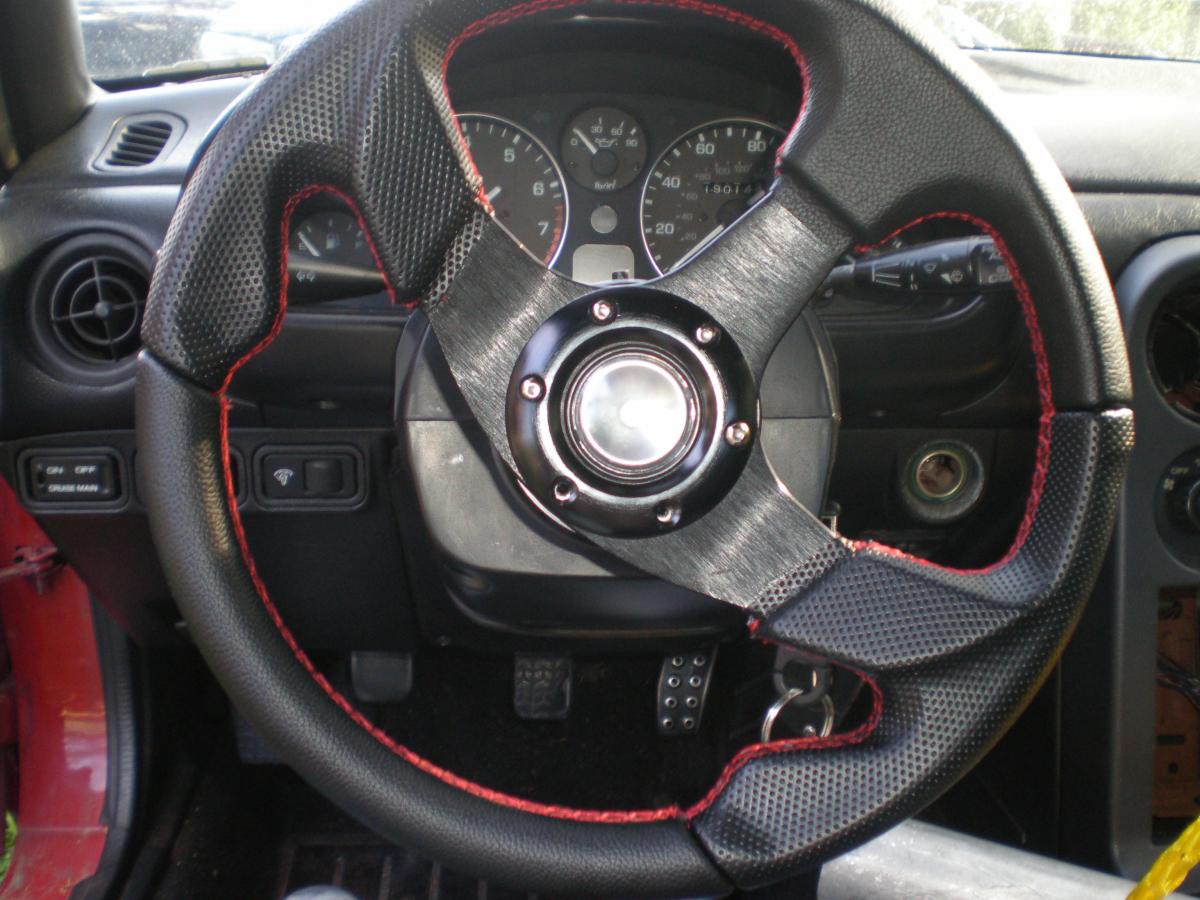

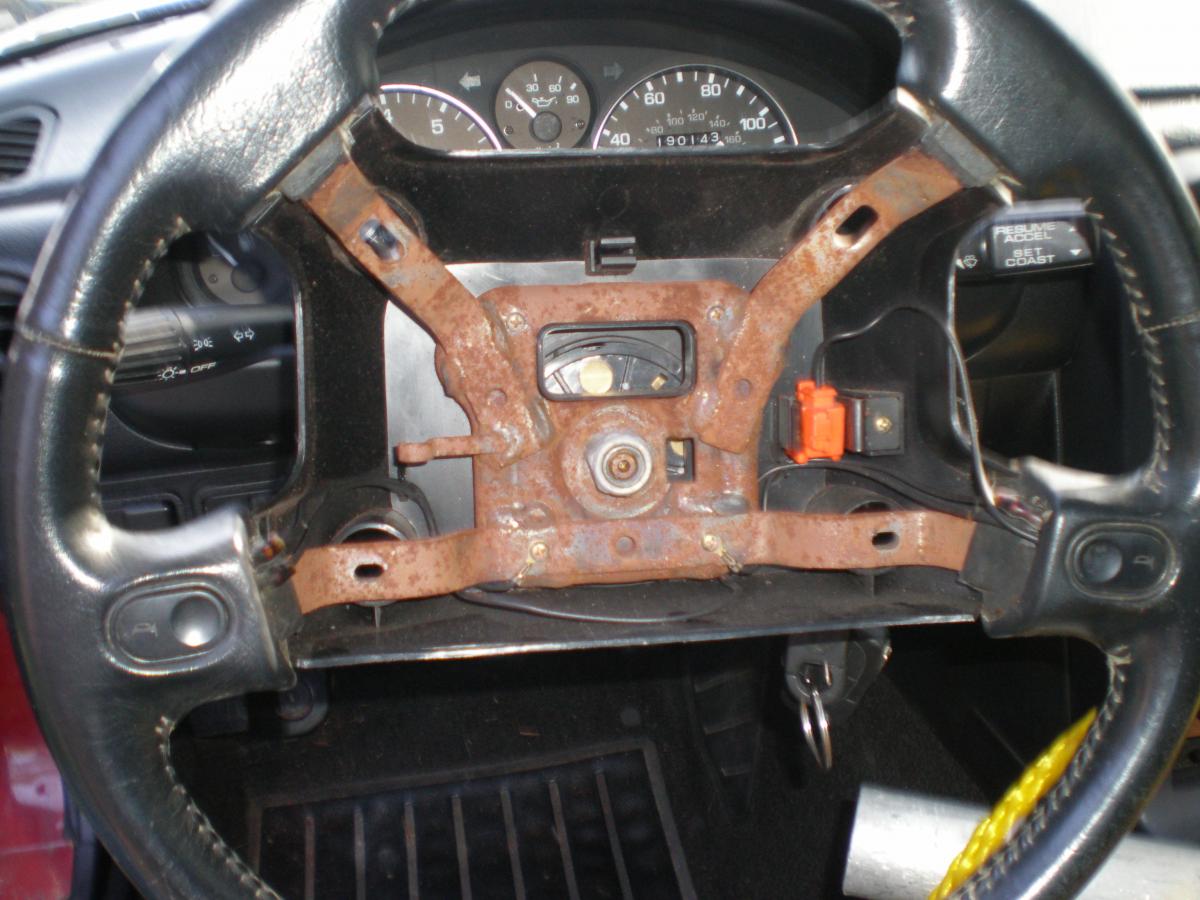

1. Man this wheels gotta go

2. Got it off that was easy wasnt even on there tight

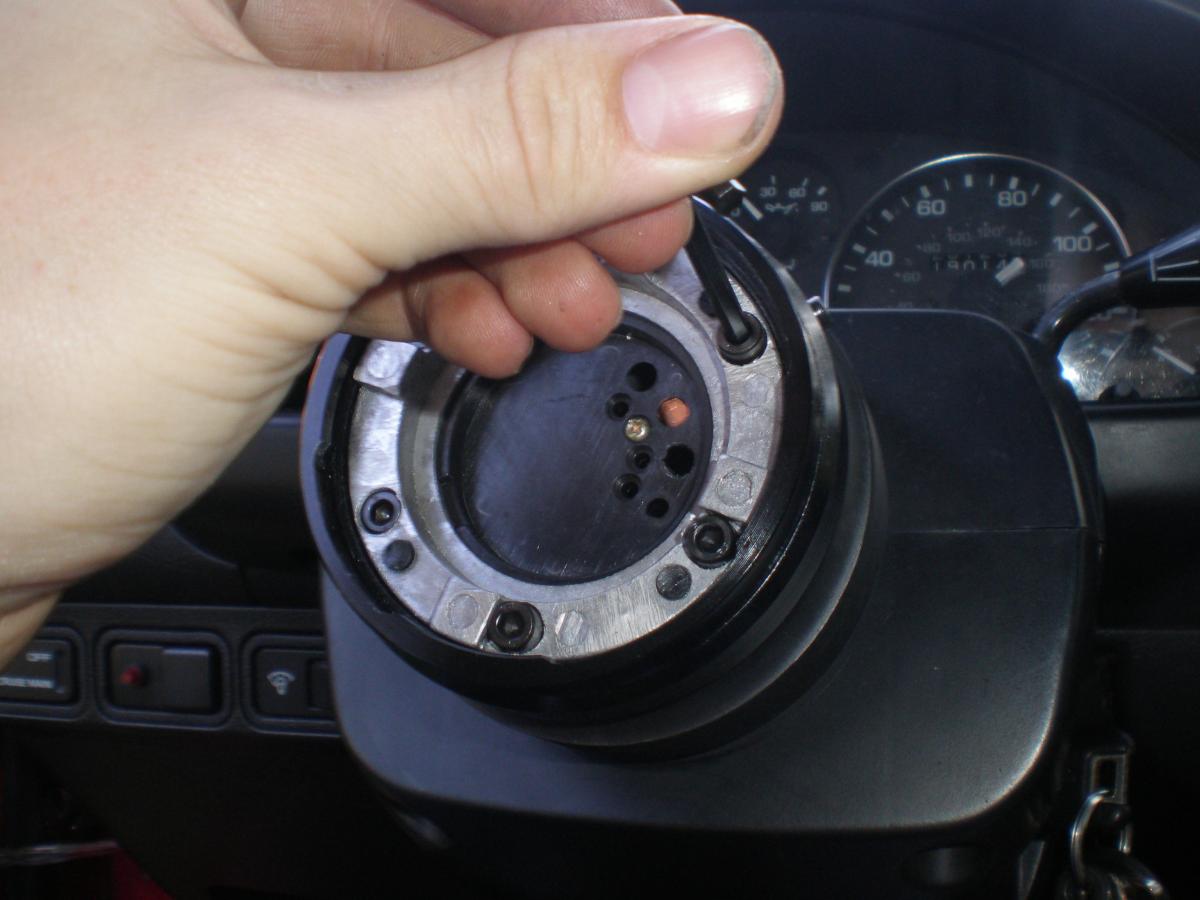

3. Putting the hub on

4. Oops did i forget to see the thing that says top?? (the wheels are straight forward btw)

5. There we go


Tomorrow me and my brother are hooking up the drivetrain and do some work in the engine bay ( clutch lines more plugs)
Attached Thumbnails
SBK's *build* thread-p5010035.jpg   SBK's *build* thread-p5010036.jpg   SBK's *build* thread-p5010037.jpg   SBK's *build* thread-p5010038.jpg   SBK's *build* thread-p5010039.jpg

SKMetalworks is offline   Reply With Quote
Old 05-02-2009, 10:33 AM   #16
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

sometimes quick release hubs and ebay hubs together are like chinese puzzles.
hustler is offline   Reply With Quote
Old 12-19-2009, 07:25 PM   #17
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Im reviving this thread because yesterday i pulled the car into the garage. First off i want to paint the car. All the work ive done thus far is going to be removed to paint it properly. That means hood fenders bumpers and such are going to be removed. As well as all the interior.

Few questions.

1. Do i need to remove the wiring harness to paint the engine bay?

2. If i remove everything how hard is it to put back together?

3. What color to paint it? I was thinking of sunburst yellow but my brother thinks its a lame color. Any ideas?
SKMetalworks is offline   Reply With Quote
Old 12-19-2009, 07:27 PM   #18
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Yellow is lame, especially with all the rain we get. I'd say dark grey, black, red, or smurf blue.
curly is offline   Reply With Quote
Old 12-19-2009, 07:40 PM   #19
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

What about an aggressive orange?


http://image.motortrend.com/f/auto-s...-speedster.jpg



(cant imbed i fail)
SKMetalworks is offline   Reply With Quote
Old 12-19-2009, 07:46 PM   #20
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

I think we both know you absolutely want to paint it yellow.
Jeff_Ciesielski is offline   Reply With Quote
