Old 03-22-2010, 12:55 PM   #101
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

^ I didn't mean for the HP difference. Probably wouldn't be much, but it would save $$ on bends. Mandrel bends are more expensive than straight pipe

Quote:
Originally Posted by Sparetire View Post
Would it be harder to transition the pipe to the proper direction right next to the diff if it was done that way?
If you mean my pic, it would make it easier for a traditional pass. side exit muffler. A 90 degree points the muffler pretty close to the correct angle, but for SKB's setup what he did works better.
ARTech is offline   Reply With Quote
Old 03-22-2010, 01:34 PM   #102
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by ARTech View Post
^ I didn't mean for the HP difference. Probably wouldn't be much, but it would save $$ on bends. Mandrel bends are more expensive than straight pipe
Nah I hear ya Abe, all my exhausts are the way you drew. Just bustin *****.
TurboTim is offline   Reply With Quote
Old 03-22-2010, 03:27 PM   #103
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

I hear ya. I just didn't want it to scrape or rattle so I tried to keep atleast half inch clearance for engine torque.
SKMetalworks is offline   Reply With Quote
Old 06-08-2010, 12:34 AM   #104
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

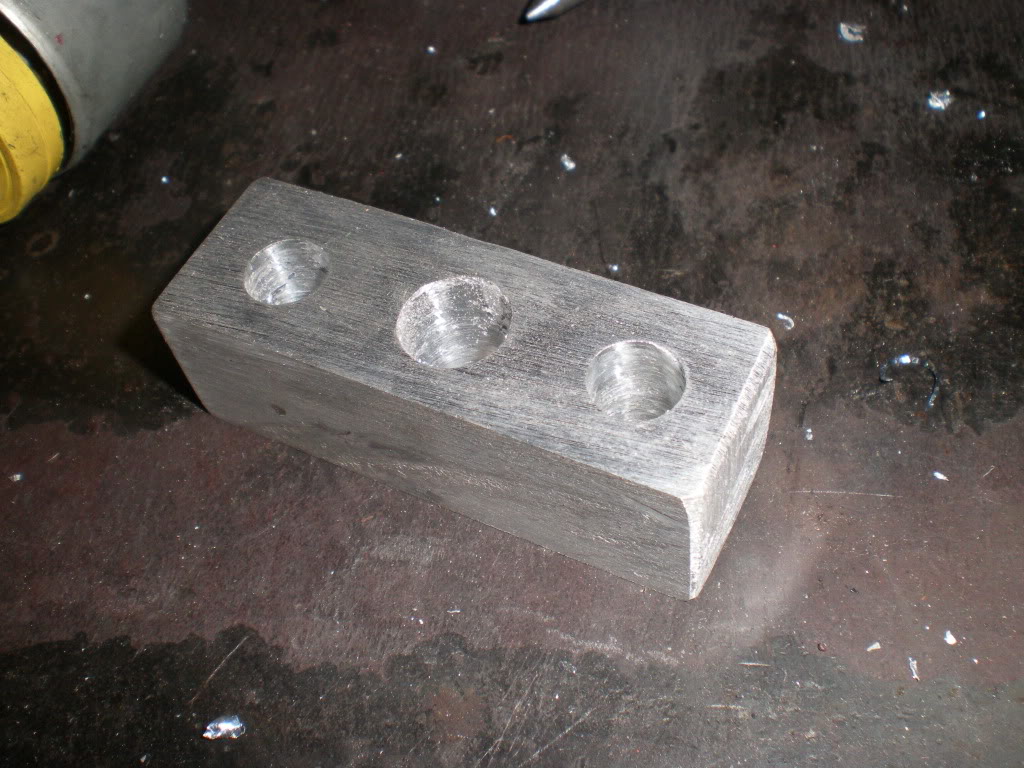

After taking a break on the car i finally jumped back into finishing it up. I started making the oil return plate and realized i didnt have any 1/2" tube.

Name:  P1010016.jpg
Views: 0
Size:  163.3 KB

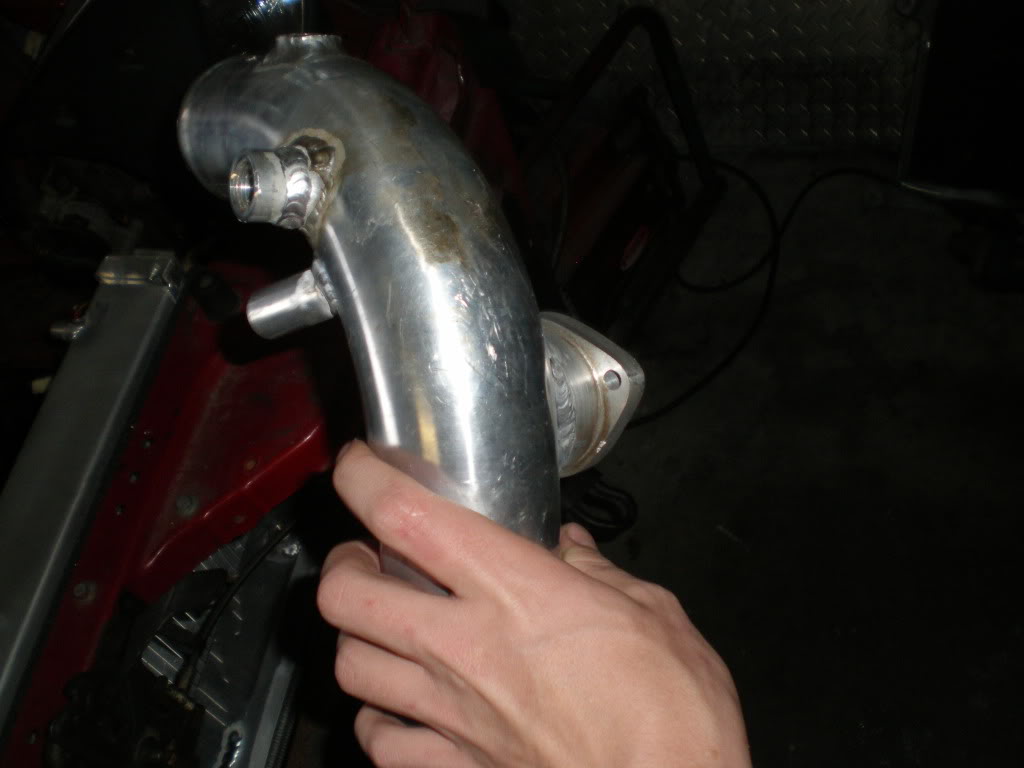

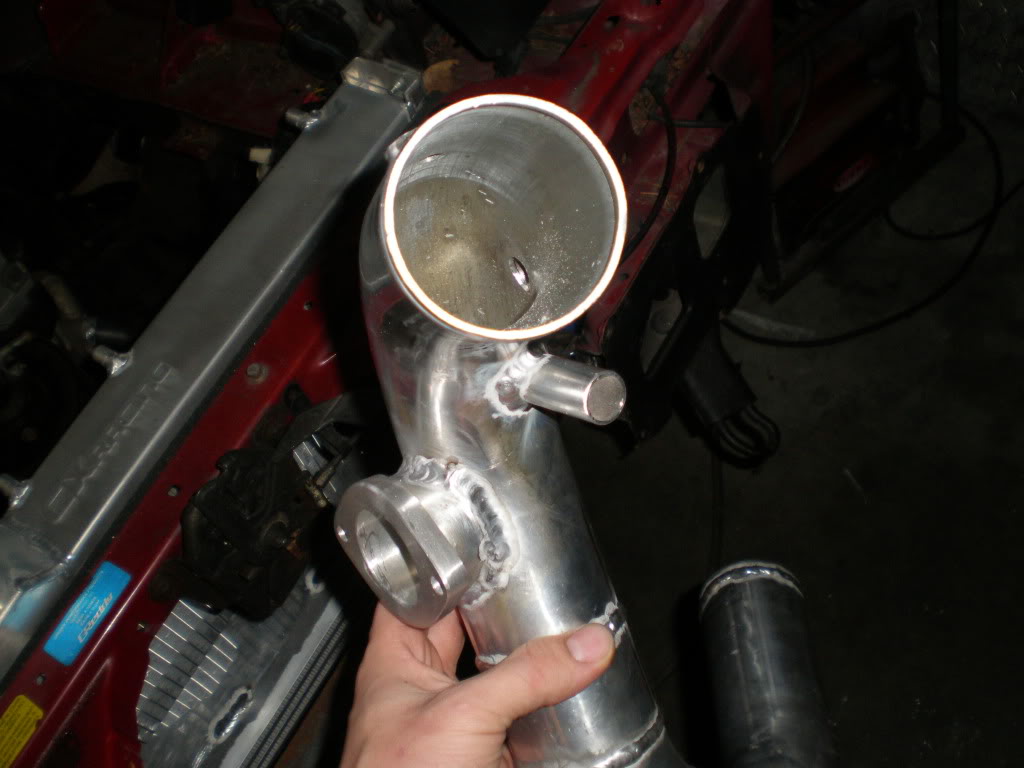

Then i completed the cold side pipe adding BOV and the IACV.

Name:  P1010015.jpg
Views: 0
Size:  72.8 KB

Name:  P1010014.jpg
Views: 0
Size:  95.3 KB


That is all.
SKMetalworks is offline   Reply With Quote
Old 06-09-2010, 12:42 AM   #105
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

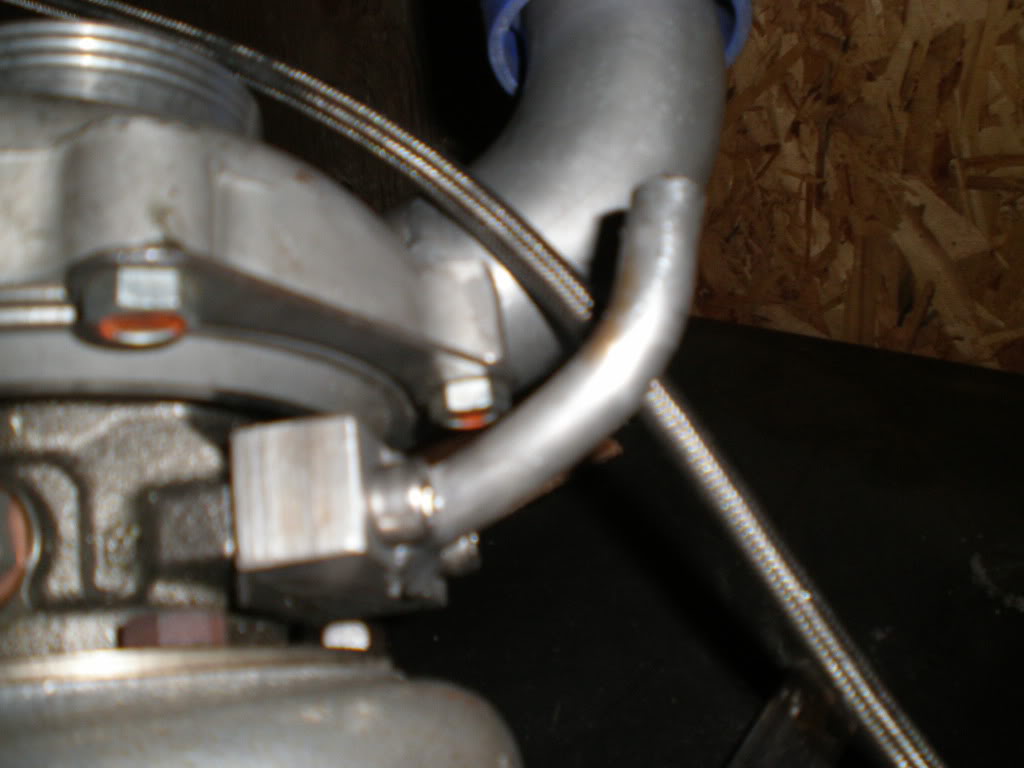

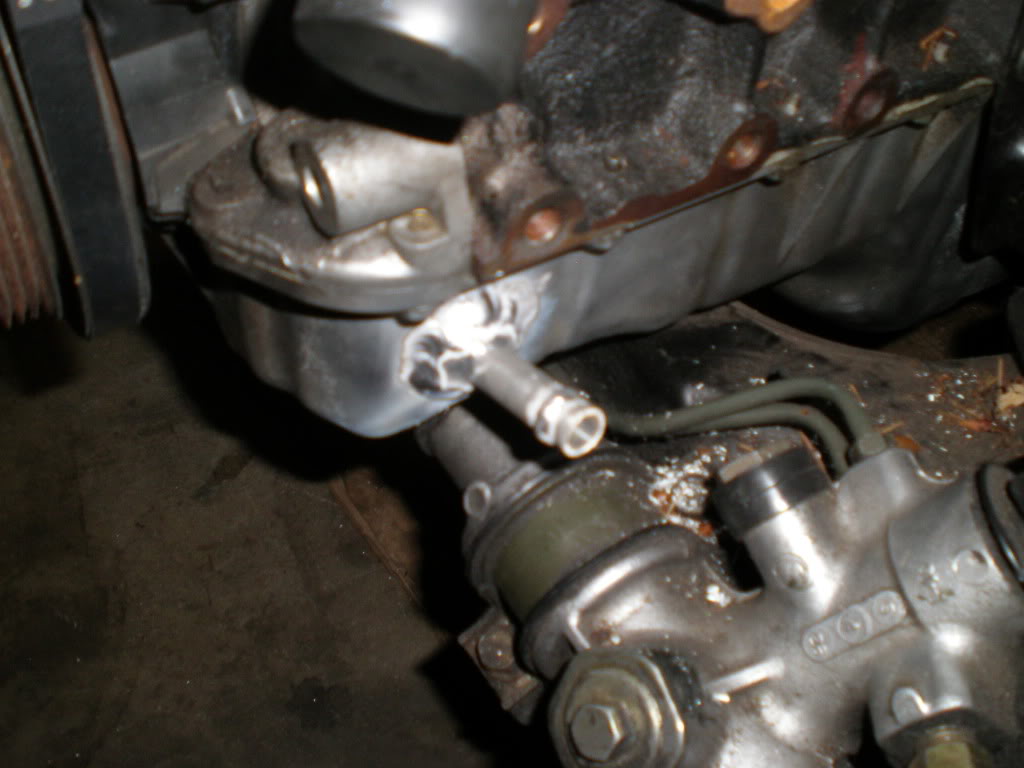

Oil drain line is done, all i have to do is cut a piece of hose and put clamps on it.

Name:  P1010017.jpg
Views: 0
Size:  91.8 KB

Name:  P1010021.jpg
Views: 0
Size:  81.0 KB

I ended up not having any 1/2" tube (ID of -10an) at work but had some 1/2" round stock. Busted out the lathe and made in 1/2" tube. Took a while but worth it. Also the girlfriend came over and she cleaned the garage which is saweet!
SKMetalworks is offline   Reply With Quote
Old 06-09-2010, 02:25 AM   #106
Senior Member
iTrader: (3)

Join Date: May 2008
Location: Fargo, ND
Posts: 534
Total Cats: 3
Default

Noticed in the first post, first picture the welds. Pretty sure that's a tig, and pretty sure that's impressive, especially given the way the weld is setup. Not easy to do. Hell, I have a time with it in a vice while sitting in a chair.

Cool project.
chance91 is offline   Reply With Quote
Old 06-09-2010, 05:10 AM   #107
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

It pays to be a professional welder.

Congrats on getting some motivation again. Let's see this thing finished!
curly is offline   Reply With Quote
Old 06-09-2010, 06:40 AM   #108
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

Quote:
Originally Posted by curly View Post
It pays to be a professional welder.
Seriously does.
turotufas is offline   Reply With Quote
Old 06-09-2010, 12:36 PM   #109
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Workin on it! Thanks guys.
SKMetalworks is offline   Reply With Quote
Old 06-10-2010, 01:18 AM   #110
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

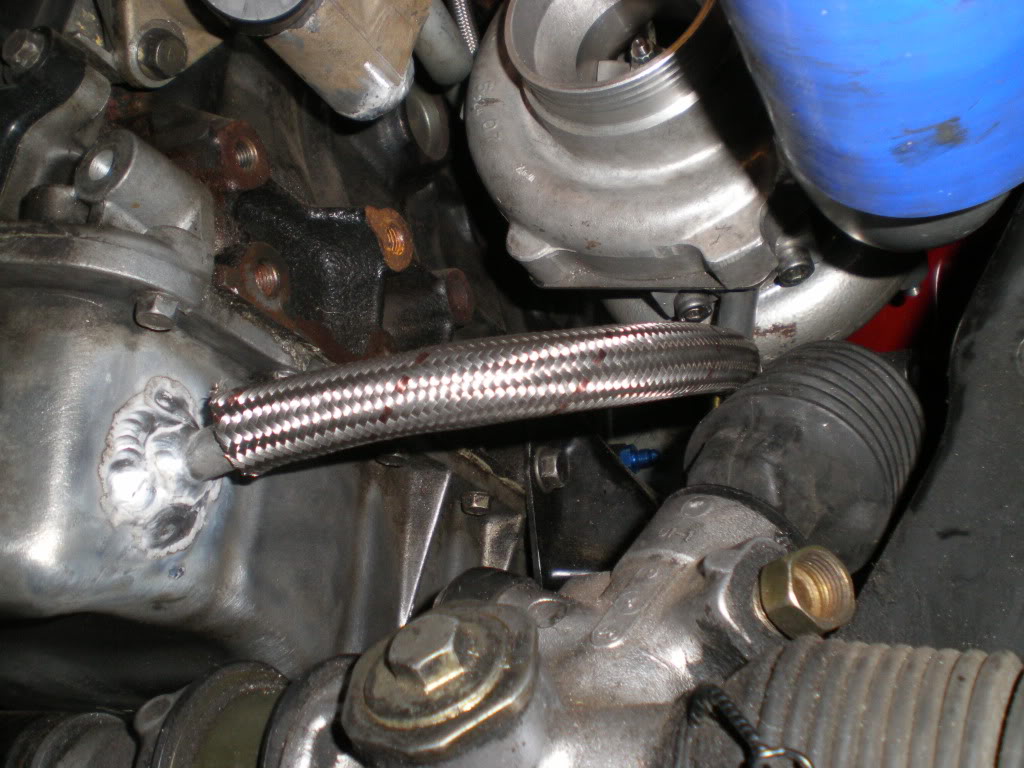

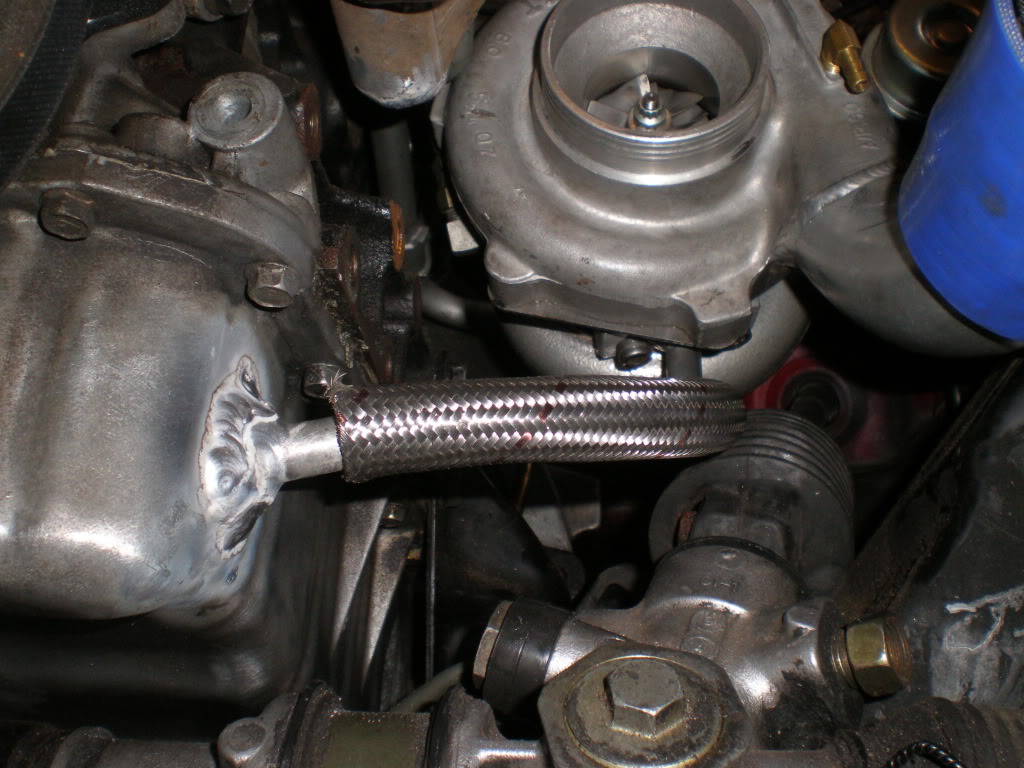

Oil drain done!

Name:  P1010023.jpg
Views: 0
Size:  143.9 KB

Name:  P1010024.jpg
Views: 0
Size:  144.1 KB

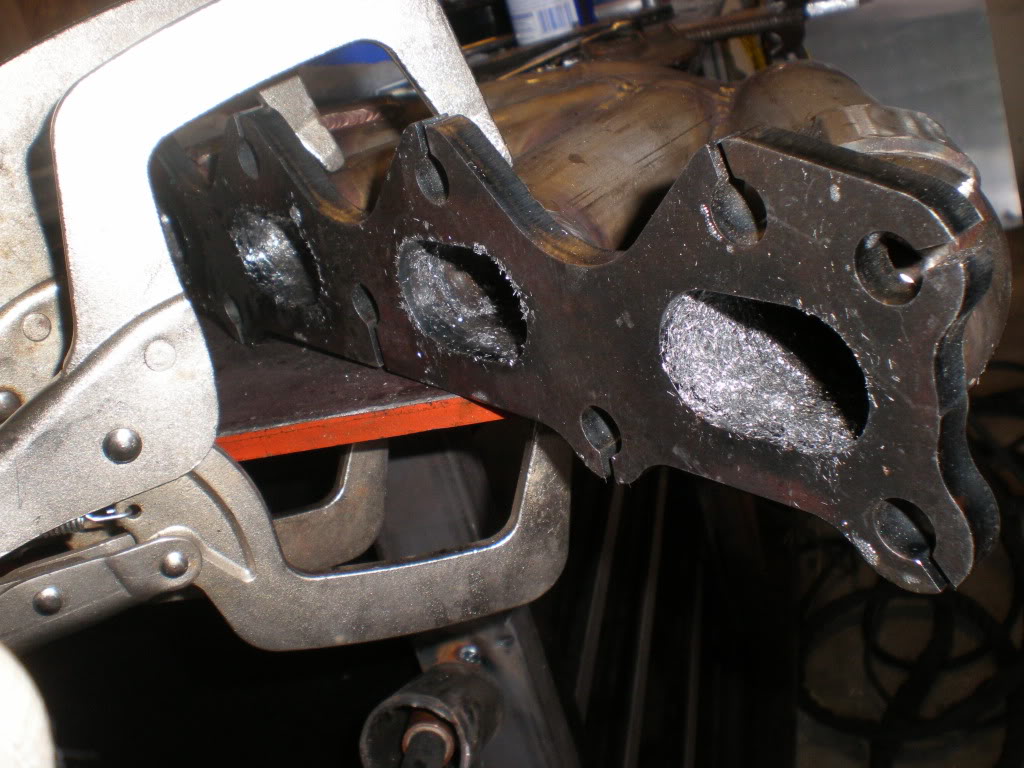

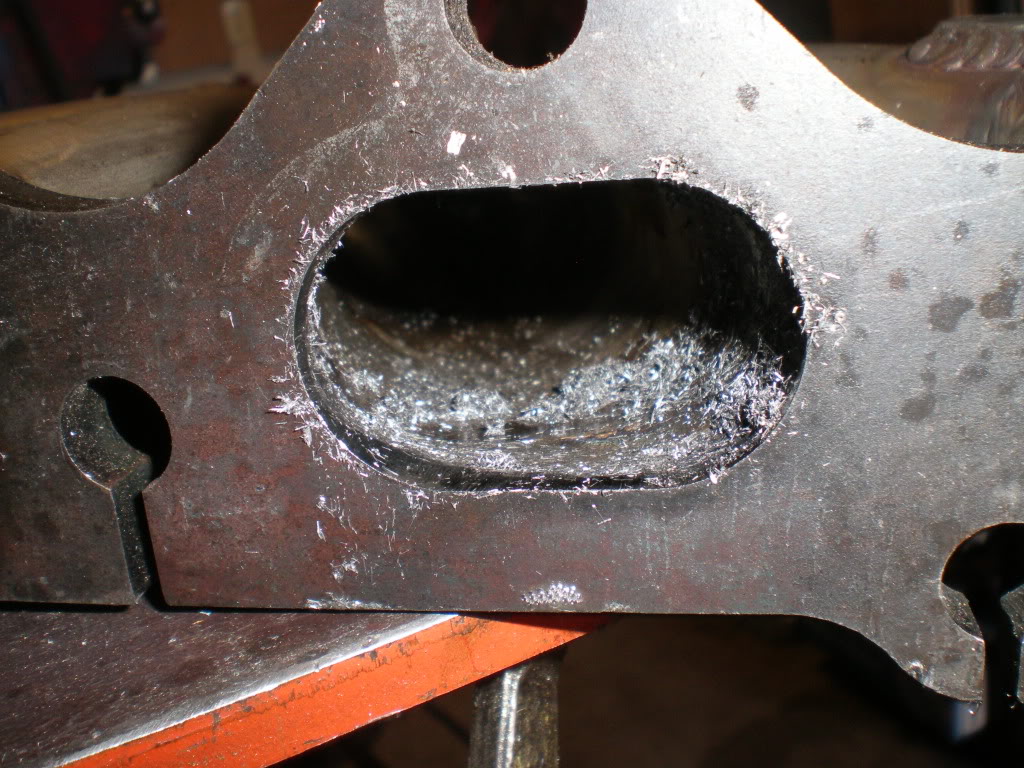

I decided to get the manifold decked this weekend as it is a bit warped but before i did that i might as well smooth out the inside right?

Name:  P1010025.jpg
Views: 0
Size:  150.5 KB


Name:  P1010026.jpg
Views: 0
Size:  195.6 KB

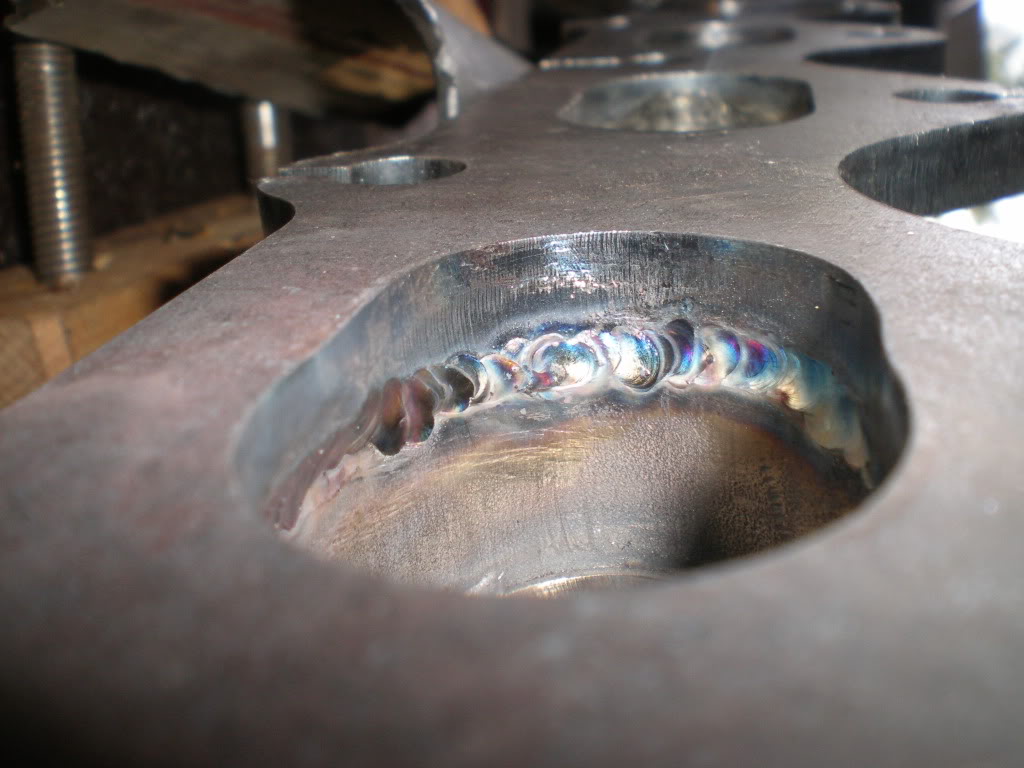

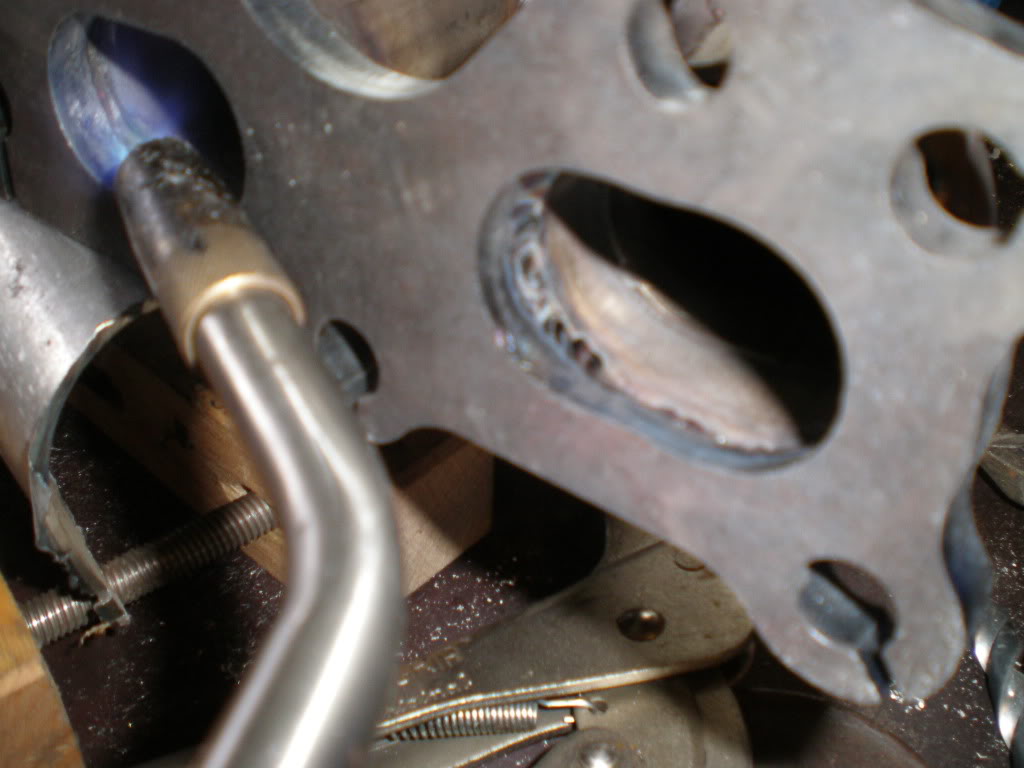

After hogging it out and easing the transition from flange to runners i decided to weld it all the way around on the inside to give it a little extra strength.

Name:  P1010027.jpg
Views: 0
Size:  91.0 KB

Name:  P1010028.jpg
Views: 0
Size:  110.8 KB

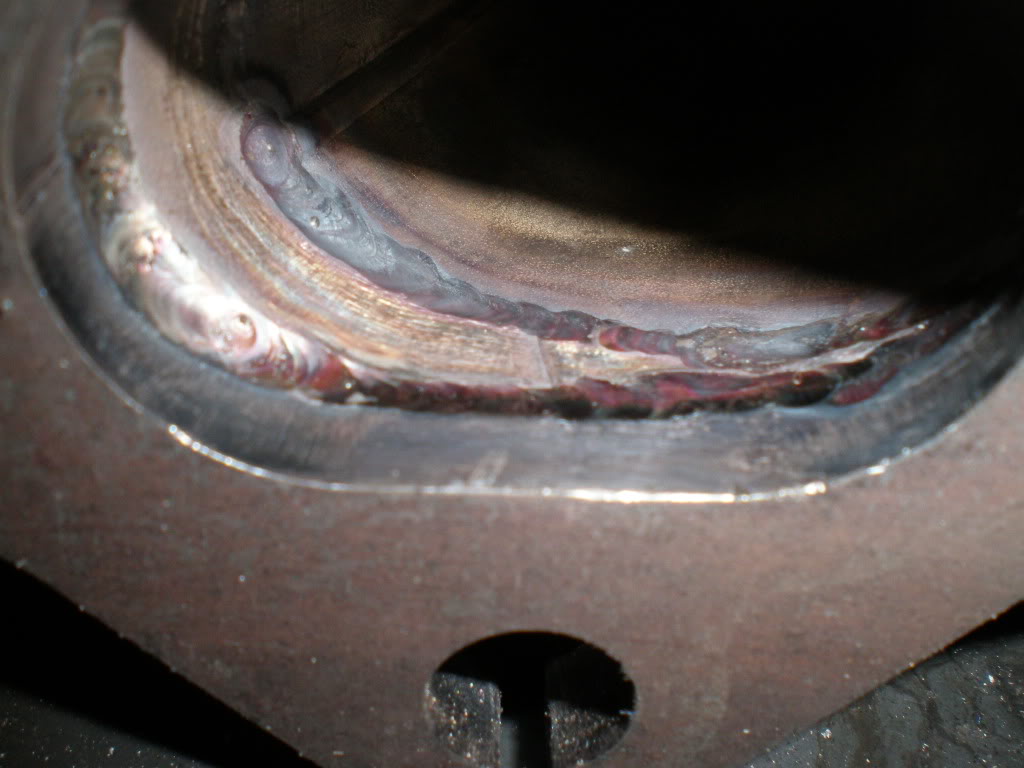

Name:  P1010029.jpg
Views: 0
Size:  93.1 KB


That is all and one last question,
How much should i expect to pay to have the head flange decked?
SKMetalworks is offline   Reply With Quote
Old 06-10-2010, 01:28 AM   #111
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

You should be able to have it done properly for 20 bucks.
wayne_curr is offline   Reply With Quote
Old 07-05-2010, 06:13 PM   #112
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Is it alive?
JayL is offline   Reply With Quote
Old 10-01-2010, 02:27 AM   #113
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

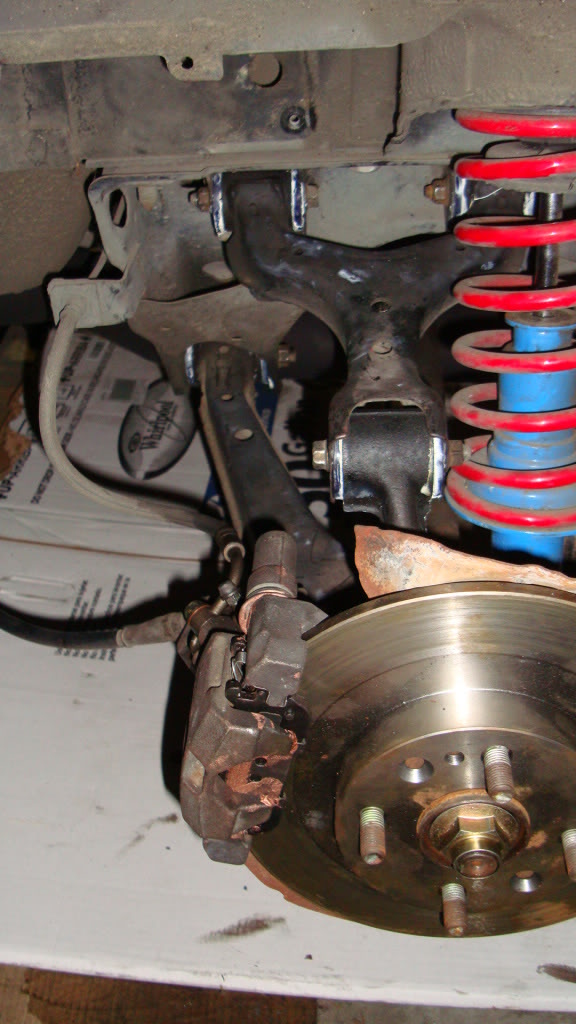

After yet another break i just got back into the miata again. I think this time is the one that i finish it. All the suspension components are in place and torqued (minus the top shock). Also the breaks are done, bled, flushed and work.

Name:  MiataRecap010.jpg
Views: 0
Size:  131.7 KB

Name:  MiataRecap002.jpg
Views: 0
Size:  105.5 KB

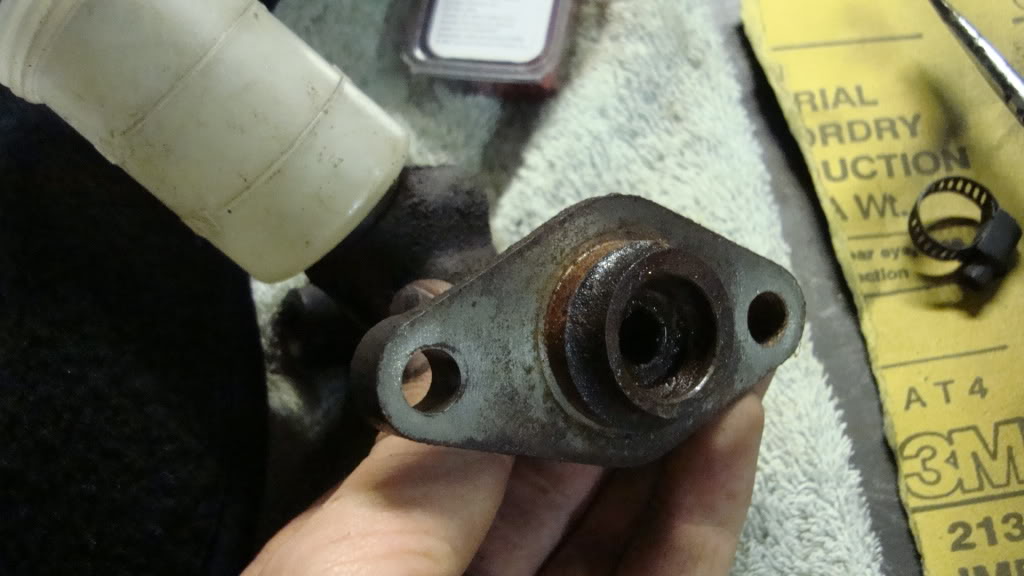

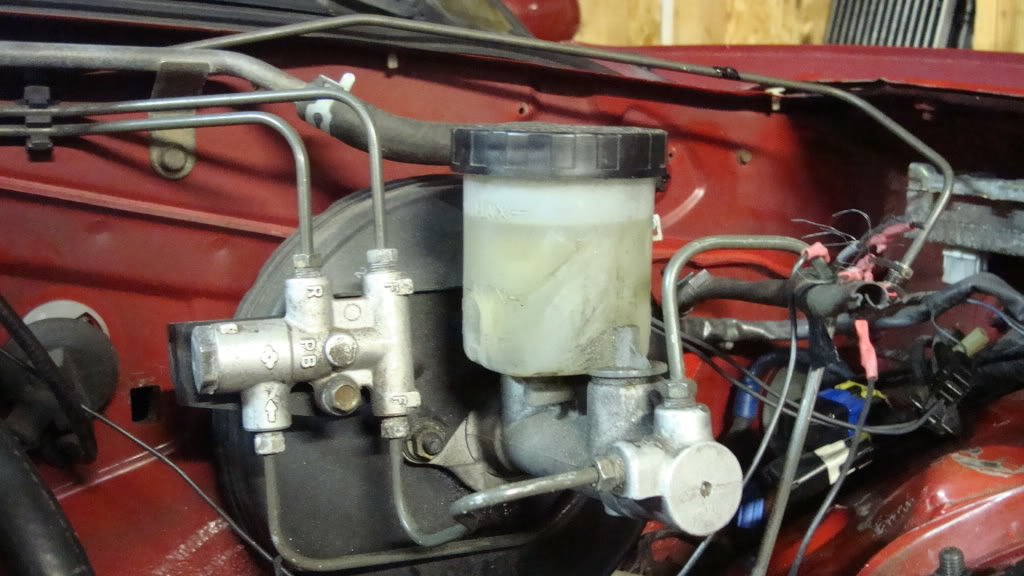

I tried to flush my clutch also but had no feel at the pedal, turns out my clutch slave siezed and after pounding on it i finally got it moving. However, i am just going to replace it with a new one, the bore is not what i call smooth.

Name:  MiataRecap003.jpg
Views: 0
Size:  78.6 KB

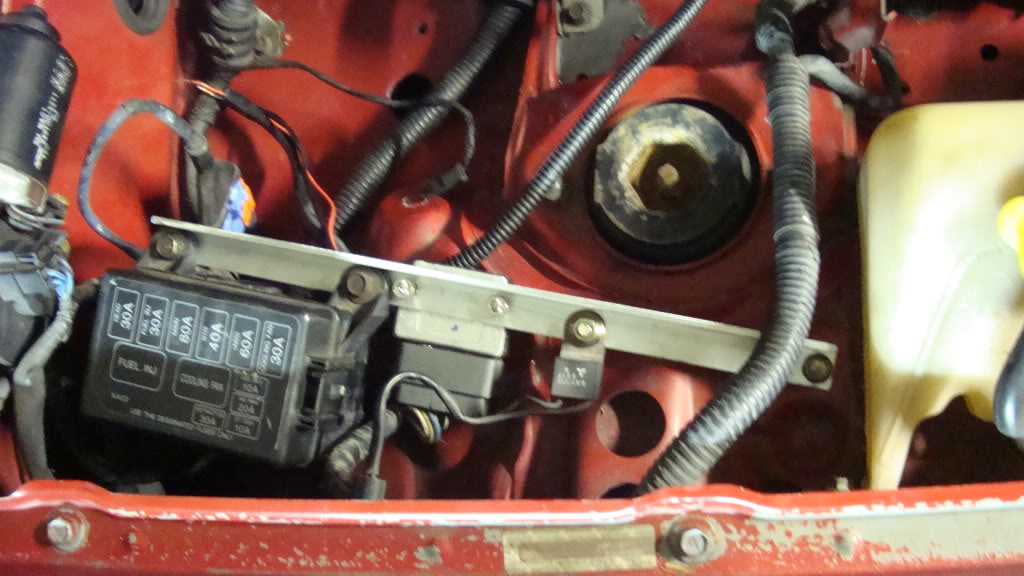

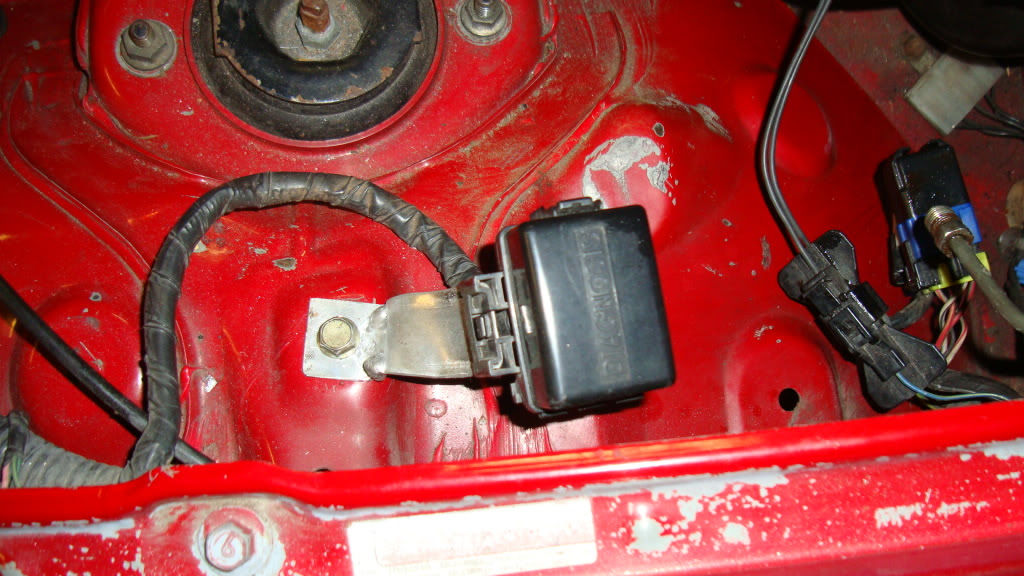

The other day i was reading the weight stripping thread and thought i could ditch some steel

Name:  MiataRecap001.jpg
Views: 0
Size:  110.8 KB

Name:  MiataRecap012.jpg
Views: 0
Size:  173.7 KB

Also took off the rear tow hooks and leave one in the front.

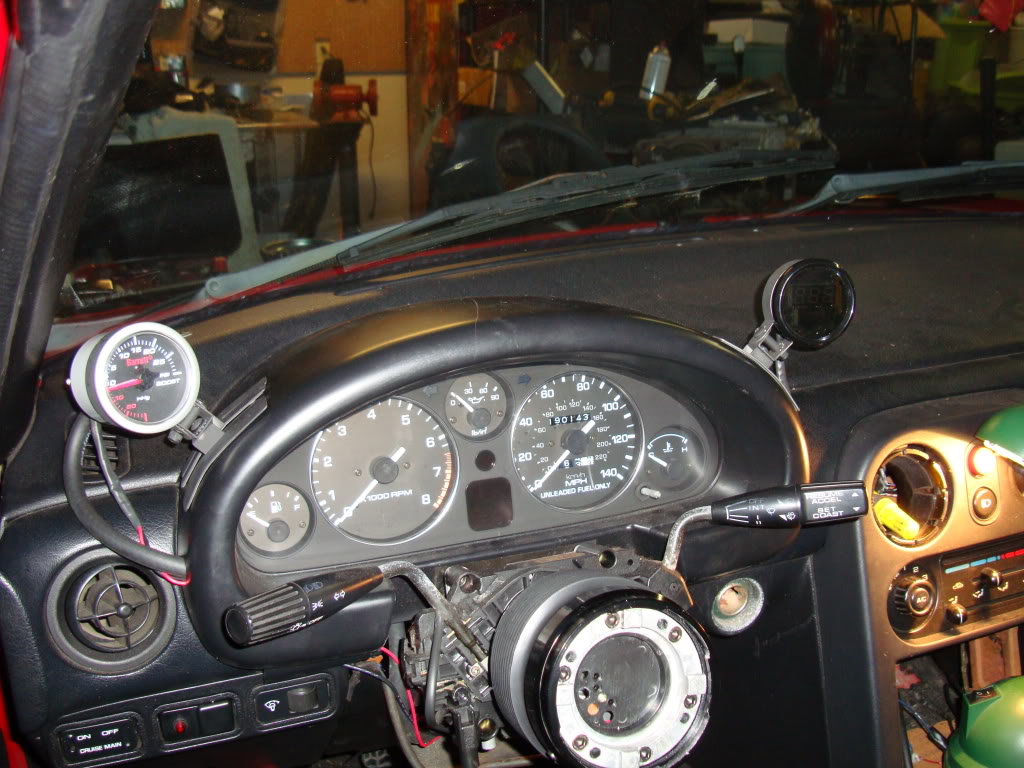

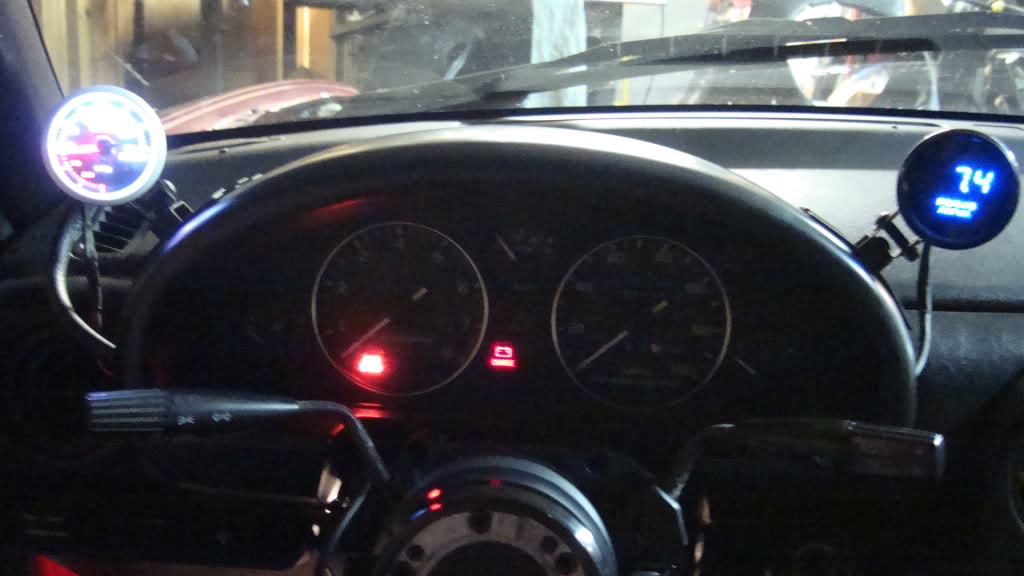

Got my gauges hooked up and functioning, About there. (can anyone say mickey mouse?)

Name:  MiataRecap005.jpg
Views: 0
Size:  150.5 KB

Name:  MiataRecap013.jpg
Views: 0
Size:  85.7 KB

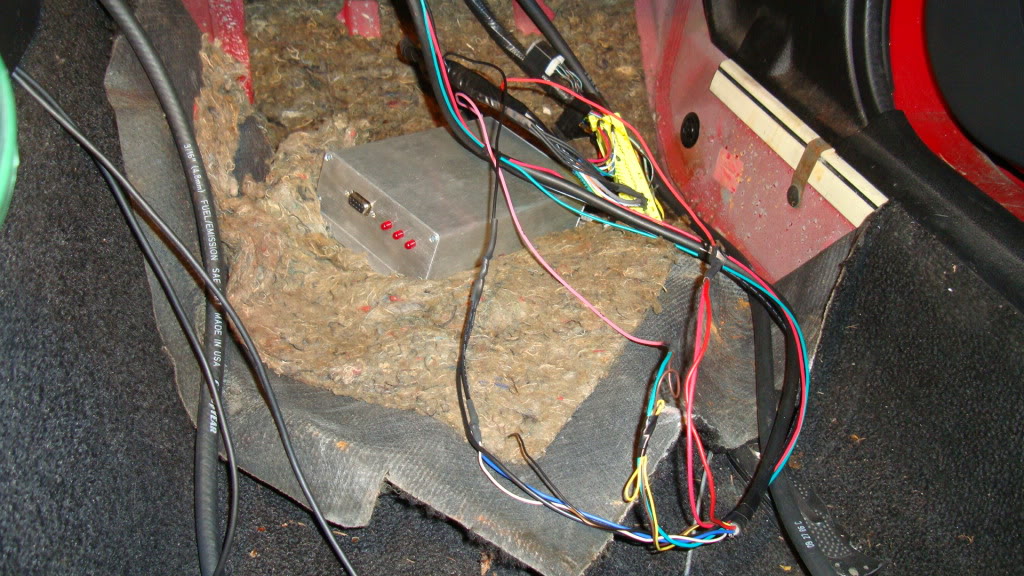

Megasquirt ya!

Name:  MiataRecap009.jpg
Views: 0
Size:  189.1 KB


I need rubber for my 6uls, The money is in the form of forged pistons, but last time i checked, discount tire doesn't accept pistons. So I'm selling them in the classifieds if anyone is interested let me know.
SKMetalworks is offline   Reply With Quote
Old 10-01-2010, 02:36 AM   #114
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Holy ******* ****. I dont believe it.

I have a set of r888 225 race take-offs that probably have a few track days left in them if you're interested. I dont think i'm going to put them on the GTX now that I think about it. It needs too much other stuff to get it on the road.
wayne_curr is offline   Reply With Quote
Old 10-01-2010, 02:41 AM   #115
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Quote:
Originally Posted by wayne_curr View Post
Holy ******* ****. I dont believe it.

I have a set of r888 225 race take-offs that probably have a few track days left in them if you're interested. I dont think i'm going to put them on the GTX now that I think about it. It needs too much other stuff to get it on the road.

What you looking for them?
SKMetalworks is offline   Reply With Quote
Old 10-01-2010, 02:49 AM   #116
Newb

Join Date: Sep 2009
Location: Renton
Posts: 32
Total Cats: 0
Default

Get that thing done. I need another miata on the track to smoke. Yes I am talking about you (Jason)
90GTK450 is offline   Reply With Quote
Old 10-01-2010, 02:57 AM   #117
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Quote:
Originally Posted by 90GTK450 View Post
Get that thing done. I need another miata on the track to smoke. Yes I am talking about you (Jason)

Well it would go faster if i had help...
SKMetalworks is offline   Reply With Quote
Old 10-02-2010, 11:23 AM   #118
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Quote:
Originally Posted by SKMetalworks View Post
After yet another break i just got back into the miata again. I think this time is the one that i finish it.
On Monday when you lose interest in the project give me a call and I'll stop by and pick up those 6ULs.

Quote:
Originally Posted by 90GTK450 View Post
I need another miata on the track to smoke. Yes I am talking about you (Jason)
Wake up Ben, it's just a dream.
JayL is offline   Reply With Quote
Old 10-10-2010, 01:15 AM   #119
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

The car runs now, ordering some tires tomorrow. Turns out the ecu map was set on stim and couple solders broke. I hope to drive it soon.
SKMetalworks is offline   Reply With Quote
Old 10-13-2010, 11:50 PM   #120
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

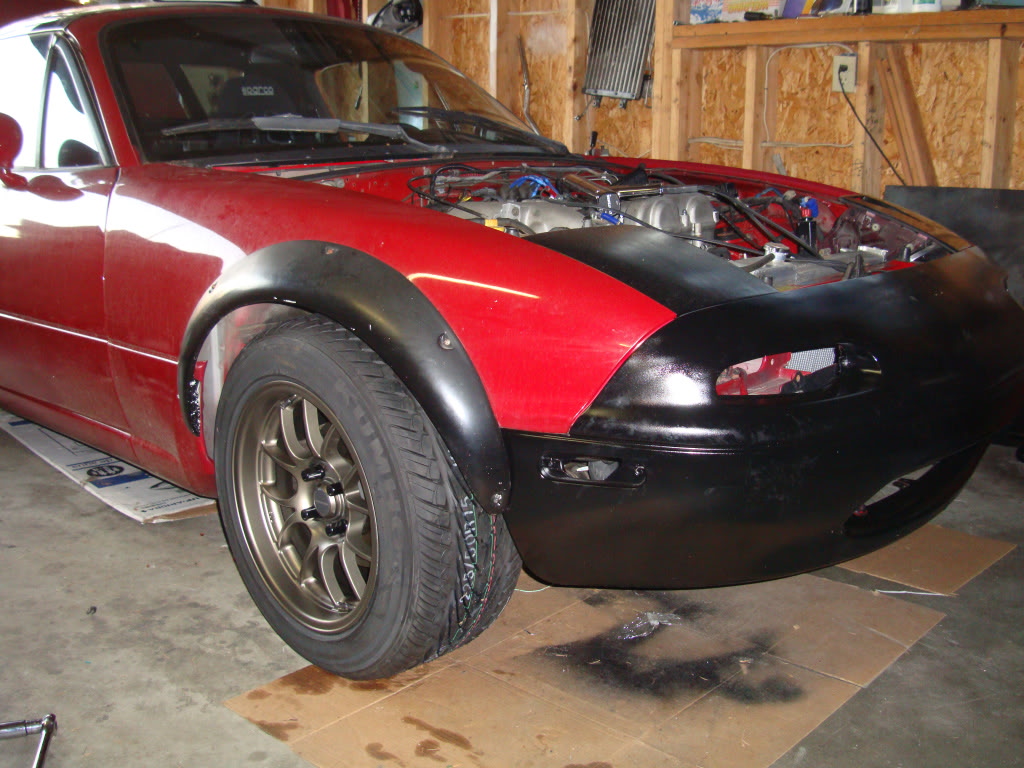

So today was a good day, went and picked up my Khumo Ecsta AST's and got them mounted on the miata.

Name:  Nessa95002.jpg
Views: 0
Size:  197.5 KB

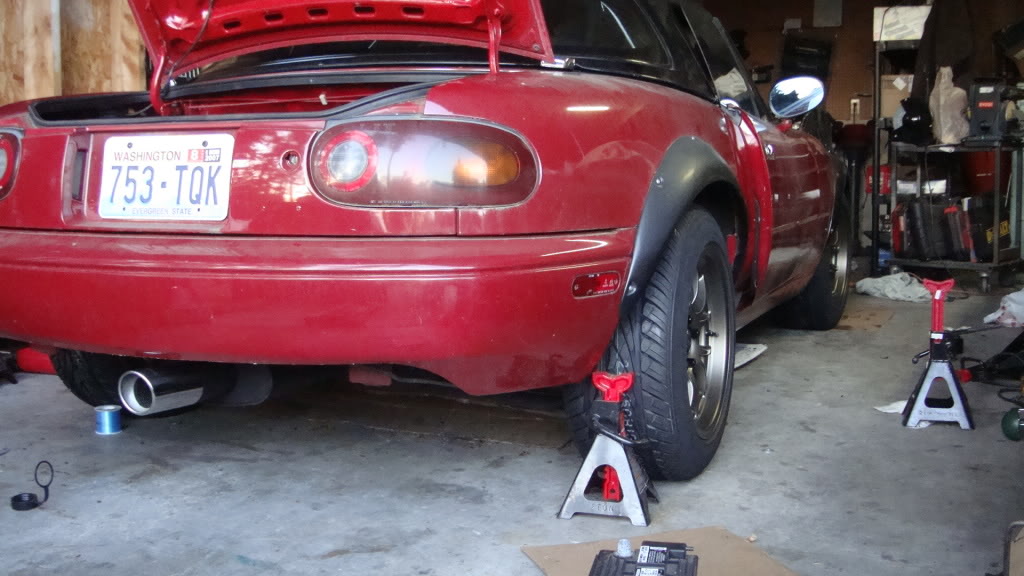

Name:  Nessa95003.jpg
Views: 0
Size:  114.3 KB

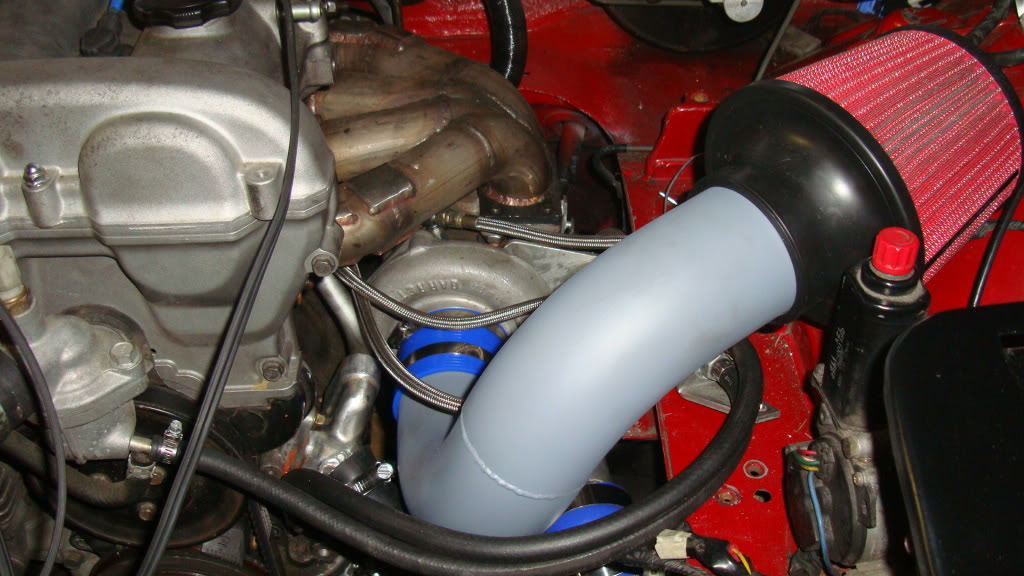

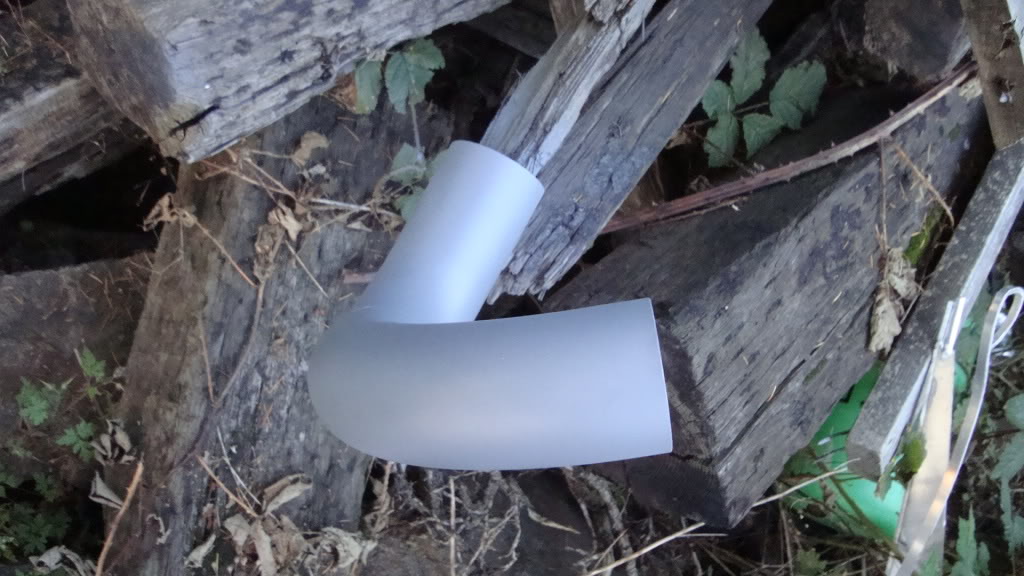

I made my intake pipe yesterday and sandblasted it at work today, Then i primed it and will most likely paint it black.

Name:  Nessa95004.jpg
Views: 0
Size:  113.4 KB

Name:  Nessa95006.jpg

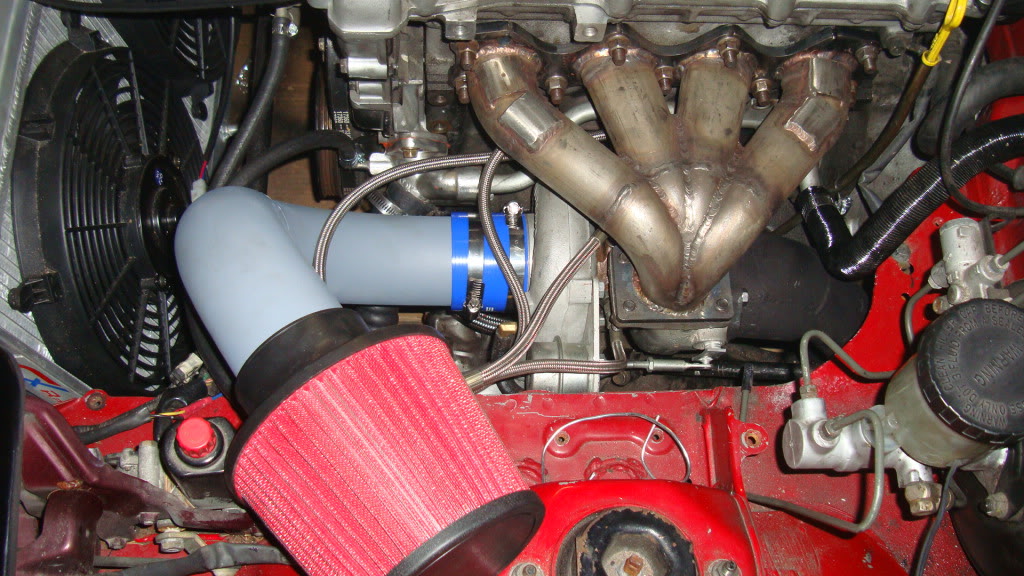

Views: 0
Size:  194.2 KB

Name:  Nessa95007.jpg
Views: 0
Size:  124.8 KB

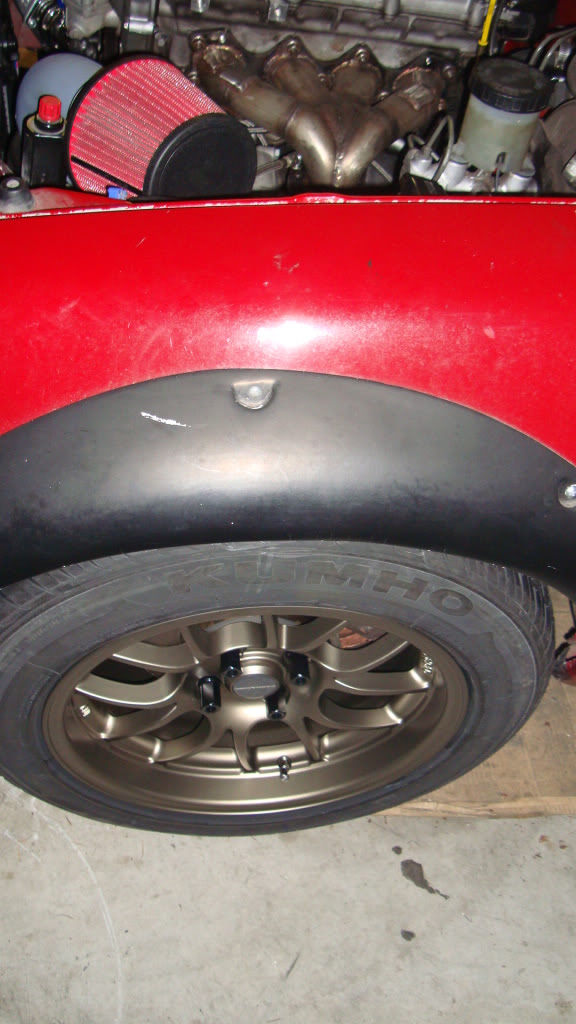

and one shot of both

Name:  Nessa95008.jpg
Views: 0
Size:  124.7 KB

I started tuning the idle and got it pretty good except it pops quite a bit. Cant drive it till i get the harnesses in and get my fans to turn on (they don't right now). Front duct work is in the future as i have all the materials.
SKMetalworks is offline   Reply With Quote
