Default Sealing the heat exchangers to the mouth.

I've got the Godspeed radiator, BEGI's scooper and top plate. There is still a lot of room around the heat exchangers on the sides. What materials are people using to seal this up? ABS? Aluminum sheet? Foam? Something flexible?

I've got every possible option intact on my 94, AC + PS, so there's a whole lot of crap in the way, pipes, tubes, wires, etc. They make this look like a reasonbly tough job. With all the track days I run I've gotta do it though. Looking for any advice from those that have done it before. Hustler? Johndoe? Savington? Others?
cueball1 is offline   Reply With Quote
Old 06-18-2009, 03:02 PM   #2
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

I used some of that black plastic stuff you heat gun to get it to take a shape. It works well but not incredible. I've seen foam rubber, perhaps that's the way to go. I always end up finishing my gaps with aluminum tape.
AbeFM is offline   Reply With Quote
Old 06-18-2009, 03:08 PM   #3
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

my plastic pieces are ghetto as ****. I need to redo it and seal it properly but the roll from BSR is not a bad deal and although it won't be the most gorgeous **** you've seen in your life, it will work. Get extra long rivets and washers for assembly.
hustler is offline   Reply With Quote
Old 06-18-2009, 03:11 PM   #4
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,994
Total Cats: 13
Default

I would recommend ABS, what little work I have done with it suggests that it is durable and easy to form with a heat gun.
skidude is offline   Reply With Quote
Old 06-18-2009, 03:17 PM   #5
Senior Member

Join Date: Sep 2007
Location: Alamo City, Tejas
Posts: 774
Total Cats: 1
Default

Aluminum sheet with foam rubber gaskets.

- L
l_bader is offline   Reply With Quote
Old 06-18-2009, 04:27 PM   #6
Elite Member
Thread Starter
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Any pics of the shrouding anyone has done?

I don't care too much about appearance as long as it doesn't look bad when the cars driving down the road. With all the BS around my exhangers aluminum likely isn't an option. Too damn many lines and hoses to get around. Something ABS is more likely for me. How flexible can the material be and still keep the air going where it needs to? That BSR stuff in the roll is pretty flexible I would think. 1/8 " abs is pretty rigid but has some give and of coarse you have the heat gun option. Overkill that thick or not enough? Any way I look at it lots of foam or metal tape is likely to come into play.
cueball1 is offline   Reply With Quote
Old 06-18-2009, 04:39 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

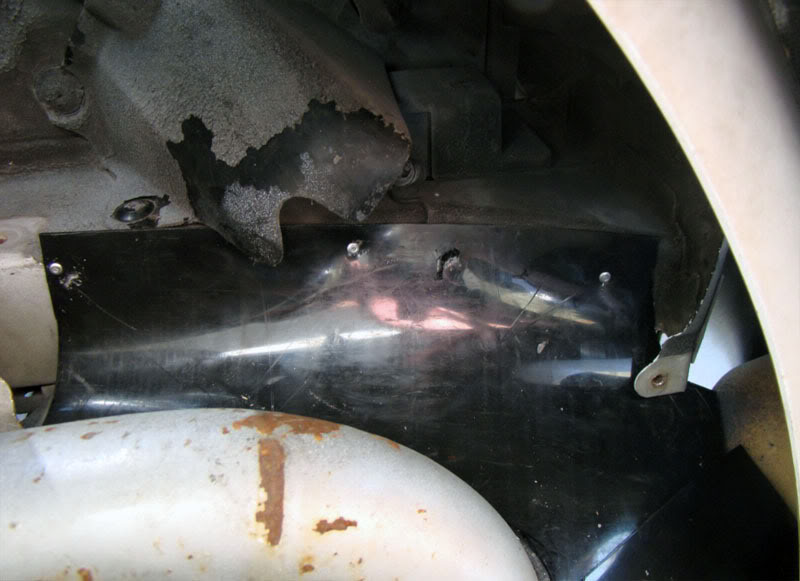

Name:  shrouding001.jpg
Views: 5
Size:  60.0 KB

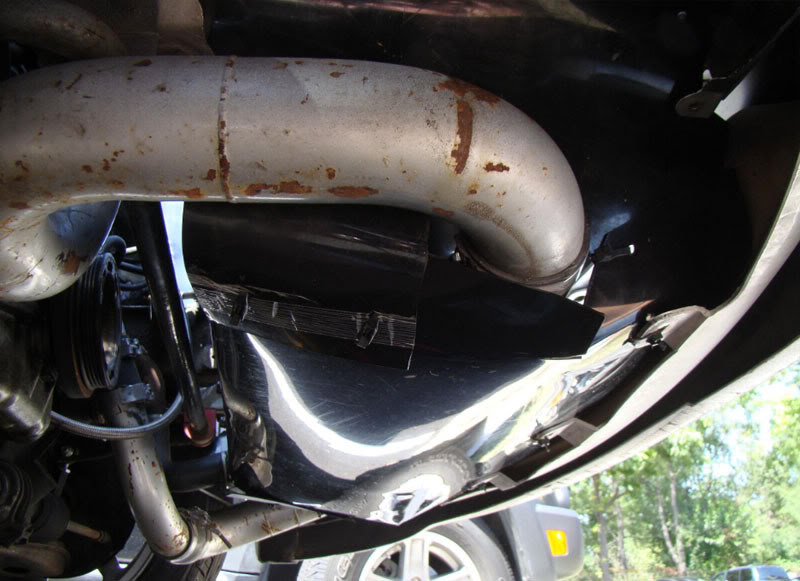

Name:  shrouding002.jpg
Views: 5
Size:  77.3 KB

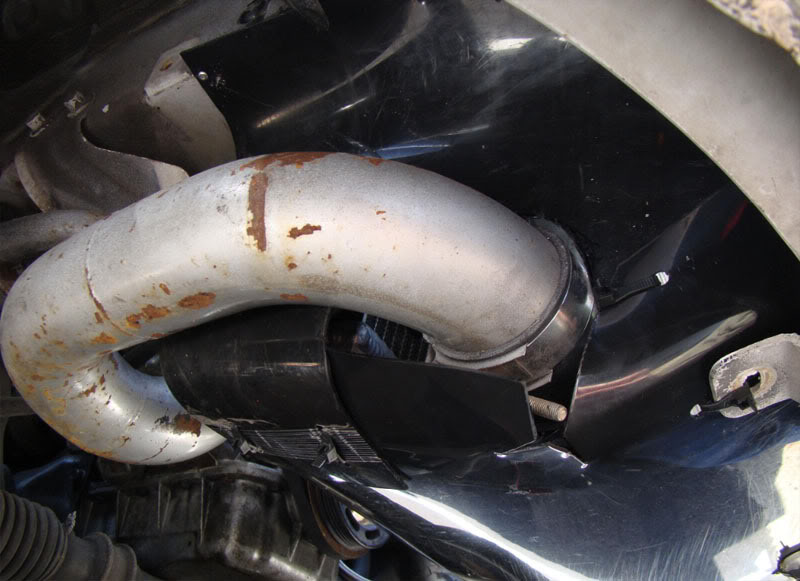

Name:  shrouding003.jpg
Views: 5
Size:  68.8 KB

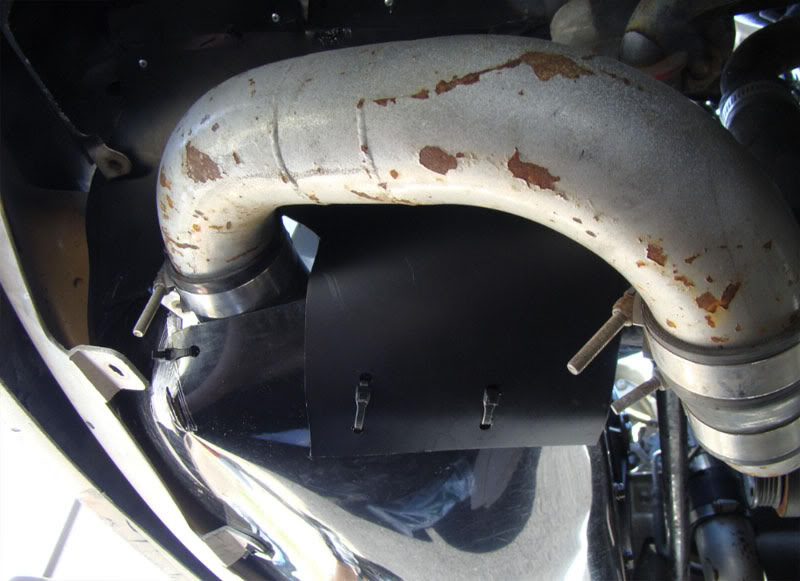

Name:  shrouding004.jpg
Views: 5
Size:  68.7 KB

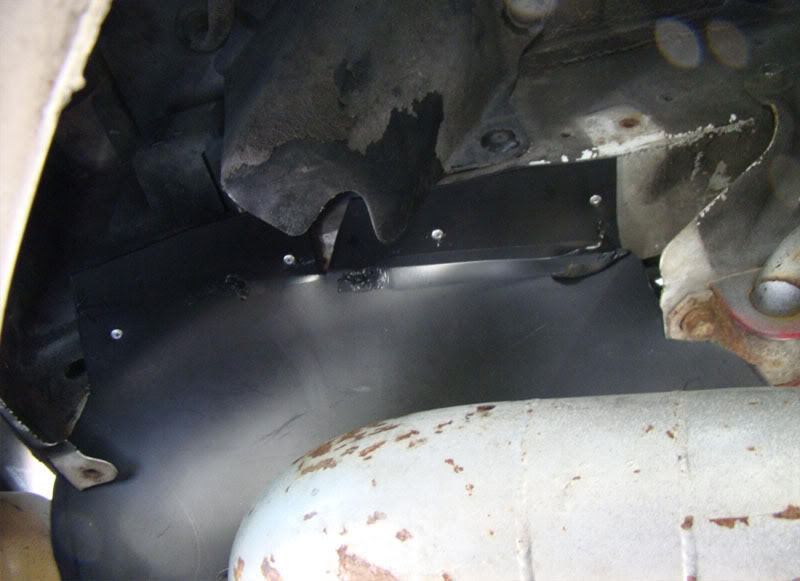

Name:  shrouding005.jpg
Views: 5
Size:  52.8 KB

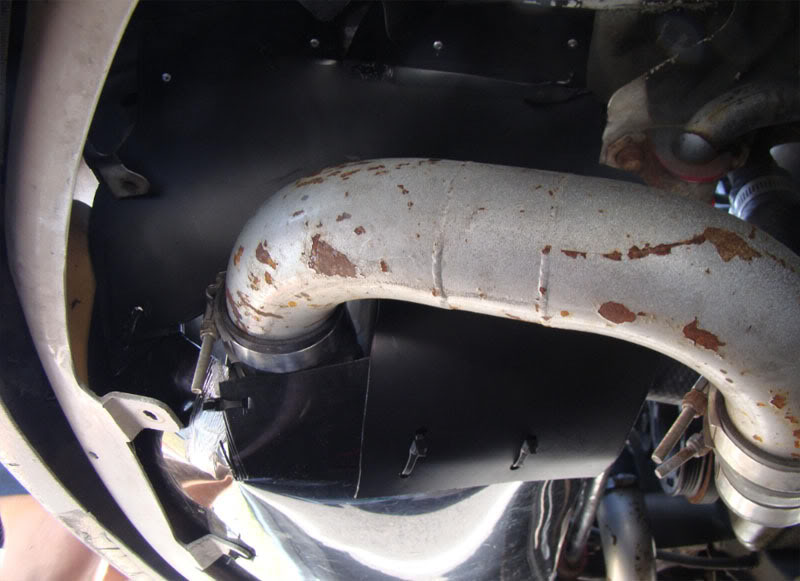

Name:  shrouding006.jpg
Views: 5
Size:  63.8 KB

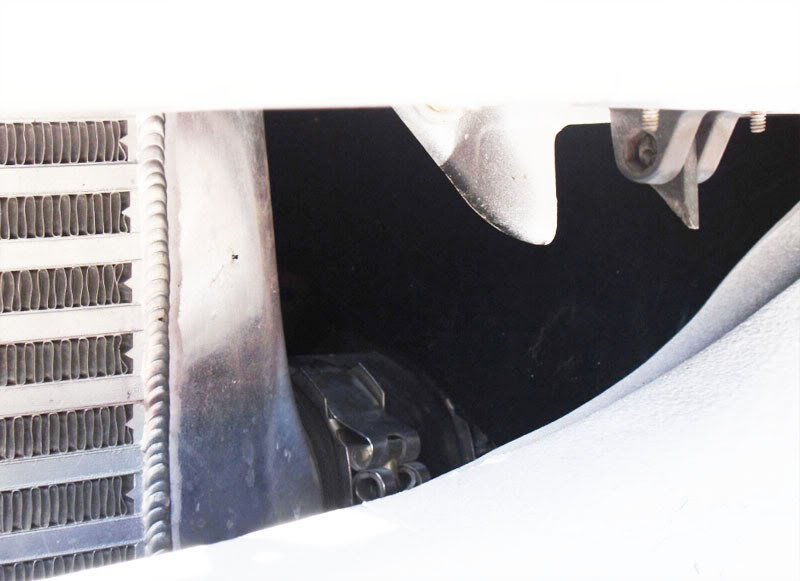

Name:  shrouding007.jpg
Views: 5
Size:  53.1 KB

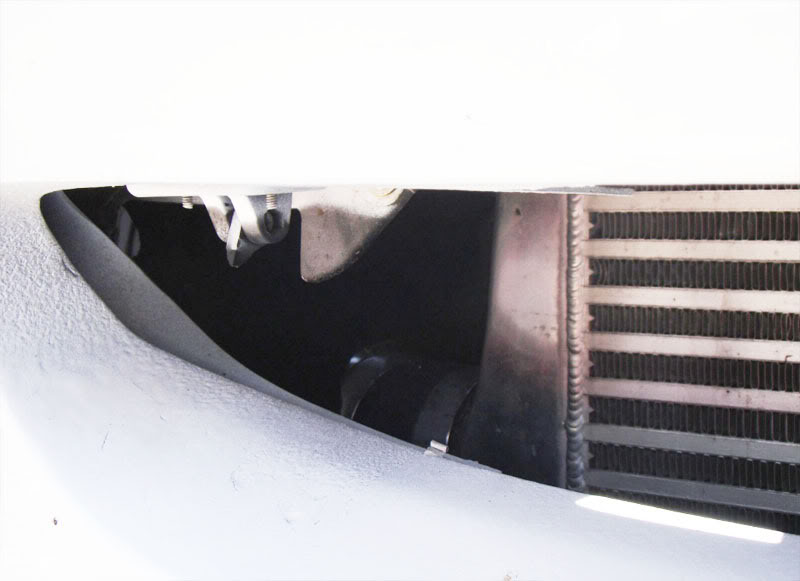

Name:  shrouding008.jpg
Views: 6
Size:  43.7 KB

Name:  shrouding009.jpg
Views: 5
Size:  86.7 KB

Braineack is offline   Reply With Quote
Old 06-18-2009, 04:44 PM   #8
Elite Member
Thread Starter
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

God it would be nice to have that much room in there! Thanks for the pics though. Looks like pretty flexible stuff is Ok as long as it fastened well. That's some quality zip tie work there! That'd sure make my life easier.
cueball1 is offline   Reply With Quote
Old 06-18-2009, 04:48 PM   #9
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Luckily, the GV bumper is actually quite well off with this. Although there are a couple small spots where the IC piping is that are less covered, but I took care of most of that using the inner fender liners that I took out of the car. I plan on getting some weather stripping to finish the seal between the bumper and the intercooler...

Doppelgänger is offline   Reply With Quote
Old 06-18-2009, 10:02 PM   #10
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

It really forms well with a heat gun. Without one you're screwed.

I made my first set up out of 'temporary' cardboard and duct tape. It was in great shape two weeks later when I went to plastic. Without water you could probably run it for a month, at least it'll let you know wha tyou're doing before you switch over.

38 pics:
AbeFM : photos : Radiator Shroud Fitting
AbeFM is offline   Reply With Quote
Old 06-18-2009, 11:12 PM   #11
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Im gonna make one of these out of thin aluminum (.040-.0625) and seal it with some sort of foam tape. Ill prob have it connect to the front bumper because mines loose and flimsy a headless chicken. Sounds like another DIY write up
SKMetalworks is offline   Reply With Quote
Old 09-02-2009, 06:51 PM   #12
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

+10,000,000

GOD DAMNIT, I should've done this first thing. Sealing the mouth and especially the sides is WIN.

Water never went above 110C and oil never above 120C.
I was easily seeing 130C water/oil before.

Only the ductaping to the bottom of the rad is letting go, so I'll find something else for that.

See my thread for details (below sig).
Laur3ns is offline   Reply With Quote
Old 09-02-2009, 09:26 PM   #13
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Sealing has shocked me twice: Once, when I did it, and my temps were magically low, all the time. The second time, when I took it off, and my temps are now high, all the time. :-)

The aluminum tape works, but not great. Straps, maybe?
AbeFM is offline   Reply With Quote
Old 09-02-2009, 10:00 PM   #14
Elite Member
Thread Starter
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Quote:
Originally Posted by AbeFM View Post
Sealing has shocked me twice: Once, when I did it, and my temps were magically low, all the time. The second time, when I took it off, and my temps are now high, all the time.

Running hot without sealing, running cool with seals then running hot again without is simply anecdotal evidence. I'm sorry but we need more scientific proof than this! Where's the magnahelic gauge readings? The IR temps of various surfaces?

Where's that sarcasm font we need?

Sealing off the heat exchangers should be the first step for cooling issues instead of the last. I imagine there are a lot of people here, not tracking the cars, that really wouldn't need a big aluminum radiator or coolant reroute if they'd done this first.
cueball1 is offline   Reply With Quote
Old 09-03-2009, 04:25 AM   #15
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by AbeFM View Post
The aluminum tape works, but not great. Straps, maybe?
I used the black all weather version, but the bottom of the rad gets hot so it lets go. I will make use of the mounting tabs on the bottom rear of the rad.
Quote:
Originally Posted by cueball1 View Post
I imagine there are a lot of people here, not tracking the cars, that really wouldn't need a big aluminum radiator or coolant reroute if they'd done this first.
True, but that wasn't the tendency around here. It was the american way: more, bigger,larger.
Laur3ns is offline   Reply With Quote
Old 09-03-2009, 04:54 AM   #16
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Quote:
Originally Posted by Spookyfish View Post
True, but that wasn't the tendency around here. It was the american way: more, bigger,larger.
I think my ex did that. :-(

Don't post drunk, folks. The alum seems to stay in place, hard to tell what it does while moving. I have a webcam but haven't filmed underhooh with it yet.
AbeFM is offline   Reply With Quote
Old 09-03-2009, 08:54 AM   #17
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Overheating Solution? - Page 3 - MX-5 Miata Forum

Quote:
Originally Posted by Triple88A View Post
Lets be real here, how much higher pressure does it build in comparison to the temperature at the firewall? 1/10th of a pound? How much extra hp can you gain from putting your intake there so it sucks a tiny bit higher pressure compared to the temperature? Why do the miata intakes that actually make noticeable difference require you to cut a hole in the firewall and suck in the cold air from the windshield wiper arms area if the higher pressure before the firewall is so much better? If you want to keep that useless pressure so much then cut holes in the middle of the hood so all the stuff from the radiator can exit before hitting the engine. It will work however it will only help the radiator, not the engine. Cutting holes in the hood will increase air flow throughout the the entire engine bay allowing the front to take in more air by reducing pressure in the rear. The windshield creating a "wall" is much lower than a rubber tight seal the hood creates against the firewall.
lol
hustler is offline   Reply With Quote
Old 09-27-2009, 03:11 PM   #18
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by Spookyfish View Post
I used the black all weather version, but the bottom of the rad gets hot so it lets go. I will make use of the mounting tabs on the bottom rear of the rad.
Fixed all that here:
https://www.miataturbo.net/forum/t25084-8/#post460115

Can't believe how extremely well this works. On track, before with no ducting I would overheat to 130C within 4 hotlaps, now I can drive forever and not see above 100C. Oil not above 120C.

Last event, the ducting would come loose at the bottom of the radiator and temp would climb to 110C. Amazing stuff.
