Default Which slim fans?

What kinda slim fans is everyone running on their big radiators? I'm about to put my Koyo back in and need to free up some space. I was thinking just 2 12"ers from Ebay. Any input is greatly appreciated.
2k6750 is offline   Reply With Quote
Old 01-21-2010, 11:41 PM   #2
Elite Member
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

I know some people are using the fans from siliconeintakes.com
rharris19 is offline   Reply With Quote
Old 01-22-2010, 12:17 AM   #3
Newb

Join Date: Mar 2007
Location: Monrovia CA
Posts: 28
Total Cats: 0
Default

Don't waste your money on the egay fans if you are having cooling problems. (don't ask me how I know)
I picked up 2 12" Spal 2260 cfm fans from the Swap meet here.
Built an aluminum shroud & used a couple of adjustable relay/thermostats. Now I don't have any cooling on 100* + days with the A/C on.
I have not tracked this car though. I have my brothers spec miata for the track
JMLTOY is offline   Reply With Quote
Old 01-22-2010, 02:00 AM   #4
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

I run a pair of the siliconeintakes fans and they do fine. I am not running any shrouding because I don't see the need considering that the fans cover a pretty good portion of the radiator. Also, it seems to me that shrouding could impede some flow out the back of the rad especially when the fans are off, which is most of the time when you have a reroute and a big radiator.

The fans come with those pull-through plastic mounting ties but somehow I don't trust those things standing the test of time in a car that sees track use. I cut/bent/drilled up some brackets out of aluminum bar stock so the fans are secured with bolts into the bosses on the radiator.
ScottFW is offline   Reply With Quote
Old 01-22-2010, 03:44 AM   #5
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

nearly blew my old jeep up with them egay fans. Weak as hell and a waste of money. from memory it was rated at 3000cfm and was somewhat decent price, not the extremely cheap bs..
triple88a is offline   Reply With Quote
Old 01-22-2010, 12:06 PM   #6
Junior Member

Join Date: Apr 2009
Location: Philadelphia, Pa
Posts: 68
Total Cats: 0
Default

I've been running the Mishimoto fans on my radiator with no problems. I just finally got my turbo done last week and have still seen higher than normal temps.
marinerblue92 is offline   Reply With Quote
Old 01-22-2010, 12:15 PM   #7
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

I was running a set of the siliconeintakes fans. They work great and clear my FM sway bar. Also made my own shroud out of a sheet of plexi. Mounted them with the provided brackets. No ill results regarding temps.



FWIW, Doppelganger has a shrouded set on his car and has no heating issues at all, even when tracking the car.
RotorNutFD3S is offline   Reply With Quote
Old 01-22-2010, 12:18 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Ive seen awesome ebay fans and shitty ones.
Braineack is offline   Reply With Quote
Old 01-22-2010, 12:28 PM   #9
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

airflow > shroud

I have "silicone intakes"...in a box.
hustler is offline   Reply With Quote
Old 01-22-2010, 01:41 PM   #10
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

Doppel's got that awesome aftermarket frontend, which has to help with airflow. Looks like it has twice the frontal area exposed to high pressure than the stock NB nose.
Mobius is offline   Reply With Quote
Old 01-22-2010, 01:48 PM   #11
Junior Member
Thread Starter
iTrader: (6)

Join Date: Aug 2009
Location: Naples FL
Posts: 227
Total Cats: 0
Default

You selling them hustler? So the "silicone intakes" fans are looking to be what I'll go with as they are pretty cheap and I need some couplers. Thanks so much everyone.
2k6750 is offline   Reply With Quote
Old 01-22-2010, 02:17 PM   #12
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Quote:
Originally Posted by Braineack View Post
Ive seen awesome ebay fans and shitty ones.
QFT - I've had both. Had a 12" egay that lasted a about ten hours and the other probably pulled half it's rating. Sounds like the siliconeintakes are safe. And I wouldn't bother with a shroud until you think you need one- it was waste of my time.
m2cupcar is offline   Reply With Quote
Old 01-22-2010, 02:29 PM   #13
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Quote:
Originally Posted by Mobius View Post
Doppel's got that awesome aftermarket frontend, which has to help with airflow. Looks like it has twice the frontal area exposed to high pressure than the stock NB nose.
He tracks with the OEM bumper as well. Still no issues.
RotorNutFD3S is offline   Reply With Quote
Old 01-22-2010, 02:33 PM   #14
Senior Member
iTrader: (2)

Join Date: Oct 2007
Location: Northeastern CT
Posts: 547
Total Cats: 2
Default

i am running ebay ones from "pro comp" or "procomp" i cant remember exactly. get the curved-blade ones.

i originally had a single 14" puller but i swapped it out for (2) 10" pushers recently (needed space after trans conversion).

the single 14" seemed to pull more air than the (2) 10's, we'll see how the 10's do in the summer. i still have the single 14 lying around...
therieldeal is offline   Reply With Quote
Old 01-22-2010, 03:53 PM   #15
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by 2k6750 View Post
You selling them hustler? So the "silicone intakes" fans are looking to be what I'll go with as they are pretty cheap and I need some couplers. Thanks so much everyone.
I'll put them in next month after I swap bumpers and hoods.
hustler is offline   Reply With Quote
Old 01-23-2010, 02:26 PM   #16
Junior Member
Thread Starter
iTrader: (6)

Join Date: Aug 2009
Location: Naples FL
Posts: 227
Total Cats: 0
Default

Ordered silicone intakes fans last night. Thanks guys!
2k6750 is offline   Reply With Quote
Old 01-25-2010, 08:53 PM   #17
Senior Member
iTrader: (2)

Join Date: Jun 2006
Location: Springfield, NJ
Posts: 670
Total Cats: 0
Default

I have the Siliconeintakes fans too. Got them after I had clearance problems on OEM fan assembly between the CXRacing radiator and FM throttle body elbow.
evank is offline   Reply With Quote
Old 01-26-2010, 03:50 AM   #18
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

I have one oem fan on my radiator, no overheating issues.

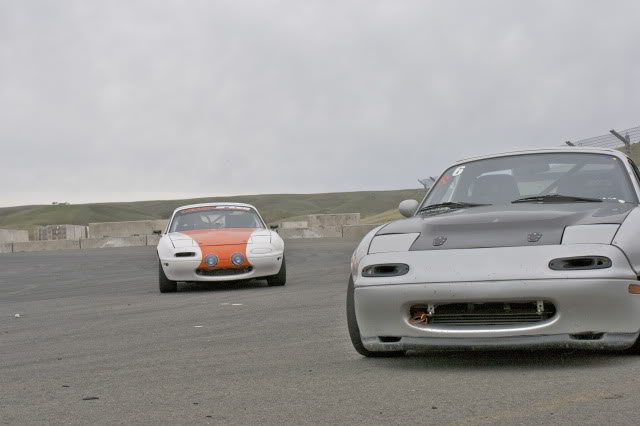

My intercooler is also v-mounted like so:
Name:  IMG_1887.jpg
Views: 13
Size:  33.8 KB
