Two thoughts here:
I have two eBay slim fans. I want to install one in the turbo car to free up some space. I also am starting to think my daily simply cannot keep up with 105*f heat in August in TX with working stock fans.

How do I know if I can wire them in on stock wires and relays? If I must upgrade, what do I upgrade and why?

If anyone has a spare, broke fan or just the stock fan shroud, I'd like to buy two of them.
hustler is offline   Reply With Quote
Old 08-06-2012, 03:05 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

I still have my ebay 10" fan within my a/c shroud. I was too lazy to go back and put the stock fan back in. i might have the stock fan/motor floating around but didn't notice it while moving my tools/stuff around this weekend.


but to answer your question, the stock relays are fine.
Braineack is offline   Reply With Quote
Old 08-06-2012, 03:20 PM   #3
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I'm going to use the factory shrouds to mount the slim fans.
hustler is offline   Reply With Quote
Old 08-06-2012, 03:32 PM   #4
NB/VVT Connoisseur
iTrader: (24)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,073
Total Cats: 253
Default

I have a complete OEM fan/shroud setup. PM me and I can get it out of here a.s.a.p.
viperormiata is online now   Reply With Quote
Old 08-06-2012, 09:26 PM   #5
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

Just to be clear on my slim-fan-in-stock-shroud "upgrade", I'm using 100% stock wiring and it's completely reversible (you could go back to stock motors). Lemme see if I can quickly grab a picture before work.
curly is offline   Reply With Quote
Old 08-06-2012, 09:36 PM   #6
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

shitty photos, but this is what you get for now.

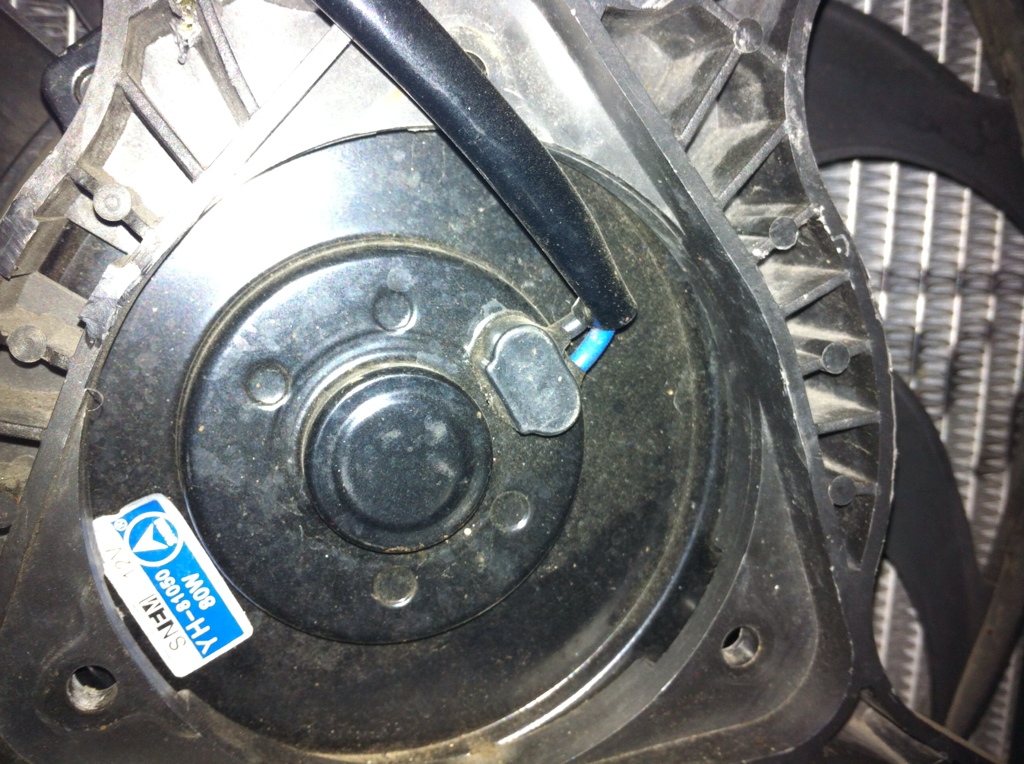

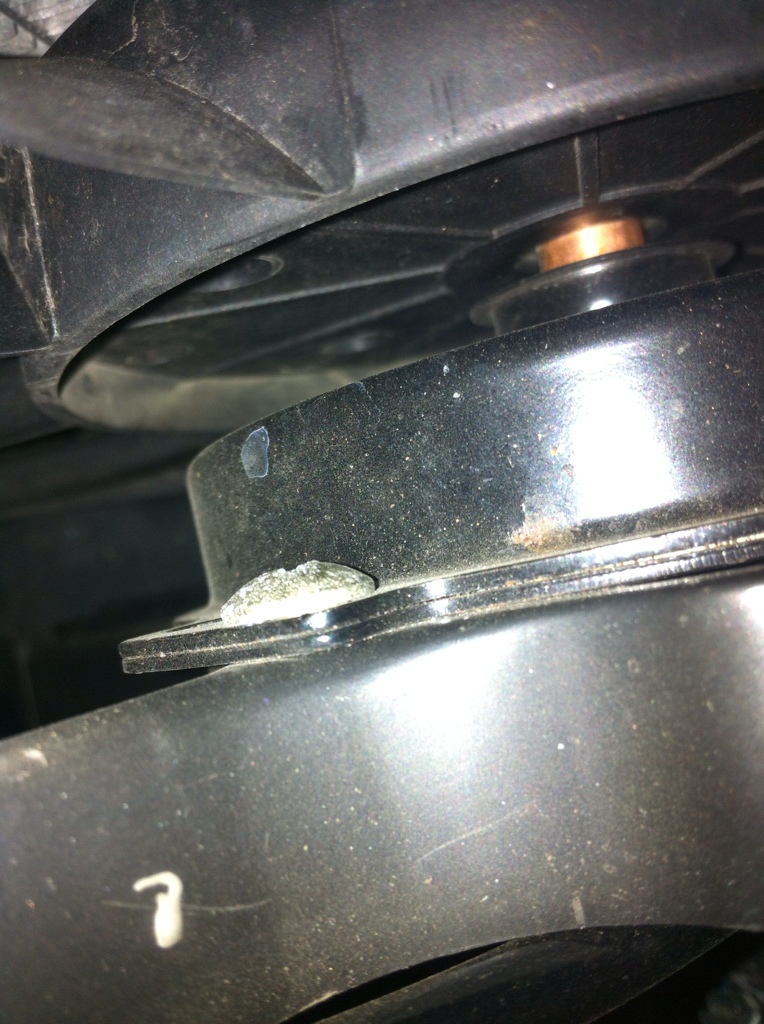

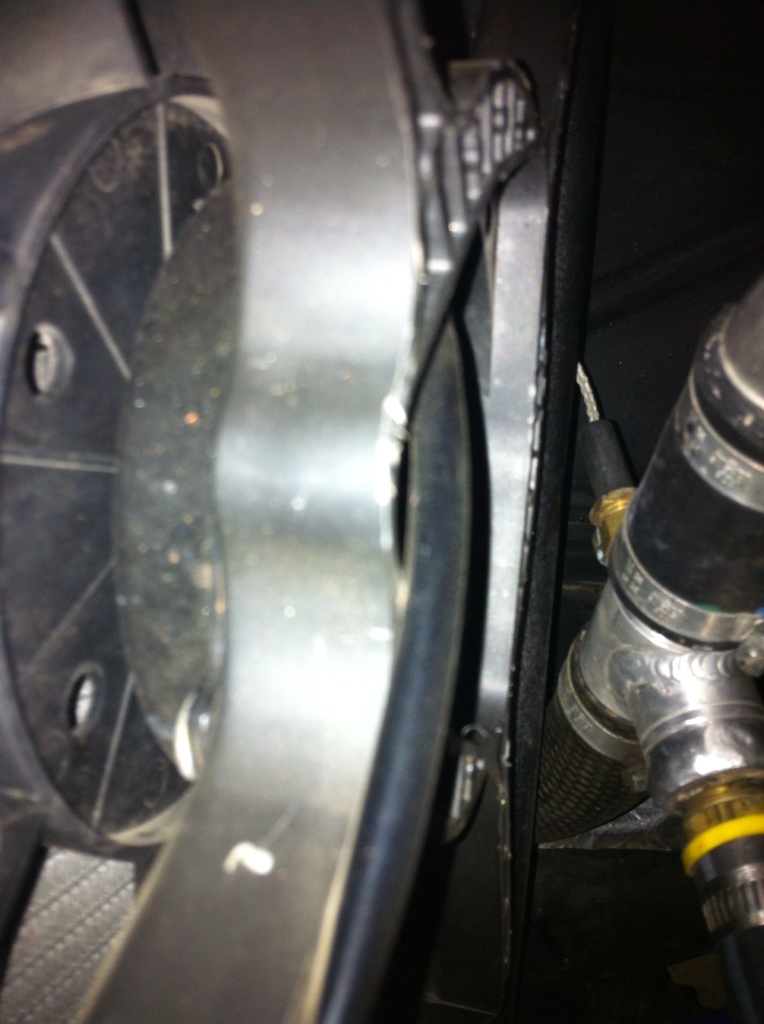

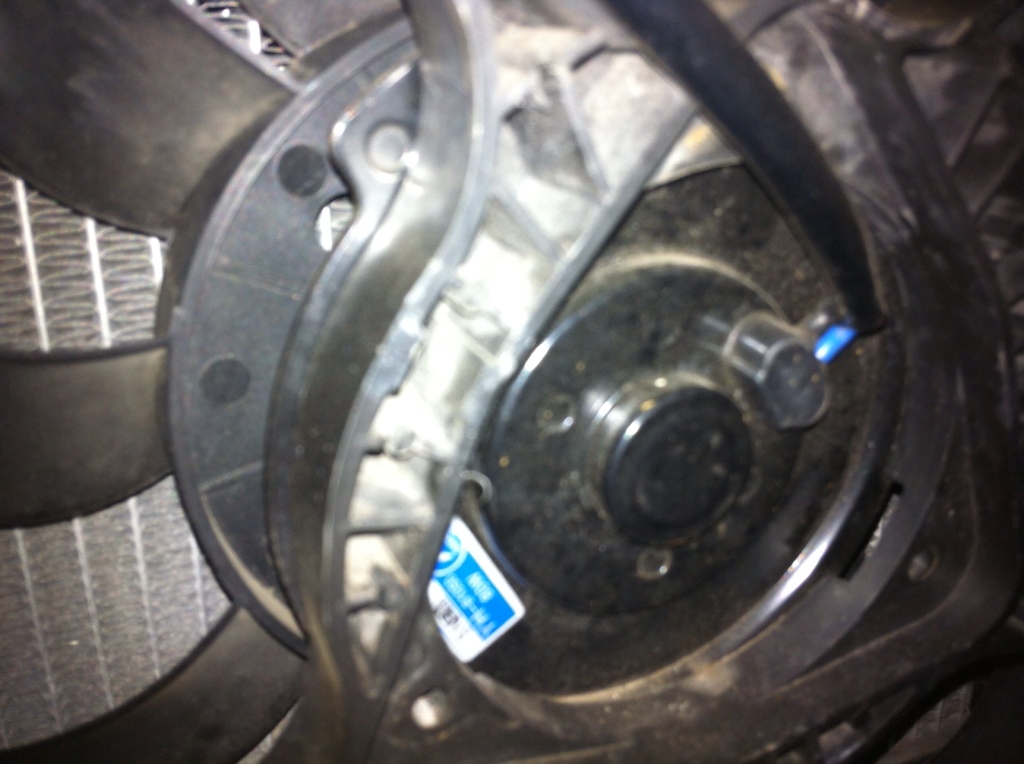

Slim fan mounts on the INSIDE of the stock shroud, with the two screws that were used to bolt the motors to the ebay "shrouds".

Directions:

1. Remove stock fan blade.
2. remove stock motor.
3. remove ebay fan from motor.
4. place shroud on it's back on the ground.
5. place motor inside shroud.
6. rotate motor till the holes line up with stock shroud plastic.
7. use drill to screw the motor into the shroud.
8. cut harness off stock motor and crimp/solder on to slim motor.
9. bolt on ebay fan blade.
10. bolt assembly into car.

I just did this to a friend's car in about 20 minutes or less, starting with the fan outside the car, ending with the fan wired and installed.






Dunno if you can see in the pics but mine is a little off center, I managed to get my friend's eyeballed to pretty much dead center, so it's possible if you were wondering.
Attached Thumbnails
Slim fans and electronics 101-5dbd4e61.jpg   Slim fans and electronics 101-de1cbd17.jpg   Slim fans and electronics 101-9d8eea7a.jpg   Slim fans and electronics 101-de0c553b.jpg
curly is offline   Reply With Quote
Old 08-06-2012, 11:27 PM   #7
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

I've been using the stock relays on my Spal 11" hi current hi flow thick fans for yeeeeaaaarrrsss now.
JasonC SBB is offline   Reply With Quote
Old 08-07-2012, 01:20 AM   #8
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

You'd only need to upgrade relays and/or wiring from the relays if the current draw of the new fans was significantly greater than the old fans. You should be fine in that regard.
Mobius is offline   Reply With Quote
Old 08-07-2012, 12:53 PM   #9
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Thanks guys. I like your idea Curly, but I want the space so I'm going to trim the shrouds and use the slim fan and it's cage.

Does anyone have experience with the Intercooler Pipe Fabrication - Silicone Intake Systems Auto Parts fans? Are they stronger than stock?

BTW, our search feature needs some serious help.
hustler is offline   Reply With Quote
Old 08-07-2012, 12:53 PM   #10
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Mobius View Post
You'd only need to upgrade relays and/or wiring from the relays if the current draw of the new fans was significantly greater than the old fans. You should be fine in that regard.
How do I measure this?
hustler is offline   Reply With Quote
Old 08-07-2012, 01:05 PM   #11
NB/VVT Connoisseur
iTrader: (24)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,073
Total Cats: 253
Default

Quote:
Originally Posted by hustler View Post
Does anyone have experience with the Intercooler Pipe Fabrication - Silicone Intake Systems Auto Parts fans? Are they stronger than stock?.
Two of my friends use their fans and IIRC many people on here use them as well. They seem to work very well.

I have your shroud boxed and marked. Ready when you are.
viperormiata is online now   Reply With Quote
Old 08-07-2012, 01:15 PM   #12
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by viperormiata View Post
Two of my friends use their fans and IIRC many people on here use them as well. They seem to work very well.

I have your shroud boxed and marked. Ready when you are.
I sent money earlier today, did you not get an emale?
hustler is offline   Reply With Quote
Old 08-07-2012, 01:47 PM   #13
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Just verifying that I've been running SPAL fans on stock relays/wiring for years as well. I just moved the fans from an old and busted 2/3 Cobra shroud to a shiny new FM shroud. Winning.

FYI MSM fans are dual speed and have a nice shroud setup.
Doppelgänger is offline   Reply With Quote
Old 08-07-2012, 01:52 PM   #14
NB/VVT Connoisseur
iTrader: (24)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,073
Total Cats: 253
Default

Quote:
Originally Posted by hustler View Post
I sent money earlier today, did you not get an emale?
done and done

Edit:While I'm in here....Anyone here use the Mishimoto aluminum shroud/fan setup? Or the generic ebay shroud/fan setup?

I scored a Mishi 53mm rad for 75 bucks a while back and my stock shroud was too large to work with my i/c piping.
viperormiata is online now   Reply With Quote
Old 08-07-2012, 02:24 PM   #15
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Quote:
Originally Posted by hustler View Post
Does anyone have experience with the Intercooler Pipe Fabrication - Silicone Intake Systems Auto Parts fans? Are they stronger than stock?
I used a pair of their fans on my '95 with a homemade plexi- shroud setup, they definitely moved more air than the stock fans and I had no issues with them at all (the whole radiator setup has actually been installed in another Miata or two since I parted mine and the fans are still running fine). They were wired into the stock wiring with no ill effects.
RotorNutFD3S is offline   Reply With Quote
Old 08-07-2012, 02:29 PM   #16
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I just found that I could sit in line at the bank in 96*f temps. When I parked and sat, waiting for my guts tacos in 101*f heat, it boiled.
hustler is offline   Reply With Quote
Old 08-08-2012, 12:32 AM   #17
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

Quote:
Originally Posted by hustler View Post
How do I measure this?

You could use a clamp meter. The "clamp" of the meter just goes around the wires leading to the fan and reads the current flow by induction. Easiest way, though, is to look up specs on teh google and compare.

But you're probably fine, especially with slim fans.
Mobius is offline   Reply With Quote
Old 08-10-2012, 03:38 AM   #18
Elite Member
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

Do slim fans move more air than stock fans? I'm assuming this is why you do this mod in the stock shroud?
kenzo42 is offline   Reply With Quote
Old 08-10-2012, 09:51 AM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

I've seen some slim fans move a metric ton of air, others not so much.

the stock shroud is a better design than just slapping them onto the core.
Braineack is offline   Reply With Quote
Old 08-13-2012, 09:36 AM   #20
Junior Member
iTrader: (1)

Join Date: Nov 2011
Location: Independence Mo
Posts: 109
Total Cats: 1
Default

I had good slim fans on a stock rad in a 240. ( 1200cfm? )
Would overheat after a bunch of drift runs in 95+ degree heat. They were directly on the radiator. This is boilover hot in 2 mins.

I have never had any problems when a shroud was used with slim fans. Unless there was another issue like low coolant or a bad t-stat.
AkaZero is offline   Reply With Quote
