Old 03-04-2014, 04:05 PM   #21
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default





Attached Thumbnails

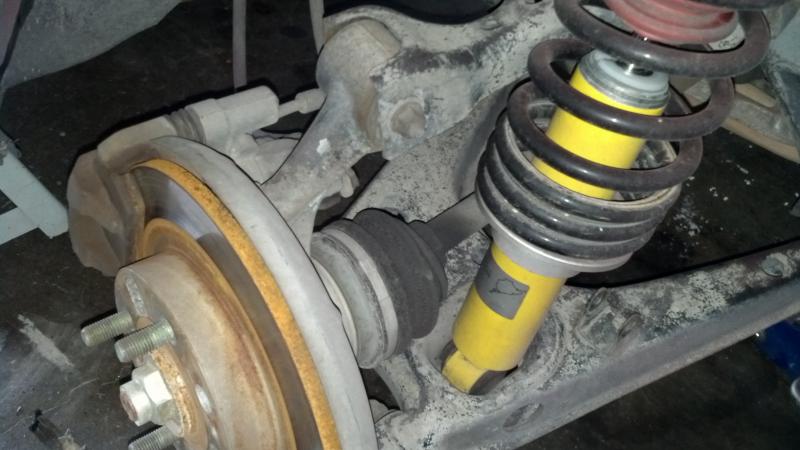

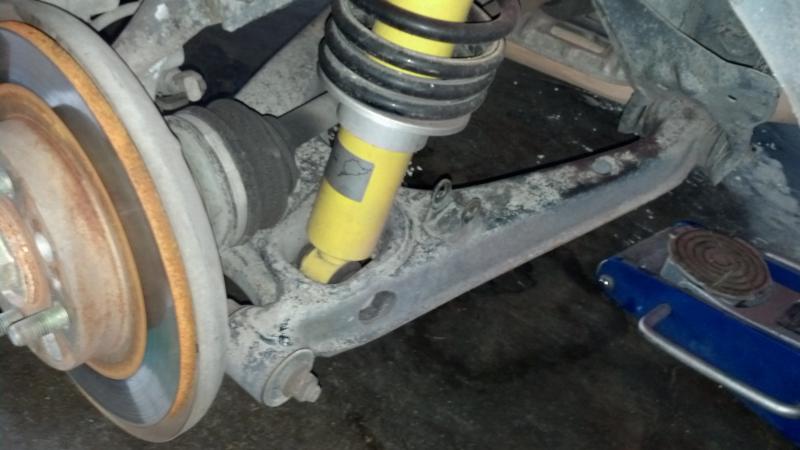

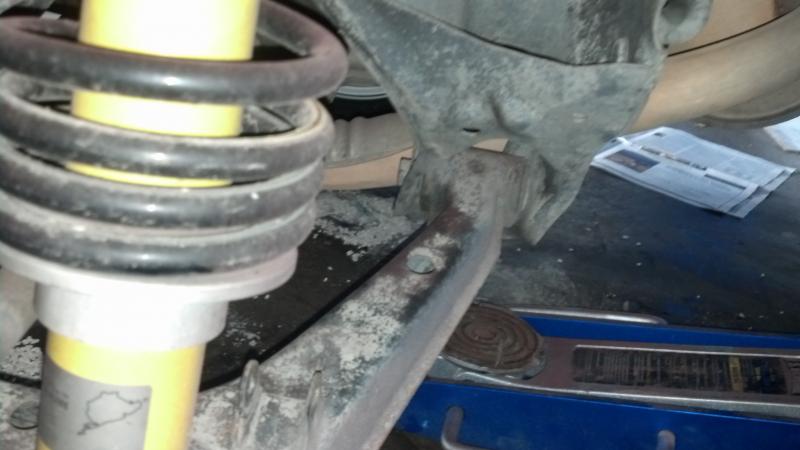

Smash and dash *pics*-20140304_104528_android4_zpsd45082d9.jpg   Smash and dash *pics*-20140304_104528_android2_zps58d0c6c7.jpg   Smash and dash *pics*-20140304_104528_android_zps6081dc2c.jpg
kenzo42 is offline   Reply With Quote
Old 03-04-2014, 04:07 PM   #22
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

It doesnt look like you need a subframe from those pics. I'd just replace the control arms and bolts and see if it aligns or not.
Leafy is offline   Reply With Quote
Old 03-04-2014, 04:22 PM   #23
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Assuming the bushing did their job, the shock should be fine, although much past the angle pictured I'd expect the shaft to be bent, who knows what you'll find when it's out.

Like Leafy said, replace upper and lower a-arms and see if it aligns.
curly is offline   Reply With Quote
Old 03-04-2014, 04:23 PM   #24
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Doesn't look too bad from here. You lucked out on the damage, looks like you could massage those fenders back into place pretty easily too.
Fireindc is offline   Reply With Quote
Old 03-04-2014, 05:05 PM   #25
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

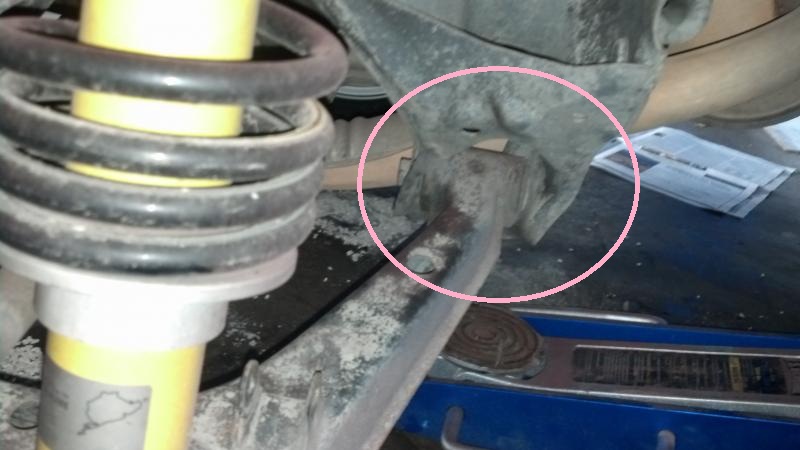

This part of the subframe doesnt look bent?
Attached Thumbnails
Smash and dash *pics*-20140304_104528_android4_zps67a1a03e.jpg
kenzo42 is offline   Reply With Quote
Old 03-04-2014, 07:09 PM   #26
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

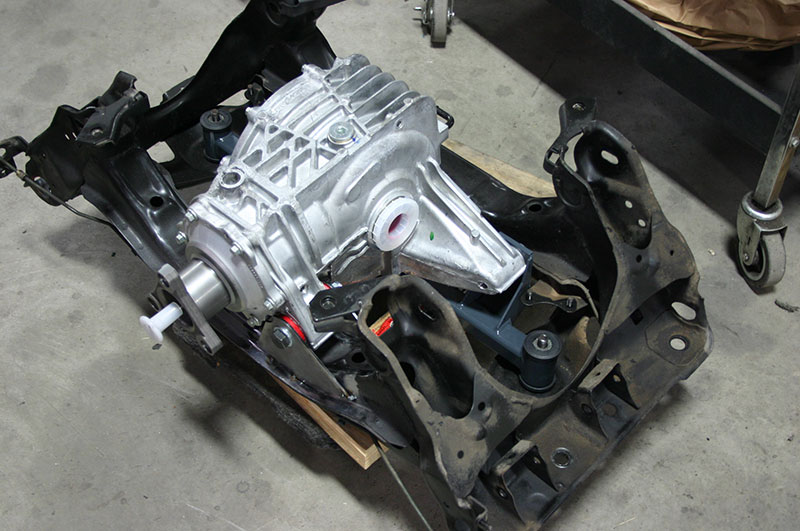

It's bent. Might be cheaper to buy the whole rear carrier from a salvage yard.



(ignore the diff swap)

-Zach
Attached Thumbnails
Smash and dash *pics*-img_2081.jpg
thasac is offline   Reply With Quote
Old 03-04-2014, 08:13 PM   #27
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

If you're gonna do the control arms, might as well just throw in a whole new assembly. Ought to be fairly reasonable from one of the salvage places. I'm just guessing, but probably not a whole heck of a lot more than the arms, bushings, bolts, etc. would be individually. Buy it as a unit and swap the whole thing.
rleete is offline   Reply With Quote
Old 03-05-2014, 01:47 AM   #28
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,355
Total Cats: 1,322
Default

Quote:
Originally Posted by Leafy View Post
It doesnt look like you need a subframe from those pics. I'd just replace the control arms and bolts and see if it aligns or not.
You must be looking at different pictures. He obviously needs a subframe.

OP, replace the subframe, both control arms, and buy a spindle while you're at it. The lower bolt is very bent and will need to come out in two or three pieces, which isn't easy or fun to do when everything is bent up like that.
Savington is offline   Reply With Quote
Old 03-11-2014, 03:56 AM   #29
Senior Member
iTrader: (3)

Join Date: Dec 2011
Location: Tucson, Az
Posts: 514
Total Cats: 33
Default

Here in Arizona a hit and run is collision coverage, and not covered under uninsured, as there is no one to go after in court.

Which is why my fender and bumper are still fucked up. I have comprehensive, underinsured, uninsured, and liability. If I had only told the person on the phone that it looked like someone had vandalized my car with a rock instead that it looked like someone had backed into it.

I had always been under the impression that collision = my fault, and comprehensive = not my fault. Wrong!

I had both of my cars hit and run in parking lots in the same week.
TheScaryOne is offline   Reply With Quote
Old 03-13-2014, 03:18 PM   #30
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,827
Total Cats: 1,783
Default

this pic made me think of this thread:

Attached Thumbnails
Smash and dash *pics*-lvfs8wh.png
Braineack is offline   Reply With Quote
Old 03-13-2014, 03:48 PM   #31
Senior Member
iTrader: (3)

Join Date: Dec 2011
Location: Tucson, Az
Posts: 514
Total Cats: 33
Default

Sauce? I want to hear the story behind the photo.
TheScaryOne is offline   Reply With Quote
Old 03-13-2014, 04:08 PM   #32
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I'm guessing they refused to repair, so he turned his car into a mobile unadvertisement for them.
curly is offline   Reply With Quote
Old 04-06-2014, 11:29 PM   #33
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

I finally got a brief chance to see this in person.

One thing I notice is that the front driver side wheel looks turned to the right, whereas the left passenger side looks straight.

Can this be as simple as an alignment issue? Or more than likely a bent tie rod? I didn't think the front had too much damage. I'm surprised to see this. Insurance guy is coming tomorrow and will inspect more in the evening.
kenzo42 is offline   Reply With Quote
Old 04-08-2014, 07:07 PM   #34
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

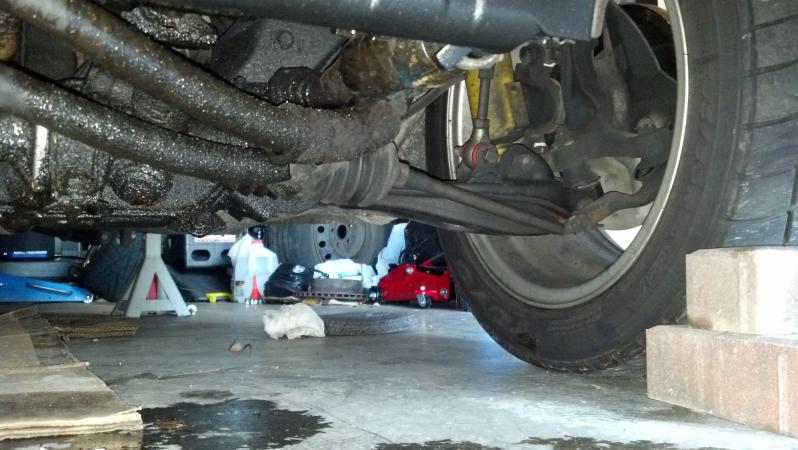

Just inner and outer tie rods or steering rack too?
Attached Thumbnails
Smash and dash *pics*-img_20140407_185815_312_zps46ccd9f0.jpg
kenzo42 is offline   Reply With Quote
Old 04-08-2014, 09:09 PM   #35
Senior Member
iTrader: (14)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,275
Total Cats: 52
Default

I'd say just the inner and outers. The racks are pretty stout.
Midtenn is offline   Reply With Quote
Old 04-09-2014, 12:37 AM   #36
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

You have another problem. It involves one or more types of oil.
curly is offline   Reply With Quote
Old 04-09-2014, 12:48 AM   #37
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

That oil seems to be leaking from the valve cover.
kenzo42 is offline   Reply With Quote
Old 06-07-2014, 07:56 PM   #38
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

Quote:
Originally Posted by Savington View Post
You must be looking at different pictures. He obviously needs a subframe.

OP, replace the subframe, both control arms, and buy a spindle while you're at it. The lower bolt is very bent and will need to come out in two or three pieces, which isn't easy or fun to do when everything is bent up like that.
Yah, this bent bolt is being a real pain to deal with. It's the one going through the knuckle.

Can I section this bolt with a dremel? What dremel cut off wheel can handle it?

BTW no angle grinder

Last edited by kenzo42; 06-07-2014 at 08:14 PM.
kenzo42 is offline   Reply With Quote
Old 06-07-2014, 08:33 PM   #39
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

$10 and that angle grinder problem will go away...

For the bolt, if you're replacing the control arm, cut the ends off the control arm. The bushings and spindle will come off , and you can cut the bushings off, and slide the final piece out of the spindle.
curly is offline   Reply With Quote
Old 06-07-2014, 09:27 PM   #40
Senior Member
iTrader: (3)

Join Date: Dec 2011
Location: Tucson, Az
Posts: 514
Total Cats: 33
Default

Yes. No need to take it apart any more than you have to to salvage your axle if you're replacing the control arms, subframe, and upright.

Now might not be a bad time to swap in NB parts. A little extra track width with the rear uprights.
TheScaryOne is offline   Reply With Quote
