Default Some new pictures

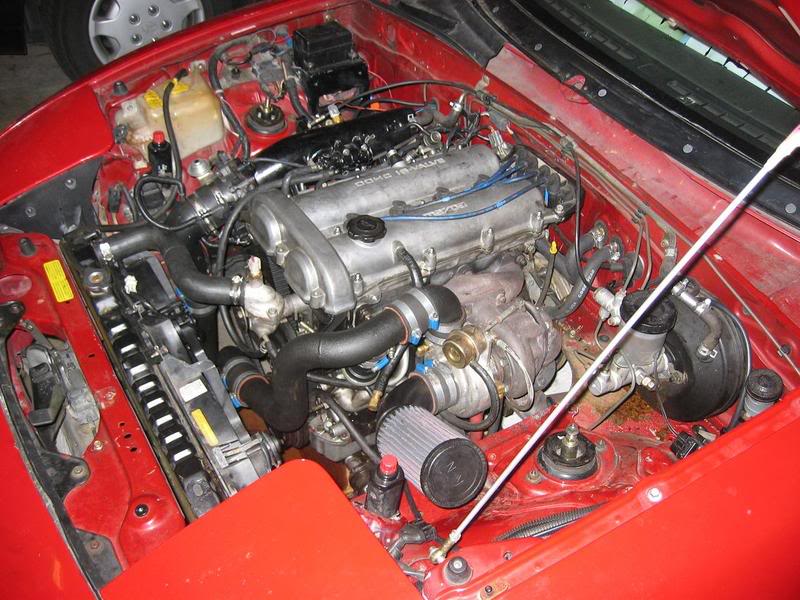

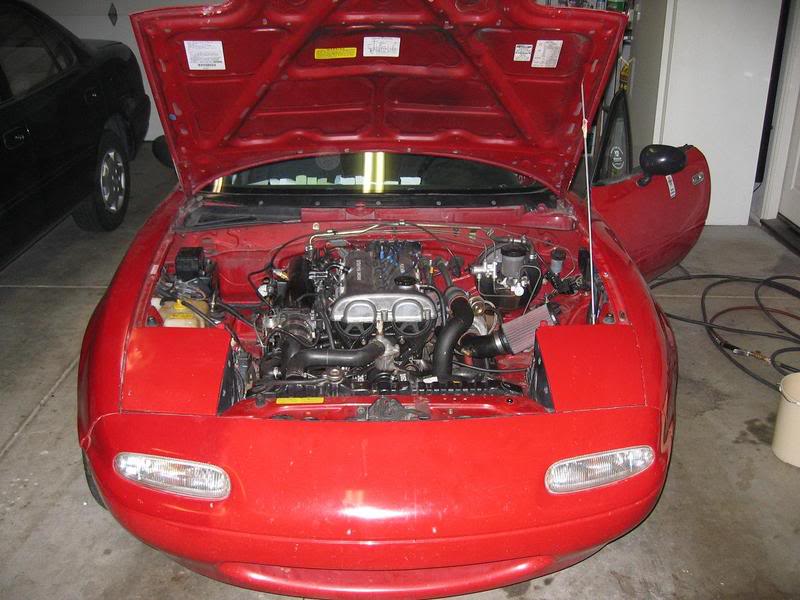

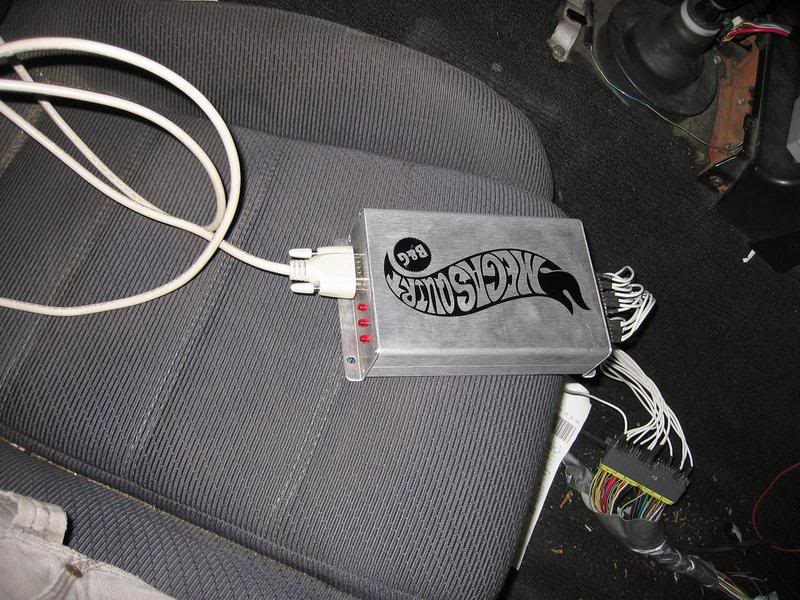

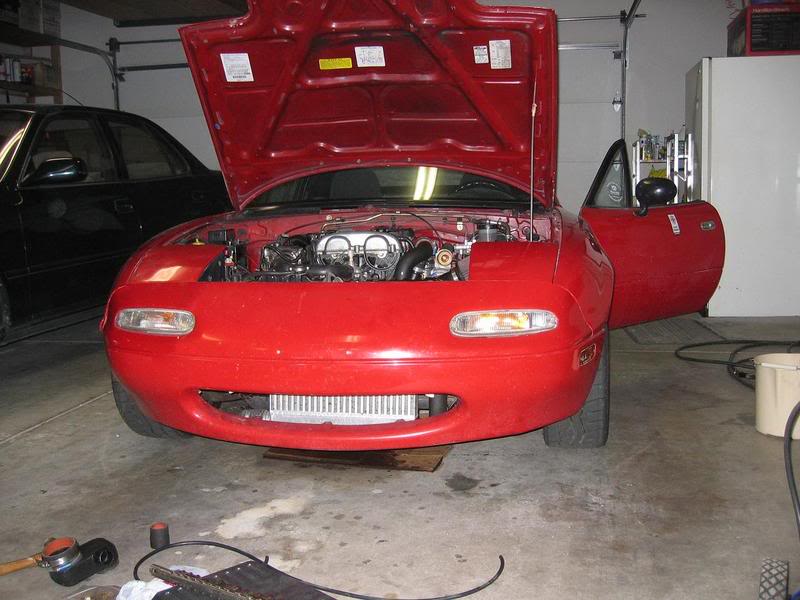

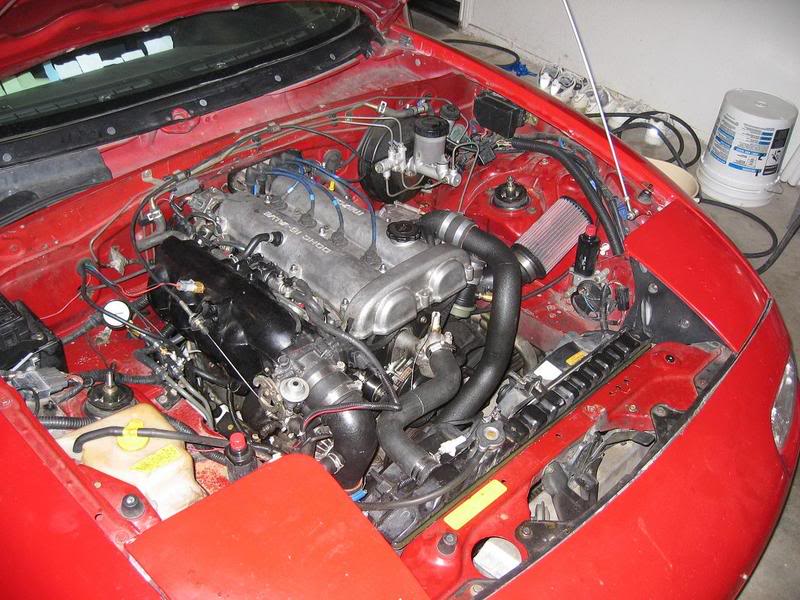

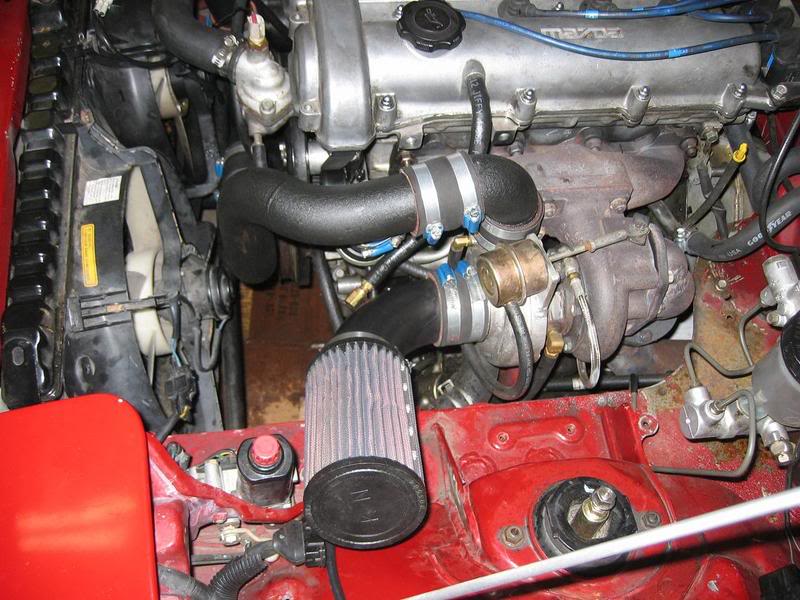

I finally got around to taking some pictures after my Megasquirt install. Some people were asking about the harness and whatnot. Today, I spent some time fabricating an intake pipe from a 2.5" mandrel bend, first real fab work Ive done so far. Anyway, enjoy ... and yes I know its got a pretty fucked up interior but nobody seems to car when i step on the gas now

Name:  Ryan001.jpg
Views: 1
Size:  100.2 KB

Name:  Ryan002.jpg
Views: 2
Size:  100.2 KB

Name:  Ryan003.jpg
Views: 1
Size:  74.7 KB

Name:  Ryan004.jpg
Views: 1
Size:  94.5 KB

Name:  Ryan005.jpg
Views: 2
Size:  68.7 KB

Name:  Ryan006.jpg
Views: 1
Size:  110.3 KB

Name:  Ryan007.jpg
Views: 1
Size:  92.2 KB

For this one, notice the timeslips, the dashboard smily face (compliments of my soldering gun), and the gauges showing it idling at 15:1 AFR and about 23 inches/32kpa
