Default Things to do while having the motor out.

Not sure if this is a flame worthy topic to post,

But I pulled my motor for this evening and was planning on doing a few things.

Motor is a stock 1.6

-Swapping Trans
-Inspecting Clutch
-Changing throw out bearing
-Tapping oil pan
-exhaust manifold gasket
-motor mounts
-remove unneeded wiring

things that would be a good idea while its out?

-timing belt?
-rear main seal?
-coolant reroute?
-water pump clutch?
-CAS?
-Front crank seal?


what else should i throw in there?

Last edited by ACiFiC; 04-29-2013 at 03:47 AM.
ACiFiC is offline   Reply With Quote
Old 04-29-2013, 04:50 AM   #2
Junior Member

Join Date: Dec 2009
Location: Brisbane, AUSTRALIA
Posts: 486
Total Cats: 45
Default

Get a giant rubber-band, mount it in the engine bay and take a photo!

World's first rubber-band powered MX5!
Lokiel is offline   Reply With Quote
Old 04-29-2013, 07:39 AM   #3
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Anything on the back of the engine, really. Rear main is a good preventative one as long as you're doing the clutch. You could go ahead with the reroute while you have easy access to the back of the engine too, though it's not impossible in the car so I wouldn't let it hold up your progress.

Go ahead and clean the engine bay, too, while it's out. Perfect time.
kotomile is offline   Reply With Quote
Old 04-29-2013, 09:55 AM   #4
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,092
Total Cats: 90
Default

De-rust and repaint the subframe.
Leafy is offline   Reply With Quote
Old 04-29-2013, 10:07 AM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

Here's a good one: swap in a 1.8
18psi is offline   Reply With Quote
Old 04-29-2013, 10:16 AM   #6
Senior Member

Join Date: Nov 2010
Location: Pittsburgh PA
Posts: 1,196
Total Cats: 12
Default

Clean everything you possibly can.


Do the timing belt and water pump. The idler/tensioner pulleys. Front/rear main seals, cam seals, CAS o-ring, basically any gasket you come in contact with, change.

Transmission seals wouldn't be a bad idea, since you'll have the new one sitting around pre-engine-removal.
2ndGearRubber is offline   Reply With Quote
Old 04-29-2013, 10:26 AM   #7
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

While the 1.6 is out you should have plenty of room to put a 1.8 in there.

Edit: dammit Vlad beat me to it. That's what I get for opening too many tabs at once.
thenuge26 is offline   Reply With Quote
Old 04-29-2013, 10:58 AM   #8
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by 18psi View Post
Here's a good one: swap in a built 1.8
FTFY.

Also, clean/degrease/paint all those hard to reach places. It's a pain in the dickhole with that pesky motor in the way otherwise
Oscar is offline   Reply With Quote
Old 04-29-2013, 01:31 PM   #9
Junior Member
Thread Starter

Join Date: Jan 2011
Location: Winnipeg, Canada
Posts: 84
Total Cats: 1
Default

Quote:
Originally Posted by 18psi View Post
Here's a good one: swap in a 1.8
haha, I think i will boot around in the 1.6 till it pops, 1.8's are hard to find in this area of canada unfortunately

Quote:
Originally Posted by 2ndGearRubber View Post
Clean everything you possibly can.


Do the timing belt and water pump. The idler/tensioner pulleys. Front/rear main seals, cam seals, CAS o-ring, basically any gasket you come in contact with, change.

Transmission seals wouldn't be a bad idea, since you'll have the new one sitting around pre-engine-removal.
all these little seal's definitely add up, does anyone trust local part stores with these seals or is it beter to go through an online source like FM?


Quote:
Originally Posted by Oscar View Post
FTFY.

Also, clean/degrease/paint all those hard to reach places. It's a pain in the dickhole with that pesky motor in the way otherwise
yeah the dickhole motor is definitely a PITA, ill pressure wash/degrease the tit's out of it.
ACiFiC is offline   Reply With Quote
Old 04-29-2013, 04:58 PM   #10
Newb

Join Date: Apr 2010
Location: Dallas Texas
Posts: 30
Total Cats: 0
Default

I changed out my motor out a few months ago and I ended up doing these:

Replace the clutch line with a stainless steel one that eliminates the curly roller-coaster one.

Paint the block and oil pan a color that will contrast with oil to help diagnose the eventual oil leak.

Clean the transmission tunnel and respray some heavy-duty undercoating on the underside.
chewy is offline   Reply With Quote
Old 05-08-2013, 11:26 PM   #11
Newb

Join Date: Apr 2012
Posts: 12
Total Cats: 0
Default

Check your clutch slave and master. They are cheap to replace. Also replace transmission input and output seals. You can apply DEI heat shield tape under the transmission tunnel to deflect most heat away from the cabin. Even a small roll on driver side worked great for me.\
Go to dealer and buy a nylon shifter bushing for $7 or so. Might as well do it with the transmission out.
Soravia is offline   Reply With Quote
Old 05-13-2013, 09:18 AM   #12
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Quote:
Originally Posted by Soravia View Post
Check your clutch slave and master. They are cheap to replace. Also replace transmission input and output seals. You can apply DEI heat shield tape under the transmission tunnel to deflect most heat away from the cabin. Even a small roll on driver side worked great for me.\
Go to dealer and buy a nylon shifter bushing for $7 or so. Might as well do it with the transmission out.
This. Both of my miatas have needed their slave cylinders replaced around 70-80k miles.

Do the clutch slave and master at the same time.

-Zach
thasac is offline   Reply With Quote
Old 05-14-2013, 05:17 PM   #13
Junior Member
Thread Starter

Join Date: Jan 2011
Location: Winnipeg, Canada
Posts: 84
Total Cats: 1
Default

Going to order all those seals this evening hopefully.

does anyone recommend the FM tools for installing the crank seals and etc?
ACiFiC is offline   Reply With Quote
Old 05-14-2013, 05:31 PM   #14
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Motor mounts
buffon01 is offline   Reply With Quote
Old 05-14-2013, 05:40 PM   #15
Junior Member
Thread Starter

Join Date: Jan 2011
Location: Winnipeg, Canada
Posts: 84
Total Cats: 1
Default

Quote:
Originally Posted by buffon01 View Post
Motor mounts
Insufficient funds for cool mounts, but might throw some mazda speed mounts on or OEM seeing as they are only $30/mount
ACiFiC is offline   Reply With Quote
Old 05-14-2013, 05:44 PM   #16
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

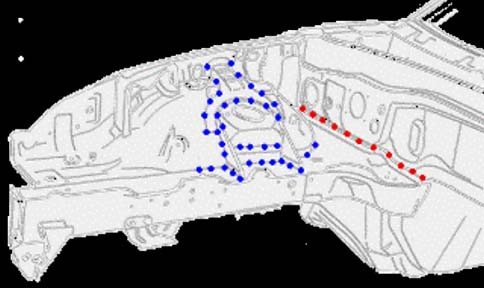

seam weld these bits

Attached Thumbnails
Things to do while having the motor out.-453244050_c0e5c28fb2.jpg
JasonC SBB is offline   Reply With Quote
Old 05-14-2013, 11:09 PM   #17
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Quote:
Originally Posted by ACiFiC View Post
Insufficient funds for cool mounts, but might throw some mazda speed mounts on or OEM seeing as they are only $30/mount
949 has the comp mounts for $17 more a piece. This is what I bought

Mazda Comp Motor Mounts 90-05 Miata
buffon01 is offline   Reply With Quote
Old 05-16-2013, 04:26 AM   #18
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

Clean, but not just the bay - clean the engine too. Also a good time to replace (or bypass) all those obnoxious little coolant lines. Install the 949 clutch line. Not hard to do with the engine in, but ridiculously easy to do with it out.
mr_hyde is offline   Reply With Quote
Old 05-16-2013, 10:58 PM   #19
Newb

Join Date: May 2012
Posts: 3
Total Cats: 0
Default

Now would be the perfect time to cut out the frame to firewall gussets.
sixteenpushrods is offline   Reply With Quote
Old 05-22-2013, 06:01 PM   #20
Junior Member
Thread Starter

Join Date: Jan 2011
Location: Winnipeg, Canada
Posts: 84
Total Cats: 1
Default

Quote:
Originally Posted by JasonC SBB View Post
seam weld these bits

interesting illl take a look and see how these seams are doing.

Quote:
Originally Posted by buffon01 View Post
949 has the comp mounts for $17 more a piece. This is what I bought

Mazda Comp Motor Mounts 90-05 Miata
might have to order these, reasonably priced.
im assuming I wouldnt be doing motor mounts for a while after these.

Quote:
Originally Posted by mr_hyde View Post
Clean, but not just the bay - clean the engine too. Also a good time to replace (or bypass) all those obnoxious little coolant lines. Install the 949 clutch line. Not hard to do with the engine in, but ridiculously easy to do with it out.

Definitely going to clean up the motor and make it look pretty, also acquired the M-tuned reroute, probably install that tonight, but i should have ordered that clutch line too.
ACiFiC is offline   Reply With Quote
