Default Throw out bearing wearing a ring around pressure plate

As the title states...

Got my engine out today after it started knocking last week.

Taking a look at the pressure plate, there is a ring worn into the fins on the plate, unevenly worn about 1/2" from the end of the fin...
Its a FlyinMiata clutch kit that is in the car so it should be good...

From bad to worse...i'll try to take a pic in a few hours.
Preluding is offline   Reply With Quote
Old 06-09-2010, 01:18 PM   #2
Senior Member
iTrader: (8)

Join Date: Feb 2009
Location: Jax, Fl
Posts: 907
Total Cats: 0
Default

Was it pressed in correctly?
johnmatt is offline   Reply With Quote
Old 06-09-2010, 01:23 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

mine after two years of DDing:

Braineack is offline   Reply With Quote
Old 06-09-2010, 01:23 PM   #4
Senior Member
Thread Starter
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

it was inserted into the fork properly...as far as I can tell, its sitting correctly onto it...

I had trouble adjusting it at the begining and it was making a noise but i though that was from not being lubed up enough. this is crazy though
Preluding is offline   Reply With Quote
Old 06-09-2010, 01:25 PM   #5
Senior Member
Thread Starter
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

This is after 600miles, that looks amazing for 2 years!!

those wear points you have on yours would looks like a knife sliced into it.
Preluding is offline   Reply With Quote
Old 06-09-2010, 01:34 PM   #6
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

You very likely had your clutch adjusted wrong, making the bearing preloaded into the clutch.
neogenesis2004 is offline   Reply With Quote
Old 06-09-2010, 01:35 PM   #7
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

I'd say Brain's looks pretty typical. If you're worried about the wear, slap some bearing grease on it.
rleete is offline   Reply With Quote
Old 06-09-2010, 01:36 PM   #8
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

um my bet is the bearing seized on you at some point causing excessive wear either that or your Slave was maladjusted to hold to much pressure, either way I bet your TOB is probly not as free as it should be.
magnamx-5 is offline   Reply With Quote
Old 06-09-2010, 04:14 PM   #9
Senior Member
Thread Starter
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

something seized makes sense.... I'll take a look in about 45min...

It looks like part of the fin on the pp was about the break right off it was worn so much... scary as ****

will post pic shortly
Preluding is offline   Reply With Quote
Old 06-09-2010, 04:20 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

does it look more like this: seized TOB coupled with a poorly designed PP







Braineack is offline   Reply With Quote
Old 06-09-2010, 05:25 PM   #11
Senior Member
Thread Starter
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

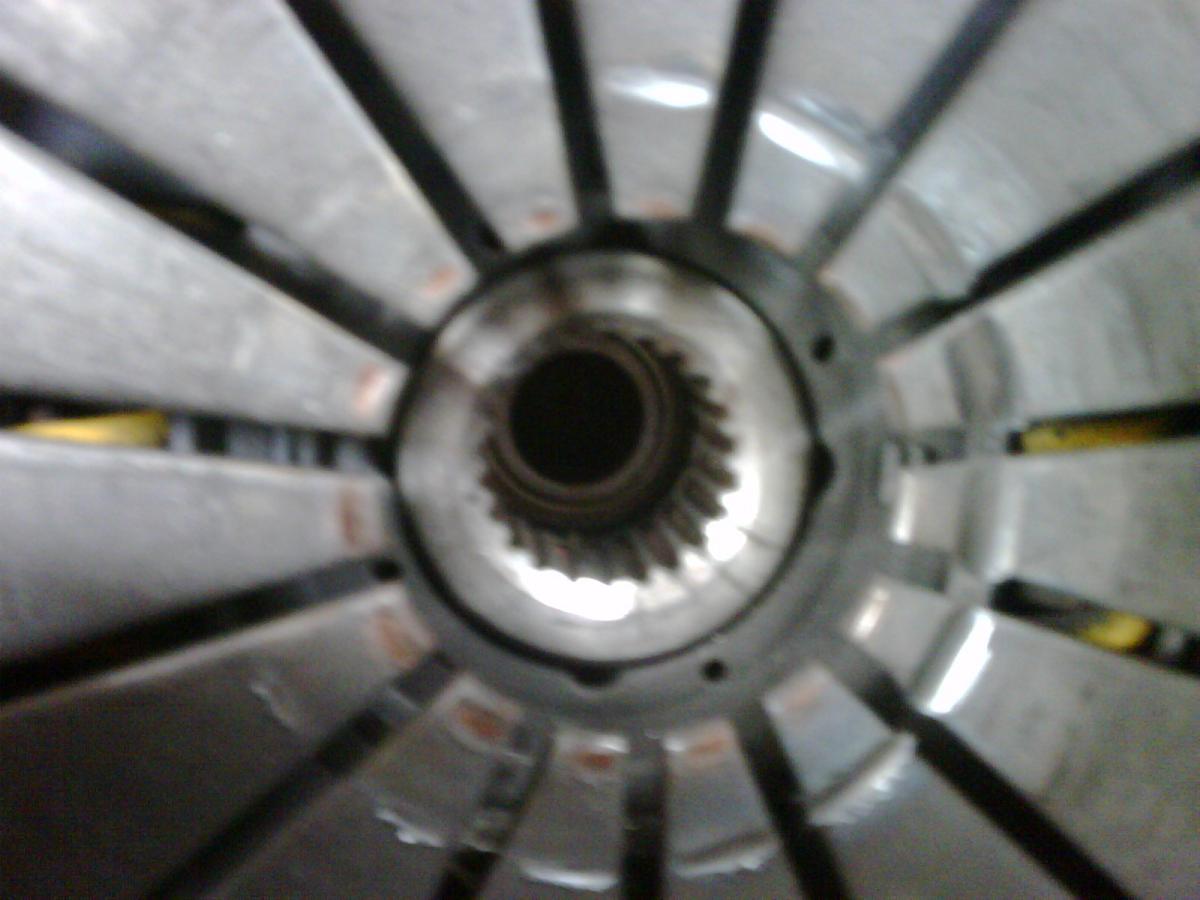

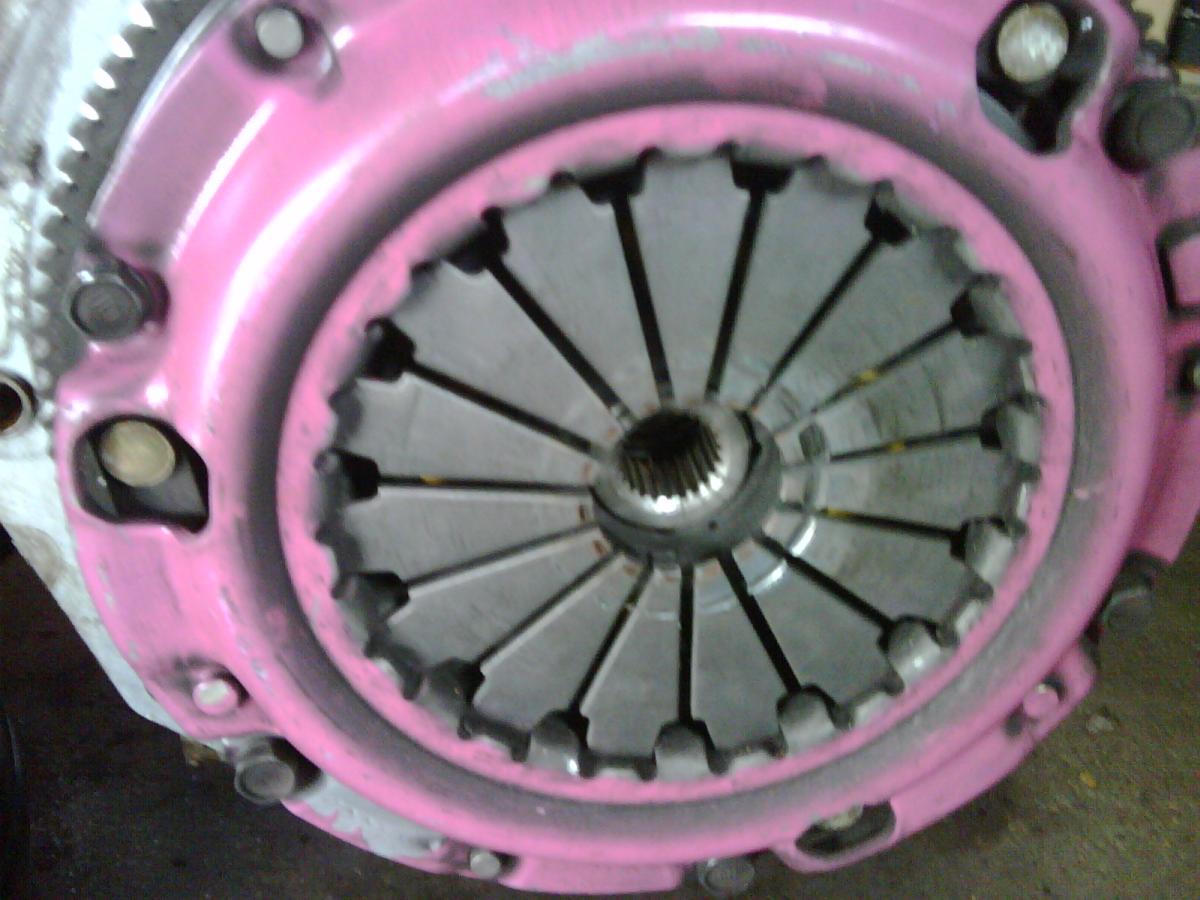

holy ****.... yes....yes it does.... why would a brand new TOB be seized.... sweet living **** do i ever not want to buy another PP. Although mine still might be good...

about 1/4 of the metal gone on it, maybe even less then that.

I can still move the throw out bearing by hand though, which is odd..

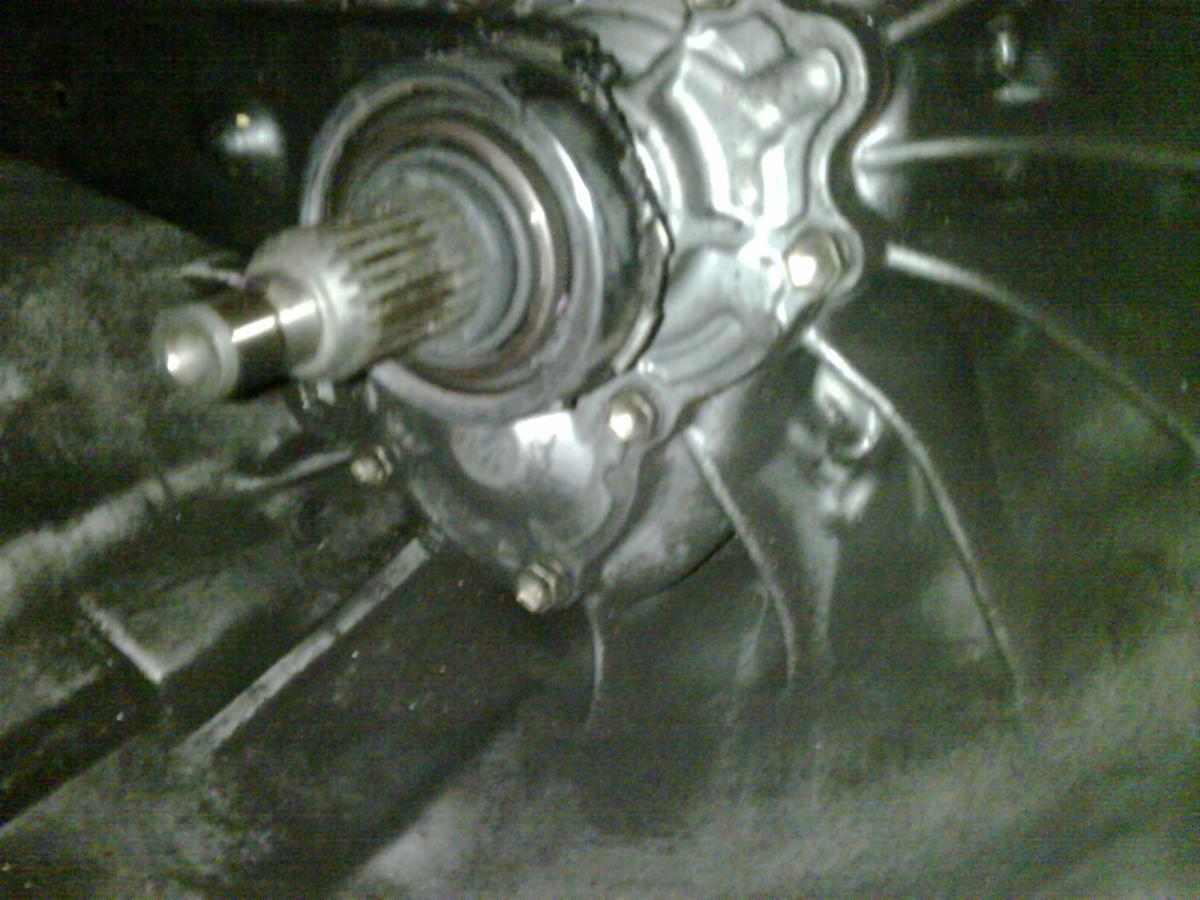

Attached Thumbnails
Throw out bearing wearing a ring around pressure plate-img00008-20100609-1718.jpg   Throw out bearing wearing a ring around pressure plate-img00009-20100609-1719.jpg   Throw out bearing wearing a ring around pressure plate-img00010-20100609-1719.jpg
Preluding is offline   Reply With Quote
Old 06-09-2010, 05:35 PM   #12
Senior Member
Thread Starter
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

"seized TOB coupled with a poorly designed PP"
Should I be calling FM about their seized TOB and poorly designed PP????

Last edited by Preluding; 06-09-2010 at 05:36 PM. Reason: correct spelling so hustler doesn't ban me
Preluding is offline   Reply With Quote
Old 06-09-2010, 06:27 PM   #13
Senior Member
Thread Starter
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

Called FM about this...apparently there was a recall on the level 2 clutch kit....

they'll call me back with more info and if mine was part of it tomorrow
Preluding is offline   Reply With Quote
Old 06-09-2010, 06:41 PM   #14
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

If your slave is old and fouled and cannot retract on it's own, it will hold the throw out bearing against the fins, overheat it, and either lock it up to grind against the fins or make it grenade itself.
olderguy is offline   Reply With Quote
Old 06-09-2010, 06:50 PM   #15
Senior Member
Thread Starter
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

I took slave off of a 02 miata with 20k miles on it....shouldn't be that old
Preluding is offline   Reply With Quote
Old 06-09-2010, 06:57 PM   #16
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Preluding View Post
Called FM about this...apparently there was a recall on the level 2 clutch kit....

they'll call me back with more info and if mine was part of it tomorrow
bingo. I did the swap with a buddy a few weeks ago. It took about 45-minutes, lol.
hustler is offline   Reply With Quote
Old 06-09-2010, 07:16 PM   #17
Senior Member
Thread Starter
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

45min is a good time! with or without a lift and air?

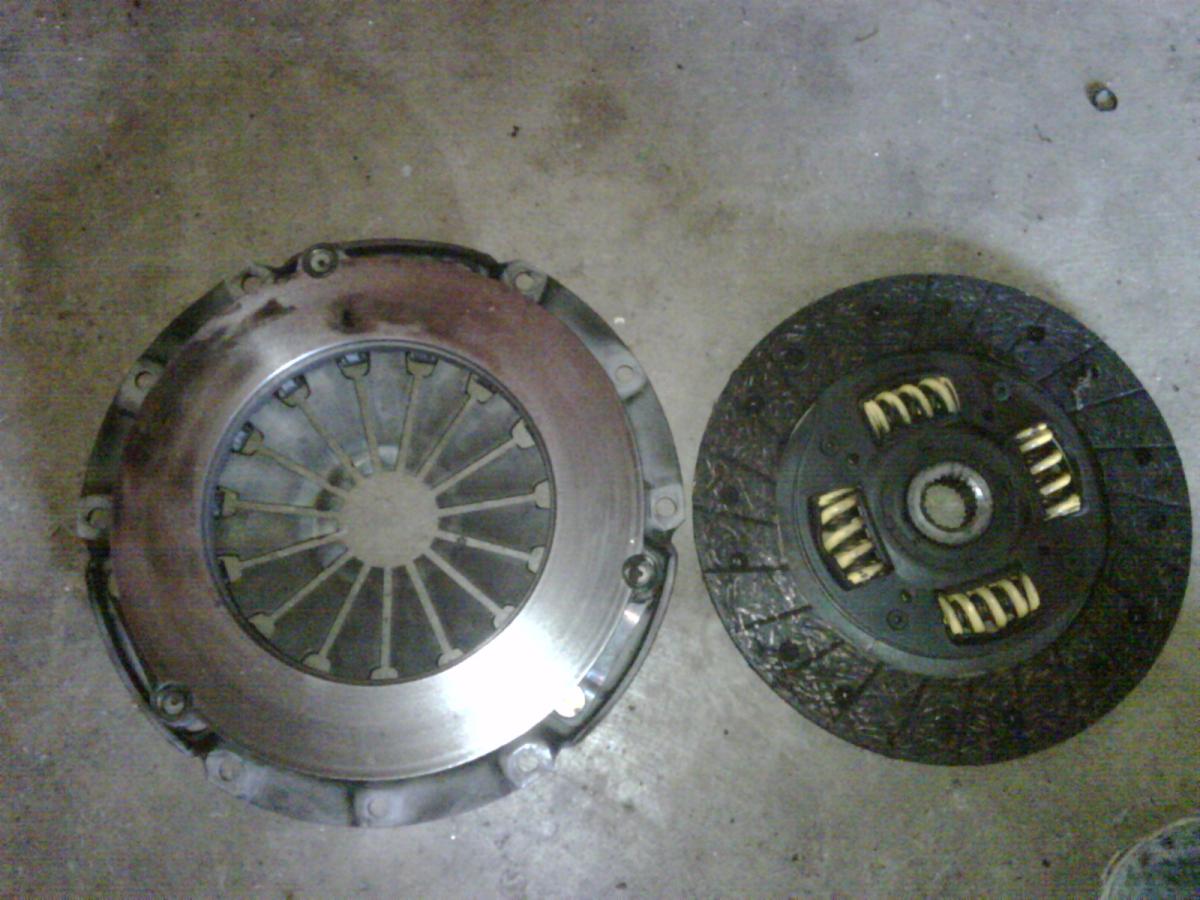

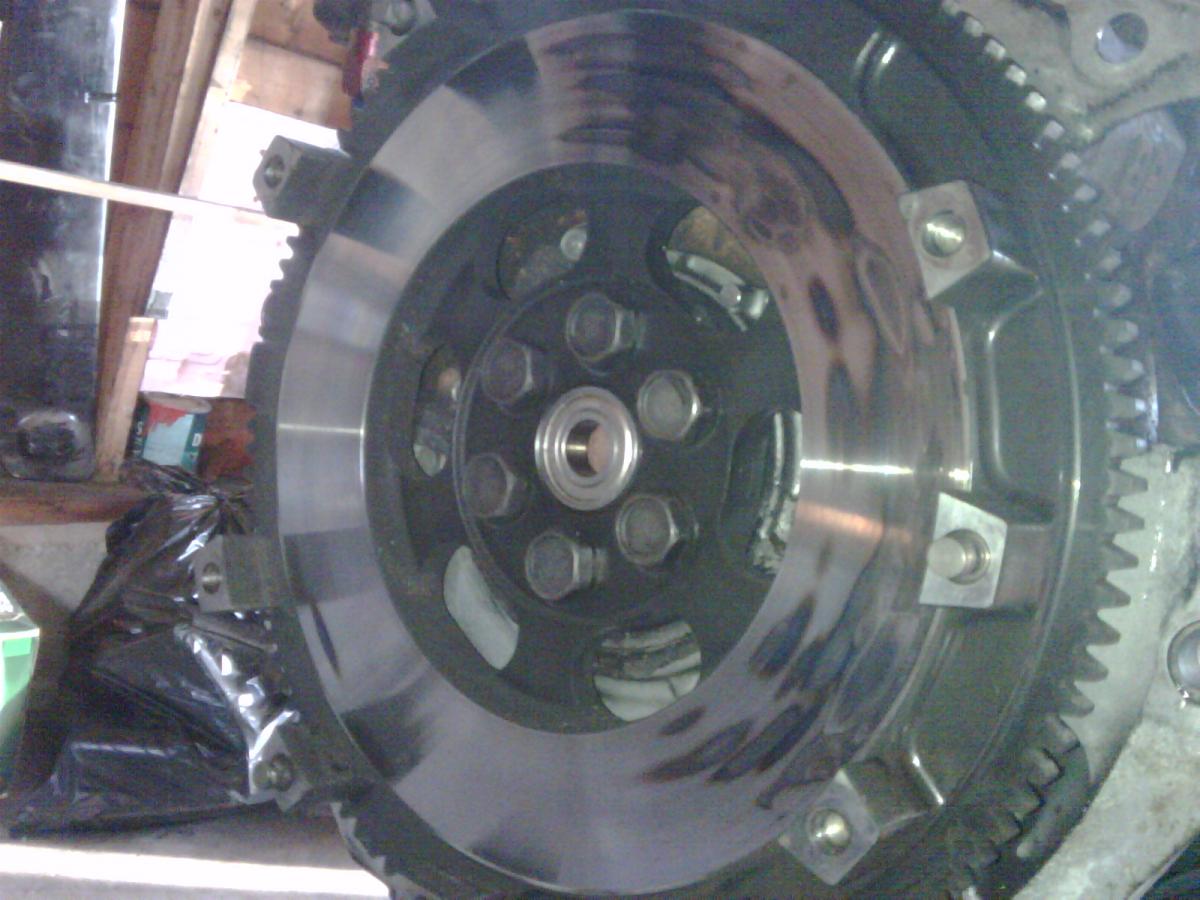

Just took the rest of it apart.... there is some bad heat damage going on!
Attached Thumbnails
Throw out bearing wearing a ring around pressure plate-img00011-20100609-1909.jpg   Throw out bearing wearing a ring around pressure plate-img00012-20100609-1909.jpg
Preluding is offline   Reply With Quote
Old 06-09-2010, 07:23 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

there was an issue with an early batch of FMII clutches where the TOB went through the diaphragm and pressed unevenly.

My issue was with a clutchnet PP.

I swapped my trans and clutch without rushing, and even wasted a good 10 minutes trying to pull it with a bolt still in place in about 2 hours.
Braineack is offline   Reply With Quote
Old 06-09-2010, 08:36 PM   #19
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Preluding View Post
45min is a good time! with or without a lift and air?

Just took the rest of it apart.... there is some bad heat damage going on!
lol, that would be on the floor with the help of a exhaust dump behind the front tire and the V8 Roadster subframe brace.
hustler is offline   Reply With Quote
Old 06-09-2010, 09:14 PM   #20
Senior Member
Thread Starter
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

damn... congrats....

Mine took about 3hrs... I think i'll drink more next time, although I pullled the motor off the trans and lifted that out...haven't put it back yet.

Hopefully FM replaces everything bad in this kit.... its a damn shame!
