Default TSI, Naca lamp cover or both?

Thinking about cooling down under hood temps. What's the general concensus. TSI's or Naca lamp cover? Run both or do the TSI's mess up the airflow for the naca design to work properly?

Do DIY TSI's look to ghetto or do they turn out OK when painted up. Both DIY naca lid and TSI's are pretty cheap projects.

Last edited by cueball1; 03-28-2007 at 09:38 PM. Reason: screw up
cueball1 is offline   Reply With Quote
Old 03-28-2007, 09:47 PM   #2
Senior Member
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,251
Total Cats: 7
Default

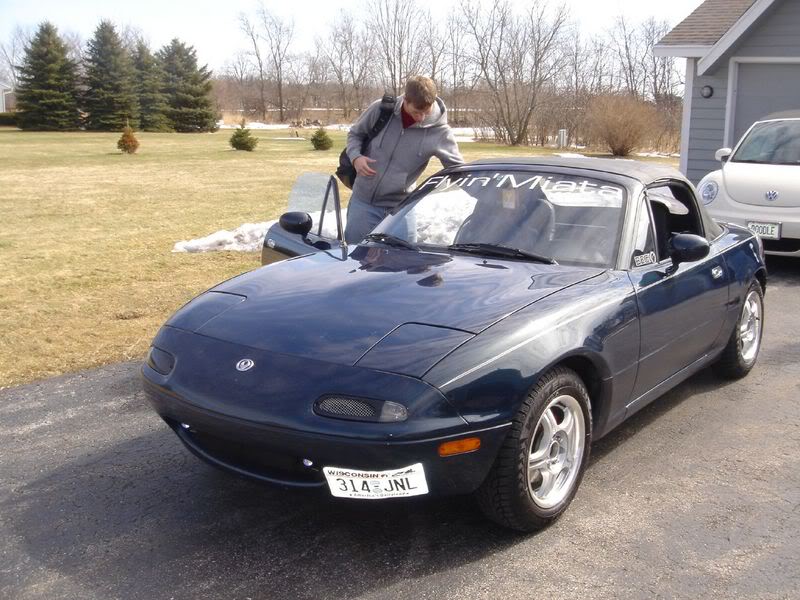

Here's my DIY TSI:
Name:  426122971_1f7ba3d63c_o.jpg
Views: 12
Size:  98.6 KB
SamS is offline   Reply With Quote
Old 03-28-2007, 10:38 PM   #3
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,048
Total Cats: 4
Default

What about a combination of a naca duct and a heat extraction hood riser mod?

Will these work together to help cooling?
Efini~FC3S is offline   Reply With Quote
Old 03-29-2007, 12:12 AM   #4
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,904
Total Cats: 4
Default

i think a while ago it was shown that the tsi dont really cool much, and actually pull out not in.
Pitlab77 is offline   Reply With Quote
Old 03-29-2007, 12:54 AM   #5
Senior Member

Join Date: Jan 2007
Location: Maryland
Posts: 701
Total Cats: 0
Default

I thought it was proven that the TSI location is a high pressure area and would thus travel to the low pressure area under the hood. In any case the NACA duct is far superior but i is po'. I wouldn't say TSI's inferior with the NACA duct at all since it creates the vortex regardless of what's going on where the air is being funneled.

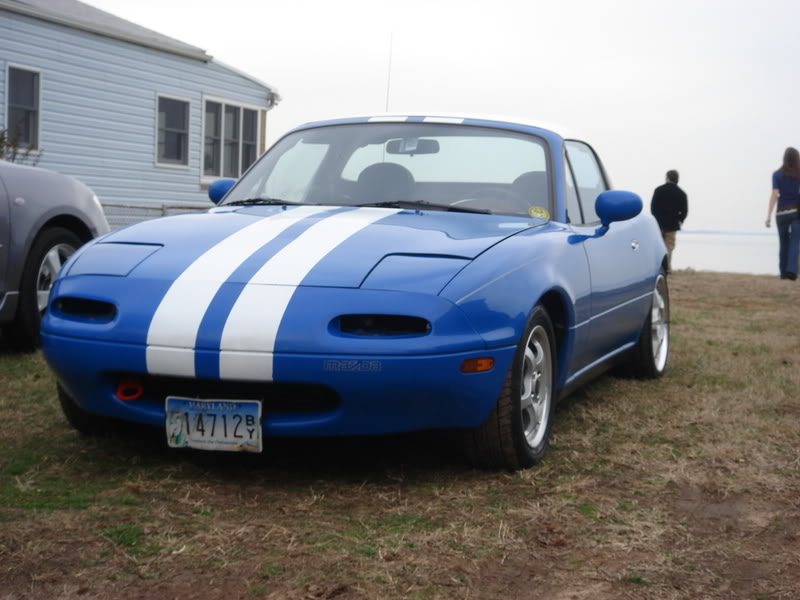

Oh btw these are mine Name:  December076.jpg
Views: 16
Size:  68.1 KB

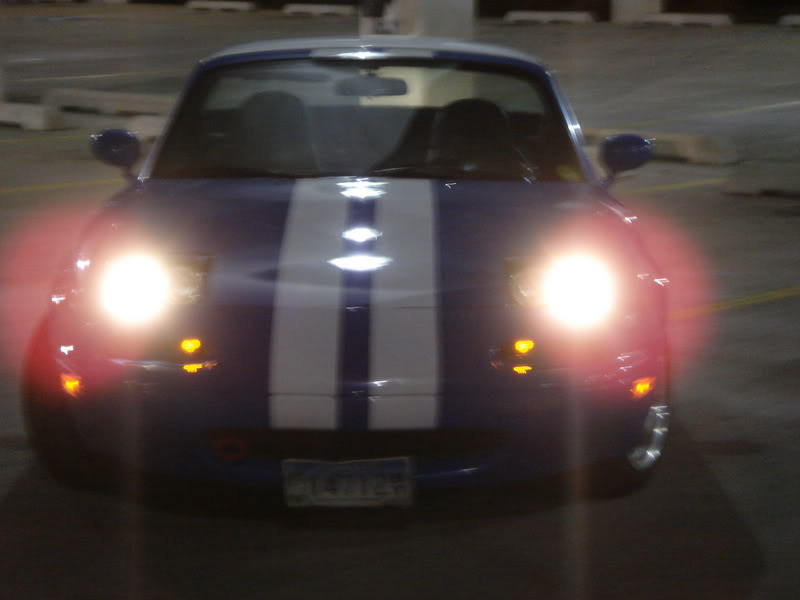

Name:  DSC01138.jpg
Views: 12
Size:  35.7 KB

Last edited by MX_Eva; 03-29-2007 at 02:15 AM.
MX_Eva is offline   Reply With Quote
Old 03-29-2007, 09:27 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

I had a driver side TSI, went with a NACA duct and I'm much happier; Esthetically and functionally.
Braineack is offline   Reply With Quote
Old 03-29-2007, 01:58 PM   #7
Elite Member
Thread Starter
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Thanks for the opinions. SamS those are sharp looking DIY's. Tough to sort through all the options.

Mc-what's-their-names drag racing has the carbon fiber Naca's for DIY for about $30. Cut the lid, glass it up and touch up the edges.

Dremel out the TS's, relocate the lamp, paint, maybe fix in grid like SamS.

Buy used Naca lid, $65, and repaint.

Braineack, your opinions seem to be well reasoned and experienced and you've used both so I gotta go with you on the Naca lid. Now just have to figure out which way I want to go. Cut my existing or respray a used one I have available.
cueball1 is offline   Reply With Quote
Old 03-29-2007, 02:03 PM   #8
Senior Member
iTrader: (3)

Join Date: Mar 2007
Posts: 567
Total Cats: 1
Default

heres mine, I made my cover and tsi's











slutz4 is offline   Reply With Quote
Old 03-29-2007, 02:04 PM   #9
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

Quote:
Originally Posted by Efini~FC3S View Post
What about a combination of a naca duct and a heat extraction hood riser mod?

Will these work together to help cooling?
Thats what I want to know...I just bought a full headlight cover in need of restoration and the risers are fugly but might work.

My NACA fiberglass lid was $20...I've just got to attach new fasteners and repair a corner.
miatamania is offline   Reply With Quote
Old 03-29-2007, 02:58 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

an extractor would probably not work, due to the pressure system. I was thinking of drilling a hole behind the clutch master to allow the air to escape, but IIRC it's a high pressure zone behind it, so the air will enter on both sides. It works good enough as is. I measured the surface temps after a 15min session on the track. I don't remember the actually numbers the but the filter and the piping was like 90°, just out of the airflow of the duct and the pipes surface temp was like 120° or something. With the duct taped shut and another 15min session, the filter itself has a surface temp of something around +150°
Braineack is offline   Reply With Quote
Old 03-29-2007, 05:13 PM   #11
Senior Member
iTrader: (8)

Join Date: Mar 2006
Location: Floriduh
Posts: 882
Total Cats: 0
Default

Never raise the back of your hood. You will introduce high pressure air into the engine bay, causing the front of the car to become more unstable at speed. If you're worried about cooling with that high pressure air, then you should be looking somewhere else to fix your cooling issues.

Cheap TSI that is functional and mild is to dremel out the empty daytime running light area of the turn signals, then put a piece of screen in there. I know it works, I did it, and got all kinds of crud inside the fender in that area that was not previously there.
soflarick is offline   Reply With Quote
Old 03-29-2007, 05:26 PM   #12
Elite Member
Thread Starter
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Slutz4,

You're running both. Let us know how it goes with underhood temps.
cueball1 is offline   Reply With Quote
Old 03-29-2007, 05:27 PM   #13
Junior Member

Join Date: Dec 2005
Posts: 258
Total Cats: 0
Default

miatamania has the tsi's on sale right now. save about $20. i ordered mine and should be in today. i think they look a little better then the naca and theoretically should be more effective. plus they work headlights up or down
BrillntBlk92 is offline   Reply With Quote
Old 03-29-2007, 06:01 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

well, theoretically the NACA should prove better, since it's designed to create a vacuum into the scoop without distrupting the airfoil above it. plus, it has a direct path into the bay, when the lights are down the headlight covers 85% of the gap that you create with the tsi.

all in all, tsi or naca, i feel it's better than just a cone filter sitting in the bay without any ambient air source.


FWIW, my old TSI, if anyone wants it send me $$$ for shipping: https://www.miataturbo.net/forums/at...tachmentid=485

FWIW, my current NACA Duct: https://www.miataturbo.net/forums/sh...t=screw+rivets
Braineack is offline   Reply With Quote
Old 03-29-2007, 07:27 PM   #15
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

Quote:
Originally Posted by Braineack View Post
well, theoretically the NACA should prove better, since it's designed to create a vacuum into the scoop without distrupting the airfoil above it. plus, it has a direct path into the bay, when the lights are down the headlight covers 85% of the gap that you create with the tsi.

all in all, tsi or naca, i feel it's better than just a cone filter sitting in the bay without any ambient air source.


FWIW, my old TSI, if anyone wants it send me $$$ for shipping: https://www.miataturbo.net/forums/at...tachmentid=485

FWIW, my current NACA Duct: https://www.miataturbo.net/forums/sh...t=screw+rivets
I'll take your tsi if you want to send it to me along with your flywheel
miatamania is offline   Reply With Quote
Old 03-29-2007, 10:20 PM   #16
Senior Member
iTrader: (4)

Join Date: Oct 2006
Location: Tampa
Posts: 780
Total Cats: 0
Default

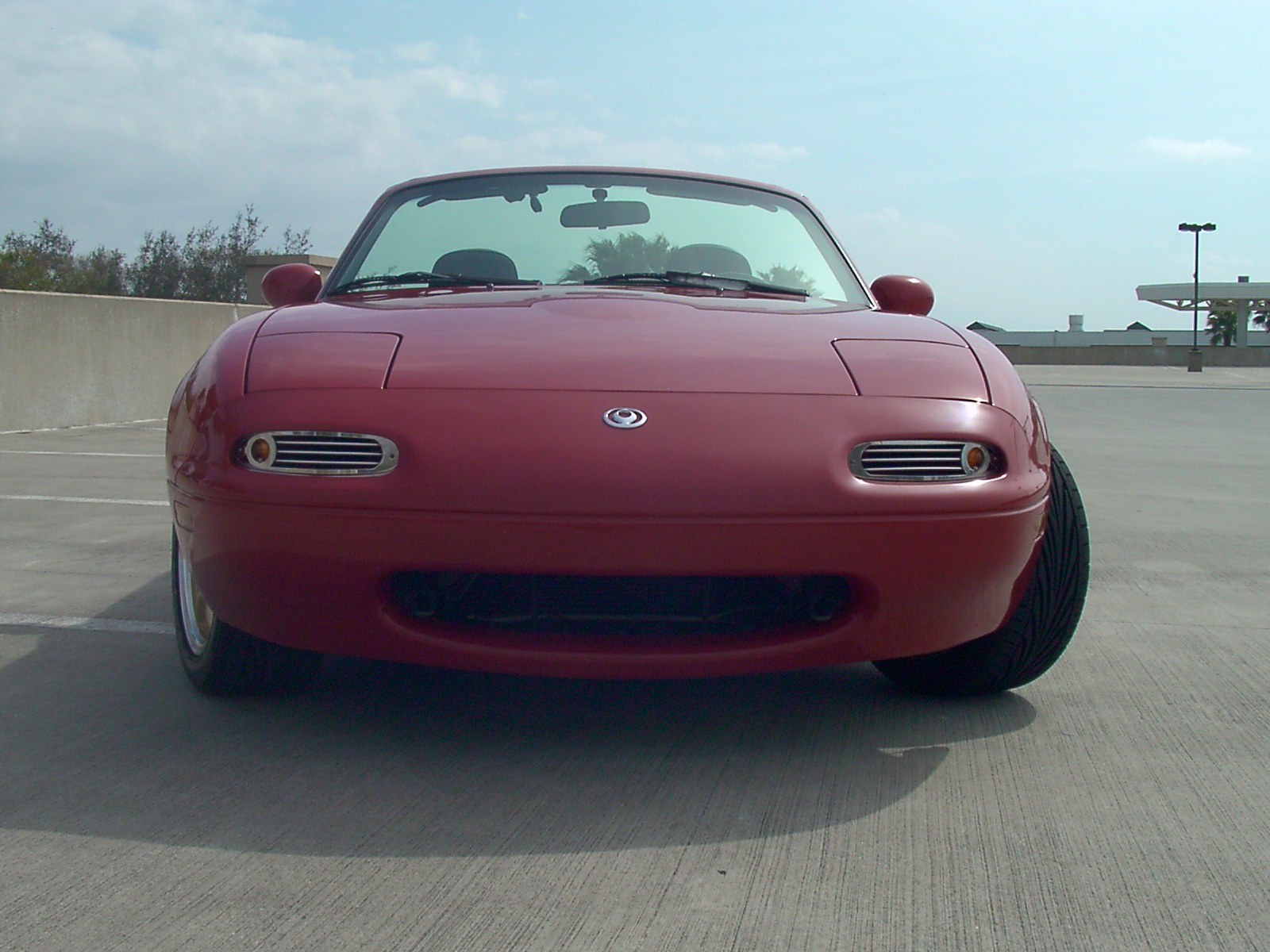

Here are my TSI's. I like them, I think they work...has to be a little better than stock.
Attached Thumbnails
TSI, Naca lamp cover or both?-miata-026.jpg
96rdstr is offline   Reply With Quote
Old 03-29-2007, 10:21 PM   #17
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,048
Total Cats: 4
Default

so miatamanias hood riser extraction kit is rubbish?
Efini~FC3S is offline   Reply With Quote
Old 03-30-2007, 06:13 AM   #18
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,020
Total Cats: 114
Default

Quote:
Originally Posted by Braineack View Post
well, theoretically the NACA should prove better, since it's designed to create a vacuum into the scoop without distrupting the airfoil above it. plus, it has a direct path into the bay, when the lights are down the headlight covers 85% of the gap that you create with the tsi.

all in all, tsi or naca, i feel it's better than just a cone filter sitting in the bay without any ambient air source.


FWIW, my old TSI, if anyone wants it send me $$$ for shipping: https://www.miataturbo.net/forums/at...tachmentid=485

FWIW, my current NACA Duct: https://www.miataturbo.net/forums/sh...t=screw+rivets

I'll pay you 20$ for shipping lol
