Default This turbo blanket is the business!

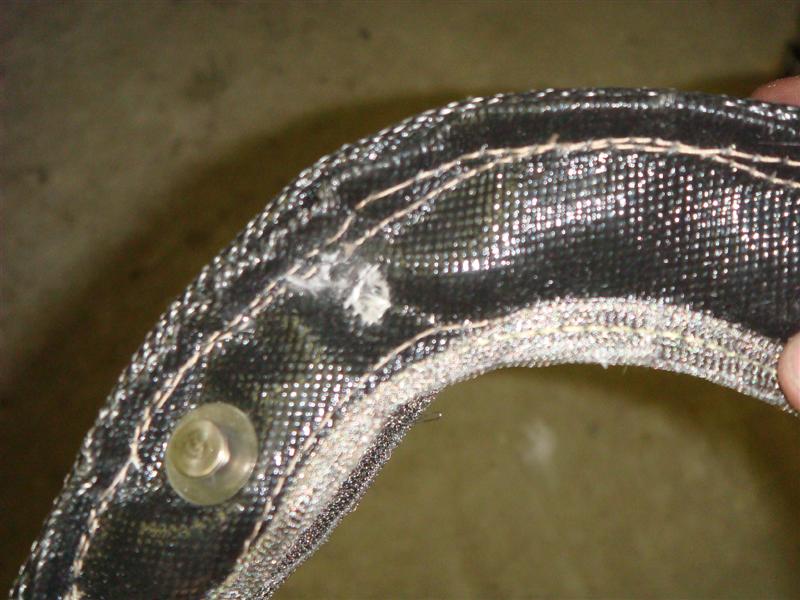

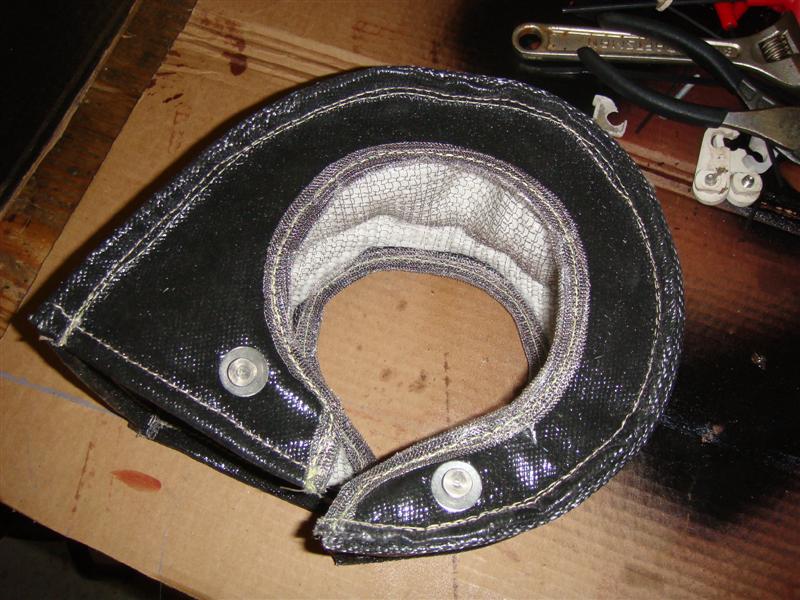

Install was easy. I saw that others were cutting a notch out of the entire side of the blanket and thought it would be better for integrity just to stick the arm through the blanket. Just use an awl or punch to start the hole and a screwdriver to make it bigger. Do not use a drillbit. The blanket will not interfere in any way with actuation of the wastegate.

Temps in the area are dramatically lower... well worth the $$, a highly recommended item.

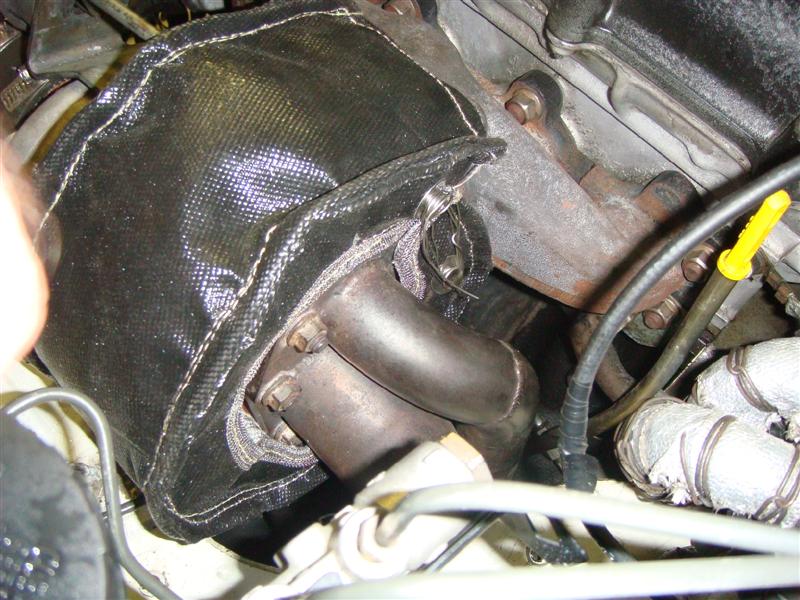

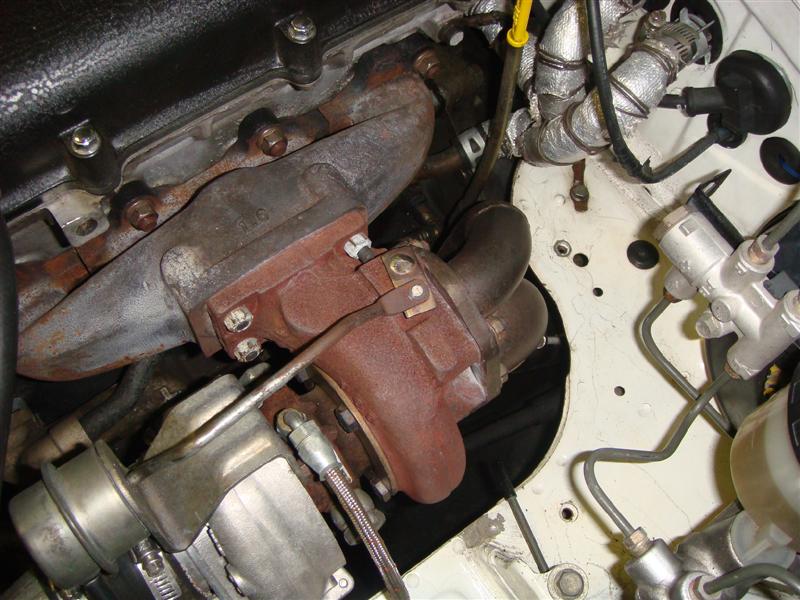

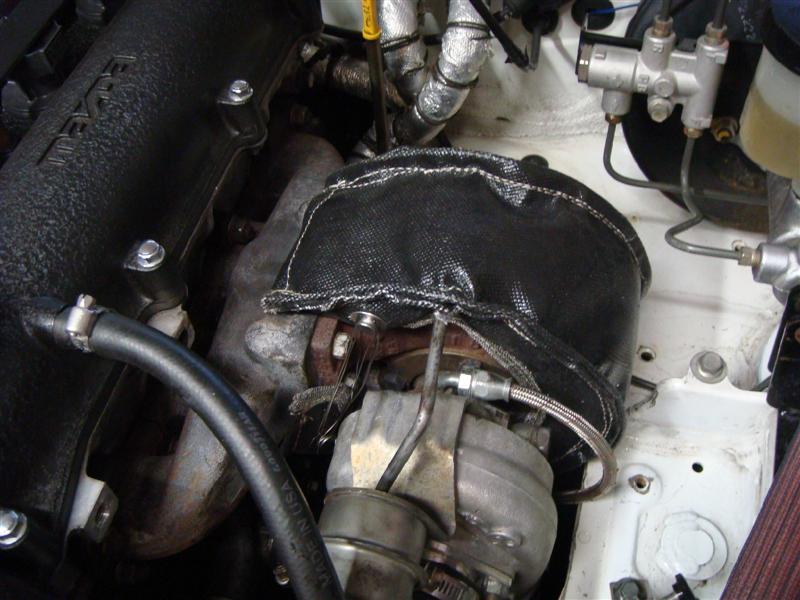

Shown on an SR20det T25, fits a lot better than others were guessing it would. These blankets fit snug up against the turbine housing if they're external wastegate... but with internal, it's not gonna be perfect no matter how the turbo is oriented. I'm extremely pleased overall.
Attached Thumbnails
This turbo blanket is the business!-dsc01944-medium-.jpg   This turbo blanket is the business!-dsc01945-medium-.jpg   This turbo blanket is the business!-dsc01948-medium-.jpg   This turbo blanket is the business!-dsc01952-medium-.jpg   This turbo blanket is the business!-dsc01954-medium-.jpg

samnavy is offline   Reply With Quote
Old 08-13-2008, 09:43 PM   #2
Junior Member
iTrader: (1)

Join Date: May 2008
Location: Eglin AFB Florida
Posts: 62
Total Cats: 0
Default

looks good.
msmiata is offline   Reply With Quote
Old 08-13-2008, 11:08 PM   #3
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

I did exactly what you did for the arm.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote

Last edited by levnubhin; 10-07-2009 at 04:06 PM.
levnubhin is offline   Reply With Quote
Old 08-13-2008, 11:23 PM   #4
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

I've mounted mine upside down from yours... wonder if it's significant? Just by looking, yours appears to fit better. Next time I'm under the hood, I'll have to flip it over and see.
samnavy is offline   Reply With Quote
Old 08-14-2008, 01:32 AM   #5
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Man i want one.
cjernigan is offline   Reply With Quote
Old 08-14-2008, 01:38 AM   #6
Senior Member

Join Date: Nov 2005
Location: Austin, TX yall
Posts: 849
Total Cats: 0
Default

Samnavy, I'm not digging the blankets, but I have DP envy. Although, it does nicely clean up that side of the engine.

Chris
Miatamaniac92 is offline   Reply With Quote
Old 08-14-2008, 07:47 AM   #7
Newb

Join Date: Aug 2007
Location: Amsterdam
Posts: 15
Total Cats: 0
Default

Hi,

Where did you by the blanked? What brand is it?

Cheers,

Timo
tkouwenhoven is offline   Reply With Quote
Old 08-14-2008, 08:02 AM   #8
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

^There was a group buy a few weeks back. Check the group buy forum... but I'm sure the buy has ended and all blankets are sold.

They're usually about $130 on eBay.
All of those blankets are the same, brand won't matter... here:
http://cgi.ebay.com/ebaymotors/T3-T4...spagenameZWDVW
samnavy is offline   Reply With Quote
Old 08-14-2008, 09:37 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by samnavy View Post
I've mounted mine upside down from yours... wonder if it's significant? Just by looking, yours appears to fit better. Next time I'm under the hood, I'll have to flip it over and see.
It seems to me flipped around would be better...as it will cover the front section of the flange....
Braineack is offline   Reply With Quote
Old 08-14-2008, 11:32 AM   #10
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Holla!!




they may still be available at the original place of purchase that Kelly/WOT set up. Ummm... and this thread is SUPER OLD so you've been warned:

https://www.miataturbo.net/forum/showthread.php?t=5990
y8s is offline   Reply With Quote
Old 08-14-2008, 07:04 PM   #11
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

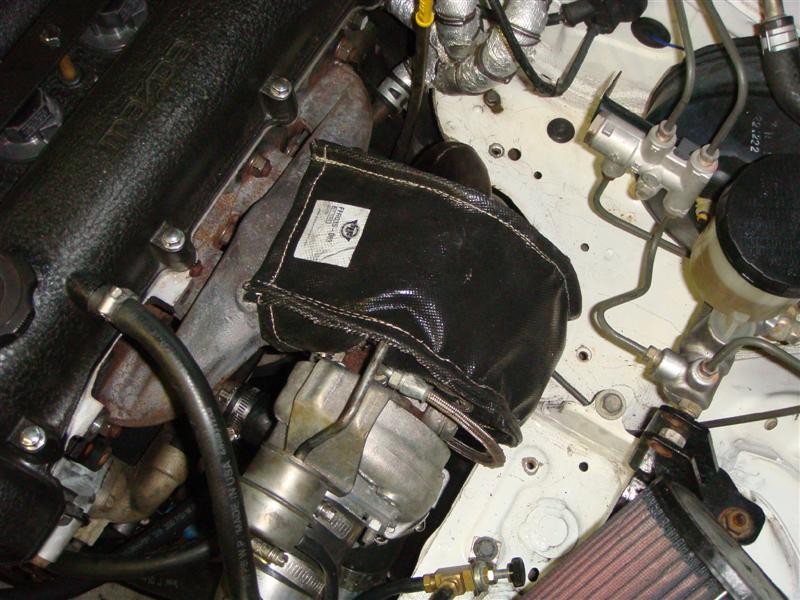

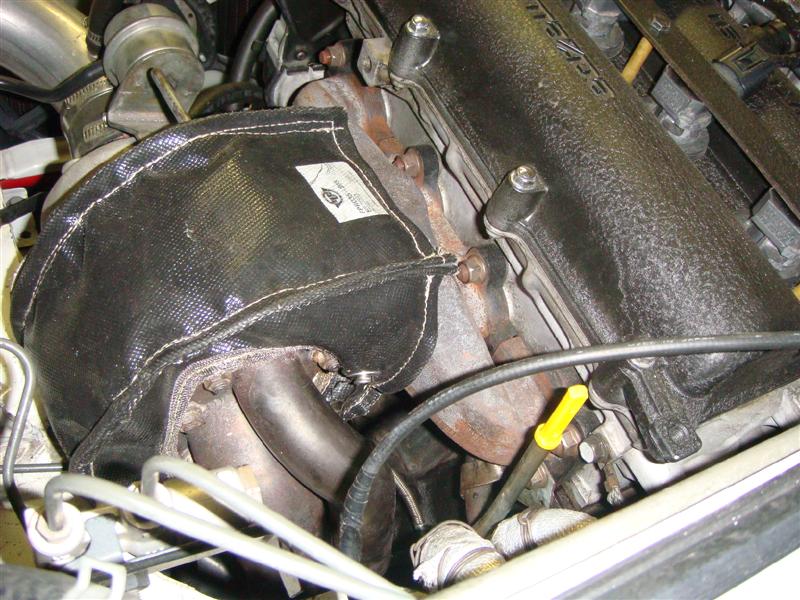

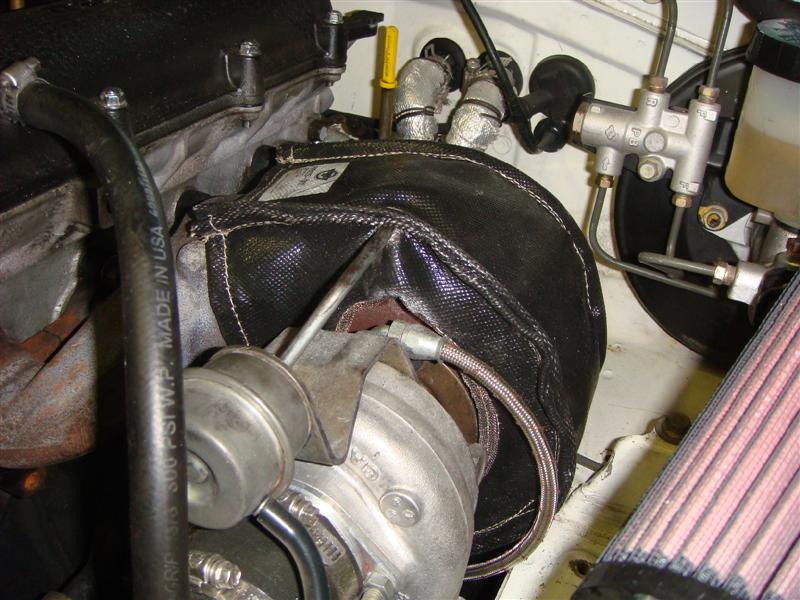

OK... rightside up now. It fits a lot better and now covers the flange and a good portion of the top of the manifold.
Attached Thumbnails
This turbo blanket is the business!-dsc01963-medium-.jpg   This turbo blanket is the business!-dsc01965-medium-.jpg   This turbo blanket is the business!-dsc01966-medium-.jpg
samnavy is offline   Reply With Quote
Old 08-14-2008, 07:20 PM   #12
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

that's such a cute little turbo
Arkmage is offline   Reply With Quote
Old 08-14-2008, 07:35 PM   #13
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Just got mine today. They are impressively heavy. Very nice. Heading out to try and install it. Not easy to reach everything with the S4 mani and every possible option on the car.
cueball1 is offline   Reply With Quote
Old 08-14-2008, 08:14 PM   #14
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Ruh Roh. I don't see any way this thing will fit with the BEGI S4 mani and DP. The support for the mani and supply lines are all very much in the way. Dropping the turbo down it has a lot less room around it. All that metal mesh is sharp. Jeez, I hate metal slivers. This will take a lot of cutting and swearing to get in. Aargh.
cueball1 is offline   Reply With Quote
Old 08-14-2008, 09:24 PM   #15
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Quote:
Originally Posted by Arkmage View Post
that's such a cute little turbo
You just wait 'til I move back to California... I've got something special in mind.
samnavy is offline   Reply With Quote
Old 08-14-2008, 09:55 PM   #16
Newb

Join Date: Aug 2008
Posts: 31
Total Cats: 0
Thumbs up

has anyone had any ill effect from blanketing the turbine house. I didnt know if they would cause problems like wrapping a downpipe. But my guess is there wouldn't be any issues. Looks good sam nice setup.
kennymr25 is offline   Reply With Quote
Old 08-14-2008, 10:41 PM   #17
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

OK, mines on. Had to reach up through wheel well to shove it up behind the turbo up toward the mani. Had to cut slit in end to fit around the oil inlet tube. Not overly pretty but it's on. While I had the heat sheilds off I went ahead and added some heat sheild fabric to those. With the blanket and additional sheilding I'm hoping underhood temps come down some. I'll add pics tomorrow.

Now to finish the splitter/undertray and install the slim fans.
cueball1 is offline   Reply With Quote
Old 08-14-2008, 10:48 PM   #18
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

cueball, yours is not on, looks horribly ugly, and even with the car off, raises underhood temperatures by 500 degrees. it is also in your best interest to bite the financial bullet and get rid of it by giving it to me. you like this idea.
curly is offline   Reply With Quote
Old 08-14-2008, 10:58 PM   #19
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Definitely a superb item. Really glad I got it. Installation was easy as cake and it fits great.

Thanks Zabac.
Saml01 is offline   Reply With Quote
Old 08-15-2008, 12:17 PM   #20
Junior Member
iTrader: (6)

Join Date: Oct 2007
Location: So Cal
Posts: 331
Total Cats: 0
Default

Are you guys having any smoking issues? This morning I drove apprxoimately 15 minutes of freeway driving, and the car smelt like ***. Got to work and saw the blanket was smoking...not a huge amount by any means, but enough to see with the hood still closed. Smoke continued for about 10 minutes after I parked...hopefully its just a break in smoke session
99NBMia is offline   Reply With Quote
