This turbo blanket is the business! - Page 2 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



General Miata Chat A place to talk about anything Miata

Reply



LinkBack Thread Tools
Old 08-15-2008, 12:27 PM   #21
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

No smoking here
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 08-15-2008, 12:30 PM   #22
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Mine is smoking slightly, but just about everything that operates at 600* smokes a little when you first install it.
samnavy is online now   Reply With Quote
Old 08-15-2008, 12:49 PM   #23
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Got some odor from mine too. Hoping it's just "break in".

Curly,

You were my 1st choice if I couldn't have got this on reasonbly yesterday. Unfortunately I was able to manuver/ squeeze/ fanagle it into place. Sucks to be you.

Hope to see you at the track some time. My schedule sucks.
cueball1 is offline   Reply With Quote
Old 08-15-2008, 01:23 PM   #24
Senior Member
iTrader: (4)

Join Date: Oct 2006
Location: Tampa
Posts: 780
Total Cats: 0
Default

I didnt get my blanket from the group buy, but I think mine works pretty darn good. I also buillt a cheapo aluminum box to go around the downpipe to help with the heat. I lined the inside with the DEI reflective tape. Those two things help to keep the heat down.
96rdstr is offline   Reply With Quote
Old 08-15-2008, 01:29 PM   #25
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

I wonder what the chances are that the blanket will fit with a BEGI heatshield on a gt2554r? I want to run both as the shield covers a significant amount of the DP and shields the heater hoses, and just plan looks awesome!
jayc72 is offline   Reply With Quote
Old 08-15-2008, 02:52 PM   #26
I'm Miserable!
iTrader: (5)

bryantaylor's Avatar

Join Date: Dec 2006
Location: jacksonville, fl
Posts: 1,720
Total Cats: 0
Default

bryantaylor is offline   Reply With Quote
Old 08-15-2008, 03:32 PM   #27
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Mine smelled for a couple of weeks when I first installed it. It will go away gradually. Now I do not notice it at all.
ZX-Tex is offline   Reply With Quote
Old 08-15-2008, 04:17 PM   #28
Elite Member
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

Looks great.

Now, I have to install mine tonight. Along with injector O'rings. LOL
Toddcod is offline   Reply With Quote
Old 08-15-2008, 05:07 PM   #29
Junior Member
iTrader: (6)

Join Date: Oct 2007
Location: So Cal
Posts: 331
Total Cats: 0
Default

Awesome thanks for the responses in terms of smell and smoke.
99NBMia is offline   Reply With Quote
Old 08-15-2008, 05:23 PM   #30
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

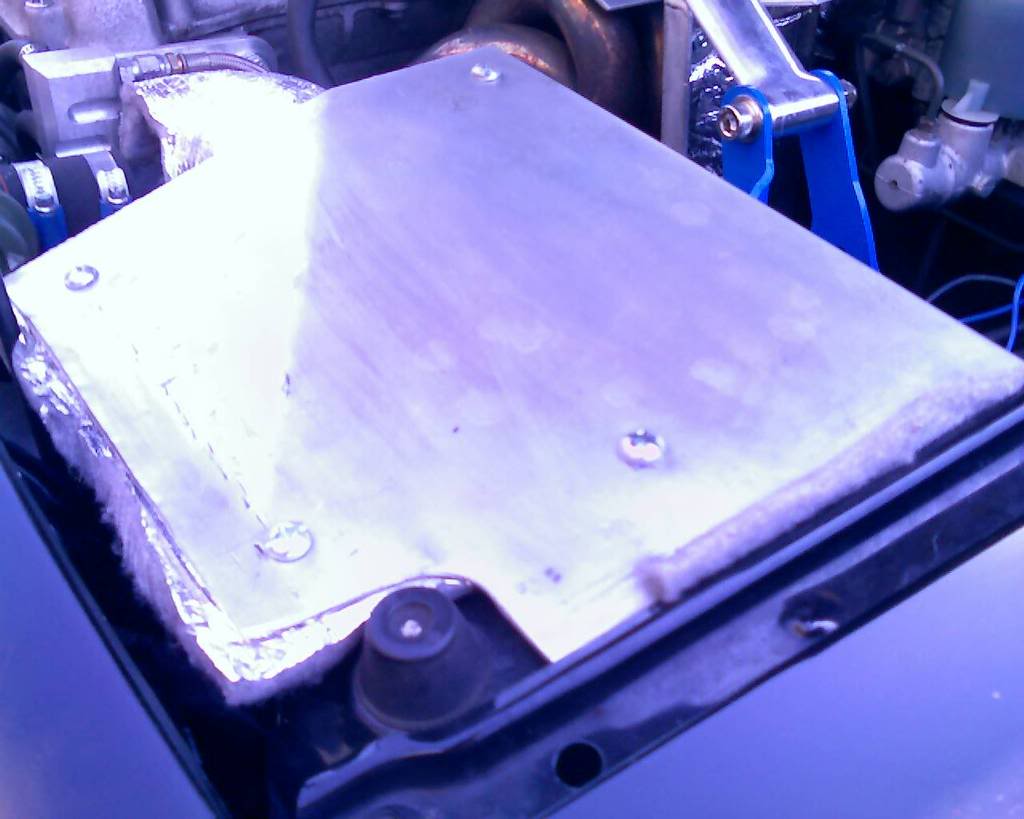

Here's my install with the BEGI S4 mani. Not overly pretty. Had to make a couple of cuts to get it wrapped around the Mani support and oil inlet.



Name:  081508_13041.jpg
Views: 5
Size:  65.1 KB

While I was at it I added some heat shield fabric to one of the heat shields, intake pipes and the intake surround. Drilled some holes, used nut/bolt and large washer to hold the fabric to the shields. Lining the inside of the intake surround quieted the intake noise a bunch. Not silent but certainly less intrusive/ stealthier.
cueball1 is offline   Reply With Quote
Old 08-25-2008, 09:27 PM   #31
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Well, the blankets don't like heat shields combined with track days. The post just before this one is before. This picture is after. Sorry, crappy phone pic. The blanket where heat is shielded at all whether it's the block, heat shield, or other object close by turned to ash. If it wasn't for the metal mesh it would just disintegrate. No problem with every day driving. HPDE did it in.

This picture is after the 1st session. Pretty much crumbling apart after the 4th. They'll take some heat but don't plan on them taking serious HEAT! That bright white area on the right is a hole. The gray area on the left it's burned to ash.

cueball1 is offline   Reply With Quote
Old 08-25-2008, 09:59 PM   #32
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

this may be a dumb question but... why are you using both?
y8s is offline   Reply With Quote
Old 08-25-2008, 10:10 PM   #33
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

There is still the heat from the Manifold and DP to manage. Needs to be kept from the brake and clutch hydraulics, heater lines, etc. The blanket only keeps heat in from the turbo. There's plenty of heat coming off those other sources too. With the S4 Mani the blanket toasted between the turbo and the block too. I haven't crawled under or pulled it off to see just how much is toast. I'm guessing about 1/2 of it is gone.
cueball1 is offline   Reply With Quote
Old 08-25-2008, 10:12 PM   #34
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Jeez, the Hustler ban even screws up people's sig's using his quotes. Get him back in here!
cueball1 is offline   Reply With Quote
Old 08-25-2008, 10:20 PM   #35
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Awesome information to have... looks like the grey fabric is the weak link. Perhaps instead of a heat-shield that insulates the mani/turbo, it would be wiser if using a blanket to shield/wrap individual components in the engine bay. I think with the S4, a ceramic coated manifold and turbo-blanket would cure 90% of our ills... the heater core lines and brake reservoir are easily "individually shielded".
samnavy is online now   Reply With Quote
Old 08-26-2008, 01:10 PM   #36
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Ceramic coating would have been the thing to do. Didn't know to even consider it when I had the car done. That thing pours out a lot of heat. For anyone doing a tubular header spend the extra money up front and get HEAVY ceramic coating done. Now that it's in the car, it's such a pain in the butt to remove I'm going to keep screwing around with bandaids.

The outside blackish material is now nearly white, the padding inside is basically ash and falls apart to the touch. The sides look OK, it's the 3" wide band of material that wraps around that's gone.
cueball1 is offline   Reply With Quote
Old 08-26-2008, 01:57 PM   #37
Junior Member

Join Date: Aug 2008
Location: BC, Canada
Posts: 58
Total Cats: 0
Default

Now you just need to wrap your dp...
boosted7 is offline   Reply With Quote
Old 08-26-2008, 04:14 PM   #38
Junior Member
iTrader: (1)

Join Date: Aug 2008
Posts: 373
Total Cats: 36
Default

Turbo blankets are an effective way to overtemp your turbine housing (leading to warps/cracks).

If you want to protect nearby items from the radiated heat of a turbo, you're better off to shield those components individually...
JKav is offline   Reply With Quote
Old 08-26-2008, 04:48 PM   #39
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

uh oh.

first corky, now jay.
y8s is offline   Reply With Quote
Old 08-26-2008, 05:13 PM   #40
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by y8s View Post
uh oh.

first corky, now jay.

suckers...

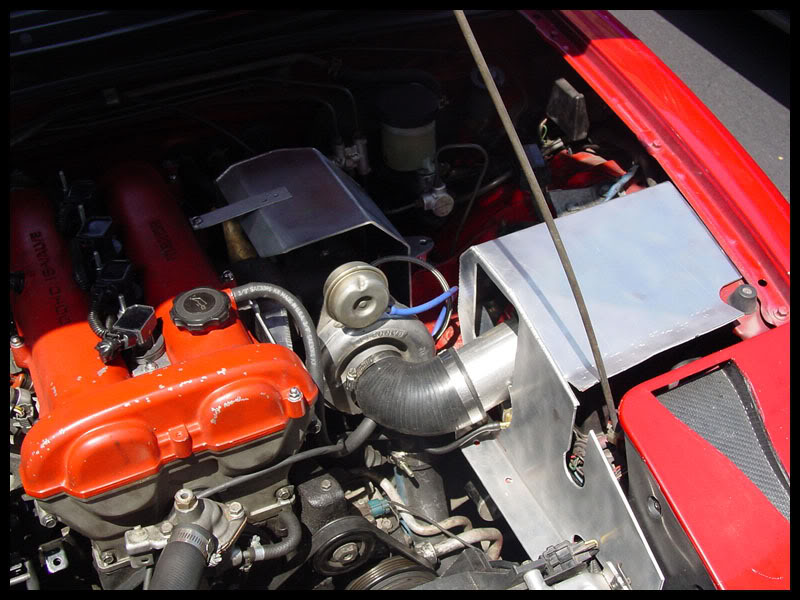

Name:  DSC01119.jpg
Views: 4
Size:  96.5 KB
Braineack is online now   Reply With Quote
