I realized I haven't posted this car up on here before, and I feel like this crowd would appreciate these shenanigans.

I'm President of Texas A&M's Society of Automotive Engineers, and one of our student projects (along with Formula Hybrid) is competing in the Grassroots Motorsports $20XX Challenge. So everything you see here is built by (largely unskilled) students for less than $2011.

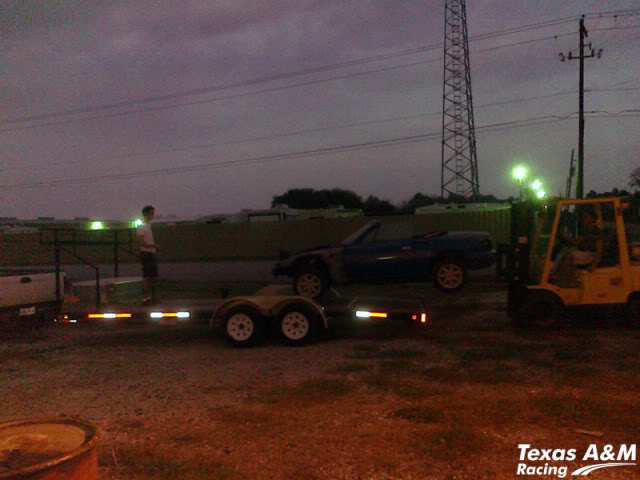

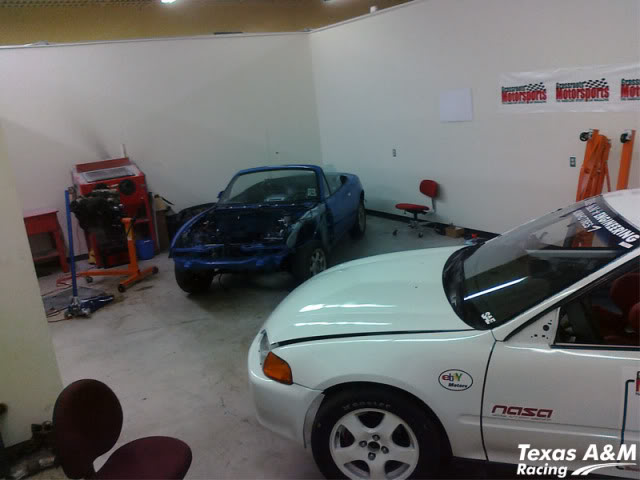

This car was originally intended for the 2010 Challenge, but some severe logistical issues (read: Not having a shop or tools) led to a delay 'til the '11 Challenge. The car itself was graciously donated by a member on here (I'm sure he'll stand up and identify himself). Here's a picture of the car when we picked it up, along with the car and our old Civic in shop #1.

Name:  55213263.jpg
Views: 205
Size:  41.7 KB

Name:  794f60af.jpg
Views: 198
Size:  41.5 KB

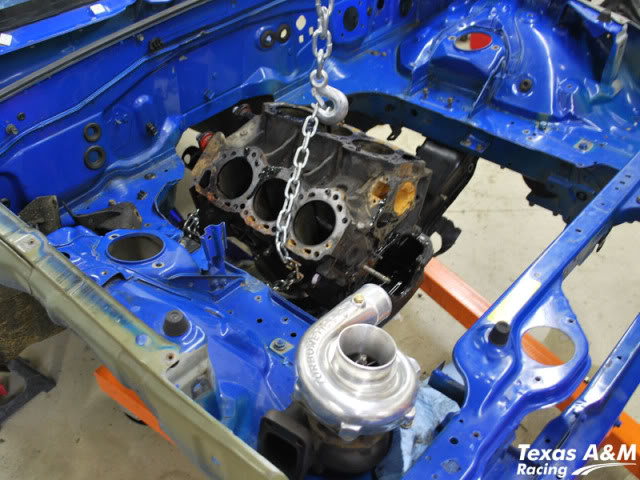

The car was cleaned up, and we dropped some components in to see if there was enough room. Probably not, but we decided to press forward anyways.

Name:  8f2eb229.jpg
Views: 600
Size:  75.2 KB

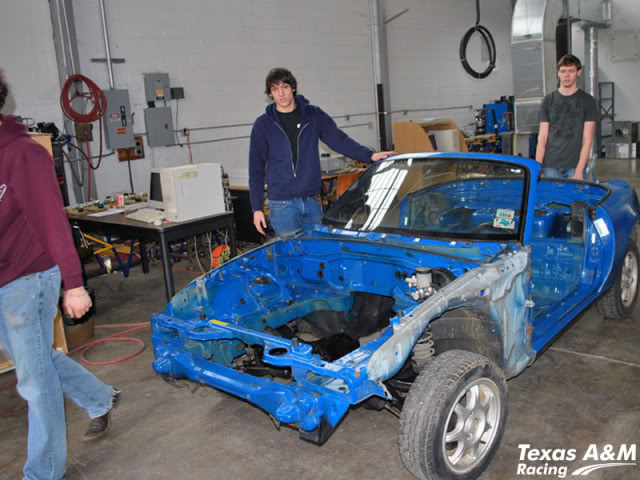

The car then moved to shop (actually a giant lab not meant to be an automotive shop) #2.

Name:  9ef85ce6.jpg
Views: 192
Size:  69.8 KB

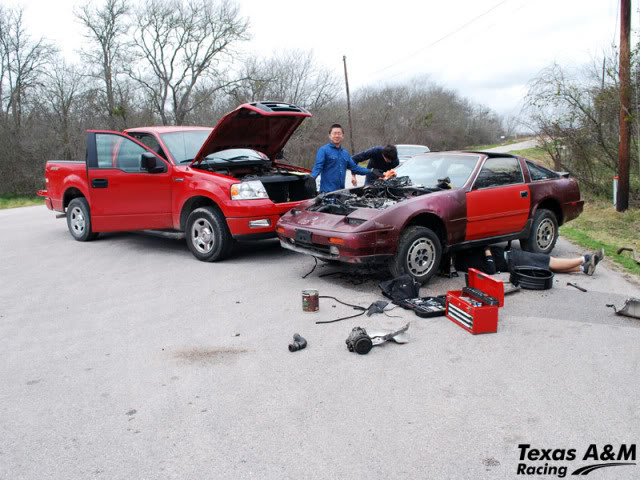

The first motor ended up being a bust, so we yanked another motor out of a (probably) healthier car in some guy's driveway.

Name:  f5e8d462.jpg
Views: 192
Size:  74.5 KB

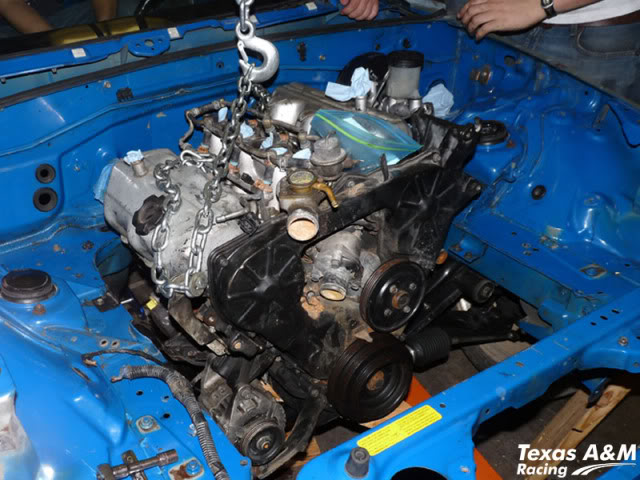

The engine itself fits rather comfortably in the engine bay, width-wise. It'll probably be poking up through the hood a tad, but that's not really a concern for us.

Name:  a335cd30.jpg
Views: 326
Size:  75.0 KB

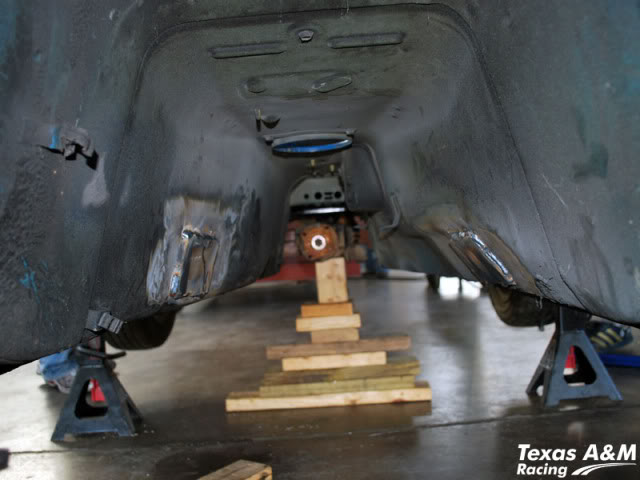

We added some hardpoints in the transmission tunnel for a mount for the VG30DETT transmission.

Name:  68917bad.jpg
Views: 199
Size:  42.1 KB

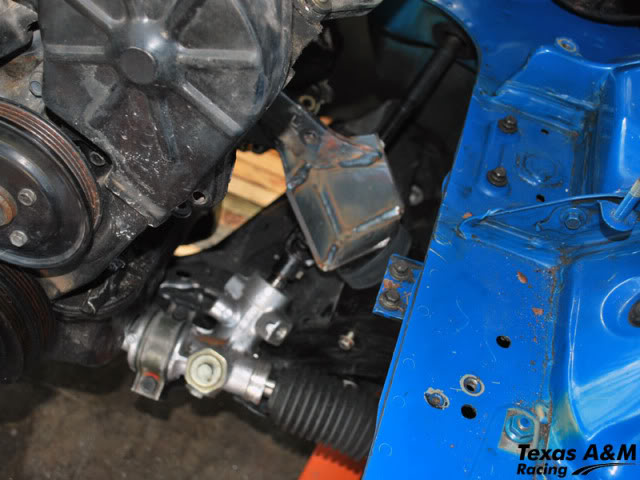

The mounts were extended down to the subframe, which was then reinforced.

Name:  453a0db5.jpg
Views: 196
Size:  56.4 KB

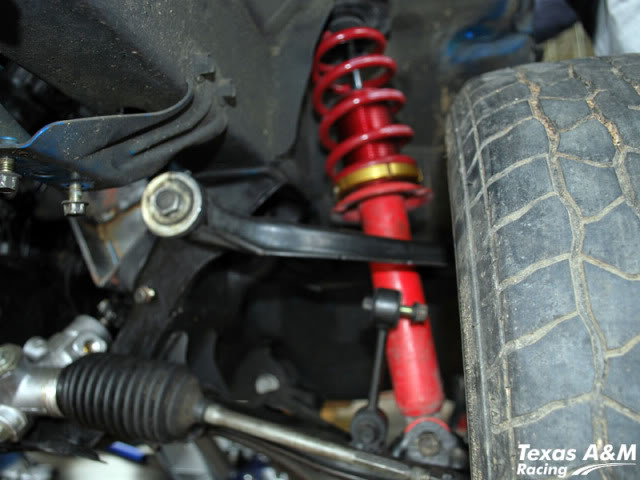

We picked up some used GC coilovers and possibly blown AGXs that we'll be running. If anyone has some stiffer spring rates that they want to trade, we're open to ideas.

Name:  0643c96e.jpg
Views: 224
Size:  54.1 KB

We got an old Cobra racing bucket off CL that didn't fit, but we widened up the tunnel about an inch and shortened the rails a bit.

Name:  44668e7d.jpg
Views: 194
Size:  51.9 KB

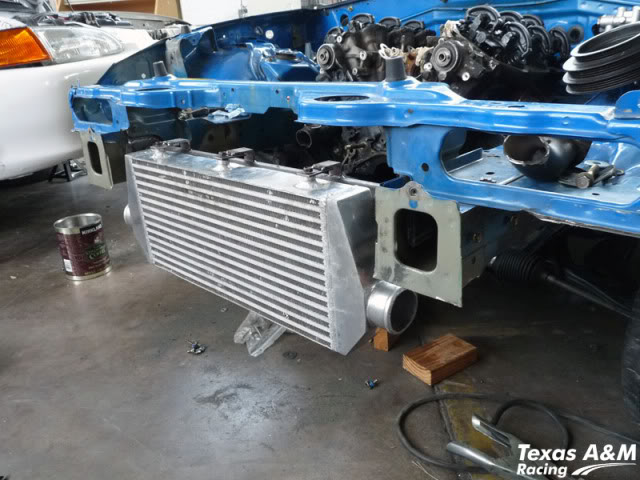

I cut away the front crash structure and welded in a length of pipe I found lying around, and we hung an eBay intercooler off it.

Name:  78ced3f7.jpg
Views: 199
Size:  69.3 KB

Amazingly enough, it fit completely within the stock bumper. We'll probably be adding some speed holes in the top half of the bumper to increase airflow across the heat exchangers.

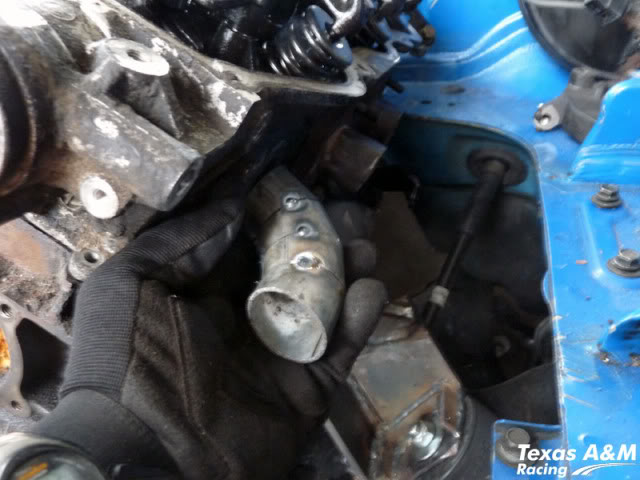

As mandrel bends are simply too baller for this build, we've been experimenting with some unorthodox materials and procedures, and I think we've got a concept that'll work. We've used galvanized fence pipe cut into pie bends, and it matches up with the exhaust ports rather well. Don't worry, we're not going to actually weld the galvanized metal, we soak them in muriatic acid to remove the zinc before we weld them up. But yes, it actually works. We'll see if I can make an entire manifold out of it, but all signs point to "Probably."

Name:  d066d0b0.jpg
Views: 192
Size:  52.4 KB

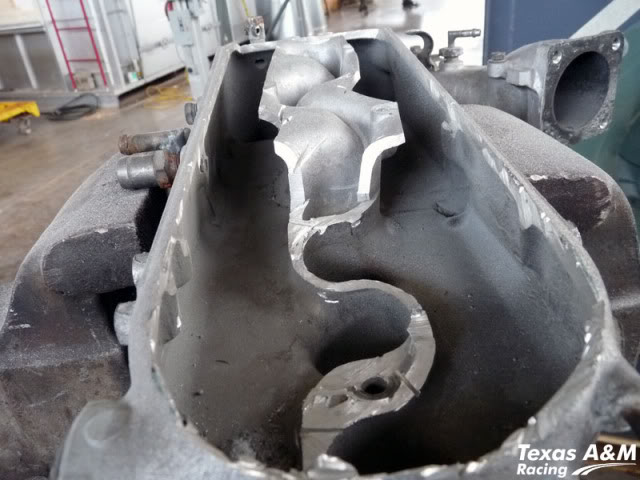

We're hollowing out the stock upper intake manifold and relocating the throttle body to the front of the plenum to make it more conducive to our packaging.

Name:  a341761a.jpg
Views: 211
Size:  54.9 KB

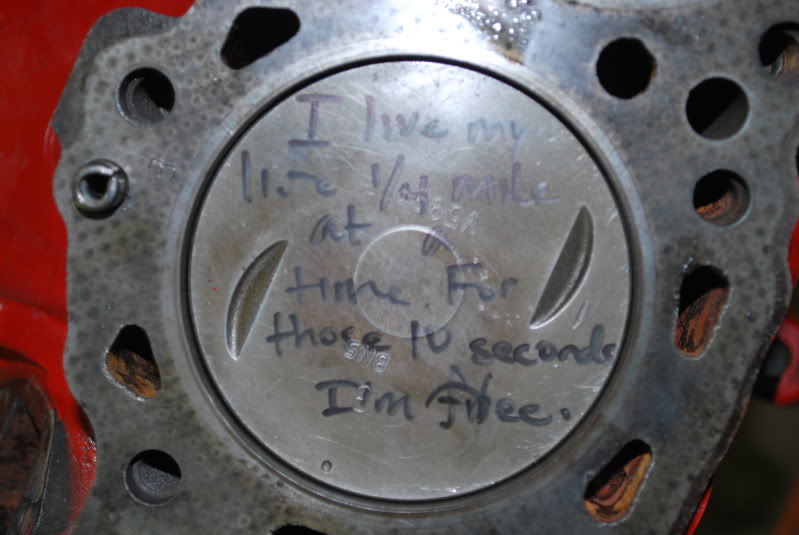

We took apart out engine and threw some fresh paint on the block, then reassembled it with the old bearings and some fresh rings. Should be enough to last through the GRM Challenge.

Name:  DSC_0140-1.jpg
Views: 237
Size:  55.5 KB

We painted the engine bay with appliance enamel from Walmart the other day, and should be dropping the motor in pretty soon.



That's about where we sit at this point. We've got a lot left to go, but it's nothing compared to how far we've come. You haven't lived until you've convinced a state organization to pay for something like this and give you somewhere to do it.

Let me know if there are any questions about our antics.
unevolved is offline   Reply With Quote
Old 05-02-2011, 11:36 PM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Quote:
The car was cleaned up, and we dropped some components in to see if there was enough room. Probably not, but we decided to press forward anyways.
Rorz.

Back to work.
curly is offline   Reply With Quote
Old 05-03-2011, 12:19 AM   #3
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Awesome.
kotomile is offline   Reply With Quote
Old 05-03-2011, 12:47 AM   #4
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,595
Total Cats: 17
Default

Good to see another Nissan v6 swap going. As long as it doesn't taper off into a v6 coffee table build this'll be good.
rccote is offline   Reply With Quote
Old 05-03-2011, 01:09 AM   #5
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

9 years until retirement... then some property big enough for a nice-sized shop and all my build-whatever-the-****-I-want dreams come true.
samnavy is offline   Reply With Quote
Old 05-03-2011, 02:32 AM   #6
Senior Member
iTrader: (2)

Join Date: Jun 2007
Location: Shalimar, FL
Posts: 965
Total Cats: 7
Default

Much win. I need to find an excuse to go see the GRM challenge this year.
messiahx is offline   Reply With Quote
Old 05-03-2011, 03:19 AM   #7
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

YUS! I always wondered if the 300zx tt engine would be a good candidate, I wish I had the money to try this on my own
Pen2_the_penguin is offline   Reply With Quote
Old 05-03-2011, 08:35 AM   #8
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

VG30ET = 84-89 300ZX turbo. SOHC design, single turbo, not quite a cramped as the VG30DETT which was the DOHC and twin turbo from 90-97.


I'm surprised you guys didn't try to find a short block VG33E from a Fontier and have a 3.3L. http://www.xenonz31.com/vg33eswap.html

Last edited by Doppelgänger; 05-03-2011 at 08:49 AM.
Doppelgänger is offline   Reply With Quote
Old 05-03-2011, 10:30 AM   #9
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,292
Total Cats: 26
Default

Quote:
Originally Posted by rccote View Post
Good to see another Nissan v6 swap going. As long as it doesn't taper off into a v6 coffee table build this'll be good.
Dammit, its a nice table! Even the wife likes it.

I'll get back to mine at some point.. if it wasn't for the cost of using my old miata... mine could have been a GRM build also AND I don't have a team!

grumble grumble.
Splitime is offline   Reply With Quote
Old 05-03-2011, 11:51 AM   #10
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default

Quote:
Originally Posted by Pen2_the_penguin View Post
YUS! I always wondered if the 300zx tt engine would be a good candidate, I wish I had the money to try this on my own
After playing with this car, I really don't think the DETT heads would fit. They're massive compared to the SOHC heads we've got, and we've barely got room for exhaust manifolds as it is.

Quote:
Originally Posted by Doppelgänger View Post
I'm surprised you guys didn't try to find a short block VG33E from a Fontier and have a 3.3L. http://www.xenonz31.com/vg33eswap.html
I can't remember what the reason was, but we considered it and opted for the VG30E instead.

I guess I didn't really clarify in the first post, we're not using a true VG30ET, we've got a VG30E block (with the higher compression) that we're turbocharging. We picked up an old Turbonetics T3/T04E off Craigslist that should work fine.
unevolved is offline   Reply With Quote
Old 05-05-2011, 10:43 PM   #11
Junior Member
iTrader: (1)

Join Date: Apr 2011
Location: Huntington Beach, CA
Posts: 66
Total Cats: 1
Default

Oh that looks like fun. Crank up the boost and forget about the extra cams... who needs em?
Hugh is offline   Reply With Quote
Old 05-05-2011, 11:04 PM   #12
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

this would be something where a cowl hood is accepted.
Pen2_the_penguin is offline   Reply With Quote
Old 05-06-2011, 12:02 AM   #13
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

WHOOP! Lookin' good Ags!

I don't have anything big to donate like Rob...but I have a few parts on the shelf.

Also have a Momo wheel I'll donate. Let me know by Tuesday am as that's my last final day and I won't be back that way all summer.
gospeed81 is offline   Reply With Quote
Old 05-06-2011, 01:14 AM   #14
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default

Quote:
Originally Posted by Hugh View Post
Oh that looks like fun. Crank up the boost and forget about the extra cams... who needs em?
Exactly. These motors will swallow so much boost in stock trim it's not even funny.

Quote:
Originally Posted by Pen2_the_penguin View Post
this would be something where a cowl hood is accepted.
In all seriousness, we're just going to cut the hood around the motor where we have to and let it poke through the top.

Quote:
Originally Posted by gospeed81 View Post
WHOOP! Lookin' good Ags!

I don't have anything big to donate like Rob...but I have a few parts on the shelf.

Also have a Momo wheel I'll donate. Let me know by Tuesday am as that's my last final day and I won't be back that way all summer.
Unfortunately we don't have any room in the budget for anything nice like a Momo wheel. We're currently rocking an FB steering wheel wrapped in bicycle grip tape. If you want to sell it, though, my personal Miata needs a new steering wheel with a horn button before it'll pass inspection.
unevolved is offline   Reply With Quote
Old 05-06-2011, 03:10 AM   #15
Junior Member

Join Date: Jun 2009
Location: Naka, Japan & Georgetown, Texas
Posts: 128
Total Cats: 0
Default

Looks good, but I didn't know that the et would take much boost. I guess it was the stock turbo that wouldn't take much boost.
Dust is offline   Reply With Quote
Old 05-06-2011, 03:13 AM   #16
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default

Quote:
Originally Posted by Dust View Post
Looks good, but I didn't know that the et would take much boost. I guess it was the stock turbo that wouldn't take much boost.
Yeah, the stock VG30ET wasn't intercooled, and couldn't handle much boost. Here's a bunch of dyno graphs of aftermarket setups. I don't think 300hp is an unreasonable goal for our setup.

http://redz31.net/turbofaq/dyno.graphs.html
unevolved is offline   Reply With Quote
Old 05-06-2011, 03:42 AM   #17
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

now I want a 80's 300zx or newer 300zx TT.
Pen2_the_penguin is offline   Reply With Quote
Old 05-06-2011, 08:07 AM   #18
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default

Quote:
Originally Posted by Pen2_the_penguin View Post
now I want a 80's 300zx or newer 300zx TT.
I'd love to have an old, beatup Z31. It could be a hell of a sleeper.
unevolved is offline   Reply With Quote
Old 05-06-2011, 06:48 PM   #19
Elite Member
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

When you guys picked you the car I know it didn't have any fenders on it, but I have some spares you are welcome to along with an old hood that is not presentable but good for mock up of cutting the hole and some FM sway bars for the 90-93 that I would let go for cheap.

I have a couple stock steering wheels around here that you can have for inspection purposes for your personal car.

Let me know if there is anything else you guys need as I probably have it.

Last edited by rharris19; 05-06-2011 at 07:04 PM.
rharris19 is offline   Reply With Quote
Old 05-06-2011, 10:06 PM   #20
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default

I definitely will. What are the chances you've got a pair of headlight covers?

We've got a set of your daisies at the shop, still.
unevolved is offline   Reply With Quote
