Old 05-07-2011, 01:16 AM   #21
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

I love swaps like this. If the race was not so far away I would be more inclined to enter my 2jz swap car. Nice build so far keep up the good work.
Sean is offline   Reply With Quote
Old 05-07-2011, 10:11 AM   #22
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

These GRM builds are some of my favorites on the site. Pure knowledge and skill!

Please keep us updated!
Faeflora is offline   Reply With Quote
Old 05-07-2011, 11:58 AM   #23
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

I have a stock wheel (and airbag if you want)....and the Momo is free for the GRM build. It's not in the best shape...but might get a few style points.

Will throw it in the car. Probably eating lunch with my brother on Tuesday close to Zach on my way out...so let me know if you'll be free.
gospeed81 is offline   Reply With Quote
Old 05-07-2011, 12:10 PM   #24
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default

Quote:
Originally Posted by gospeed81 View Post
I have a stock wheel (and airbag if you want)....and the Momo is free for the GRM build. It's not in the best shape...but might get a few style points.

Will throw it in the car. Probably eating lunch with my brother on Tuesday close to Zach on my way out...so let me know if you'll be free.
I've got a final in Zachry at 3 Tuesday, I can meet up with you whenever.
unevolved is offline   Reply With Quote
Old 05-17-2011, 05:44 PM   #25
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default

Now that finals are over, we were able to make some headway on the car.

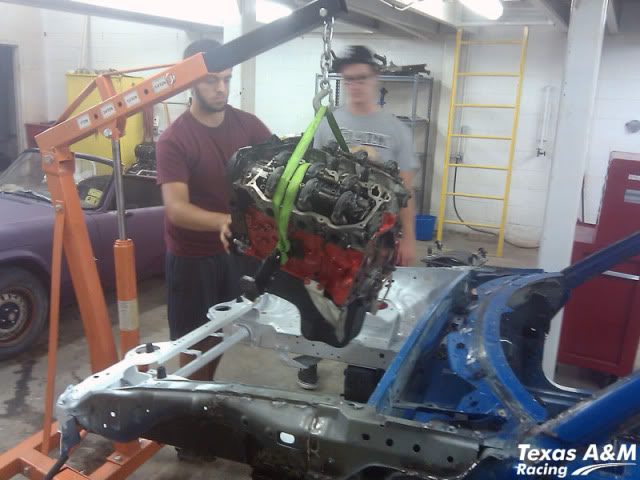

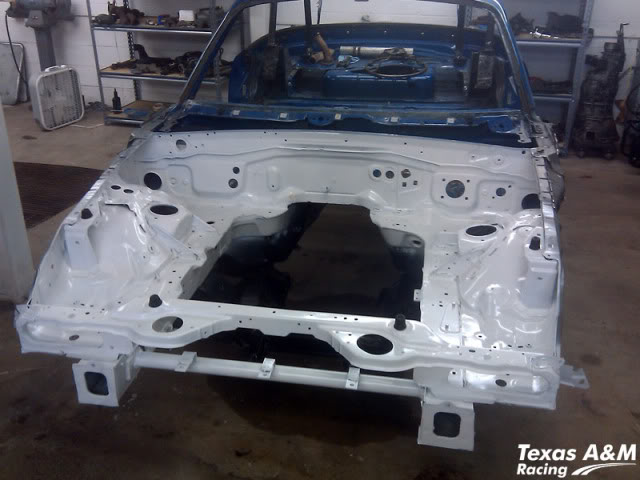

We reinstalled the subframe and the freshened-up motor:

Name:  cd0dbedb.jpg
Views: 129
Size:  51.6 KB

Name:  b627f84e.jpg
Views: 127
Size:  57.1 KB

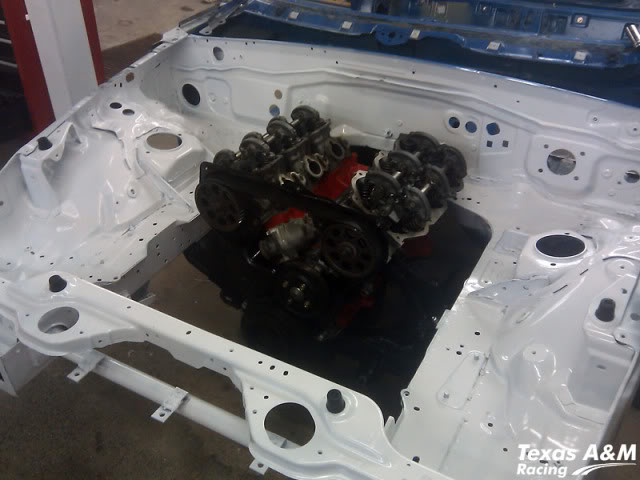

It looks quite comfortable in its new resting place.

Name:  76e30522.jpg
Views: 127
Size:  49.5 KB

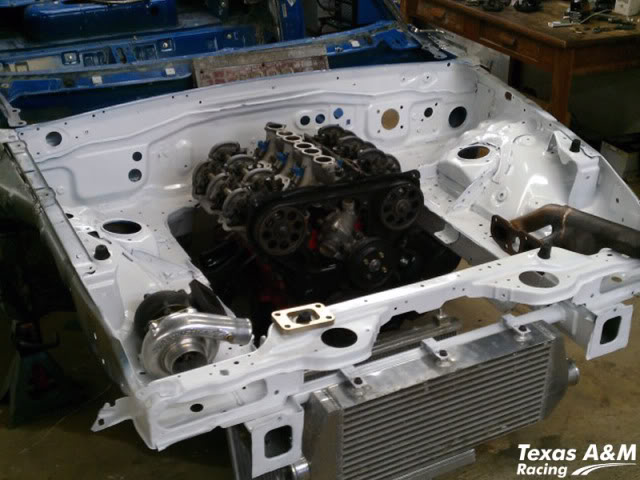

We then started ballparking some component placement.

Name:  42d6835e.jpg
Views: 128
Size:  60.5 KB

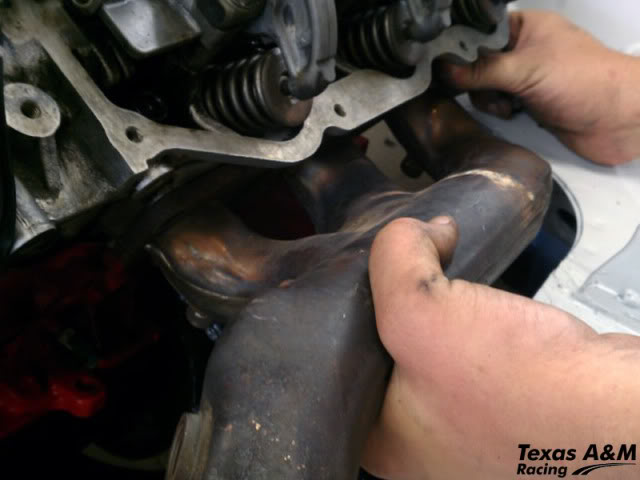

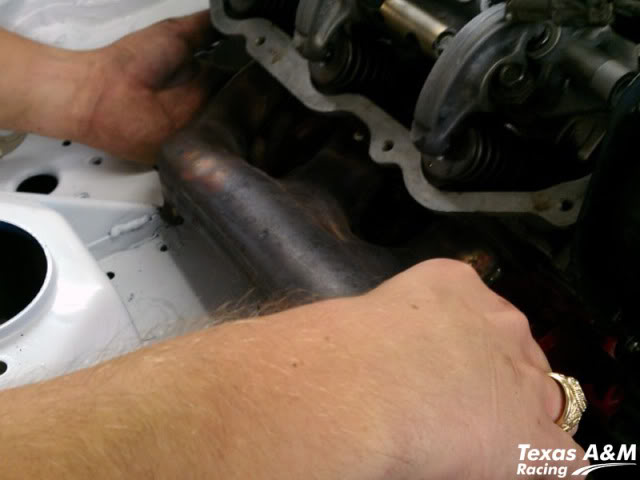

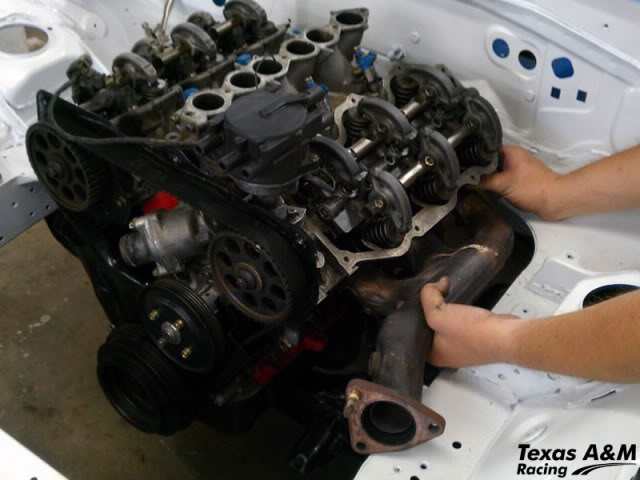

We made a huge discovery, at least for our build. Stock 350Z manifolds are like a gift from above. At only $30 for this set, you can't beat the price. We have to oval out some bolt holes, but the bore spacing is identical, so all the ports line up. The ports aren't the same shape, but it's workable. If we were doing this build for maximum power, we'd match the ports in the head to the exhaust, but that's not something worth doing at this point in the year. They look like they were made for this build.

Name:  fb633b6c.jpg
Views: 130
Size:  47.2 KB

Name:  abae6480.jpg
Views: 126
Size:  35.5 KB

Name:  0f650ffe.jpg
Views: 128
Size:  31.4 KB
unevolved is offline   Reply With Quote
Old 05-17-2011, 06:11 PM   #26
Junior Member
iTrader: (1)

Join Date: Apr 2011
Location: Huntington Beach, CA
Posts: 66
Total Cats: 1
Default

That is an awesome find. That should take a load off...
Hugh is offline   Reply With Quote
Old 05-17-2011, 06:37 PM   #27
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default

Oh man you have no idea. I was seriously stressing about those manifolds.
unevolved is offline   Reply With Quote
Old 05-17-2011, 09:45 PM   #28
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by unevolved View Post
I've got a final in Zachry at 3 Tuesday, I can meet up with you whenever.
Jake,

Sorry, completely forgot about the wheel in the midst of new job and finals, and was gone by 3...

PM me if you want me to ship it to ya.
gospeed81 is offline   Reply With Quote
Old 05-17-2011, 11:34 PM   #29
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default

Nah, don't worry about it. I completely understand the finals mindset (or lack thereof). I appreciate the offer, though.
unevolved is offline   Reply With Quote
Old 05-18-2011, 09:54 AM   #30
Newb

Join Date: Aug 2009
Posts: 15
Total Cats: 0
Default

plans to boost?
pimphand82 is offline   Reply With Quote
Old 05-18-2011, 11:01 AM   #31
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default

Very much so. Turbonetics T3/T04E. Going to start off with about 12 pounds and go from there.
unevolved is offline   Reply With Quote
Old 05-18-2011, 11:45 AM   #32
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Nice! Thats exactly my plan for the 350z manifolds on my VQ. Whats nice is I only have to move a few studs on each side and they flip with 0 issues.
Splitime is offline   Reply With Quote
Old 05-18-2011, 02:46 PM   #33
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default

Yeah, I imagine that'd work perfectly. We're going to have to get creative with our mounting for these.
unevolved is offline   Reply With Quote
Old 05-30-2011, 06:45 PM   #34
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default

Here's a few pictures from the past week:

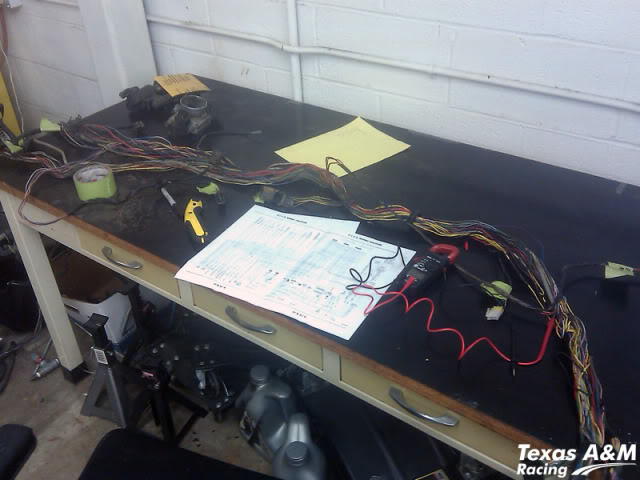

Nissan wiring harness going on a diet:
Name:  2eae6a6a.jpg
Views: 131
Size:  51.3 KB

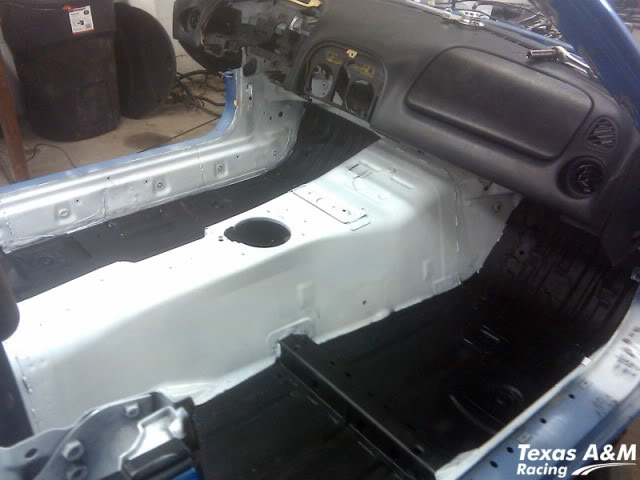

Bedlinered floorboards and half-dash ftw:
Name:  b75f5771.jpg
Views: 188
Size:  41.8 KB

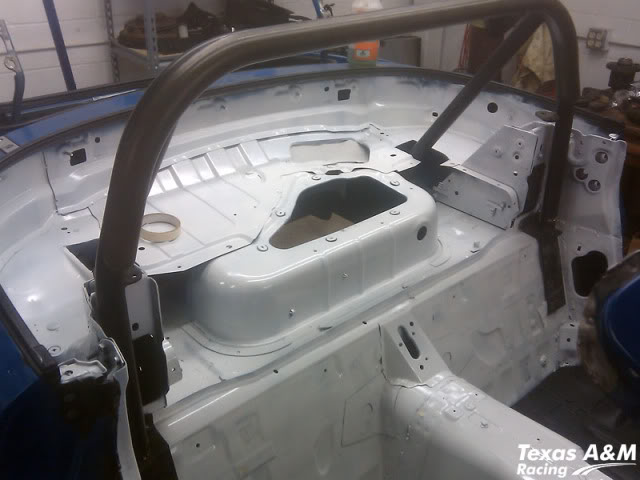

Interior painted with appliance enamel:
Name:  be0da94d.jpg
Views: 130
Size:  45.3 KB

Rebending fuel lines:
Name:  d518354c.jpg
Views: 132
Size:  53.7 KB
unevolved is offline   Reply With Quote
Old 05-30-2011, 10:17 PM   #35
NB/VVT Connoisseur
iTrader: (24)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,074
Total Cats: 253
Default

Quote:
Originally Posted by unevolved View Post
Bedlinered floorboards and half-dash ftw:
Looks really good. I'm doing my entire interior with bed liner hopefully next week.

Did you use a roll on or a spray on?
viperormiata is offline   Reply With Quote
Old 05-31-2011, 01:06 AM   #36
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default

Just the can. Something like $7 at Autozone, and we had enough to do our floorboards, our front wheel wells, our valve covers, and still have some left over (hopefully enough to do the roll bar).
unevolved is offline   Reply With Quote
Old 05-31-2011, 11:21 PM   #37
Newb

Join Date: Nov 2008
Location: Tampa
Posts: 1
Total Cats: 0
Default

Hope you don't mind if we use some of your ideas for our build. We are putting an 87 300zx motor and trans in to our 93 miata. It will be our 2nd lemons/chump car. Right now we have a 77 datsun 280z with a 82 280zx turbo motor that we have been running in lemons/chump. It is fast as heck, but we have run into some reliability problems along the way. We want to buid something fast as heck like a 300 turbo that handles like a miata. The last car was partly built by my high school students and myself and any free help we can get. My students are ready for the next school year to start so they can start on the next "Toy". Would love if you could post any more pics of the motor and trans from diffrent angles. If you make it to 2011 challenge we will have to drive up from Tampa and root you on. Rock on to higher education, and working on cars at the same time. Rick from Skool Boyz Racezing.
turbozick is offline   Reply With Quote
Old 06-01-2011, 11:52 AM   #38
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default

Quote:
Originally Posted by turbozick View Post
Hope you don't mind if we use some of your ideas for our build. We are putting an 87 300zx motor and trans in to our 93 miata. It will be our 2nd lemons/chump car. Right now we have a 77 datsun 280z with a 82 280zx turbo motor that we have been running in lemons/chump. It is fast as heck, but we have run into some reliability problems along the way. We want to buid something fast as heck like a 300 turbo that handles like a miata. The last car was partly built by my high school students and myself and any free help we can get. My students are ready for the next school year to start so they can start on the next "Toy". Would love if you could post any more pics of the motor and trans from diffrent angles. If you make it to 2011 challenge we will have to drive up from Tampa and root you on. Rock on to higher education, and working on cars at the same time. Rick from Skool Boyz Racezing.
Yeah, that's fine. All the pictures I've got are on our website (saeintl.tamu.edu/grassroots/miata), but I can get you any other pictures you need. Let me know if there's any other questions I can answer, as well.
unevolved is offline   Reply With Quote
Old 06-02-2011, 09:57 PM   #39
Newb

Join Date: Mar 2011
Location: El Paso, TX
Posts: 16
Total Cats: 0
Default

bump for ingenuity. amazing build
guillo is offline   Reply With Quote
Old 07-14-2011, 02:35 PM   #40
Newb

Join Date: Jun 2011
Posts: 1
Total Cats: 0
Default

what happened to this biuld?
Ickey09 is offline   Reply With Quote
