Old 07-14-2011, 02:40 PM   #41
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 65
Default

you killed it
RyanRaduechel is offline   Reply With Quote
Old 07-14-2011, 06:27 PM   #42
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default

It's still going strong. I'm out of town on an internship, but the rest of our guys are still working on the car. Got the driveshaft sorted out (less than an hour in a machine shop to make a Nissan driveshaft safely mount to a Mazda differential!) and they're starting on the exhaust manifold.
unevolved is offline   Reply With Quote
Old 07-16-2011, 12:54 AM   #43
Newb

Join Date: Apr 2009
Location: East Brunswick, NJ
Posts: 31
Total Cats: 0
Default

This is a great build, I love stuff like this. In for more progress pics.
Dave is offline   Reply With Quote
Old 08-28-2011, 10:04 PM   #44
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default

So I had a thought. I'd love to reuse the stock tachometer. But I need some help.

The stock Miata gets a 12V (I think?) signal twice every revolution. I believe the Z31 ignitor puts out a 5V signal, because I've seen people mention a 1k Ohm resistor as a 12V pull up when using Megasquirt.

In short, halp. I don't know exactly where I need to go from here.
unevolved is offline   Reply With Quote
Old 09-02-2011, 02:28 AM   #45
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default

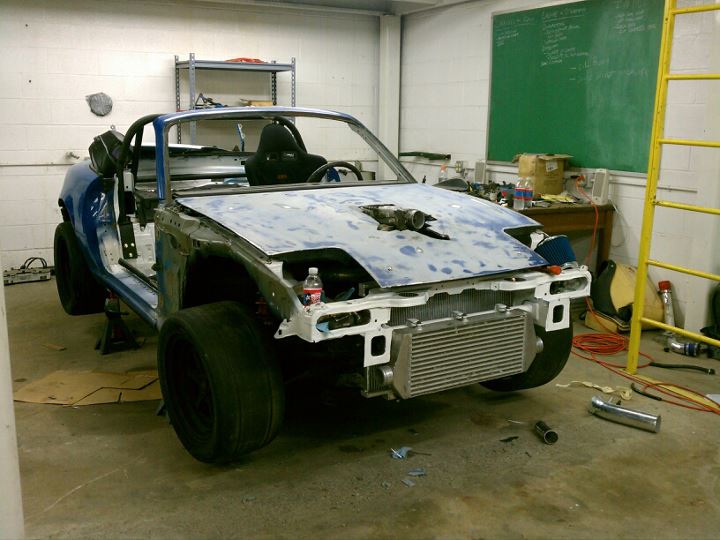

"Feed me a small child."
Attached Thumbnails
VG30ET Swap-309787_10150353354142392_540687391_9663551_2889227_n.jpg
unevolved is offline   Reply With Quote
Old 09-21-2011, 03:25 AM   #46
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default

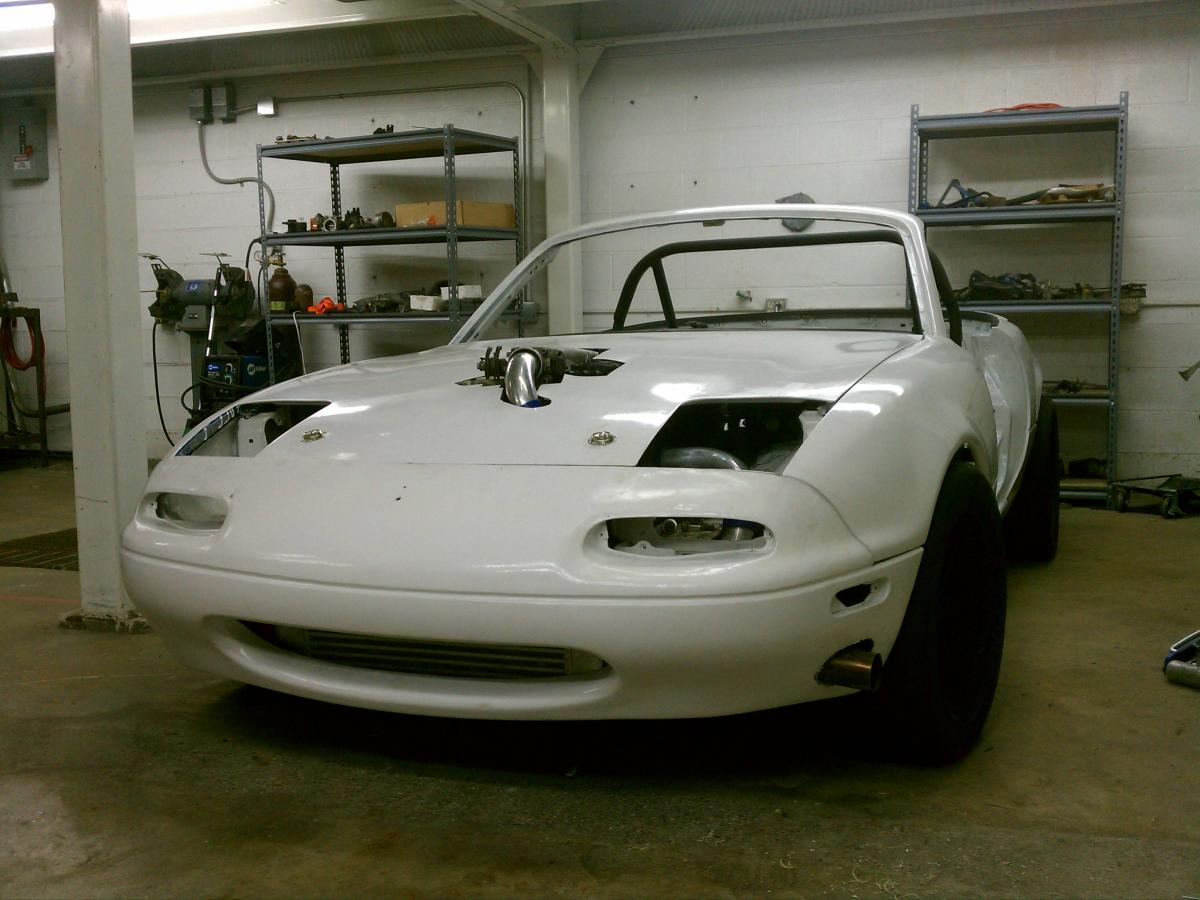

So we've got the bodywork done, and tried out the new stance with 225/45/15s on the front instead of the 275/35/15s. Aesthetically, it's much better, and dynamically it should help us get our goal of steady-state mild understeer with power-on oversteer.

Yes, that's the exhaust outlet in front of the front left tire. We're going to surround it with a stainless steel plate, that's just the rough cut in the bumper.
Attached Thumbnails
VG30ET Swap-dg6eb.jpg
unevolved is offline   Reply With Quote
Old 09-21-2011, 06:33 AM   #47
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Quote:
Originally Posted by unevolved View Post
[IMG]

So we've got the bodywork done, and tried out the new stance with 225/45/15s on the front instead of the 275/35/15s. Aesthetically, it's much better, and dynamically it should help us get our goal of steady-state mild understeer with power-on oversteer.
you'll be happier with equal tires and adjusting the under/overseers with sway bars, coilover settings, and/or tire pressures.
curly is offline   Reply With Quote
Old 09-21-2011, 09:01 AM   #48
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,479
Total Cats: 248
Default

This build looks great. Very nice job!
TurboTim is offline   Reply With Quote
Old 09-21-2011, 01:37 PM   #49
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default

Quote:
Originally Posted by curly View Post
you'll be happier with equal tires and adjusting the under/overseers with sway bars, coilover settings, and/or tire pressures.
Thanks for the advice. Right now we're so pressed for time we don't have the time to properly flare the fenders to fit the 275s, so I'm going to try and find a setup that will allow us to keep understeer in check without having to run 225s in the back. Old 911s at the local race track give us a nice supply of used race tires to choose from.

Quote:
Originally Posted by TurboTim View Post
This build looks great. Very nice job!
Thanks. Two years of my life have surrounded this car, I'm going to be very happy to see it done.
unevolved is offline   Reply With Quote
Old 09-21-2011, 04:10 PM   #50
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,479
Total Cats: 248
Default

Engine bay pics?
TurboTim is offline   Reply With Quote
Old 09-21-2011, 05:59 PM   #51
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

Quote:
Originally Posted by TurboTim View Post
Engine bay pics?
x2

Just about to ask. Don't skimp on the good stuff!
viperormiata is offline   Reply With Quote
Old 09-21-2011, 06:15 PM   #52
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default



I don't have any recent (past 48 hours) pictures with all the components in place. I'll get some tomorrow night after class and put some up.
unevolved is offline   Reply With Quote
Old 09-22-2011, 04:24 AM   #53
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

I was sad seeing a hole in the hood.

Neat project anyway.
elesjuan is offline   Reply With Quote
Old 09-22-2011, 11:39 AM   #54
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default

Quote:
Originally Posted by elesjuan View Post
I was sad seeing a hole in the hood.

Neat project anyway.
Yeah, I would have loved to keep it as sleeper as possible, but with the narrow-angle V6, there's no way to get it lower short of a dry-sump system.
unevolved is offline   Reply With Quote
Old 09-22-2011, 12:53 PM   #55
Senior Member
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 551
Total Cats: 19
Default

Quote:
Originally Posted by unevolved View Post
So I had a thought. I'd love to reuse the stock tachometer. But I need some help.

The stock Miata gets a 12V (I think?) signal twice every revolution. I believe the Z31 ignitor puts out a 5V signal, because I've seen people mention a 1k Ohm resistor as a 12V pull up when using Megasquirt.

In short, halp. I don't know exactly where I need to go from here.
You probably figured this out, but there's a similar problem when putting a ls1 in a NA. The miata tach wants a 12V uniform 2 pulse/rotation square wave signal. The gm ECU puts out a ~5V signal at 2 pulses/rotation so most people add a pullup resistor. My tach would bounce around sometimes at idle with the pullup and I'm not sure whether the MS is ok with that output being pulled up to 12V. Here's the signal that worked with the miata tach:

http://www.flickr.com/photos/2898429...in/photostream
orion4096 is offline   Reply With Quote
Old 09-22-2011, 01:01 PM   #56
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default

Quote:
Originally Posted by orion4096 View Post
You probably figured this out, but there's a similar problem when putting a ls1 in a NA. The miata tach wants a 12V uniform 2 pulse/rotation square wave signal. The gm ECU puts out a ~5V signal at 2 pulses/rotation so most people add a pullup resistor. My tach would bounce around sometimes at idle with the pullup and I'm not sure whether the MS is ok with that output being pulled up to 12V. Here's the signal that worked with the miata tach:

http://www.flickr.com/photos/2898429...in/photostream
That's very interesting. Thanks. The tach conversion kind of got dropped off the list for right now, as busy as we are with everything else, but hopefully we can get everything working again for next year.
unevolved is offline   Reply With Quote
Old 09-23-2011, 12:51 AM   #57
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default

Here are some pictures of under the hood, as promised. Keep in mind everything is in its semi-disassembled state, I just threw it all under the hood for a picture or two.

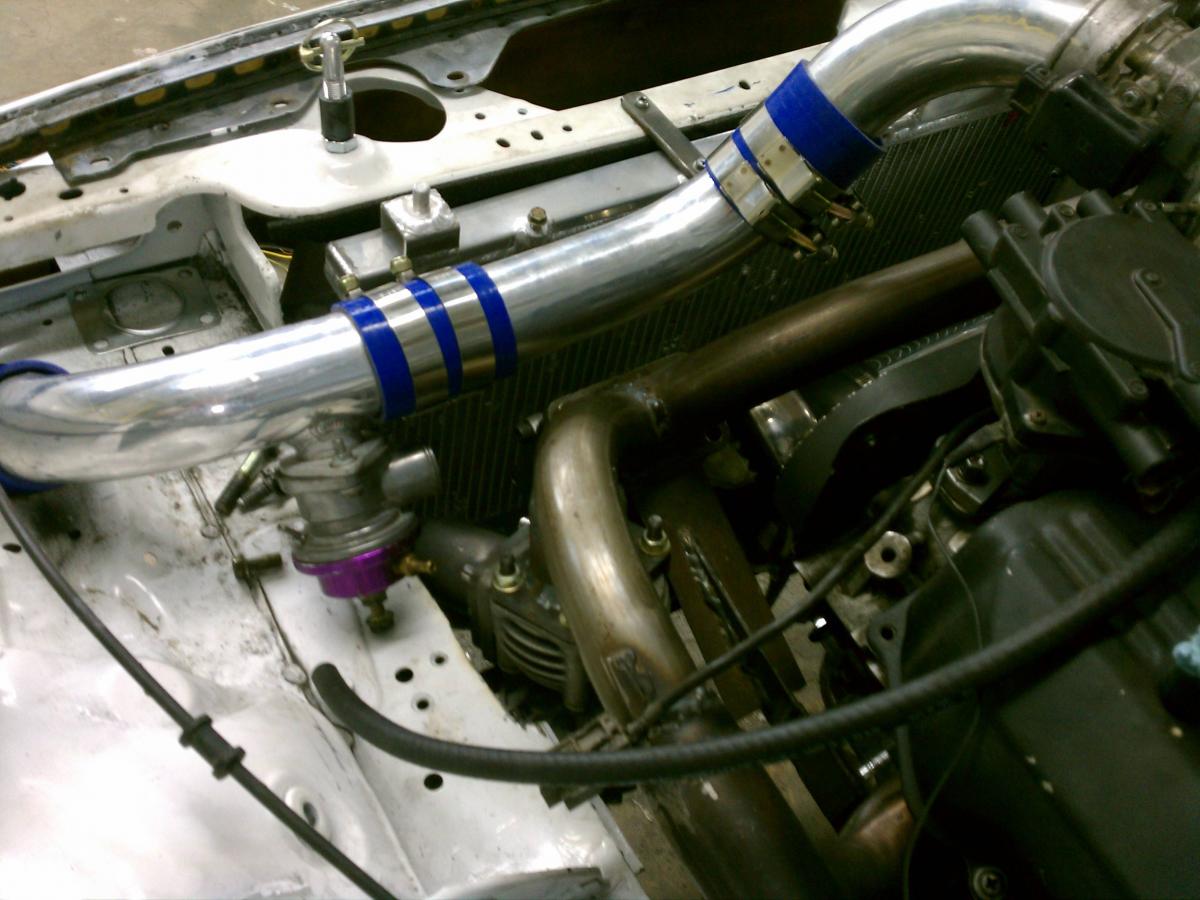

eBay Charge Piping kit FTW.

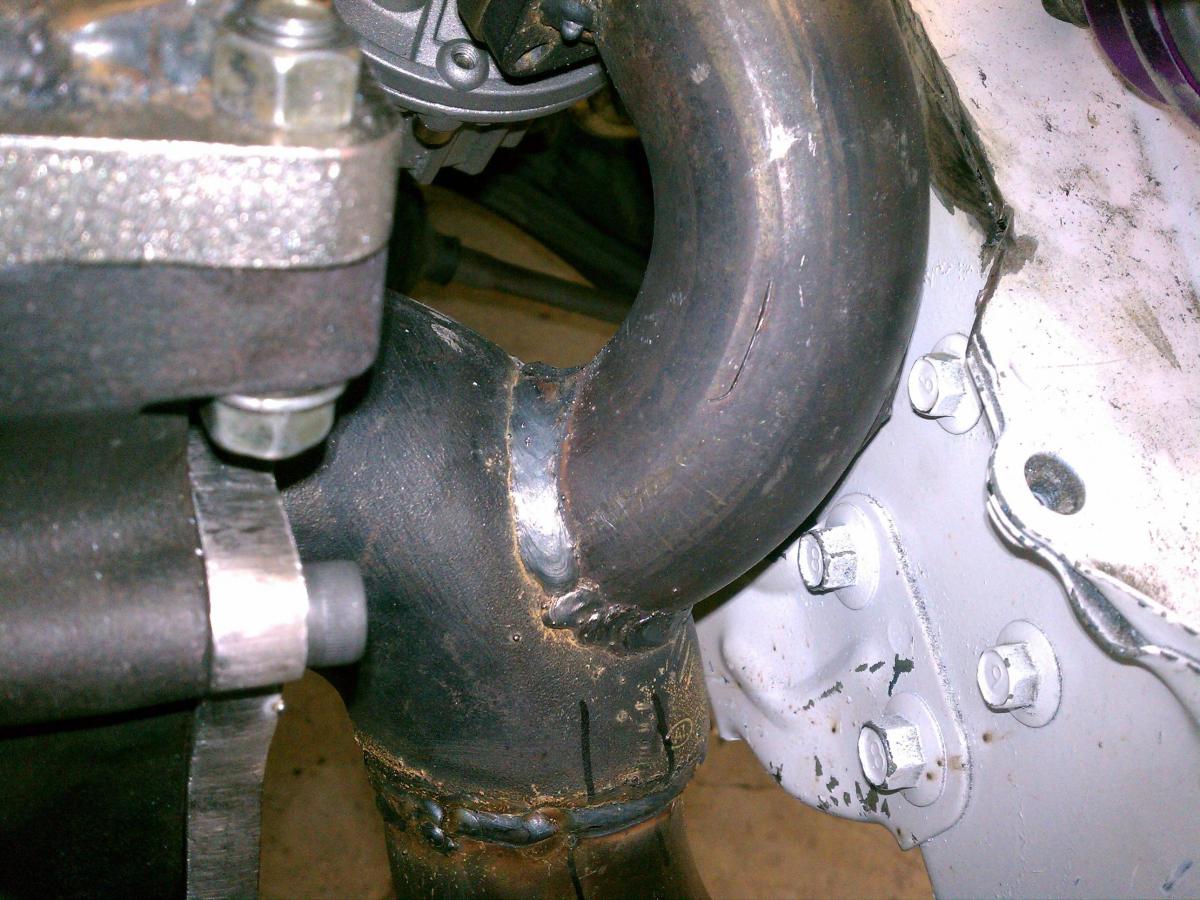

The one part of the exhaust (flanges notwithstanding) that wasn't sourced from another scrapped exhaust- a 2.5" Weld-El for $11 from a local steel supply place.

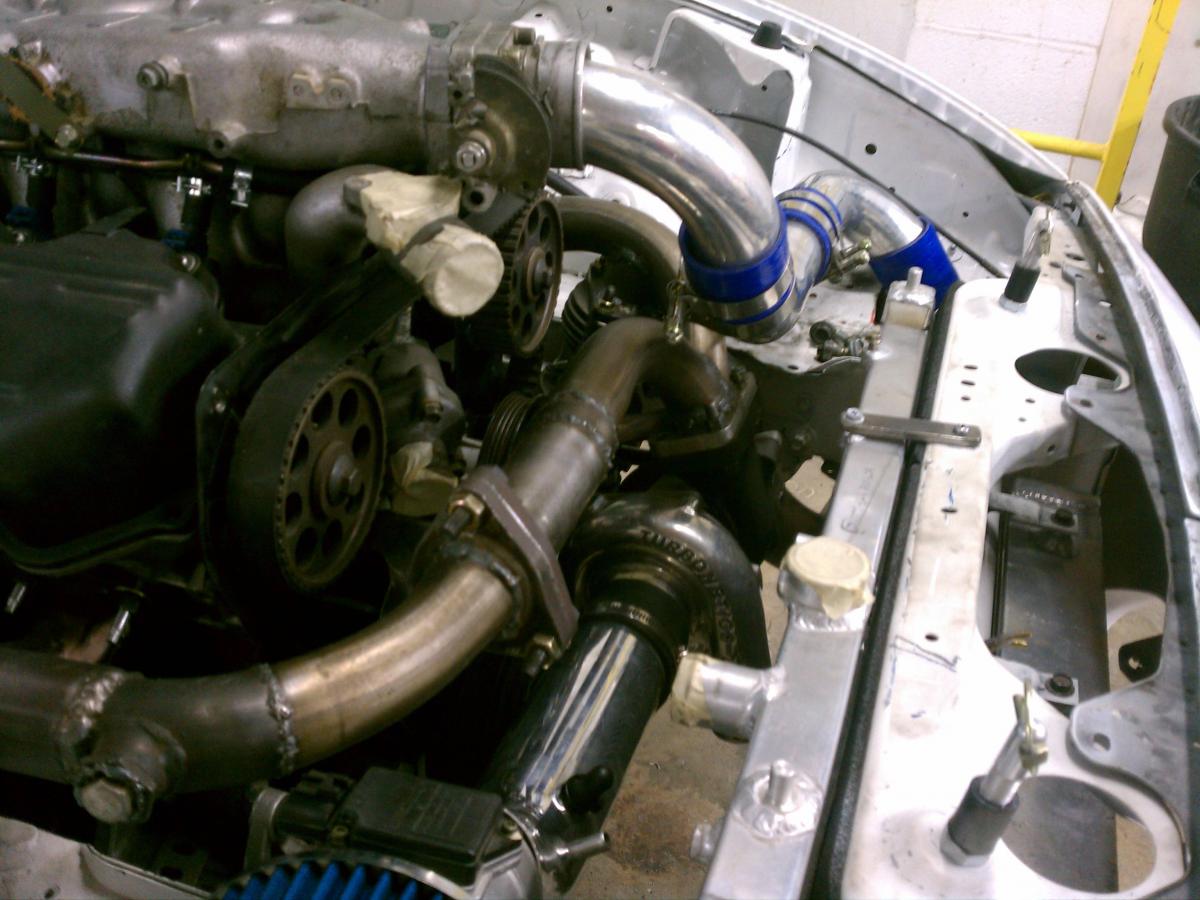

Looking down from the driver's side.


Looking across the front from the passenger's side.

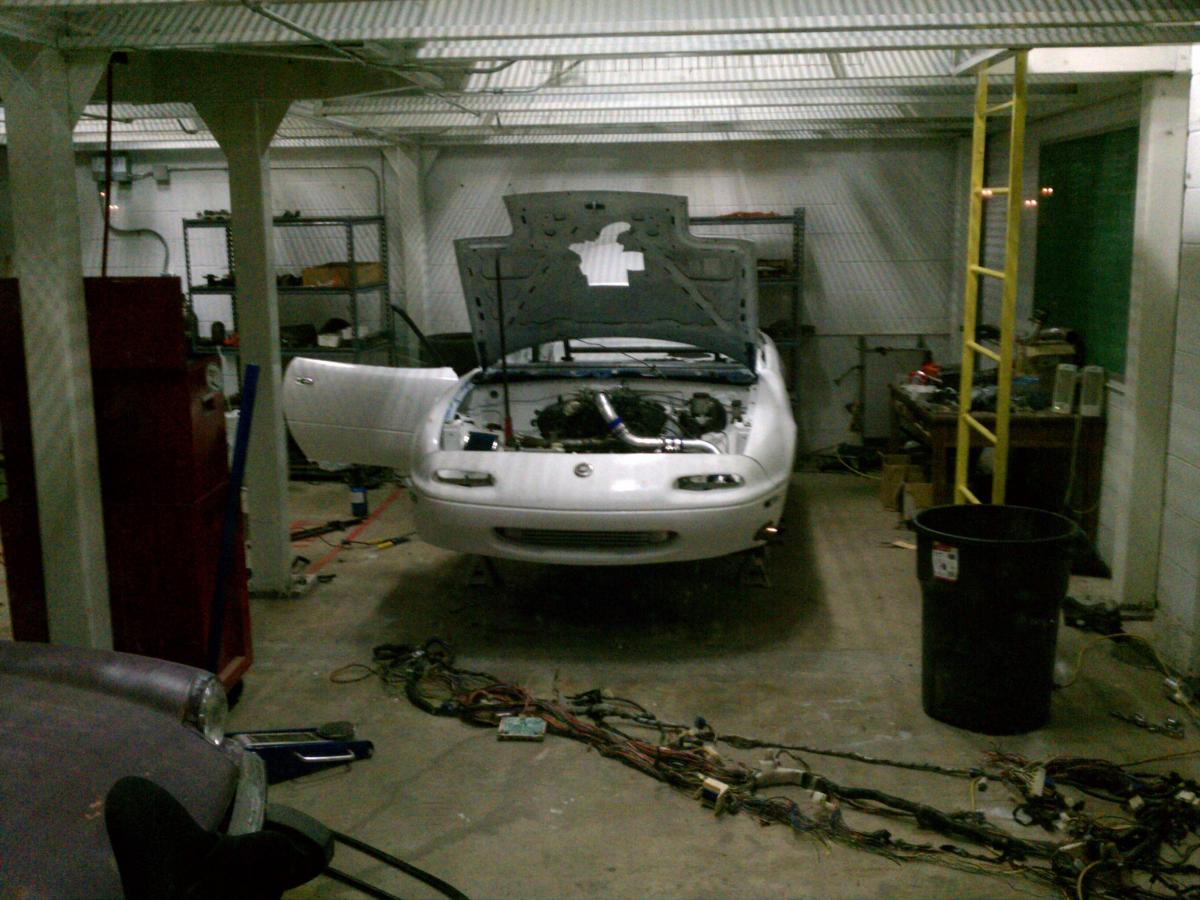

Put to bed for the night.
Attached Thumbnails
VG30ET Swap-bwc65.jpg   VG30ET Swap-dkpcx.jpg   VG30ET Swap-sn3ei.jpg   VG30ET Swap-faccb.jpg
unevolved is offline   Reply With Quote
Old 09-23-2011, 01:52 AM   #58
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Gig 'Em Ags!!!


Whoop OSU this weekend.


Love the build, let me know if I can get any parts to you. I see my brother this weekend who works in Zachry. Sorry I never got that Momo to you, last semester was hectic.
gospeed81 is offline   Reply With Quote
Old 09-23-2011, 02:16 AM   #59
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default

Quote:
Originally Posted by gospeed81 View Post
Gig 'Em Ags!!!


Whoop OSU this weekend.


Love the build, let me know if I can get any parts to you. I see my brother this weekend who works in Zachry. Sorry I never got that Momo to you, last semester was hectic.
No worries. If you're out in CS on a weekend, hit me up if you want to see the car.
unevolved is offline   Reply With Quote
Old 09-30-2011, 02:28 AM   #60
Junior Member
Thread Starter

Join Date: Nov 2010
Posts: 56
Total Cats: 1
Default

http://www.facebook.com/photo.php?v=182421915167936

Primed the oil pump tonight. Exciting to see this thing coming to life.
