Which way is does water flow - Turbo Coolant Lines - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



General Miata Chat A place to talk about anything Miata

Reply



LinkBack Thread Tools
Old 05-25-2008, 07:56 PM   #1
Junior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2007
Location: Fremont, CA
Posts: 173
Total Cats: 0
Default Which way is does water flow - Turbo Coolant Lines

Quick Question.

Which way is does coolant flow?

1 to 2?
Attached Thumbnails

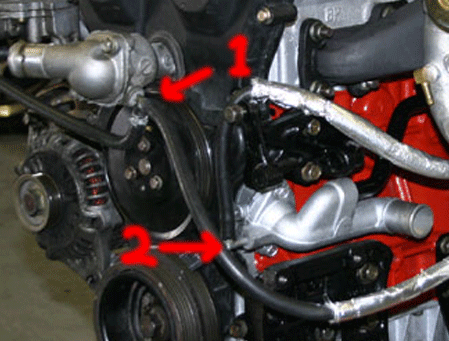

Which way is does water flow - Turbo Coolant Lines-turbowaterlines-miata.gif
rippledabs is offline   Reply With Quote
Old 05-25-2008, 08:08 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,814
Total Cats: 1,780
Default

doesn't matter. coolant flows through it, that's all you need to know
Braineack is online now   Reply With Quote
Old 05-25-2008, 08:16 PM   #3
Junior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2007
Location: Fremont, CA
Posts: 173
Total Cats: 0
Default

Hey Braineack, did you telfon tape all the fittings going into the turbo? I see some white in all the fittings in the DIY Faq.

Any issues? I found some compression fittings that will screw into the turbo, but it's not a tight fit. Slight play in the fitting. Some heavy duty teflon tape will seal it, but I'm not sure if Teflon can handle the heat.
rippledabs is offline   Reply With Quote
Old 05-25-2008, 08:28 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,814
Total Cats: 1,780
Default

Pic is not my turbo. I personally wouldn't use it, as the oil break it down. I believe there is a special tape that is oil resilient.

If you get the correct fittings you dont need it, what turbo do you have and we can tell you what to buy.
Braineack is online now   Reply With Quote
Old 05-25-2008, 11:16 PM   #5
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

If you're still dying to know:

2 is the inlet to the water pump. It is therefore the lowest pressure point, and coolant flows into it.

1 is roughly at the outlet of the pump. It is thus a high pressure area, and coolant flows from it.
Joe Perez is offline   Reply With Quote
Old 05-26-2008, 10:54 AM   #6
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by Joe Perez View Post
If you're still dying to know:

2 is the inlet to the water pump. It is therefore the lowest pressure point, and coolant flows into it.

1 is roughly at the outlet of the pump. It is thus a high pressure area, and coolant flows from it.
Can we get a video on that?

j/k Joe is totally correct.
olderguy is online now   Reply With Quote
Old 05-26-2008, 11:14 AM   #7
Senior Member
iTrader: (4)

Join Date: Aug 2007
Location: Guam (U.S Terr.)
Posts: 786
Total Cats: -2
Default

He always is
mike_671 is offline   Reply With Quote
Old 05-26-2008, 12:14 PM   #8
Junior Member
iTrader: (5)

Join Date: Jun 2007
Location: Jacksonville, FL
Posts: 182
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
Pic is not my turbo. I personally wouldn't use it, as the oil break it down. I believe there is a special tape that is oil resilient.

If you get the correct fittings you dont need it, what turbo do you have and we can tell you what to buy.
I used liquid teflon, seals better than the tape and doesn't break down. They make a badass marine sealant but I can't recall the name of it...I'm sure if you asked at a marina parts store or something they'd have it. I just bought some stuff from Ace.
rollin904 is offline   Reply With Quote
Old 05-26-2008, 01:06 PM   #9
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by olderguy View Post
Can we get a video on that?
Ha!

I think I've done enough video production to last a while. Or maybe I just can't think of an ironic and visually amusing way to demonstrate this particular fact..
Joe Perez is offline   Reply With Quote
