Default Welding steering pinion

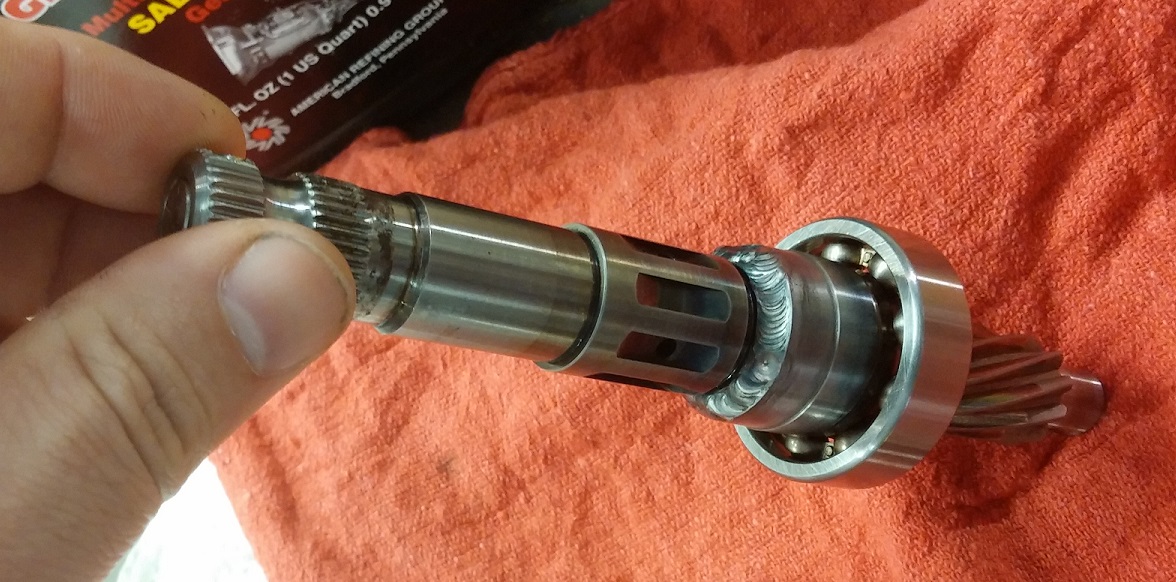

Yeah it looks good, but the rack is jammed because the damn thing is warped.
Who can weld one of these up without warping it?
Attached Thumbnails
Welding steering pinion-20150414_170223.jpg
Ben is offline   Reply With Quote
Old 04-15-2015, 03:05 PM   #2
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,107
Default

I think [email protected] did Hustlers a few years ago.
shuiend is online now   Reply With Quote
Old 04-15-2015, 05:19 PM   #3
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

There is a huge discussion somewhere on here about spot welds vs fully welded. I would do like 4-6 spot welds around the whole thing, letting it fully cool in between.
aidandj is offline   Reply With Quote
Old 04-15-2015, 06:29 PM   #4
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,696
Total Cats: 1,563
Default

I never did this and don't feel like I'm missing it.
sixshooter is online now   Reply With Quote
Old 04-15-2015, 07:24 PM   #5
Senior Member
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 719
Total Cats: 56
Default

Quote:
Originally Posted by sixshooter View Post
I never did this and don't feel like I'm missing it.
I've wondered about this. Obviously there's some play in the pinion when you have it out and in your hands, but once everything is installed and loaded up, I can't see that slack being perceptible.

I may still have Abe weld mine.
Onyxyth is offline   Reply With Quote
Old 04-15-2015, 08:27 PM   #6
Senior Member
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Abe of ARTech welded mine
midpack is offline   Reply With Quote
Old 04-15-2015, 10:34 PM   #7
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Oregonmon had his mounted in a drill and had a pretty precise pin hammered in. Worked flawlessly, and no warping
curly is offline   Reply With Quote
Old 04-15-2015, 11:33 PM   #8
Senior Member
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 745
Total Cats: 46
Default

This guy can do it:



but seriously- he tacked it in 4 spots, let it cool each time, then blasted weld around the whole thing.
Attached Thumbnails
Welding steering pinion-img488.jpg
dcamp2 is offline   Reply With Quote
Old 04-16-2015, 12:32 AM   #9
Junior Member
iTrader: (3)

Join Date: Apr 2011
Location: Bay Area- East Bay
Posts: 290
Total Cats: 1
Default

Mines fully tigged and smooth. BUT there is some play left in the rest of the column. I'd say if your column is all past 100k don't worry. You'll probably still have play(very slight). Just remembered I actually felt that same play prior to the weld, I don't recall any difference in that play and what I have now.
brainzata is offline   Reply With Quote
Old 04-16-2015, 09:31 AM   #10
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Quote:
Originally Posted by dcamp2 View Post
This guy can do it:
+2 for the Coors welding helmet.

-1 for not yet opening the last beer in the case before starting the welding.
thenuge26 is offline   Reply With Quote
Old 04-16-2015, 09:38 AM   #11
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by brainzata View Post
Mines fully tigged and smooth. BUT there is some play left in the rest of the column. I'd say if your column is all past 100k don't worry. You'll probably still have play(very slight). Just remembered I actually felt that same play prior to the weld, I don't recall any difference in that play and what I have now.
Car just rolled 34k, so most parts are pretty solid.
Ben is offline   Reply With Quote
Old 04-16-2015, 10:19 AM   #12
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,468
Total Cats: 785
Default

Quote:
Originally Posted by curly View Post
Oregonmon had his mounted in a drill and had a pretty precise pin hammered in. Worked flawlessly, and no warping

Details? I was thinking about doing this instead of welding.
concealer404 is online now   Reply With Quote
Old 04-16-2015, 12:42 PM   #13
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

I'll try to track down a picture. I thought he posted one in his CR build thread (Oregonmon), but I didn't go through all 20 pages.
curly is offline   Reply With Quote
Old 04-16-2015, 12:47 PM   #14
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,468
Total Cats: 785
Default

Ah ok, i remember seeing that now. I can find it.
concealer404 is online now   Reply With Quote
Old 04-16-2015, 01:07 PM   #15
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

curly is offline   Reply With Quote
Old 04-21-2015, 04:40 AM   #16
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Quote:
Originally Posted by sixshooter View Post
I never did this and don't feel like I'm missing it.
Ditto...
timk is offline   Reply With Quote
Old 04-21-2015, 10:54 AM   #17
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

I'm installing a non welded pinion in the car for now, so I can drive it this weekend.
I'll get a 2nd one welded up and install it at some point.
Ben is offline   Reply With Quote
Old 04-21-2015, 10:59 AM   #18
Junior Member
iTrader: (1)

Join Date: Aug 2008
Location: Austin, TX
Posts: 239
Total Cats: 4
Default

I can feel the slack driving around pits and grid. But on course? I find it hard to believe you'd ever notice that little bit of slop
mcfandango is offline   Reply With Quote
Old 04-21-2015, 10:46 PM   #19
Junior Member
iTrader: (6)

Join Date: Feb 2011
Posts: 422
Total Cats: 9
Default

Iv welded up a few for local members. None warped fully welded. I think i did brianzata's actually.
Twibs415 is offline   Reply With Quote
Old 04-21-2015, 11:11 PM   #20
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Twibs415 View Post
Iv welded up a few for local members. None warped fully welded. I think i did brianzata's actually.
What defines "local"? It's a big world.
Ben is offline   Reply With Quote
