Old 04-21-2015, 11:28 PM   #21
Junior Member
iTrader: (6)

Join Date: Feb 2011
Posts: 421
Total Cats: 9
Default

Local would be driving to my place from your place on one tank of gas in a Miata? Unless you could hypermile a tank about 3500 miles then you would be local!
Twibs415 is offline   Reply With Quote
Old 04-26-2015, 02:30 AM   #22
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,323
Default

I can't imagine four solid tack welds breaking in such an application, and even if they were to break, you'd just be back to where you started in the first place. I see no reason to fully weld the thing, IMO.
Savington is offline   Reply With Quote
Old 04-26-2015, 07:26 AM   #23
Senior Member
iTrader: (8)

Join Date: Oct 2010
Posts: 581
Total Cats: 4
Default

I remember seeing some pics of someone in here that had tacks and thoses cracked.

Best thing is tack, cool it and complete the seam. Can't go bad with a good welder.
joyrider is offline   Reply With Quote
Old 04-26-2015, 12:13 PM   #24
Junior Member
iTrader: (1)

Join Date: May 2014
Posts: 248
Total Cats: 13
Default

Quote:
Originally Posted by curly View Post
Oregonmon had his mounted in a drill and had a pretty precise pin hammered in. Worked flawlessly, and no warping
Quote:
Originally Posted by concealer404 View Post
Details? I was thinking about doing this instead of welding.
I like that option of putting pins in instead of welding. I looked at the post that was referenced and I wonder if they used a taper reamer and taper pins to ensure a very snug fit. If you were really concerned about the pins coming out, you could also plug weld the hole/end of pin.
stoves is offline   Reply With Quote
Old 04-26-2015, 01:37 PM   #25
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

If you're gonna weld the pins why wouldn't you just weld the pinion.
aidandj is offline   Reply With Quote
Old 04-26-2015, 04:29 PM   #26
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

Quote:
Originally Posted by stoves View Post
I like that option of putting pins in instead of welding. I looked at the post that was referenced and I wonder if they used a taper reamer and taper pins to ensure a very snug fit. If you were really concerned about the pins coming out, you could also plug weld the hole/end of pin.
A .499"-.500" pin,cryofit in to a reamed hole of say .498" to .499",is in no danger of backing out.
Greg
Reverend Greg is offline   Reply With Quote
Old 04-26-2015, 04:38 PM   #27
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

half to a thou is typical on that diameter press fit, and it would certainly never come apart, no cold/hot assembly or welding necessary.
deezums is offline   Reply With Quote
Old 05-13-2015, 06:34 PM   #28
Junior Member
iTrader: (3)

Join Date: Apr 2011
Location: Bay Area- East Bay
Posts: 290
Total Cats: 1
Default

So, Ben have you swapped in the welded pinion? Notice any difference? I think people are thinking too much here. Twibs welded mine 360*, no issues, a good weld isn't going anywhere. Have a good welder do the job, just have it welded completely, why bother with a 3 or 4 tacks when a full weld is obviously better support.
brainzata is offline   Reply With Quote
Old 05-20-2015, 11:57 AM   #29
Junior Member

Join Date: Apr 2011
Posts: 194
Total Cats: 10
Default

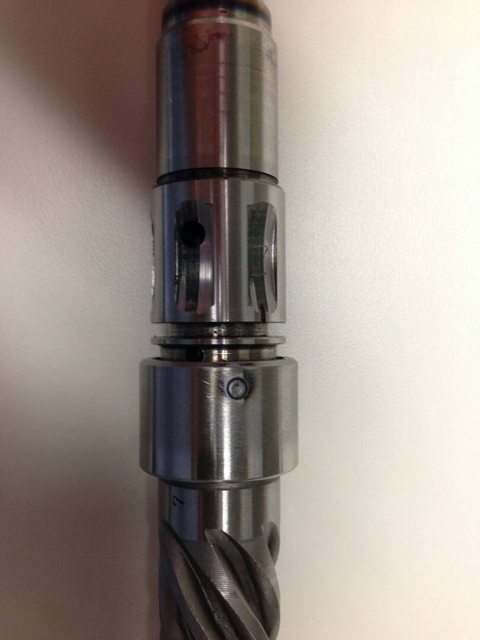

Here's the photo in the thread.

The amount of play that is removed by doing this was immediately noticeable. It makes steering more precise and much less busy.
Check out this video if you haven't.
https://vimeo.com/15245486 Right Curly?
That's right at the pinion, so the larger diameter of the steering wheel increases this however many times.
Ok, sorry for the thread jack.
Attached Thumbnails
Welding steering pinion-x6vyuyml.jpg
oregonmon is offline   Reply With Quote
Old 05-20-2015, 12:51 PM   #30
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Yeah look at that slop...

Isn't there one more pin at a 90* angle to the one pictured? Or did he only do one pin? I forget.

Whether or not it makes any improvement is definitely negotiable, I imagine it would also magnify any bump steer issues.
curly is offline   Reply With Quote
Old 05-20-2015, 01:15 PM   #31
Junior Member

Join Date: Apr 2011
Posts: 194
Total Cats: 10
Default

Those Lazfab/CSTG bumpsteer rack spacers though...
oregonmon is offline   Reply With Quote
Old 05-23-2015, 07:06 AM   #32
Junior Member

Join Date: Aug 2007
Location: Finland
Posts: 60
Total Cats: 0
Default

Sorry to bump this old thread, but I just want to be clear with this. So if I weld this thing, I can ditch that sealing part and clip ring in middle of this pic below. I just put the bearings back there and put it together?






[/noob]
jim_rocketmow is offline   Reply With Quote
Old 05-26-2015, 11:25 AM   #33
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by brainzata View Post
So, Ben have you swapped in the welded pinion? Notice any difference? I think people are thinking too much here. Twibs welded mine 360*, no issues, a good weld isn't going anywhere. Have a good welder do the job, just have it welded completely, why bother with a 3 or 4 tacks when a full weld is obviously better support.
No, I have a driving and aligned car. I don't want to mess with it now. I'll weld it when I set it into the Exocet chassis.
Ben is offline   Reply With Quote
