haha soooo I'm plugging all my stuff in after switching motors and its been so long that i can not remember what and where this stuff connects to.

The portion of the harness that powers the injectors and the connector to the cas. it has a couple grounds and another plug on it that is 3 prong and a little yellow guy single prong. what do these go to?



im still searching for pics right now but if someone knows off the top of their head that would be sweet!
Attached Thumbnails

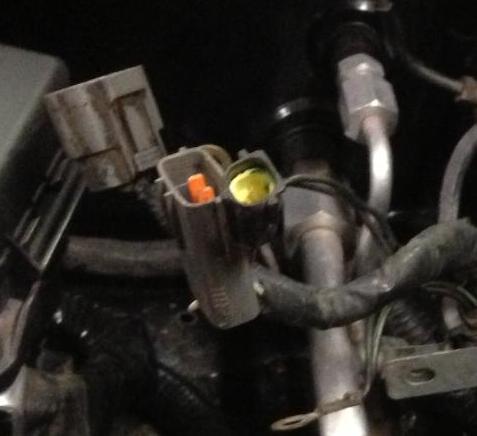

what are these connectors for?:)-photo.jpg
krissetsfire is offline   Reply With Quote
Old 02-12-2013, 09:45 PM   #2
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

yellow is o2, orange is CAS, the other is for the coils.

Dann
nitrodann is offline   Reply With Quote
Old 02-12-2013, 09:58 PM   #3
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 889
Total Cats: 55
Default

edit: I'm an idiot who can't read. props dan. Forgot about that connector since using cops.
