Default What is this thing pre-turbo

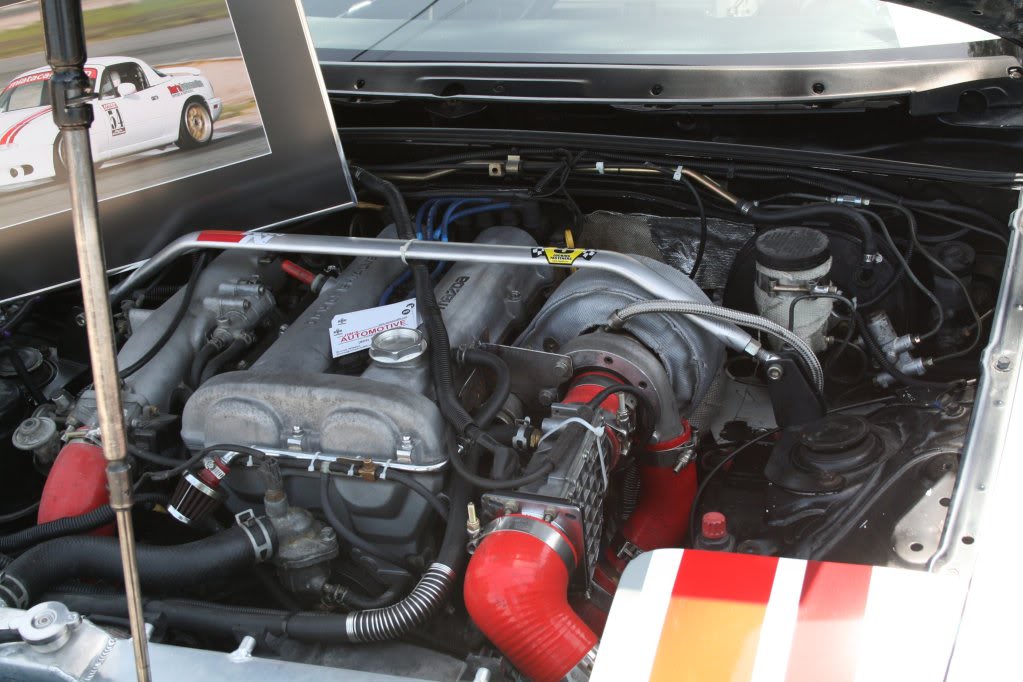

Hey guys, a friend showed me this picture, and I have no idea what the thing is before the turbo. Anybody know? I have no details on the car and the only thing i could think of is some type of pre turbo water injection, but i'm doubtful.

Name:  weirdmiata.jpg
Views: 1
Size:  106.5 KB
wittyworks is offline   Reply With Quote
Old 05-20-2011, 02:39 AM   #2
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

That is the air flow meter AKA AFM. It tells the stock ecu the temp and airflow via a flapper valve. Its turned on it's side compared to how it normally mounts.

Definitely a Greddy turbo kit, with clocked compressor housing.


If you're talking about the hose that appears to be attached right at the turbine inlet, it's probably a return for a recirculating bypass valve.
Bryce is offline   Reply With Quote
Old 05-20-2011, 08:36 AM   #3
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Must post more pics of the car...what I can see of it i nthe framed picture, it looks badass.

Yes, it's the AFM.
Doppelgänger is offline   Reply With Quote
Old 05-20-2011, 01:49 PM   #4
Junior Member

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

So what's that hose after the afm? Tiny flexible recirc tube? Fitting doesn't look any bigger than an oil return line.
