Where to get a fancy oil feed like this one? - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



General Miata Chat A place to talk about anything Miata

Reply



LinkBack Thread Tools
Old 06-30-2012, 06:51 PM   #1
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351

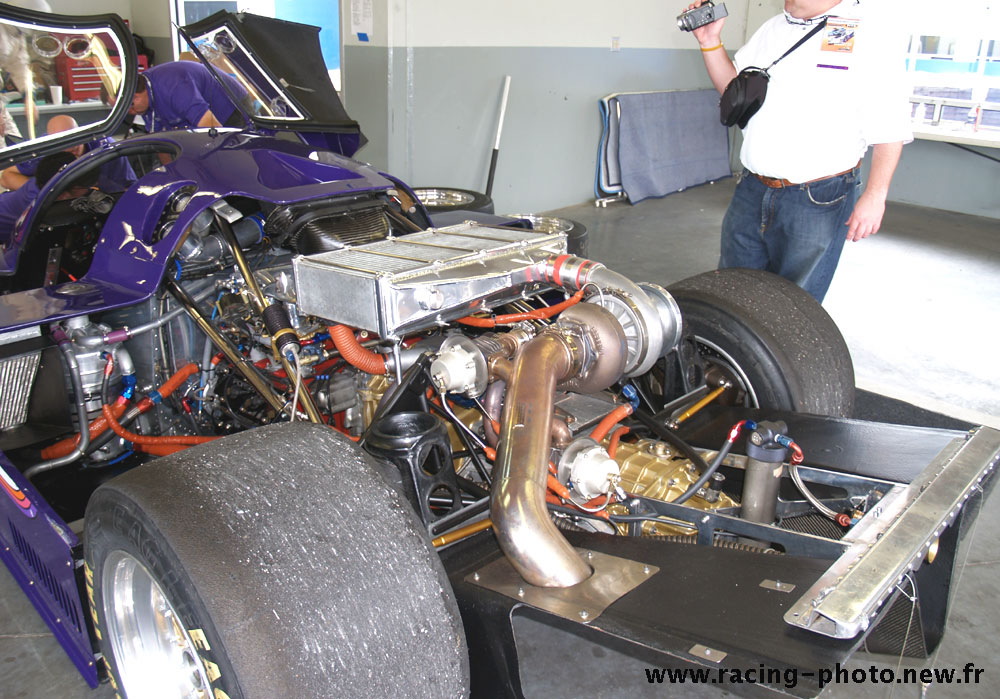

Default Where to get a fancy oil feed like this one?


See how it's on the little metal shank thingy?

Talk to me.
Attached Thumbnails
Where to get a fancy oil feed like this one?-pb022675.jpg
hustler is offline   Reply With Quote
Old 06-30-2012, 06:54 PM   #2
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Hnng
kotomile is offline   Reply With Quote
Old 06-30-2012, 06:57 PM   #3
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by kotomile View Post
Hnng
Oh yeah, that too. It's cool to look at pictures of racecars like that and see that my meticulous attention to detail is on par with "real racecars".
hustler is offline   Reply With Quote
Old 06-30-2012, 10:22 PM   #4
Junior Member

Join Date: Jan 2005
Location: Fort Worth, Texas
Posts: 242
Total Cats: -1
Default

like a solid feed line???
fwMiata is offline   Reply With Quote
Old 06-30-2012, 10:31 PM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

I have a bunch of fuel/brake hardlines left over from the partout shell, planning to use those as oil feed unless I find some really good reasons not to.
18psi is offline   Reply With Quote
Old 06-30-2012, 11:18 PM   #6
Junior Member

Join Date: Jan 2005
Location: Fort Worth, Texas
Posts: 242
Total Cats: -1
Default

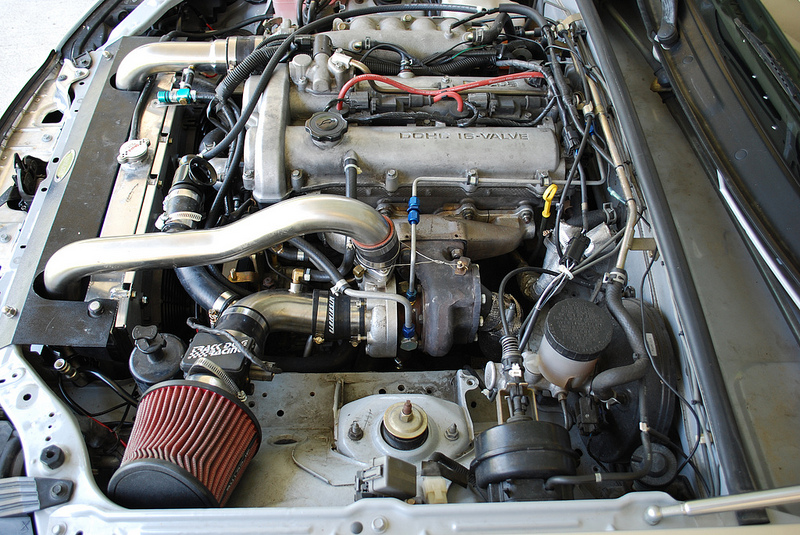

I used -4 alum and AN fittings for mine, terminates into a braided SS line behind the VC then down to the oil sender location. could not get a piece bent up AND fit with the motor in the car. too much in the way.

Attached Thumbnails
Where to get a fancy oil feed like this one?-7435852072_634d9ef558_c.jpg
fwMiata is offline   Reply With Quote
Old 06-30-2012, 11:20 PM   #7
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

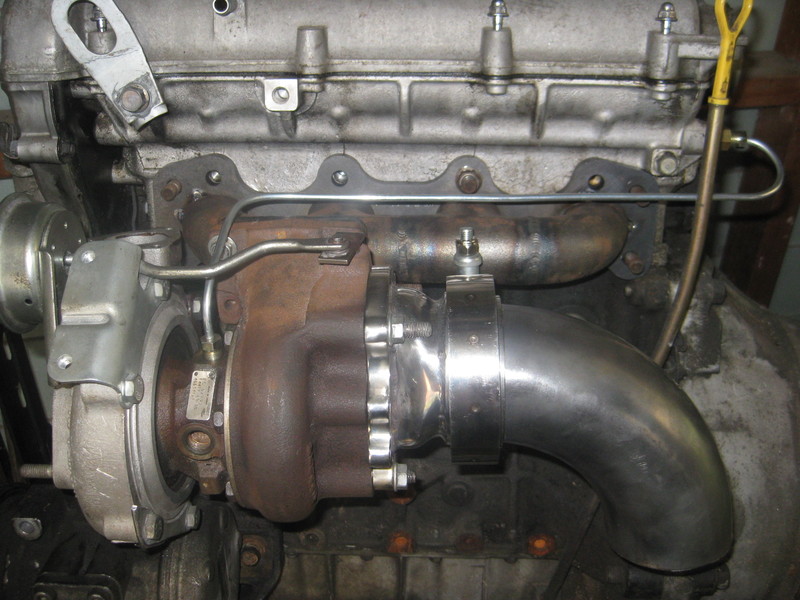

You mean like this?



Its brake line, with the correct adaptors.

This was a setup I built.

Dann
Attached Thumbnails
Where to get a fancy oil feed like this one?-img2019yx.jpg
nitrodann is online now   Reply With Quote
Old 07-01-2012, 12:18 AM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Wow, both of those look fantastic. Questions:
- how much did the 1st pic cost ?
- is that line going into the head on the 2nd? Never saw that before.
18psi is offline   Reply With Quote
Old 07-01-2012, 12:44 AM   #9
Junior Member

Join Date: Jan 2005
Location: Fort Worth, Texas
Posts: 242
Total Cats: -1
Default

not a whole lot.

bender was like 35, tube is super cheap, fittings are a few bucks each. the expensive stuff was the normal: drain fitting, feed restricter and water feed banjos as the stupid turbo is so small the normal straight fitting wont fit... the stainless line was like 22 bucks from a local source.
I might have 100 in all of it. Edit had to buy a flare tool too so prob 150.
AN Fittings from Aircraft Spruce is a good resource for AN fittings at normal prices...
fwMiata is offline   Reply With Quote
Old 07-01-2012, 03:15 AM   #10
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by fwMiata View Post
not a whole lot.

bender was like 35, tube is super cheap, fittings are a few bucks each. the expensive stuff was the normal: drain fitting, feed restricter and water feed banjos as the stupid turbo is so small the normal straight fitting wont fit... the stainless line was like 22 bucks from a local source.
I might have 100 in all of it. Edit had to buy a flare tool too so prob 150.
AN Fittings from Aircraft Spruce is a good resource for AN fittings at normal prices...
That's just a 37* flare with a tube-nut, right? I'm just trying to do about 3" on each feed to SS lines.
hustler is offline   Reply With Quote
Old 07-01-2012, 03:28 AM   #11
Junior Member

Join Date: Jan 2005
Location: Fort Worth, Texas
Posts: 242
Total Cats: -1
Default

yes. 37* with a tube nut and ferrule, they don't make the all in ones anymore.
fwMiata is offline   Reply With Quote
Old 07-01-2012, 03:33 AM   #12
Junior Member

Join Date: Sep 2010
Location: SFL
Posts: 376
Total Cats: 3
Default

guess I should feel special. us FWD guys can walk into the mazda dealer and buy a B6T hardline fro $30. it does however need adapting to fit T- series turbos but that cost all of $12 on ebay
MD323 is offline   Reply With Quote
Old 07-01-2012, 03:34 AM   #13
Junior Member

Join Date: Jan 2005
Location: Fort Worth, Texas
Posts: 242
Total Cats: -1
Default

Quote:
Originally Posted by MD323 View Post
guess I should feel special. us FWD guys can walk into the mazda dealer and buy a B6T hardline fro $30. it does however need adapting to fit T- series turbos but that cost all of $12 on ebay
nah thats just you 1.sixxers....
fwMiata is offline   Reply With Quote
Old 07-01-2012, 04:50 AM   #14
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

My hardline is feeding from the head.

I walked into my brake suppliers shop, showed him the turbo and the grub screw thats in the head from factory, told him I wanted a stainless hard line 55cm long and he came out after 2 minutes with it made and asked for 12 australian dollars, so about a buck fiddy US.

Dann
nitrodann is online now   Reply With Quote
Old 07-01-2012, 10:49 AM   #15
Junior Member

Join Date: Sep 2010
Location: SFL
Posts: 376
Total Cats: 3
Default

Quote:
Originally Posted by fwMiata View Post
nah thats just you 1.sixxers....
fits the BP too, but you have to have one of the early blocks that has the oil port on the front.
MD323 is offline   Reply With Quote
Old 07-01-2012, 11:19 AM   #16
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

Quote:
Originally Posted by nitrodann View Post
My hardline is feeding from the head.

I walked into my brake suppliers shop, showed him the turbo and the grub screw thats in the head from factory, told him I wanted a stainless hard line 55cm long and he came out after 2 minutes with it made and asked for 12 australian dollars, so about a buck fiddy US.

Dann
Can we please discuss why this hasn't been done before? If this is an acceptable oil feed location it's a freaking awesome discovery nitro.
wittyworks is offline   Reply With Quote
Old 07-01-2012, 11:27 AM   #17
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

This is not a "hardline" thread.
hustler is offline   Reply With Quote
Old 07-01-2012, 11:45 AM   #18
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

So what is it then?

That photo looks like a hardline with a hose clamped to it.

Dann
nitrodann is online now   Reply With Quote
Old 07-01-2012, 04:05 PM   #19
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Aluminum oil hardline is an engine fire waiting to happen. BTDT. Tried it on my coolant lines and it constantly leaked and cracked. Hard aluminum line has no place in a car.

SS hardline is an enormous bitch to work with. You need a $100 bender and a $250 flare tool to do anything with it, and they will still be more susceptible to vibration failure than a SS braided line wrapped in Thermosleeve.

I wouldn't cantilever a braided SS hose off of a -4AN tube nut and some 1/4" steel hose while expecting those same parts to contain ~60psi of oil pressure at all times, but that's just me.
Savington is offline   Reply With Quote
Old 07-01-2012, 04:48 PM   #20
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Quote:
Originally Posted by nitrodann View Post
That photo looks like a hardline with a hose clamped to it.
Pretty sure that's 100% hard line with fire sleeve slipped over. But still apparently not the point of this thread.
curly is offline   Reply With Quote
