Old 07-01-2012, 05:11 PM   #21
Junior Member

Join Date: Jan 2005
Location: Fort Worth, Texas
Posts: 242
Total Cats: -1
Default

Quote:
Originally Posted by Savington View Post
Aluminum oil hardline is an engine fire waiting to happen. BTDT. Tried it on my coolant lines and it constantly leaked and cracked. Hard aluminum line has no place in a car.

SS hardline is an enormous bitch to work with. You need a $100 bender and a $250 flare tool to do anything with it, and they will still be more susceptible to vibration failure than a SS braided line wrapped in Thermosleeve.

I wouldn't cantilever a braided SS hose off of a -4AN tube nut and some 1/4" steel hose while expecting those same parts to contain ~60psi of oil pressure at all times, but that's just me.
This alum is rated for a working pressure of 1500PSI...

Attached Thumbnails
Where to get a fancy oil feed like this one?-funny-pictures-you-jealous-tails.jpg
fwMiata is offline   Reply With Quote
Old 07-01-2012, 08:45 PM   #22
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

He said nothing about it being bad due to running excessive pressure.
curly is offline   Reply With Quote
Old 07-01-2012, 08:46 PM   #23
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Savington View Post
Aluminum oil hardline is an engine fire waiting to happen. BTDT. Tried it on my coolant lines and it constantly leaked and cracked. Hard aluminum line has no place in a car.

SS hardline is an enormous bitch to work with. You need a $100 bender and a $250 flare tool to do anything with it, and they will still be more susceptible to vibration failure than a SS braided line wrapped in Thermosleeve.

I wouldn't cantilever a braided SS hose off of a -4AN tube nut and some 1/4" steel hose while expecting those same parts to contain ~60psi of oil pressure at all times, but that's just me.
Thanks, I'll stick with 90* steel swivels on my car then.
hustler is offline   Reply With Quote
Old 07-05-2012, 09:56 AM   #24
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

I have been debating on running Alu hard lines for my oil cooler when it goes in, at least part of the way. I have been wondering how well it would hold up to vibration and other conditions in the engine compartment. Working on helicopters while in the army, we had several places that had aluminum lines, I know we had several locations with Alu fuel lines. I wan't to say even some of the smaller (<3/8") hydraulic lines were Alu, not 100% sure though. All the AC lines on your car are ALU and run at much higher pressures with gas in it. If properly installed I am sure it could work.

I would want the lines 100% supported with little to no additional weight hanging off at the fittings. If the line is going to fail it will be at the fitting end or where tight bends are made. Make sure it is fully annealed Alu if you are doing any bending. The temperatures that a soft aluminum tube will encounter taht close to a trubo might cause some issues too.

I was planning on making the oil feed line out of SS or at least carbon steel 3/16 brake line. I used to work with a lot of SS tubing and can tell you that a nice bender is needed and it is very hard to correctly flare SS. I mostly dealt with 45 deg flares on stainless, 37 deg flares might be a little easier to do. Also 304 SS would be easier to flare and bend than 316 SS.
If you can find the correct tubing adapters to attach to the tube ends and match your turbo fittings, that would be the way to go with SS. I did a nice SS hardline oil cooler setup for my brother's FFR roadster and it works/looks great, will never have to worry about leaks or failures. I worked at Swagelok at the time and had access to free fittings though. If you can find what you need, it will more than likely cost $15-20 for proper SS tube adapters. Compared to the cost of 90* swivels it might not be that bad.
Rallas is offline   Reply With Quote
Old 07-05-2012, 11:43 AM   #25
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Well, this thread went to total ---- fast.
hustler is offline   Reply With Quote
Old 07-05-2012, 12:55 PM   #26
Tea of the Sea

StarletRick's Avatar

Join Date: Apr 2010
Location: Essex, UK
Posts: 113
Total Cats: 4
Default

in for Nitrodann explaining if/how he has his oil feed in the head.
StarletRick is offline   Reply With Quote
Old 07-05-2012, 12:57 PM   #27
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,202
Total Cats: 2,584
Default

Quote:
Originally Posted by hustler View Post
Well, this thread went to total ---- fast.
I've no idea how this thread is off topic when OP is about a feed line and discussion is about feed lines


Quote:
Originally Posted by StarletRick View Post
in for Nitrodann explaining if/how he has his oil feed in the head.
+1
18psi is offline   Reply With Quote
Old 07-06-2012, 10:41 AM   #28
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,994
Total Cats: 13
Default

I support thread drift to nitrodann's feed location.
skidude is offline   Reply With Quote
Old 07-06-2012, 06:14 PM   #29
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Quote:
Originally Posted by skidude View Post
I support thread drift to nitrodann's feed location.
There is an oil galley plug right there. It's where the casting was machined for the lifter oil feed.
baron340 is offline   Reply With Quote
Old 07-10-2012, 06:35 AM   #30
Tea of the Sea

StarletRick's Avatar

Join Date: Apr 2010
Location: Essex, UK
Posts: 113
Total Cats: 4
Default

moar pics?
StarletRick is offline   Reply With Quote
Old 07-10-2012, 07:06 AM   #31
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

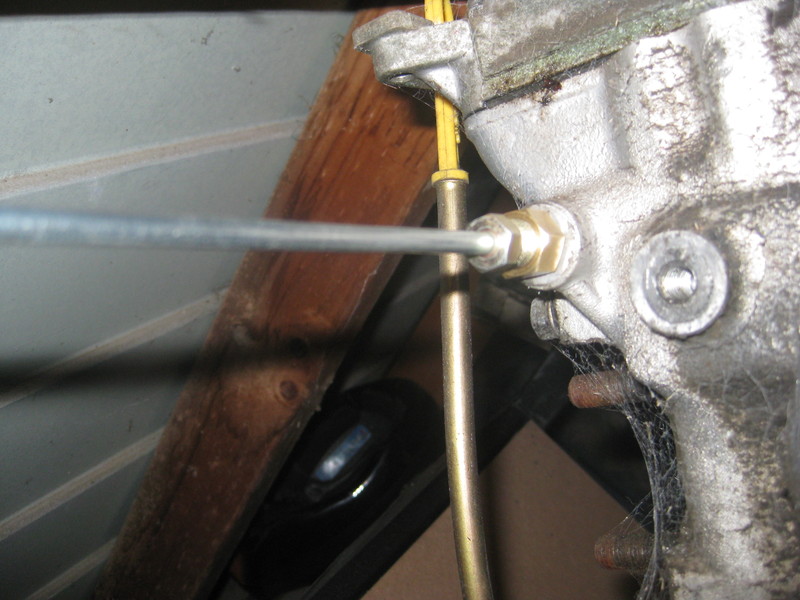

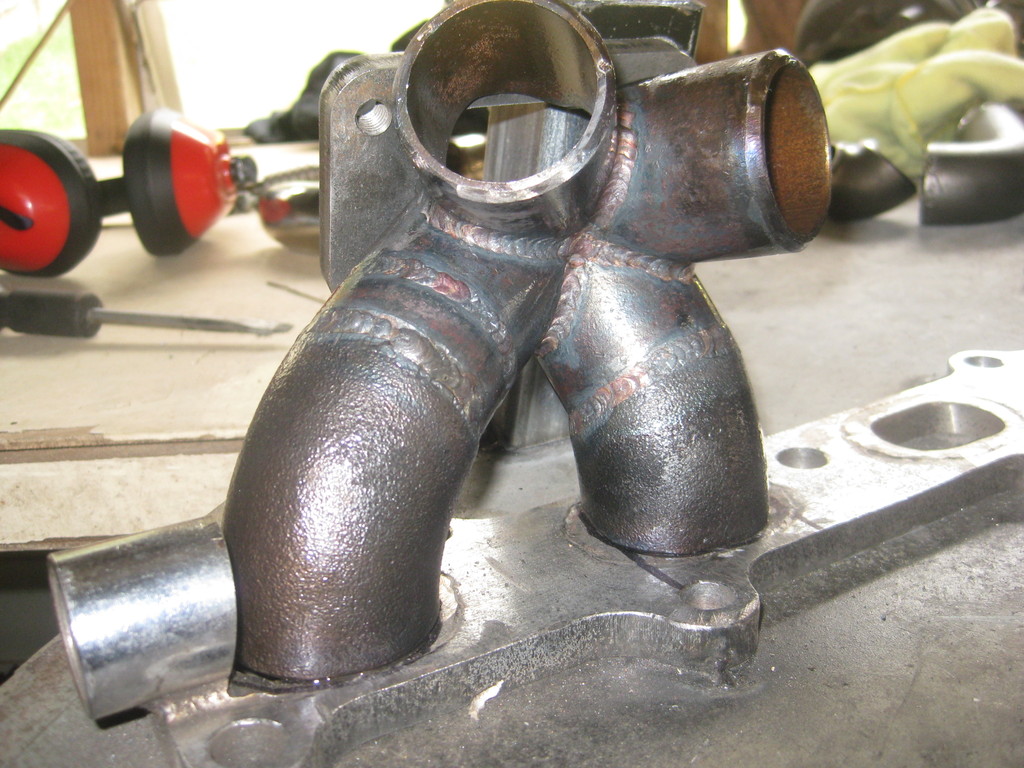

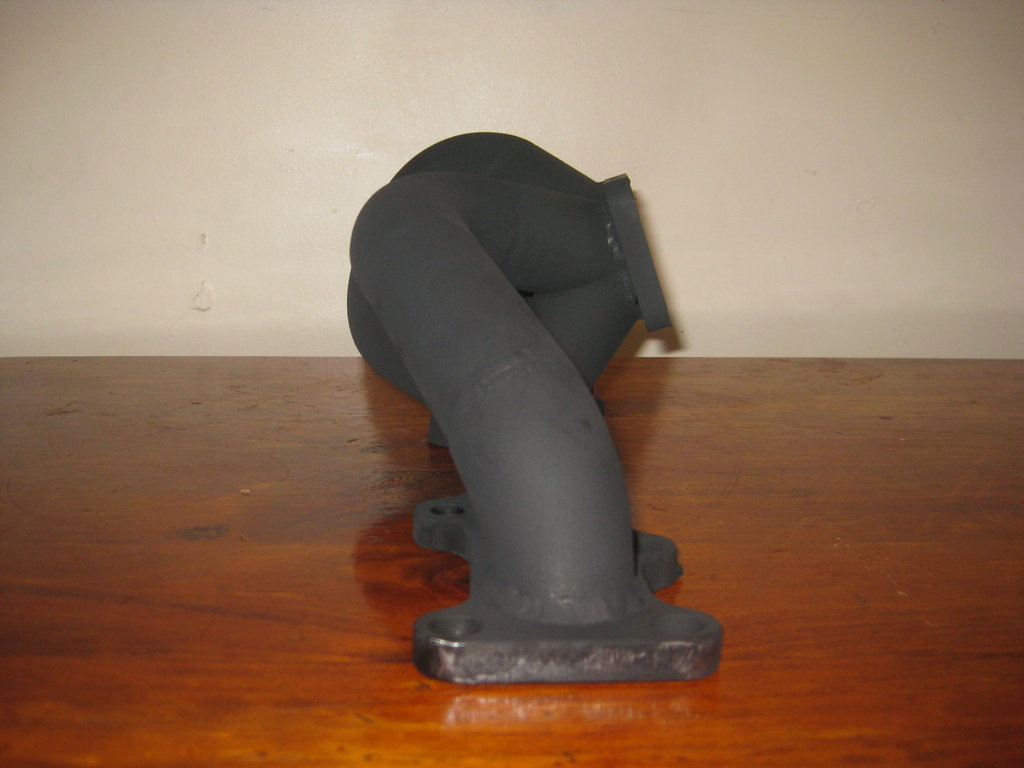

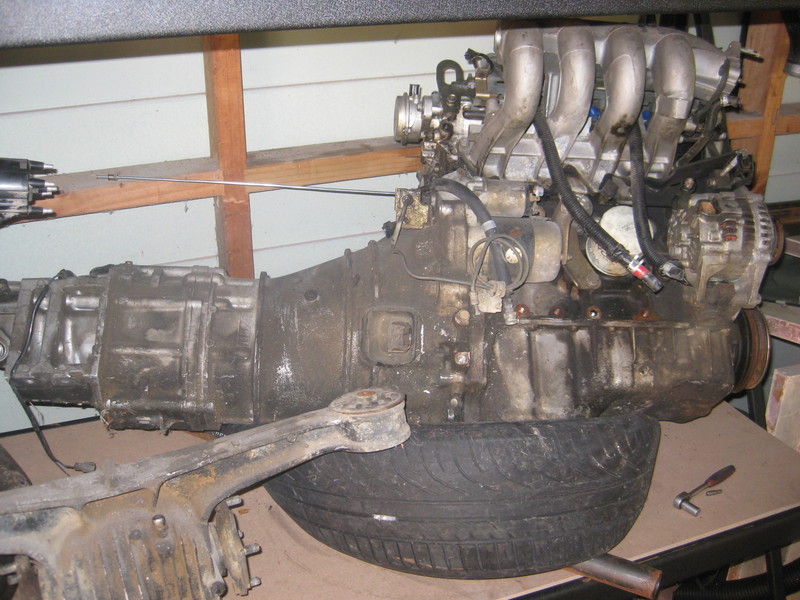

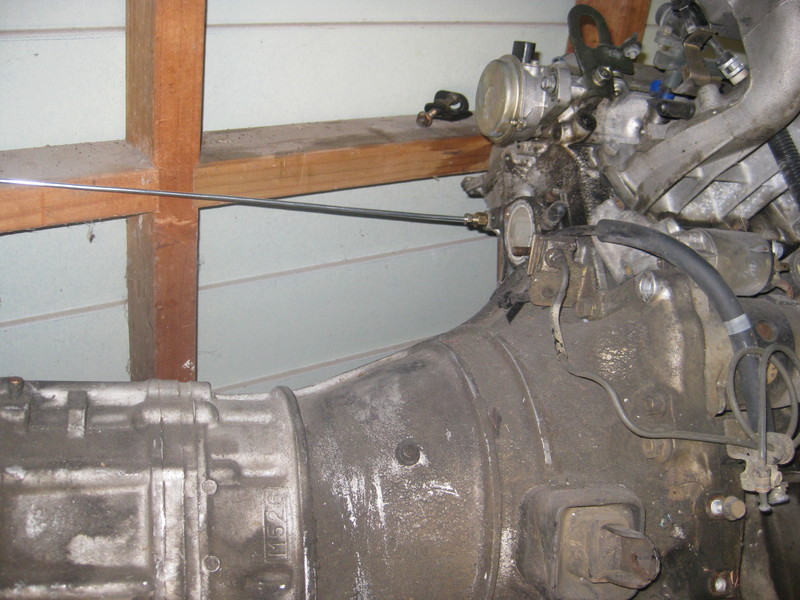

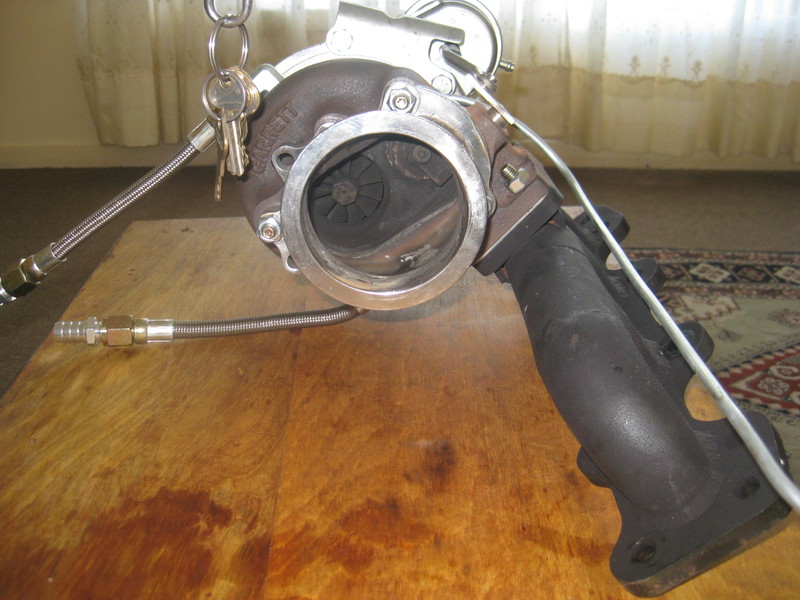

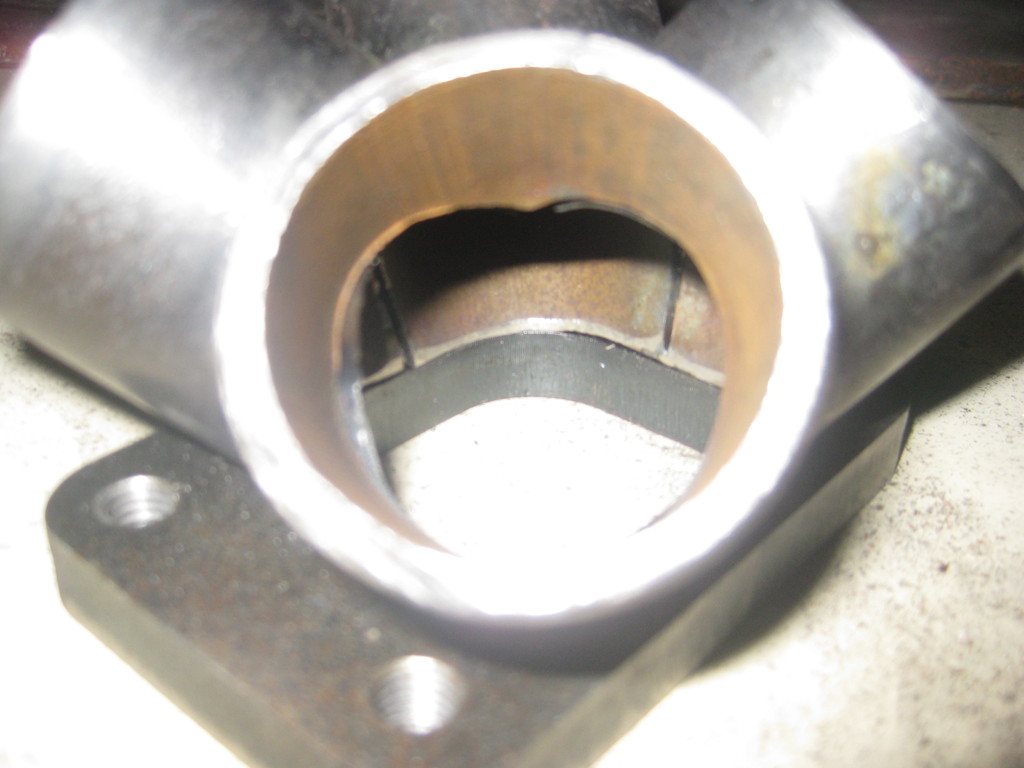

And some bonus photos just for good measure.

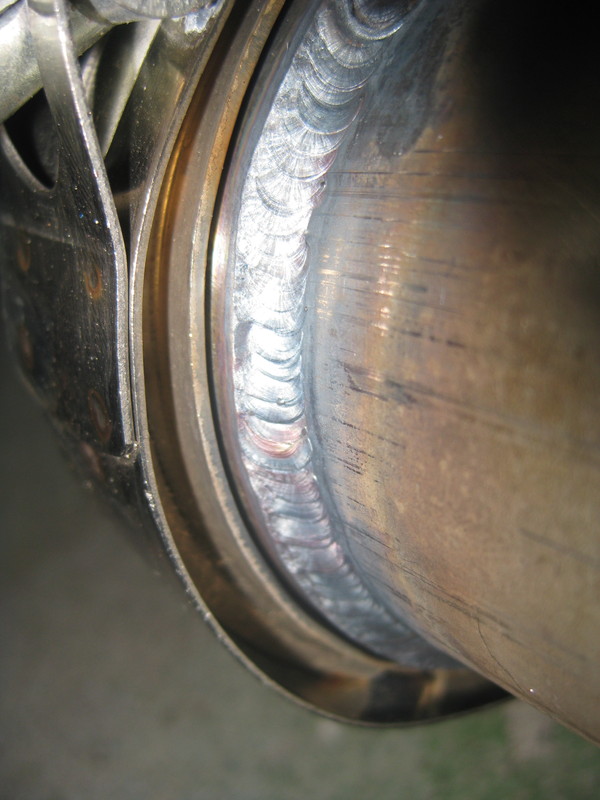

blah blah, hektik welds, etc









Cheers,
Dann
Attached Thumbnails

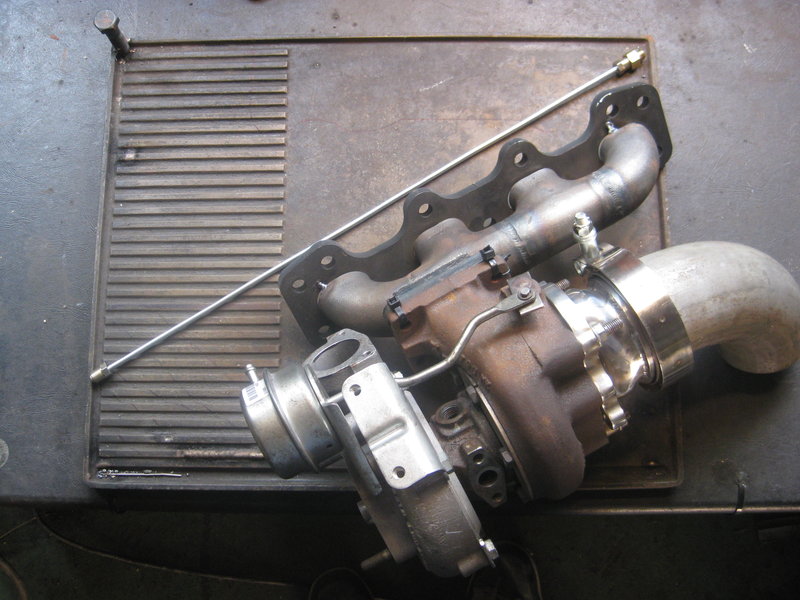

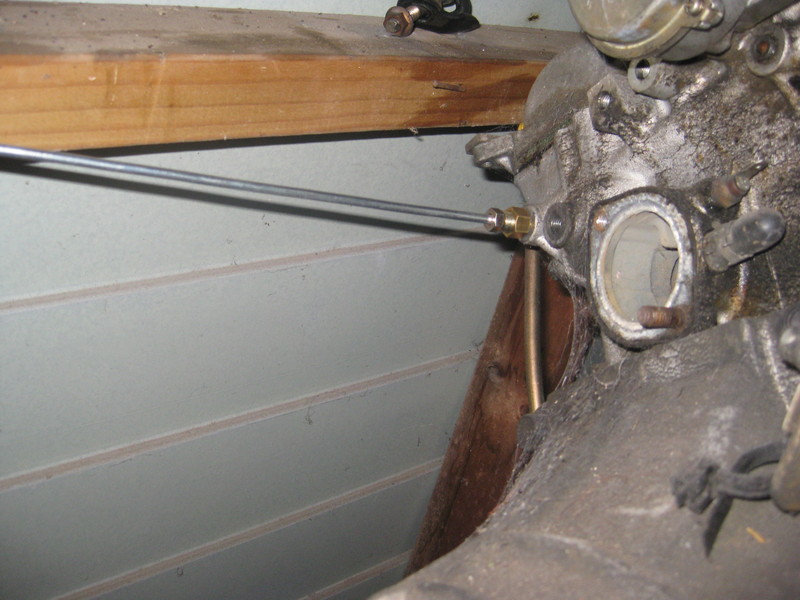

Where to get a fancy oil feed like this one?-img2007f.jpg   Where to get a fancy oil feed like this one?-img2010f.jpg   Where to get a fancy oil feed like this one?-img2011l.jpg   Where to get a fancy oil feed like this one?-img2012mu.jpg   Where to get a fancy oil feed like this one?-img2013tv.jpg

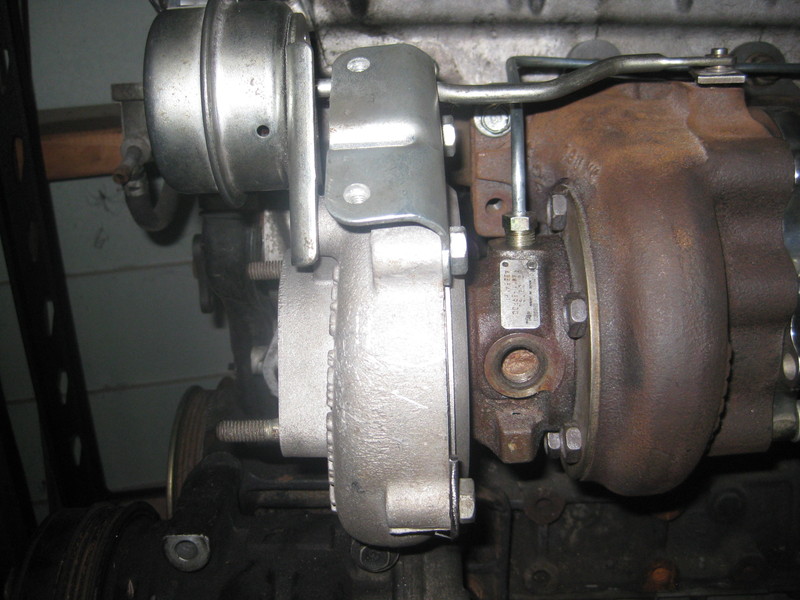

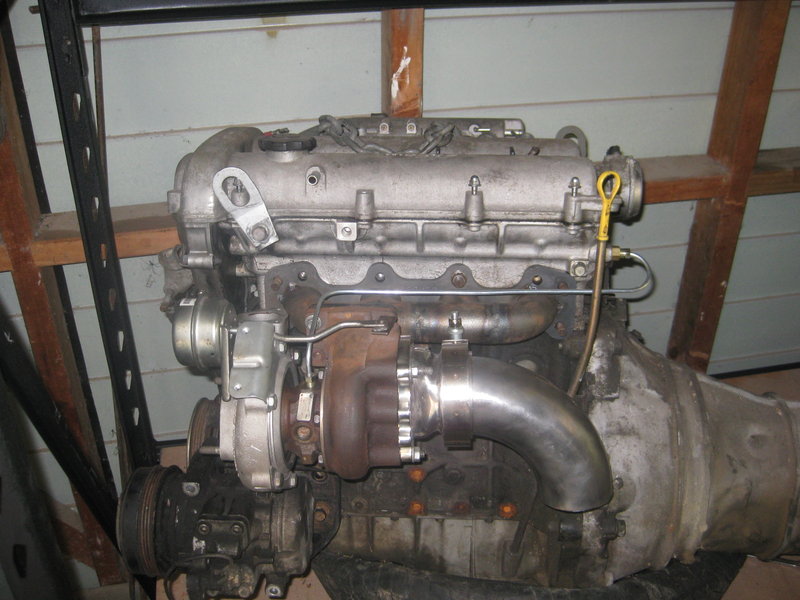

Where to get a fancy oil feed like this one?-img2122j.jpg   Where to get a fancy oil feed like this one?-img2020ip.jpg   Where to get a fancy oil feed like this one?-img2017q.jpg   Where to get a fancy oil feed like this one?-img2091ia.jpg   Where to get a fancy oil feed like this one?-img2339s.jpg

Where to get a fancy oil feed like this one?-img2388n.jpg   Where to get a fancy oil feed like this one?-img2449xfqm.jpg
nitrodann is offline   Reply With Quote
Old 07-10-2012, 07:24 AM   #32
Tea of the Sea

StarletRick's Avatar

Join Date: Apr 2010
Location: Essex, UK
Posts: 113
Total Cats: 4
Default

what thread size is that adapter? I am going to use this location for turbo sexiness on my new engine.

you are my new favorite guy called Dan.
StarletRick is offline   Reply With Quote
Old 07-10-2012, 08:06 AM   #33
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

No idea haha.

but take the threaded plug out and show your brake guy and he will give you an adaptor to fit the standard brake line fitting to the head.

Dann
nitrodann is offline   Reply With Quote
Old 07-10-2012, 08:29 AM   #34
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Well if its a fitting a brake guy normally has that narrows it down a bunch. In that size its either 1/8npt, 8 or 10mm straight thread for a banjo fitting (I dont see a sealing washer so unlikely), or... Well thats all I can think of for fittings a brake guy would have on hand to match to 6 or 8mm flare. Maybe Maybe 1/8 British pipe thread, but thats a long shot.
Leafy is online now   Reply With Quote
Old 07-10-2012, 09:33 AM   #35
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

I wonder if pulling oil from the galley that feeds the cam journals is a bad idea.
m2cupcar is offline   Reply With Quote
Old 07-10-2012, 10:51 AM   #36
Tea of the Sea

StarletRick's Avatar

Join Date: Apr 2010
Location: Essex, UK
Posts: 113
Total Cats: 4
Default

would it be enough to worry about?

most people run a restrictor on the turbo feed, so the volume of oil passing though wouldn't be detrimental would it?
StarletRick is offline   Reply With Quote
Old 07-10-2012, 03:00 PM   #37
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

I'd just like to point out that if you have a CAS on the exhaust side that galley plug is going to be a PITA to use. Maybe some fancy slim banjo might work, but it's close either way.
baron340 is offline   Reply With Quote
Old 07-10-2012, 03:21 PM   #38
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

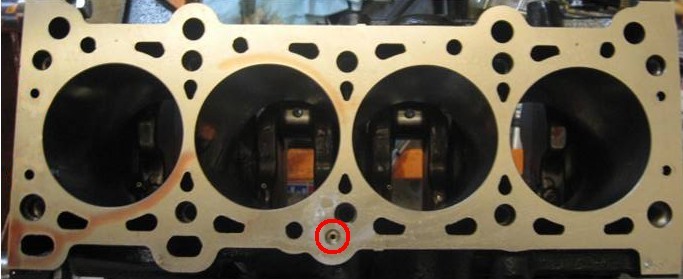

The thing which concerns me is that the oil supply from the block into the head already passes through a fairly narrow restrictor, which is pressed into the block just below the deck surface:



While a journal-bearing turbocharger (or a ball-bearing turbo with a restrictor) should not be consuming a lot of oil relative to the normal flow of the lower engine, I'd still be concerned about upsetting the balance of oil pressure within the head by drawing oil out of it to feed to any external device.
Attached Thumbnails
Where to get a fancy oil feed like this one?-f_cyht_53c_u77ts.jpg
Joe Perez is offline   Reply With Quote
Old 07-11-2012, 09:49 AM   #39
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

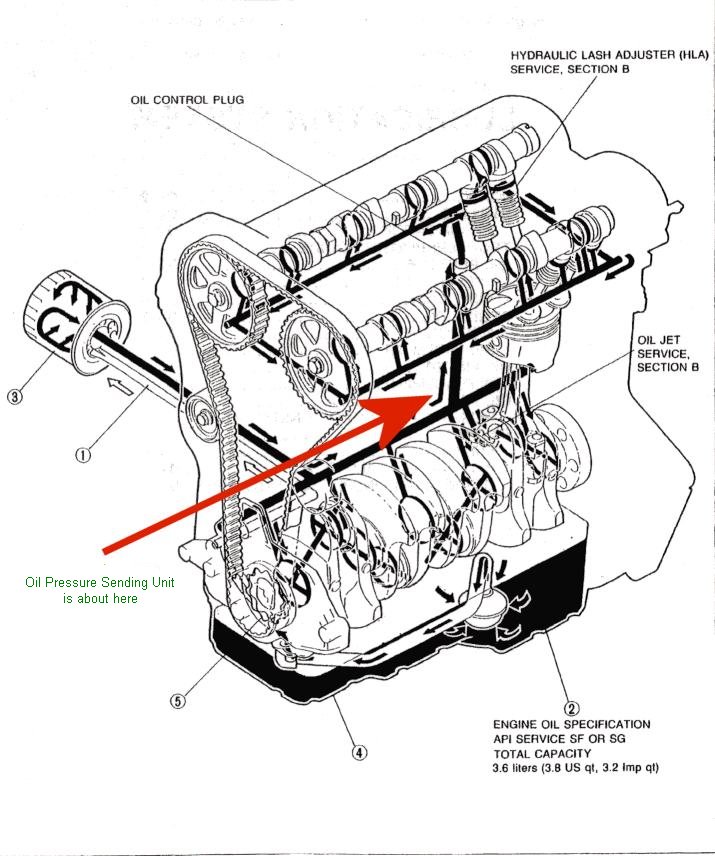

Agreed^ and a diagram to further illustrate the point. Considering there is a restrictor in place from the factory, I can only assume that it is critical in determining the flow of oil to the head and using that as source post restrictor may change things.
Attached Thumbnails
Where to get a fancy oil feed like this one?-enginelube.jpg
m2cupcar is offline   Reply With Quote
Old 07-11-2012, 10:27 AM   #40
Tea of the Sea

StarletRick's Avatar

Join Date: Apr 2010
Location: Essex, UK
Posts: 113
Total Cats: 4
Default

Isn't that just for the HLA's? I don't think its on the newer engines.

I've seen/read a few of the spec guys actually open this restrictor up to get a bit more oil into the head...
StarletRick is offline   Reply With Quote
