Old 07-11-2012, 12:52 PM   #41
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

Quote:
Originally Posted by StarletRick View Post
Isn't that just for the HLA's? I don't think its on the newer engines.
The image I posted was of an NB block.

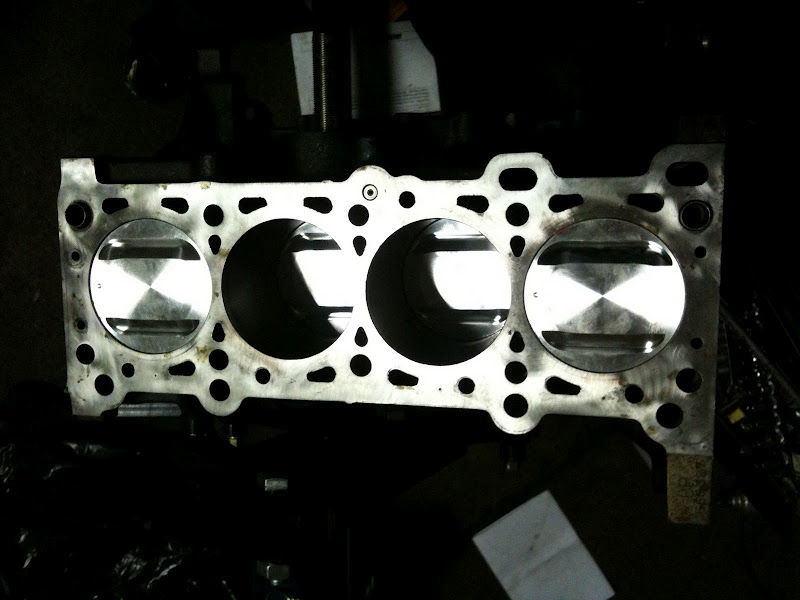

Here's an MSM block:



They all have the same orifice (or, at least, the same style of orifice.)
Attached Thumbnails
Where to get a fancy oil feed like this one?-photo%25205.jpg
Joe Perez is offline   Reply With Quote
Old 07-11-2012, 01:54 PM   #42
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

The cam journals will likely be the first thing to suffer- usually the front of the exhaust cam.
m2cupcar is offline   Reply With Quote
Old 07-11-2012, 11:02 PM   #43
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

You could do the math for how much of the oil flow you are using through the turbo (easier on bb turbos with known restrictor size), and then increase the side of the in block restrictor accordingly.
Leafy is offline   Reply With Quote
Old 07-13-2012, 05:09 AM   #44
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

That setup has a 1mm restricter inside that oil feed.

Not going to affect anything at all.

Dann
nitrodann is offline   Reply With Quote
Old 07-13-2012, 09:33 AM   #45
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by nitrodann View Post
That setup has a 1mm restricter inside that oil feed.

Not going to affect anything at all.

Dann
Never judge a cricket bowler until both teams have batted him.
hustler is offline   Reply With Quote
Old 07-13-2012, 04:35 PM   #46
Tea of the Sea

StarletRick's Avatar

Join Date: Apr 2010
Location: Essex, UK
Posts: 113
Total Cats: 4
Default

You're from America, you can't talk about cricket...
StarletRick is offline   Reply With Quote
Old 07-13-2012, 04:38 PM   #47
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

that's because we're still waiting for the first ever cricket match ever played in life to finally end so we can analyize it.
Braineack is offline   Reply With Quote
Old 07-14-2012, 02:30 PM   #48
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

I wonder why Mazda didn't source the oil feed from the head on all of their turbo engines.
m2cupcar is offline   Reply With Quote
Old 07-16-2012, 06:49 AM   #49
Tea of the Sea

StarletRick's Avatar

Join Date: Apr 2010
Location: Essex, UK
Posts: 113
Total Cats: 4
Default

Quote:
Originally Posted by Braineack View Post
that's because we're still waiting for the first ever cricket match ever played in life to finally end so we can analyize it.
touché
StarletRick is offline   Reply With Quote
Old 07-16-2012, 08:23 AM   #50
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Braineack View Post
that's because we're still waiting for the first ever cricket match ever played in life to finally end so we can analyize it.
Coming from a nation that plays baseball...

Test cricket ends, it just takes 5 days Awesome sport.
richyvrlimited is offline   Reply With Quote
Old 07-16-2012, 09:44 AM   #51
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,584
Default

Quote:
Originally Posted by m2cupcar View Post
I wonder why Mazda didn't source the oil feed from the head on all of their turbo engines.
Because they already had a block with oil and water ports they could use. No need to re-invent the wheel. Just cause they didn't do it doesn't mean its bad, but I too would feel kinda nervous sourcing from the head when there's a restrictor to it from the block as Joe pointed out. Something about possible slight oil starvation that could rear its ugly head a long time down the road makes me nervous.
18psi is offline   Reply With Quote
Old 07-17-2012, 07:09 PM   #52
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Ok so the flow through your average turbo restrictor with a -4an feed line and 0.065" restrictor running 10w40 is 0.0627 lb/min. Can someone get me a measurement of that restrictor in the block as well as the side of the passage it feeds into?
Leafy is offline   Reply With Quote
Old 07-17-2012, 07:54 PM   #53
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by StarletRick View Post
You're from America, you can't talk about cricket...
V8 Supercar quote, lol.
hustler is offline   Reply With Quote
Old 07-18-2012, 12:21 PM   #54
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

Quote:
Originally Posted by Leafy View Post
Ok so the flow through your average turbo restrictor with a -4an feed line and 0.065" restrictor running 10w40 is 0.0627 lb/min.
That seems like an overly broad statement.

Upon what temperature and differential pressure did you base this calculation? What was the delta-P across the "average" turbo (and was it ball-bearing or journal-bearing?)
Joe Perez is offline   Reply With Quote
Old 07-18-2012, 01:20 PM   #55
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

That would be a generic ball bearing turbo, assuming idle pressure of 30psi reaching the inlet and near zero psi where the drain returns to the sump. At 230 f oil temp.
Leafy is offline   Reply With Quote
