Default this is why MY crankcase was pressurized

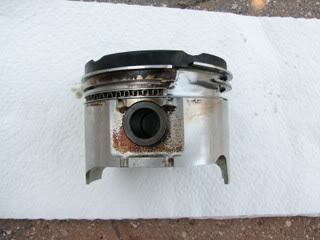

#4 Piston
Name:  Piston003.jpg
Views: 2
Size:  15.5 KB

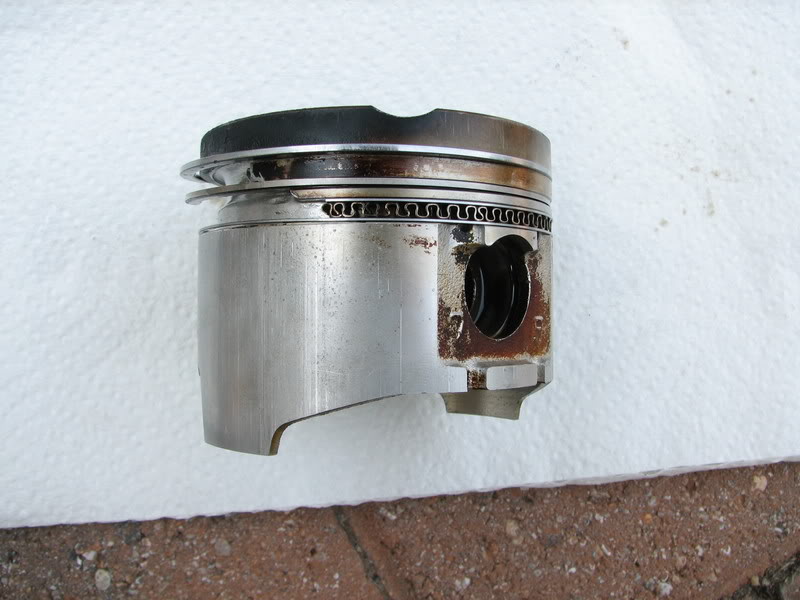

Name:  Piston004.jpg
Views: 2
Size:  66.5 KB

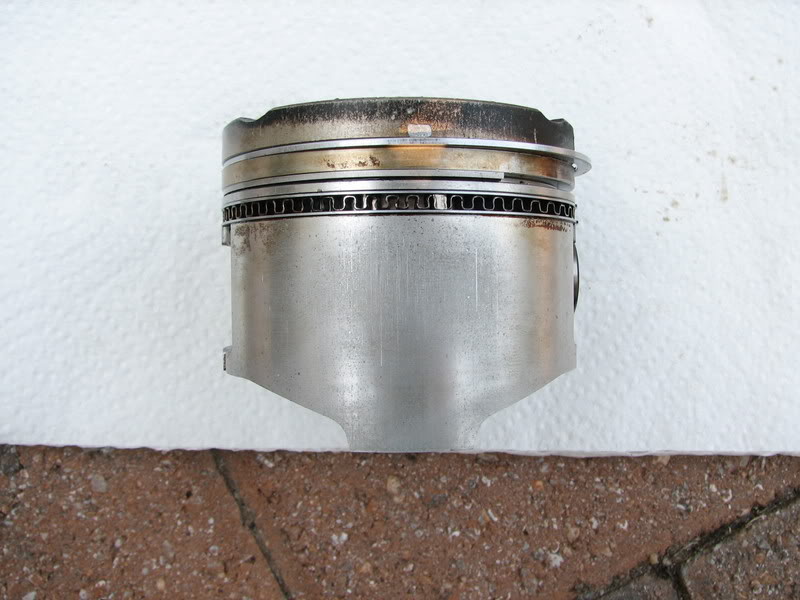

It's kinda supposed to look like this if you don't know:gay:
Name:  Piston005.jpg
Views: 2
Size:  70.9 KB

anyways...still in the process of being fixed. Some of my valves were hella sharp and worn.
This piston failure is probably a mixture of to little fuel and too much boost.

the question is...should I go beefier rods as well as pistons?
MiazdaBLUE is offline   Reply With Quote
Old 07-10-2007, 05:55 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

mmmm, bet mine look worse
Braineack is offline   Reply With Quote
Old 07-10-2007, 06:24 PM   #3
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

the belfab package price is very good, and worth it for the money.
hustler is offline   Reply With Quote
Old 07-10-2007, 06:32 PM   #4
Senior Member

Join Date: Nov 2005
Location: Baltimore Maryland
Posts: 1,010
Total Cats: 8
Default

holy ring lands batman!
airbrush1 is offline   Reply With Quote
Old 07-10-2007, 07:14 PM   #5
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

did that actually melt?
holy crap..
Oscar is offline   Reply With Quote
Old 07-10-2007, 11:09 PM   #6
Junior Member

Join Date: Nov 2006
Posts: 158
Total Cats: 0
Default

damn rebuild for the win
what miata? is offline   Reply With Quote
Old 07-11-2007, 02:14 AM   #7
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,365
Total Cats: 1,326
Default

If you have your **** apart, go for the Belfab internals.
Savington is offline   Reply With Quote
Old 07-11-2007, 05:51 AM   #8
Junior Member

Join Date: Oct 2006
Location: Edmond, OK
Posts: 473
Total Cats: 0
Default

holy shitballs, aftermarket engine management FTW
Rage_Kage is offline   Reply With Quote
Old 07-11-2007, 06:56 AM   #9
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,904
Total Cats: 4
Default

Ouch, yup that will do that. GL
Pitlab77 is offline   Reply With Quote
Old 07-11-2007, 09:14 AM   #10
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

looks like my # 2 piston yeah go for belfab
magnamx-5 is offline   Reply With Quote
Old 07-11-2007, 10:20 AM   #11
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

pic #1 is now my desktop background at work.
Arkmage is offline   Reply With Quote
Old 07-11-2007, 10:29 AM   #12
Elite Member
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

If you have the bottom end apart, replace the rods. They are the weakest link after all.

EDIT: Actually I came back after rethinking this. Previously everyone would harp on how the rods were the failing point of our stout motors, however out of all the blown motors (lots lately) I haven't seen rods break. It would seem an abnormal amount of people on this board lately are running 10-12+ PSI and the failing point is quickly becoming the rings/pistons. Namely the rings though.
Newbsauce is offline   Reply With Quote
Old 07-11-2007, 12:16 PM   #13
Junior Member
Thread Starter

Join Date: May 2007
Posts: 112
Total Cats: 0
Default

^ that is what I was thinking. The stock rods are actually surprisingly beefy and a really good design.

I'd like to know who has had rod failures and if so, at what point. What psi, what engine mangement( if any)

Honestly for what I'm looking to run after I get it fixed, I think some forged pistons would do me fine. But then I think to myself. since it's already apart I minis well replace it with something better just in case I will feel the need to go more( rods, pistons) That would def give me a super strong bottom end.

Still contemplating what to do. all I know is that I want to have it running 200rwhp before I ever get rid of it.

Still searching for emanage blue possibly with autotune and p&p boomslang(for a 90-93). So serioulsy if anyone is getting rid of theirs and upgrading to MS. Send me a PM.
MiazdaBLUE is offline   Reply With Quote
Old 07-11-2007, 12:21 PM   #14
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Most of the rod failures i have seen are from nitrous cars and cars running more hp than we do. stock motor should hold 300whp for about 15K miles if the tune is just rightseveral have done it. Alot of our failures are just from being to greedy and not lifting or just pleain tired motors of 100K+ miles failing at more than twice there intended hp level. So get a cheap stock kit if 200whp is all you want need etc. But if you want tranny breacking wheel standing power then get some rods and pistons. So long as you dont over rev the motor or shock laod it like with Nos you should live a happy and powerfull life. As bryan downs once said to me broken pistons is detonation= bad times.
magnamx-5 is offline   Reply With Quote
Old 07-11-2007, 12:37 PM   #15
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

So does the car have a dual feed fuel rail or a coolant reroute?
Splitime is offline   Reply With Quote
Old 07-11-2007, 12:59 PM   #16
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I by no means needed the rods, pistons, and valvetrain parts. However, I wanted to build this motor one time, and be confident that with a conservative tune at 250whp, I'll be able to get it home from the race track.

Unfortunately belfab only offers an 8.6:1 pistons...but I guess I'll have to suffer with the off boost slowness on my 99 motor. I don't know how aggressive I can get off boost <100kpa, but hopefully I can tune out the drawbacks from lower compression.
hustler is offline   Reply With Quote
Old 07-11-2007, 01:03 PM   #17
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

hustler just shave the head duh
magnamx-5 is offline   Reply With Quote
Old 07-11-2007, 01:07 PM   #18
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by magnamx-5 View Post
hustler just shave the head duh
Its getting surfaced...any links to the math involved to figure compression ratio after shaving? I don't want it too high though...the headroom is nice when flogging the car at 1 BAR in 100* texas heat.
hustler is offline   Reply With Quote
Old 07-11-2007, 01:11 PM   #19
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

true try the standard equations first measure what you have in cc's for the combustion chamber then measure the swept volume. assume the piston to be maybe 20cc or so then work from there. the change in the swept volume is small the most increase comes from the smaller combustion chamber but be carefull we dont want to make an interference engine out of your track maven.
magnamx-5 is offline   Reply With Quote
Old 07-11-2007, 01:33 PM   #20
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by magnamx-5 View Post
true try the standard equations first measure what you have in cc's for the combustion chamber then measure the swept volume. assume the piston to be maybe 20cc or so then work from there. the change in the swept volume is small the most increase comes from the smaller combustion chamber but be carefull we dont want to make an interference engine out of your track maven.
I just got extended out here until november...I'm never going home to build this car.

However that means many more track days at one of the best technical road courses in the nation...and only $95 for 5 sessions.
