Default wideband bung install

Hey now!

So I've got this LC1 WB kit, and now that the begi has arrived I can tack this bung into place on the pipe.

The question, this sucker (bung) is like 2in long, how much of it needs to be inside the DP and how much needs to be on the outside? I'll try and get some pics up shortly incase no one knows what the hell I'm talking about.

Much thanks!

-Flounder
flounder is offline   Reply With Quote
Old 06-24-2010, 08:13 PM   #2
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

The bung fits flush on the pipe. The way I did it is drill a hole on the exhaust then set the nut over is with the wideband sensor in there and tack it. Pull out sensor and weld. Id also advise you to place the sensor between the 9 and 3 ocklock above horizontal.
SKMetalworks is offline   Reply With Quote
Old 06-24-2010, 08:50 PM   #3
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Thanks, so the entire bung will be inside the pipe with the end of it flush with the outside?

I think with the bung flush I can get it at 12oclock but i'm not sure if the o2 loom will rub on the underbody or not. I may end up drilling it at 11 or 1.
flounder is offline   Reply With Quote
Old 06-24-2010, 09:10 PM   #4
Senior Member
iTrader: (14)

Join Date: Aug 2008
Location: Tinley Park, IL
Posts: 1,488
Total Cats: 0
Default

Make sure the sensor is exposed in the exhaust stream. If it's tucked inside the bung, it may read incorrectly.
lordrigamus is offline   Reply With Quote
Old 06-24-2010, 10:05 PM   #5
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Quote:
Originally Posted by lordrigamus View Post
Make sure the sensor is exposed in the exhaust stream. If it's tucked inside the bung, it may read incorrectly.

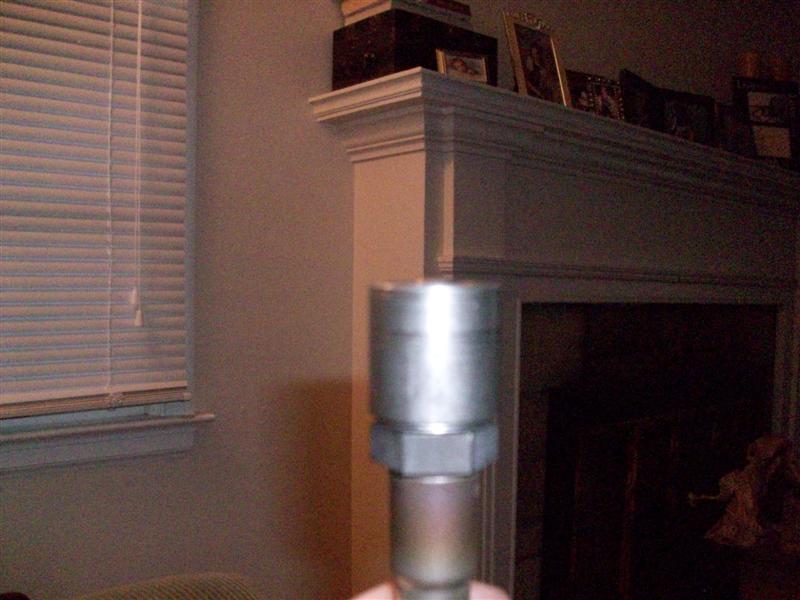

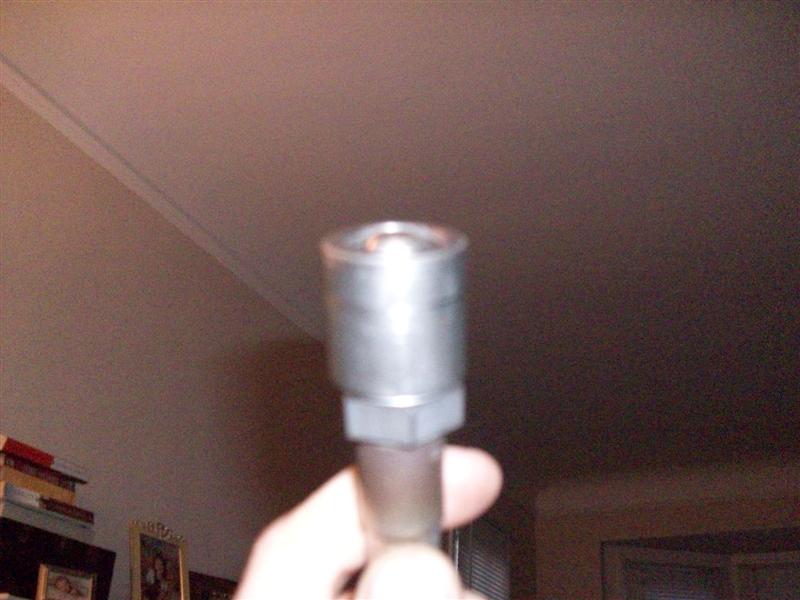

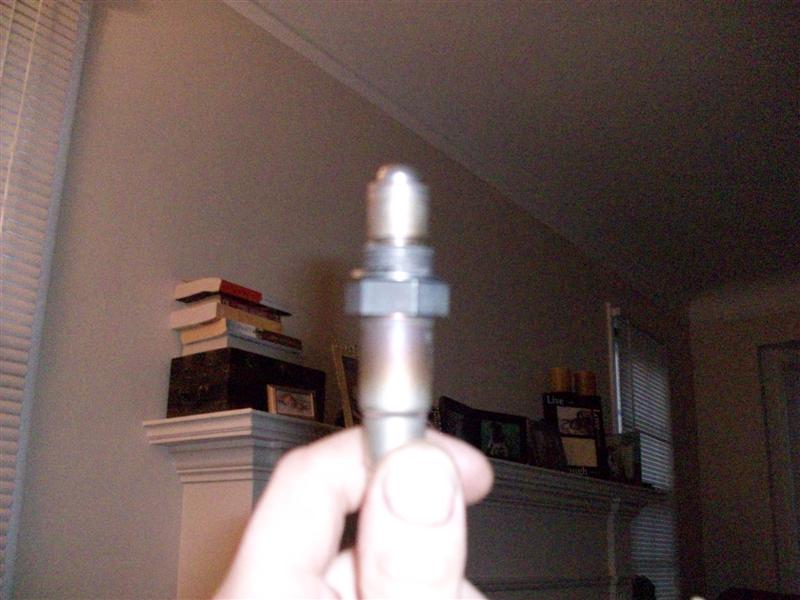

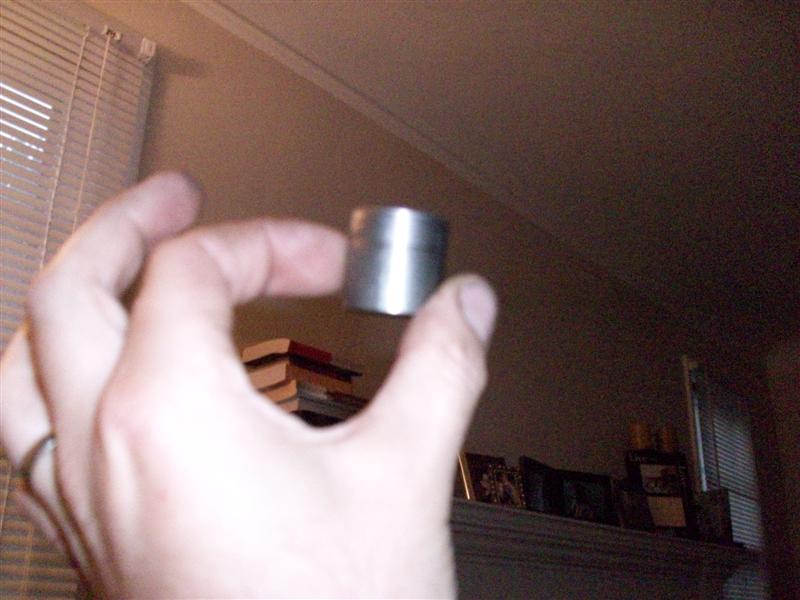

Yeah, with the o2 screwed all the way into the bung, the o2 only sticks out maybe a 1/4in from the bung opening. Do you have to do some fabing of the bung or is it a direct fit item?
Attached Thumbnails
wideband bung install-100_1047-medium-.jpg   wideband bung install-100_1048-medium-.jpg   wideband bung install-100_1049-medium-.jpg   wideband bung install-100_1050-medium-.jpg
flounder is offline   Reply With Quote
Old 06-24-2010, 11:27 PM   #6
Senior Member
iTrader: (14)

Join Date: Aug 2008
Location: Tinley Park, IL
Posts: 1,488
Total Cats: 0
Default

You may have to trim it. Mine came with the LC-1 and was only .750" long. so the sensor hung out of it.
lordrigamus is offline   Reply With Quote
Old 06-25-2010, 12:09 AM   #7
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

Take the O2 sensor into a hardware store and buy the nut it threads into the easiest. I forget what size it takes.

That bung is junk.

for future reference, this is a real bung http://www.summitracing.com/parts/AVM-35-4005

Notice the lip on it? It makes life much easier.
chpmnsws6 is offline   Reply With Quote
Old 06-25-2010, 12:54 AM   #8
Senior Member
iTrader: (14)

Join Date: Aug 2008
Location: Tinley Park, IL
Posts: 1,488
Total Cats: 0
Default

Google: O2 sensor thread tap, it may tell you the size.
lordrigamus is offline   Reply With Quote
