Old 01-28-2013, 11:44 AM   #1
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,201
Total Cats: 260
Default Wiring Harness 96

I need to know how a wiring harness is routed on a 96 Miata. My 94 runs behind the seat, and from what i've read so does the 96.

If my research is correct, i need to know if there is a second "loom" if you will that runs along the floor board behind the seat(From ECU) that plugs into the wiring harness? I suppose i could go rip apart my car and figure out, but you guys are smart.

I got a wiring harness in the mail, and it has no where to plug in the ECU. So i was originally confused if i didn't get all the harness, or what's wrong.
Erat is offline   Reply With Quote
Old 01-28-2013, 12:22 PM   #2
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,107
Default

Just FYI the 96 and the 94 wiring harness are completely different. So if for some reason you are trying to mix and match the 94 and 96 harness you will have tons of problems.
shuiend is offline   Reply With Quote
Old 01-28-2013, 12:28 PM   #3
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,201
Total Cats: 260
Default

No no. Not at all. I want to try and use a 96 harness to run a BP in another car with a 96 ecu.
Erat is offline   Reply With Quote
Old 01-29-2013, 05:28 AM   #4
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,201
Total Cats: 260
Default

No one?
Erat is offline   Reply With Quote
Old 01-29-2013, 12:59 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

IIRC it runs all the way back to the ECU, there's no "patch" harness if you will...
Braineack is offline   Reply With Quote
Old 01-31-2013, 09:34 PM   #6
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,201
Total Cats: 260
Default

So if a 96 harness runs all the way back, this one certainly does not.

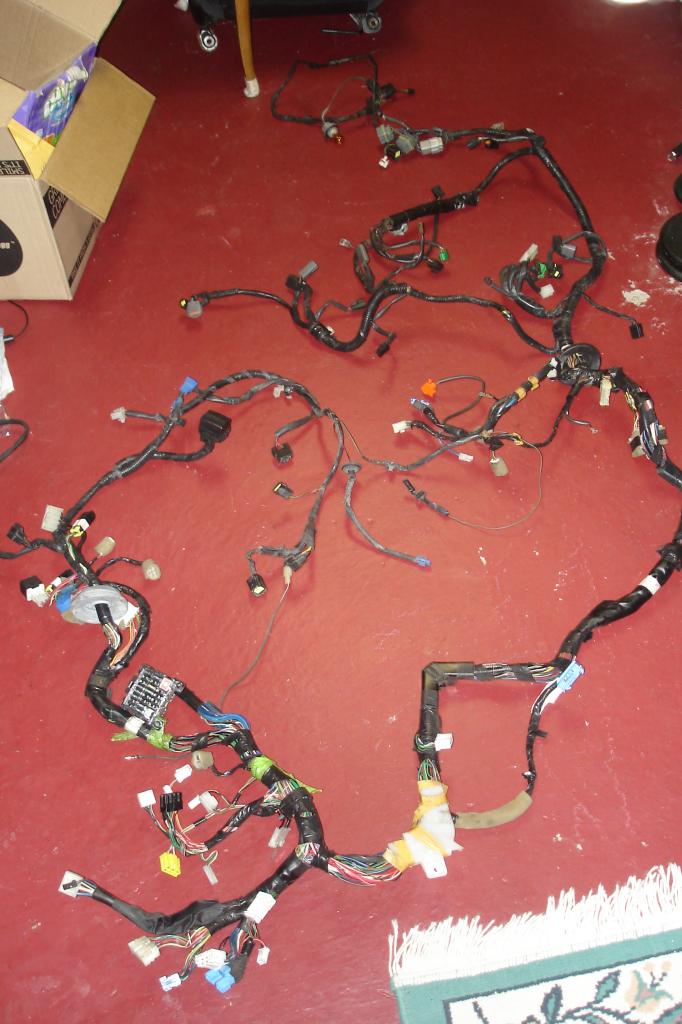

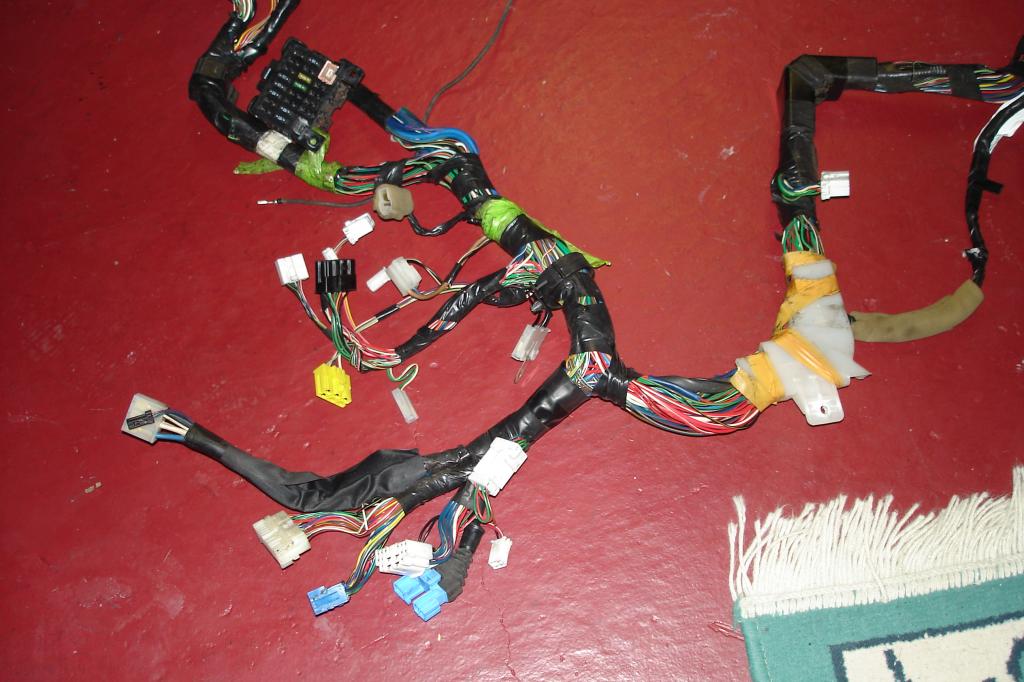

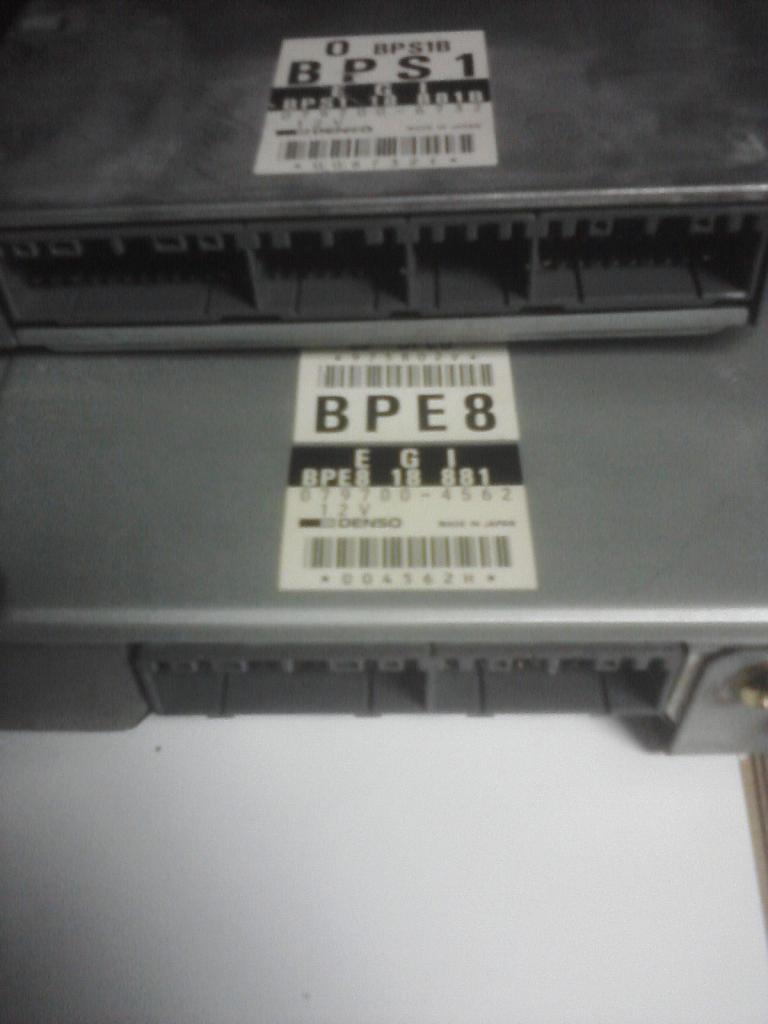

In this view, it would be as if it were in the car. Diagnostic box over on the left, and the majority of connectors on the right side. But the bottom left where it T's off looks like where the ECU hooks up. Clearly not a harness from a 96. Man i hope i didn't get dicked hard with this one...




Obviously, neither of my ECU's work.



Edit* This was the FS thread. https://www.miataturbo.net/miata-par...ts-list-68666/
Attached Thumbnails
Wiring Harness 96-dsc05000.jpg   Wiring Harness 96-dsc05001.jpg   Wiring Harness 96-image01312013202311.jpg

Last edited by Erat; 01-31-2013 at 10:35 PM.
Erat is offline   Reply With Quote
Old 02-01-2013, 10:37 PM   #7
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,201
Total Cats: 260
Default

Any insight?
Erat is offline   Reply With Quote
Old 02-01-2013, 10:46 PM   #8
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

I've been through most of the wiring in my '97.

The top ECU in your pic looks like a 96 or 97 ECU. On a 96/96 The engine harness comes through the firewall on the passenger side, and plugs into the ECU harness under the dash which runs across the floor and behind the passenger seat.

There is a smaller harness that comes through the drivers side, but it just handles the diagnostic connector and things like turn signals, horn, etc.

Edit: either I'm missing something, but I don't see the part of the harness that runs across the floor.
Stealth97 is offline   Reply With Quote
Old 02-02-2013, 11:05 PM   #9
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,201
Total Cats: 260
Default

This one had 2 rubber grommets on it. One grey on the left in the picture, and one black on the right.

What year is this harness? I clearly don't have what i think / told i have.
Erat is offline   Reply With Quote
Old 02-04-2013, 08:30 PM   #10
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,201
Total Cats: 260
Default

Shameless self bump.
Erat is offline   Reply With Quote
Old 02-04-2013, 08:38 PM   #11
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,107
Default

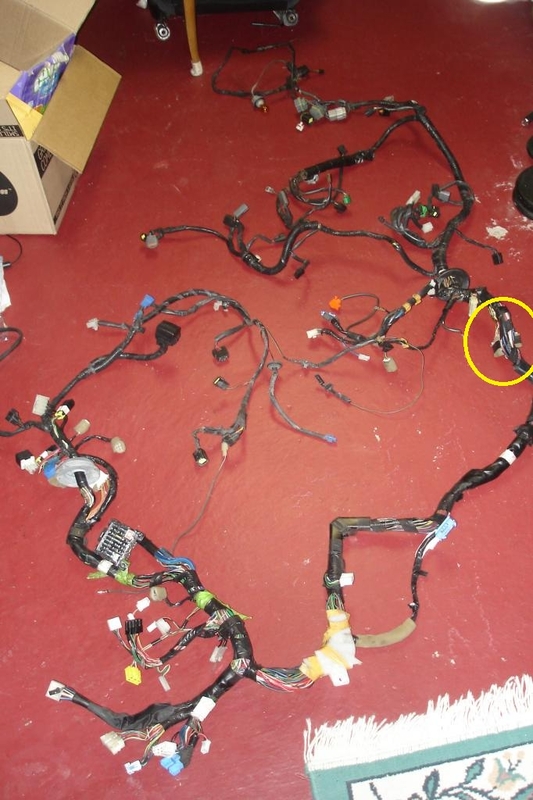

I circled the part where you should have a section going back to the ecu. There is a 96 at my local pick and pull I believe. I may be able to get up there later this week and grab that section that goes back to the ecu and ecu also if you want me to.
Attached Thumbnails
Wiring Harness 96-96-harness.jpg
shuiend is offline   Reply With Quote
Old 02-04-2013, 09:30 PM   #12
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,201
Total Cats: 260
Default

Quote:
Originally Posted by shuiend View Post
I circled the part where you should have a section going back to the ecu. There is a 96 at my local pick and pull I believe. I may be able to get up there later this week and grab that section that goes back to the ecu and ecu also if you want me to.
I will forever be in debt to you if you were to do that.
Erat is offline   Reply With Quote
Old 02-04-2013, 09:45 PM   #13
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,107
Default

Quote:
Originally Posted by Erat View Post
I will forever be in debt to you if you were to do that.
Shoot me a pm.


This is roughly what the section looks like that you are missing. I can tell you that this section is different between 94-95-96 and that none are compatible. You are also missing the part that actually goes in the dash I believe.
Attached Thumbnails
Wiring Harness 96-img_20130204_204729.jpg
shuiend is offline   Reply With Quote
Old 02-04-2013, 09:57 PM   #14
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by shuiend View Post
I circled the part where you should have a section going back to the ecu. There is a 96 at my local pick and pull I believe. I may be able to get up there later this week and grab that section that goes back to the ecu and ecu also if you want me to.
(image)
For all Miatas, the wiring harness comes in several different sections, which join together at the "common connectors" indicated by the X's in the wiring diagrams.

What you have there is a Front Harness.
Joe Perez is offline   Reply With Quote
Old 02-04-2013, 10:14 PM   #15
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,201
Total Cats: 260
Default

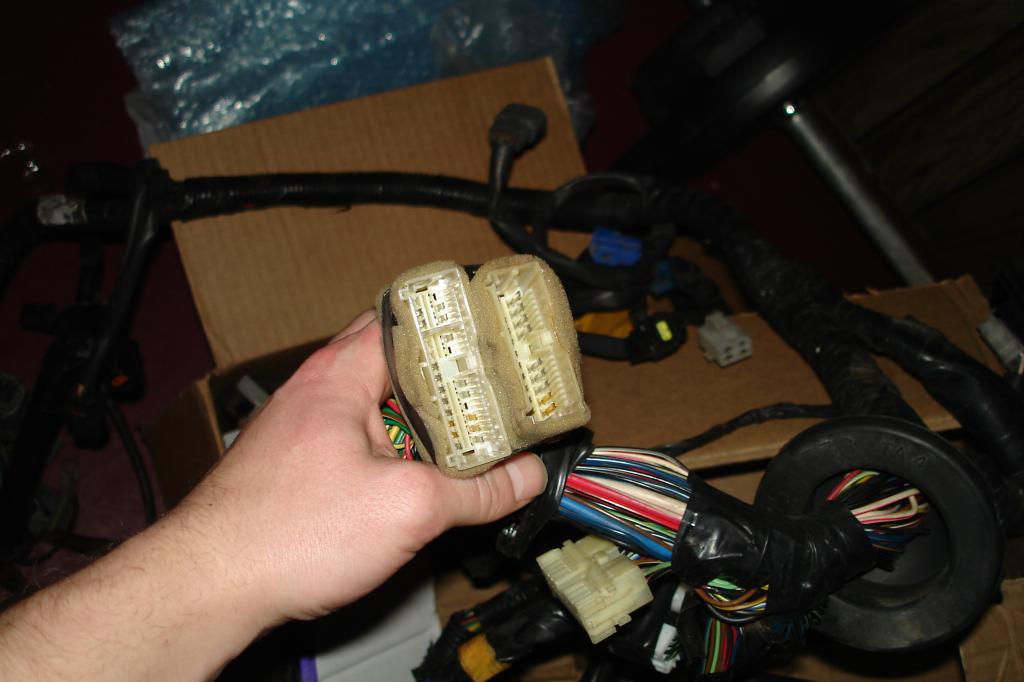

I see. Looks like my connection is this:



The part that goes under the dash controls everything, cluster HVAC OBDII port, ect.? The body and engine harness on these cars are all in one from what i'm understanding. So i'll be not using a lot of plugs. Edit* i'm not even sure ill need the under dash harness, or any other parts of it.
Attached Thumbnails
Wiring Harness 96-dsc05003.jpg
Erat is offline   Reply With Quote
Old 02-04-2013, 10:58 PM   #16
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by Erat View Post
The part that goes under the dash controls everything, cluster HVAC OBDII port, ect.? The body and engine harness on these cars are all in one from what i'm understanding.
The naming conventions are kind of weird. On the 1.6 cars, for instance, the "Engine" harness actually has very little to do with the engine, but it does go all the way back to the battery, and also includes the main (under-hood) fuse box. The "Front" harness, meanwhile, contains most of the engine electrics including the ECU connectors. (ECU is under passenger's feet in these cars.)

I wish I had a copy of the FSM wiring diagrams for the later NAs, but unfortunately I have never been able to find a complete one- just the sections specifically pertaining to the ECU, and without the overall harness illustrations.
Joe Perez is offline   Reply With Quote
