Im in the process of my reroute and I got a little camera crazy.... so here you go..
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]

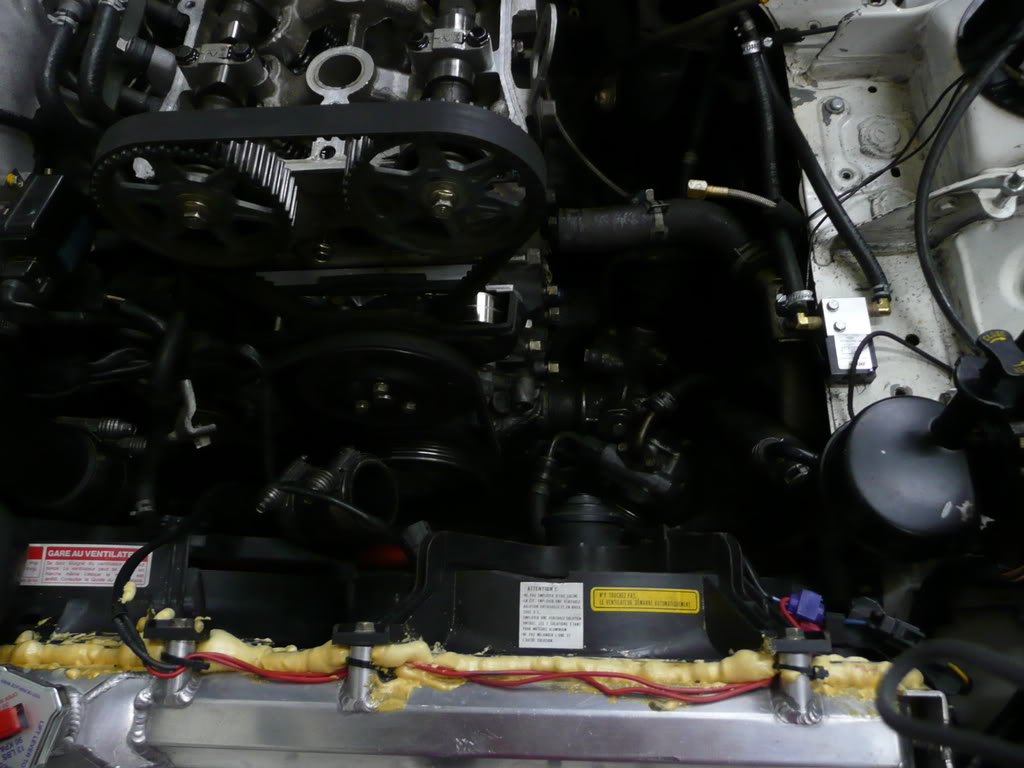

while im doing this i figured why not drop the PS out of the car...
Name:  P1010051.jpg
Views: 2
Size:  100.3 KB

exhaust
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
highroller101 is offline   Reply With Quote
Old 03-26-2008, 12:14 AM   #2
Junior Member
Thread Starter

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

Turbo
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]

Intercoolers
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]

Big Brake kit 12" in front
[IMG][/IMG]
highroller101 is offline   Reply With Quote
Old 03-26-2008, 12:17 AM   #3
Junior Member
Thread Starter

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

Interior
[IMG][/IMG]
[IMG][/IMG]

Suspension front
[IMG][/IMG]
[IMG][/IMG]
Rear
[IMG][/IMG]

Parts removed
[IMG][/IMG]
highroller101 is offline   Reply With Quote
Old 03-26-2008, 12:28 AM   #4
Junior Member
Thread Starter

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

is an A/R .48 M24 a decent t3?t4 turbo??
highroller101 is offline   Reply With Quote
Old 03-26-2008, 12:40 AM   #5
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

t25
Saml01 is offline   Reply With Quote
Old 03-26-2008, 03:26 AM   #6
Junior Member
Thread Starter

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

everyone on this forum seems to love the gt25... is it better then the t3/t4?
highroller101 is offline   Reply With Quote
Old 03-26-2008, 04:16 AM   #7
Junior Member
iTrader: (3)

Join Date: Apr 2007
Location: San Diego CA
Posts: 399
Total Cats: 0
Default

just more ready made solutions for the t25
teknikscian is offline   Reply With Quote
Old 03-26-2008, 04:24 AM   #8
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Is that spacer a one of piece you had made locally? I'm assuming so considering the drawing and quality of the piece.


The GT25 and T3/T4 are totally different beasts. GT25 is a fast spooling lower HP turbo while the T3/T4 is a slow spooling powerhouse.
cjernigan is offline   Reply With Quote
Old 03-26-2008, 09:54 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Braineack is offline   Reply With Quote
Old 03-27-2008, 03:14 AM   #10
Junior Member
Thread Starter

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

Braineack... your picture didnt show
cjernigan, I made it, machine shop. and my turbo spools very quickly, almost no lag at gets right to 15psi almost instantly im at my set boost by 4000rpm 18psi
highroller101 is offline   Reply With Quote
Old 03-27-2008, 03:21 AM   #11
Junior Member
Thread Starter

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

not really sure what kind of suspension i have.. help..? and is it any good? it feels like it works pretty well on the track!
highroller101 is offline   Reply With Quote
Old 04-26-2008, 11:23 PM   #12
Junior Member
Thread Starter

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

Alright guys Im still in the process of doing my re-route.. I am trying to make a re-route where you can re-use all stock parts... so far the only non stock parts are a spacer i made and a plate. and a turbo tim thermostat.. looks like i need one piece of flex hose to be done!!! Utilizing all stock parts!!
highroller101 is offline   Reply With Quote
Old 04-26-2008, 11:41 PM   #13
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by highroller101 View Post
not really sure what kind of suspension i have.. help..? and is it any good? it feels like it works pretty well on the track!
Looks like GAB shocks and Racing beat springs. I personally have never heard of GABS, but I pulled this bit of info on them off m.net.

GAB is the only manufacturer to make a shock that adjusts for both rebound and jounce. As well, their 8 way adjustables have a range that is just a tad stiffer than stock to making you wonder if the shocks are actually moving at all and aren't just red chucks of aluminum stuffed into the cavity. The adjustment can be done while the car is sitting in a parking lot with no tools at all, the ***** are just infront of the lower pickup points. The major limitations of GAB are two fold, their price (close to $600+ retail) and the lack of availability. (only available though a company called Wingz in the Bay Area (510) California)

This is from back in 95' mind you, so things have changed a bit since then.

Vash-
Vashthestampede is offline   Reply With Quote
Old 04-27-2008, 01:01 AM   #14
Junior Member

Join Date: Dec 2006
Posts: 227
Total Cats: 0
Default

I had GAB on an old subaru track car. They were awesome. But spendy. Rebuilds were a pain too.
oconnor is offline   Reply With Quote
Old 04-28-2008, 02:55 PM   #15
Junior Member
Thread Starter

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

So would you say they are a good shock for a race car? From Vash it sounds like they are better for street use..? Once again this is mainly a track car for me so if i can get the car to stick MORE like glue, I would LOVE it.
highroller101 is offline   Reply With Quote
Old 04-28-2008, 03:10 PM   #16
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Ah, I was wondering what you were doing for thermostat. I didn't see a lip machined into the spacer to allow for it... mine is clamped in there atm... i do NOT trust it... (mine).

Maybe external thermostat will be a simpler format for me.

Are there pics/prices for Tims external housing?

Oh.. and how did you align the cams without the back plate? Just marked and clamped in place prior? I fought getting them setup with the black back plate... then just said fug it... and tossed it back on.
Splitime is offline   Reply With Quote
Old 04-28-2008, 03:15 PM   #17
Junior Member
Thread Starter

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

Turbo Tim made me a external thermostat housing with a High Flow 180* sensor and I drilled 2 1/8" holes in it to allow for more flow. Im really doing a serious custom job... But it sure looks to be promising!!! I am taking the turbo water return line and routing that through the Heater core! then using that spacer I made to run the heater return line back into the system. And I am machining the thermostat housing to retain the "green" temp sensor.
highroller101 is offline   Reply With Quote
Old 04-28-2008, 04:24 PM   #18
I'm Miserable!
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

yeah guy, where is your cam gear backing plate?
zoom2zoom is offline   Reply With Quote
Old 04-28-2008, 05:59 PM   #19
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

WTF??? (between rad. and fans)

Name:  P1010051.jpg
Views: 2
Size:  100.3 KB
Doppelgänger is offline   Reply With Quote
Old 04-28-2008, 06:06 PM   #20
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Quote:
Originally Posted by Doppelgänger View Post
WTF??? (between rad. and fans)
Cheap DIY ducting. Force all air through fans instead of around the edges there.
