Default WTF oil on exhaust port?

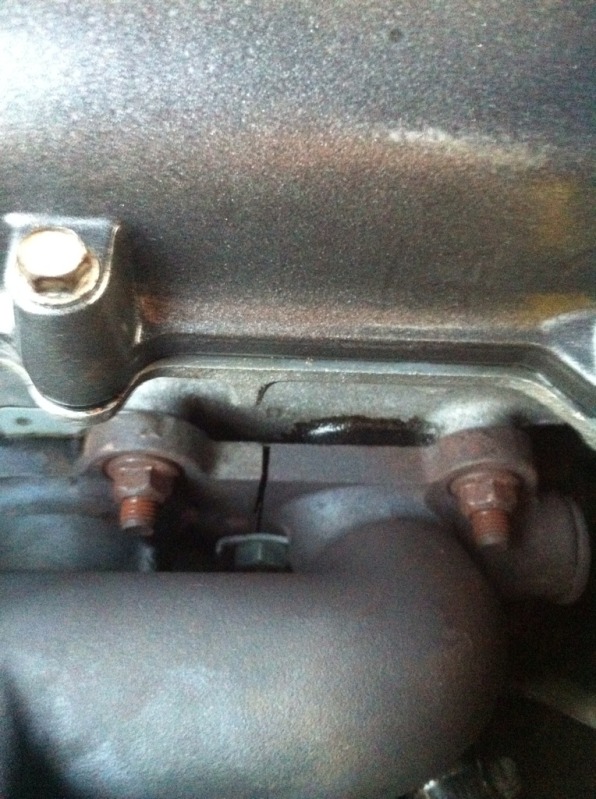

Where is this oil coming from??? Above it is dry so I don't think it is from the valve cover. No drips, just what you see. It is on all 4 cyl.

Fresh motor... maybe 50 miles on it.

Attached Thumbnails
WTF oil on exhaust port?-c67dcafb-2311-4fe2-85f6-f58af0c9572b-2726-0000051cd0344a56.jpg
240_to_miata is offline   Reply With Quote
Old 09-25-2012, 09:22 PM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Weird. My head does that, but it just comes out as smoke, you can't see it until you take the manifold off and see the slightly oily valve stem. Is there smoke?
curly is offline   Reply With Quote
Old 09-25-2012, 10:01 PM   #3
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Smoke after decel once I open the throttle back up. Quite a bit of it. Pretty sure I did a **** job re-building my T25. New valve seals and a shop built bottom end make me suspect the turbo or PCV as well. I do have an exhaust leak but I thought it was on the manifold-to-turbo side (****** gasket)

who knows.
240_to_miata is offline   Reply With Quote
Old 09-25-2012, 10:48 PM   #4
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

It's coming from your blown engine.
hustler is offline   Reply With Quote
Old 09-25-2012, 10:52 PM   #5
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

No No hustler this car has a turbo... you wouldn't understand
240_to_miata is offline   Reply With Quote
Old 09-25-2012, 11:42 PM   #6
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Quote:
Originally Posted by 240_to_miata View Post
No No hustler this car has a turbo... you wouldn't understand
I lol'd IRL.

I personally have good luck with rebuilt heads (previously mentioned stem leak head has a lot of track abuse on it), but I know a lot of people have had bad luck with shops rebuilding heads. Don't rule it out.

The smoke on decel sounds more like what you said, PCV or turbo seals. Although I used a Gpopshop rebuild kit on mine with great success. And mine smokes on start up, after it's had a chance to sit and seep through the leaky #4 valve seal.

Decel smoke sounds like a recently rebuilt engine with lots of compression sucking past a dying PCV valve. Replace that first if you haven't already. Can you suck on it?
curly is offline   Reply With Quote
Old 09-26-2012, 07:33 AM   #7
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

I am going to replace/test it and see. I am still just confused on how the oil would be forming around the port. I cant physically feel an exhaust leak from there, but then again I do have one SOMEWHERE so I am not sure.
240_to_miata is offline   Reply With Quote
Old 09-26-2012, 01:26 PM   #8
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by 240_to_miata View Post
No No hustler this car has a turbo... you wouldn't understand
You can talk **** when you run within an hour of the SM record at your local track, homofag.
hustler is offline   Reply With Quote
Old 09-26-2012, 01:30 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,835
Total Cats: 1,786
Default

:waits patiently for the post where he finally replaces the bad oil rings:
Braineack is online now   Reply With Quote
Old 09-26-2012, 01:51 PM   #10
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

LoL hustler easy... I never claim to be fast. My Turboed shutbox with me driving isn't even hitting spec times at limerock.

I'll do a leak down to shut everyone up on the motor issue... But no one has helped me figure out why oil would form OUTSIDE of my manifold.
240_to_miata is offline   Reply With Quote
Old 09-26-2012, 02:02 PM   #11
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by 240_to_miata View Post
LoL hustler easy... I never claim to be fast. My Turboed shutbox with me driving isn't even hitting spec times at limerock.

I'll do a leak down to shut everyone up on the motor issue... But no one has helped me figure out why oil would form OUTSIDE of my manifold.
Oil wicks-up through that "joint".
hustler is offline   Reply With Quote
Old 09-26-2012, 02:08 PM   #12
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Makes sense. I just figured it would be a large exhaust leak if oil was also able to wick up. I will first test the PCV and then get my hands on a leak down. Because the smoke comes when I open back up the throttle plate I really suspect its my turbo. I just really don't think(and hope) a professionally built motor would have ring or valve seal issues

Thanks for the answer
240_to_miata is offline   Reply With Quote
Old 09-27-2012, 08:00 PM   #13
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

-compression came in at 190-195 all around (supertech 8.6:1)
-charge pipes are bone dry.
-disconnecting the PCV hose from the IM and running a breather did nothing. My PCV is leaking though... so thats probably not helping

I still need to do a leakdown to CONFIRM its not the rings, but right now it looks like its either the valve seals (brand new) or the turbine. I suspect its the turbine because I had a hell of a time rebuilding it this time. The brass bushings were .001" oversized in my kit so I re-used my old ones (measured within spec). I also took my oil ring off the turbine side of the shaft only to realize I didn't have a replacement. I am not happy with how it went back on. I think THAT is the failure point.

CHURBO next year. for now I will probably continue to puff smoke while I pass emissions on the stock ecu/maf/inj/exhaust, etc.
240_to_miata is offline   Reply With Quote
Old 09-27-2012, 08:25 PM   #14
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

What rebuild kit did you use? My gpop shop had awesome bearings and multiple rings in case the first one didn't fit.
curly is offline   Reply With Quote
Old 09-27-2012, 08:41 PM   #15
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

gpopshop. Never had an issue previous times with the brass bushings...but this time I mic'd them way oversized. I tried installing them and literally would have had to press them in. As for the oil ring, I might have a pic of which one it was, but there wasn't a similar one in the kit.

Either way, I am not crying about an upgrade.
240_to_miata is offline   Reply With Quote
Old 09-27-2012, 09:06 PM   #16
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

your fresh motors fuked yo

i hope it is not built cus if so it doesnt deserve a log and t25 of fail
Faeflora is offline   Reply With Quote
Old 09-27-2012, 09:08 PM   #17
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

LOL thanks Fae. Yes its built. It needed a rebuild and eventually it will see more than a log mani and t25.

Motor is fine, turbo is fucked, you guys are all bullies. . . lol
240_to_miata is offline   Reply With Quote
Old 09-27-2012, 09:08 PM   #18
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

lol at homofag.
flounder is offline   Reply With Quote
Old 09-27-2012, 09:18 PM   #19
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by 240_to_miata View Post

Motor is fine, turbo is fucked, you guys are all bullies. . . lol
Please make motor happy and put goodie turbo on now
Faeflora is offline   Reply With Quote
Old 09-27-2012, 09:24 PM   #20
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

First I need to torture my motor by more or less going to stock to pass emissions... Then I will treat her well.
240_to_miata is offline   Reply With Quote
