Default Anyone here know about getting circuit boards printed?

I've been fooling around with arduinos, breadboards, protoboards, etc and I've done a few simple projects, which has revealed to me that nothing I've made is really suitable for sticking behind the firewall or even on the dashboard. I've been thinking about moving on to proper printed boards, nice packaging and stuff like that.

I see about a billion choices for EDA tools and quite a few choices for people willing to manufacture in small lots based on designs. I'd probably stick with atmel stuff because I'm ******* lazy, though I don't imagine this matters at all for doing board design.

Does anyone have any suggestions for good software tools, good output formats and good small quantity manufacturers.
AlwaysBroken is offline   Reply With Quote
Old 07-31-2015, 12:13 AM   #2
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 870
Total Cats: 93
Default

I don't know much of the details, but we use Osh Park for our FSAE custom PCB's. https://oshpark.com/
acedeuce802 is offline   Reply With Quote
Old 07-31-2015, 12:16 AM   #3
Tweaking Enginerd
iTrader: (2)

Join Date: Mar 2013
Location: Boulder, CO
Posts: 480
Total Cats: 37
Default

Eagle free and whatever sunstone's (pcbexpress) free tool is are decent options. The sunstone tool will have the output file formats built in for submission to their online quote tool. When I was ordering boards I used efab quite a bit. Eagle has a strong opensource community.

They are really all pretty much the same for the tech level you will need most likely.
Ted75zcar is offline   Reply With Quote
Old 07-31-2015, 07:02 AM   #4
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Do you already have your own schematic and layout software?

If not, I've had good experiences with ExpressPCB

They require you to use their proprietary schematic and layout software, which is not compatible with any generic layout tools so far as I know, so you're kind of locked in to using their fab service once done. That said, their tools, while lacking certain features, are extremely simple to use, and their service, for small orders, is both fast and cheap.
Joe Perez is offline   Reply With Quote
Old 07-31-2015, 09:18 AM   #5
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

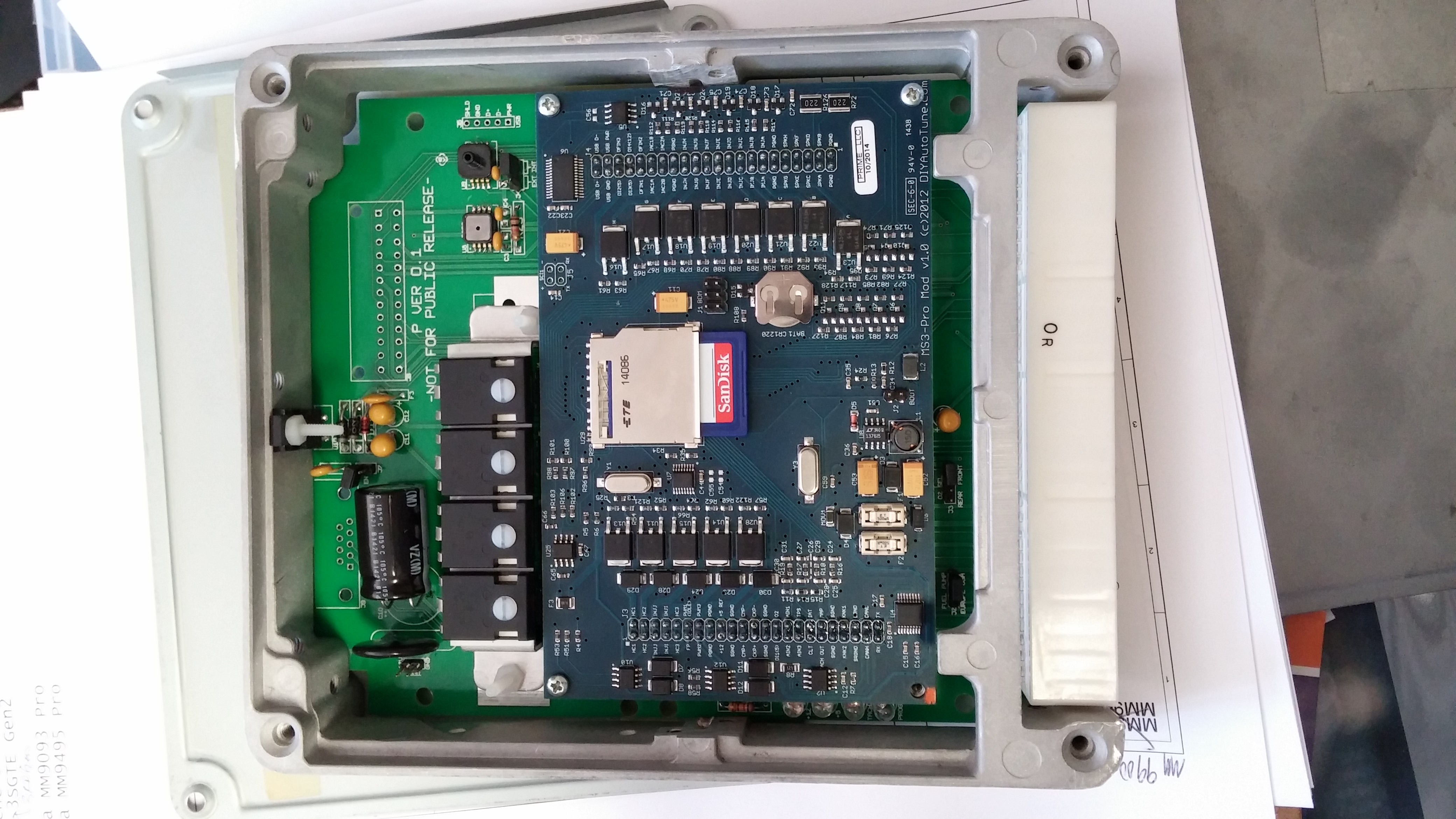

<p>The green board was drawn in WinQcad and produced by Silver Circuits.&nbsp; (The blue board on top is a completely different story)</p><p><img src="http://cimg2.ibsrv.net/gimg/www.miataturbo.net-vbulletin/2000x1124/80-145893d1438344962_anyone_here_know_about_getting_c ircuit_boards_printed_20150105_104023_0ce67dd3a6ba 296eaeb59535f7dfbe17762c4d76.jpg" title="" /><br /><br />&nbsp;</p>
Attached Thumbnails
Anyone here know about getting circuit boards printed?-20150105_104023.jpg
Ben is offline   Reply With Quote
Old 07-31-2015, 09:25 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

I used Eagle to design a small PCB. Trying to find the printer...

edit: thumbs down. I can find references in email to the file creation, but i cant find who i ordered it from. I remember it being decent priced.

Last edited by Braineack; 07-31-2015 at 09:36 AM.
Braineack is offline   Reply With Quote
Old 07-31-2015, 10:51 AM   #7
Senior Member
Thread Starter

Join Date: Jun 2015
Location: TAMPA, FL
Posts: 640
Total Cats: 27
Default

Quote:
Originally Posted by Joe Perez View Post
Do you already have your own schematic and layout software?

If not, I've had good experiences with ExpressPCB

They require you to use their proprietary schematic and layout software, which is not compatible with any generic layout tools so far as I know, so you're kind of locked in to using their fab service once done. That said, their tools, while lacking certain features, are extremely simple to use, and their service, for small orders, is both fast and cheap.
No, I'm not using any software yet. Since a lot of the software is vendor specific, I wanted to learn from the experiences of others here before I took the trouble to learn a particular package.
AlwaysBroken is offline   Reply With Quote
Old 07-31-2015, 10:55 AM   #8
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

I dont think you can wrong with Eagle. Plus, it is free, albeit with a limitation on board size.

I looked into doing some DIY etching. There are a few ways to do it, the easiest is to buy boards with a photosensitive coating on them. You draw your circuit and print it out with a laser printer on a transparency, lay it on the board and stick it in the sun. Afterwards you can wash away the copper, leaving behind your traces.

I still think it looks like fun. Not sure if it makes much sense if youre just trying to get **** done.
Full_Tilt_Boogie is offline   Reply With Quote
Old 07-31-2015, 11:12 AM   #9
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by AlwaysBroken View Post
No, I'm not using any software yet. Since a lot of the software is vendor specific, I wanted to learn from the experiences of others here before I took the trouble to learn a particular package.
I've used ExpressPCB for a number of different small projects over the years. I'd never consider them for anything that I might eventually want to scale-up into a larger product, as the files you create with them are forever locked into their system. But for those situations when I just need to create a couple of PCBs cheaply and quickly, they've been excellent.

Product choices vary from two-sided bare to four-layer with soldermask and silkscreen, and the quality has always been good.

One nice thing about their software package, frankly, is that it's simple. It lacks a lot of features that you find in higher-level stuff (like autorouting), but it very easy to learn and use.
Joe Perez is offline   Reply With Quote
Old 07-31-2015, 11:20 AM   #10
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

<p>by far the best (cheapest) place to get circuit board produced for low volume runs...</p><p>&nbsp;</p><p>https://www.seeedstudio.com/service/index.php?r=pcb</p><p>&nbsp;</p><p>&nbsp;</p>

Last edited by cyotani; 07-31-2015 at 11:32 AM.
cyotani is offline   Reply With Quote
Old 07-31-2015, 02:06 PM   #11
Junior Member
iTrader: (9)

Join Date: Dec 2011
Location: SFBay
Posts: 339
Total Cats: 39
Default

Ive used OSHPark and Sunstone. OSHPark is easier to use and cheaper for small runs.
You can use this tool to compare the major online suppliers:
PCB Shopper A Price Comparison Site for PCBs
scenturion is offline   Reply With Quote
Old 07-31-2015, 04:31 PM   #12
Senior Member
Thread Starter

Join Date: Jun 2015
Location: TAMPA, FL
Posts: 640
Total Cats: 27
Default

Sweet, thanks guys.
AlwaysBroken is offline   Reply With Quote
Old 08-02-2015, 10:23 PM   #13
Junior Member
iTrader: (1)

Join Date: Jan 2011
Posts: 377
Total Cats: 0
Default My experience

I am spoiled with altium at work but OSH park has been great to deal with. Customer service is great. I had a 10 x 20 in panel that killed their online tool. They processed it manually and provided some feedback for changes. Whole thing was less than $500 and about two weeks for 3 boards.

That's 600 sq in of board. Small boards are like $15 for 3.
3rdCarMX5 is offline   Reply With Quote
Old 08-03-2015, 08:50 PM   #14
Tweaking Enginerd
iTrader: (2)

Join Date: Mar 2013
Location: Boulder, CO
Posts: 480
Total Cats: 37
Default

Just checked out OSH park, $10/sq inch on a 4 layer with 5/5/10 isn't bad.
Ted75zcar is offline   Reply With Quote
Old 08-04-2015, 12:32 AM   #15
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,990
Total Cats: 1,457
Default

<p>I use OSH park too. Good stuff.</p>
aidandj is offline   Reply With Quote
Old 08-04-2015, 09:41 AM   #16
Senior Member
Thread Starter

Join Date: Jun 2015
Location: TAMPA, FL
Posts: 640
Total Cats: 27
Default

Using Eagle is like being tortured. After years of using Eclipse for software development, using software that looks like it was written in the early 90s and costs thousands of dollars is a rude awakening.

I'm trying KiCad next.

I'm not objecting to the appearance of Eagle, but to the usability. And yeah, I realize that the basic version of Eagle is free.
AlwaysBroken is offline   Reply With Quote
Old 08-04-2015, 02:10 PM   #17
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by AlwaysBroken View Post
Using Eagle is like being tortured. After years of using Eclipse for software development, using software that looks like it was written in the early 90s and costs thousands of dollars is a rude awakening.
You should see Cadence's Allegro PCB software whose UI hasn't changed since the 90s. It is user-angrier than a nest of hornets and costs many thousands. You can't possibly be an occasional user and be reasonably proficient. I can't understand why so many companies use it.

In contrast the other day I downloaded "Room EQ Wizard", learned it, figured out how to connect a mic, measured my room audio with the sub in 3 different positions, and tuned my subwoofer amp's DSP in 5 hours, without every cracking open the manual. It's free software written by one guy. I was so happy I donated to his paypal account.
JasonC SBB is offline   Reply With Quote
Old 08-04-2015, 05:42 PM   #18
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 197
Default

Any CAD software is difficult to use/understand, I guess it's the nature of the beast. Have you tried using Autocad or Solidworks?

Eagle in particular uses the QT framework, which of course looks different than a native Windows/Mac, but is by no means a '90s app. Using the QT framework means the same is available for all major platforms (win/mac/linux).
Reverant is offline   Reply With Quote
Old 08-04-2015, 07:27 PM   #19
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Solidworks is the easiest **** I've ever used in my life, I had the unfortunate experience of using solidedge for a pretty large assembly... till I figured out how to open solidedge parts in solidworks. More software should use UI like solidworks, I would be a happy man.

I've halfway trained myself on eagle using online tutorials, but the workflow isn't quite the same as feature/sketch based solid modeling where there's twenty ways to get what you want, although half can bite you in the bass...

My advice is forgo pcbexpress and go with eagle and oshpark, if it's something you enjoy doing the time you spend won't be wasted. Far as I can tell the UI hasn't changed in ever.

First and last time I had boards printed I bounced around a bunch of software till I discovered I was wasting more time than I was saving just learning eagle.
deezums is offline   Reply With Quote
Old 08-04-2015, 11:06 PM   #20
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by Reverant View Post
Any CAD software is difficult to use/understand, I guess it's the nature of the beast. Have you tried using Autocad or Solidworks?
I can't speak to Solidworks (never done any 3d work at all), however I don't recall having any difficulty picking up 2d AudoCAD back in 1999 when I started working at Harris, and it's become a part of my everyday routine. As I remember, I took a 1 day training course and then learned the rest myself. I'm so addicted to the command-line shortcuts and the precision of AutoCAD that I get extremely annoyed whenever I have to work with a drawing that someone else has created in a "simple" program like Visio.

Heck, before I move into a new apartment I first sketch it in AutoCAD and use that model to arrange my furniture. Saves a lot of time and sweat.
Joe Perez is offline   Reply With Quote
