Default Garage Lifts

Any body have any experience with swapping their garage door to accommodate a garage lift? I'm curious as to what the pit falls are. Any drawbacks?
Fathom55 is offline   Reply With Quote
Old 05-29-2013, 07:13 PM   #2
Senior Member

Join Date: Nov 2010
Location: Pittsburgh PA
Posts: 1,196
Total Cats: 12
Default

Are you talking about an in-ground (dig up the floor, usually hydraulic) or above ground lift (two tall posts, electric cable system)?
2ndGearRubber is offline   Reply With Quote
Old 05-29-2013, 08:39 PM   #3
Junior Member
Thread Starter

Join Date: Mar 2013
Location: Houston
Posts: 113
Total Cats: -3
Default

Sorry, Above ground.
Fathom55 is offline   Reply With Quote
Old 05-29-2013, 08:52 PM   #4
Senior Member

Join Date: Nov 2010
Location: Pittsburgh PA
Posts: 1,196
Total Cats: 12
Default

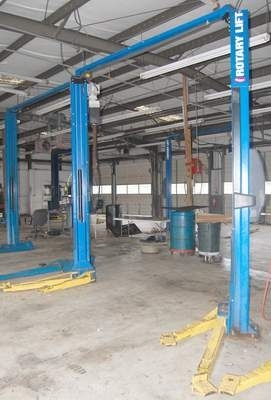

Okay. Well, we've got one of these at our shop.




One of the hydraulic lifts broke, and that was cheaper. Posts are about 12 feet tall. It's electric powered, so you don't have to worry about supporting it via jack-stands when you're not working on it. The offset arm lengths are kind of a pain, especially for racking something as small as a miata.

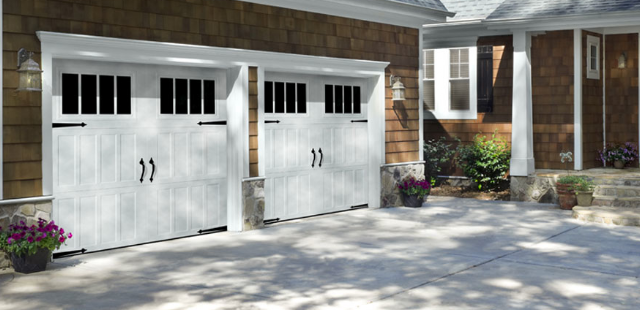

As for the garage doors, I think the easiest method would be this.




Yes, I am aware that's probably a normal garage door. I'd make it a "gate-style door, with the doors opening like a typical french door set. Offset the hinges back a bit, so the opening remains the same. I'd figure normal weather stripping would work well enough around the seals. Use a simple post, with a nice rope or polished chain, to hold the doors open. Stylish, and unbelievably functional.



tl;dr - Unless you garage is really tall, it ain't gunna fit. Electric garage door + lift + short roof = Not gonna happen.
Attached Thumbnails
Garage Lifts-rotary_10k_in-bay_lift_large.jpg
2ndGearRubber is offline   Reply With Quote
Old 05-29-2013, 10:49 PM   #5
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,895
Total Cats: 109
Default

Why not a roll up style door?
miata2fast is offline   Reply With Quote
Old 05-30-2013, 02:00 AM   #6
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,176
Total Cats: 261
Default

Edited my misunderstanding.

If a rollup door can be found that is aesthetically pleasing enough that would work.
Mobius is offline   Reply With Quote
Old 05-30-2013, 03:36 AM   #7
Senior Member
iTrader: (1)

Join Date: Jan 2013
Location: Jacksonville FL
Posts: 649
Total Cats: 211
Default

Piece of cake..

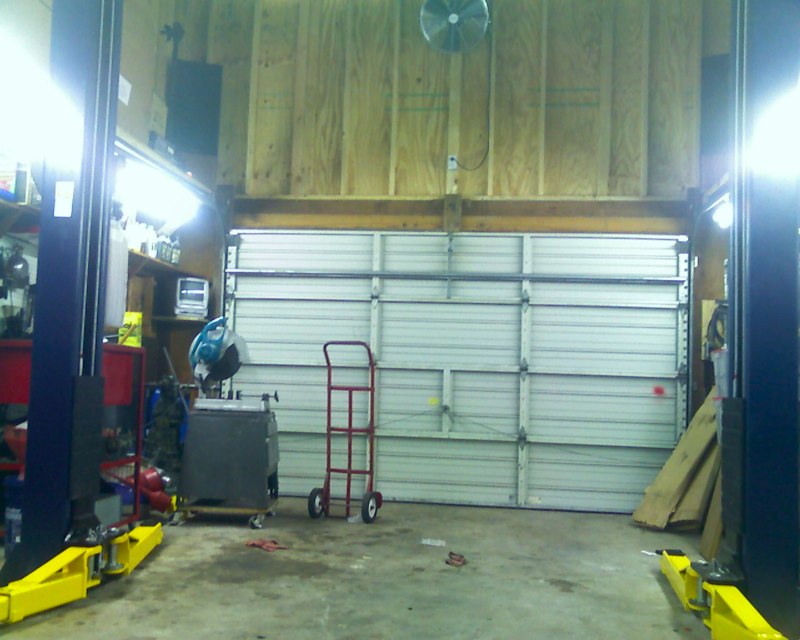

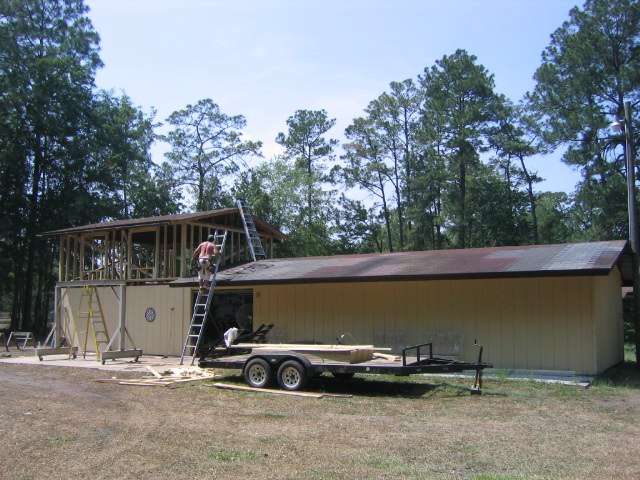

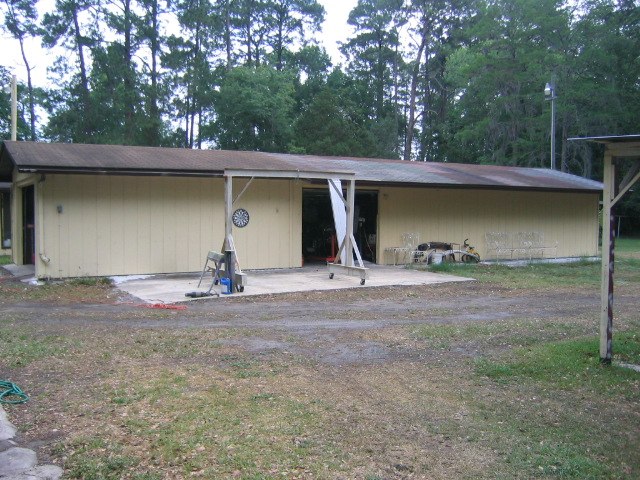

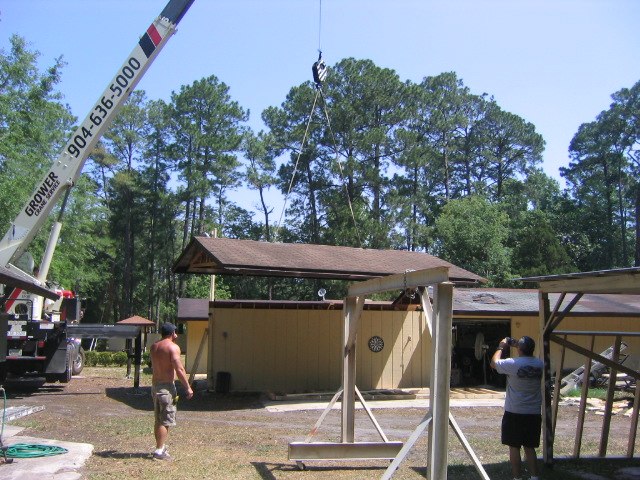

Yes, we plonked the same roof right back on top of the new stub walls... Made some partial "storage mezzanines" to bolster the strength of the long walls, and reconnected the same roll door tracks to them. The only limitation was that you can't have the door open when a car is up in the air, but it otherwise works great. Took a day and a couple buddies (and a crane) to do the whole thing.
Attached Thumbnails
Garage Lifts-img_1609.jpg   Garage Lifts-img_1615.jpg   Garage Lifts-img_1618_1.jpg   Garage Lifts-img_1627.jpg   Garage Lifts-060807_17201.jpg

Pinky is offline   Reply With Quote
Old 05-30-2013, 03:56 AM   #8
Senior Member
iTrader: (1)

Join Date: Jan 2013
Location: Jacksonville FL
Posts: 649
Total Cats: 211
Default

For a less radical option, without sweating the garage door at all, consider one of these mid-rise scissor lifts. Not the greatest for pulling a trans or installing an exhaust, but it works great for most routine stuff.

Attached Thumbnails
Garage Lifts-img_0858.jpg
Pinky is offline   Reply With Quote
Old 05-30-2013, 08:22 AM   #9
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,895
Total Cats: 109
Default

Pinky, raising the roof like that is exactly what our friend and neighbor did to his shop.
miata2fast is offline   Reply With Quote
Old 05-30-2013, 10:23 AM   #10
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I feel like those scissor lifts are only for the lazy or older people. Doesn't seem like there's anything you can do on those that you can't do bent over with some jack stands. Less even, since you can technically get some big jack stands and a tranny jack and swap trannys. If you wanna hate your life that is.

I've told the fiance that the one requirement when we move to another home is that the garage gets bigger. Our econo single car garage is not cutting it. I also described the benefits of a lift.

"well get one then!"

She's a keeper.
curly is offline   Reply With Quote
Old 05-30-2013, 10:51 AM   #11
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by curly View Post
I've told the fiance that the one requirement when we move to another home is that the garage gets bigger. Our econo single car garage is not cutting it. I also described the benefits of a lift.

"well get one then!"

She's a keeper.
LOL. Emphasis on "fiancee." Just wait.
hornetball is offline   Reply With Quote
Old 05-30-2013, 11:06 AM   #12
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

I don't have a lift right now because when I asked about it all she said was "is it a need or a want?" and I hesitated for just a half second and that sealed my fate.
Stein is offline   Reply With Quote
Old 05-30-2013, 11:14 AM   #13
Junior Member
Thread Starter

Join Date: Mar 2013
Location: Houston
Posts: 113
Total Cats: -3
Default

I was thinking something with more of a store the miata in the air and park a small car underneath it application.

Was curious if anyone had been able to this in a regular garage.
Fathom55 is offline   Reply With Quote
Old 05-30-2013, 11:19 AM   #14
Senior Member
iTrader: (1)

Join Date: Jan 2013
Location: Jacksonville FL
Posts: 649
Total Cats: 211
Default

Quote:
Originally Posted by curly View Post
I feel like those scissor lifts are only for the lazy or older people. Doesn't seem like there's anything you can do on those that you can't do bent over with some jack stands. Less even, since you can technically get some big jack stands and a tranny jack and swap trannys. If you wanna hate your life that is.

Partially agreed. They're not great for stuff under the middle of the car, but they're not useless either. It's sure a lot nicer to work on brakes and suspension standing up rather than crawling around on the ground. Same goes for anything that requires getting under the motor; starters, oil changes, changing hoses and rads, the list goes on and on. I use my two post most of the time, but the mid-rise is handy when I have something on the big lift waiting for parts and such. If I couldn't fit a two-post in a garage I'd definitely prefer having a mid-rise over working on my back. They're also great for detailing, body work and paint prep.
Pinky is offline   Reply With Quote
Old 05-30-2013, 11:22 AM   #15
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,576
Total Cats: 154
Default

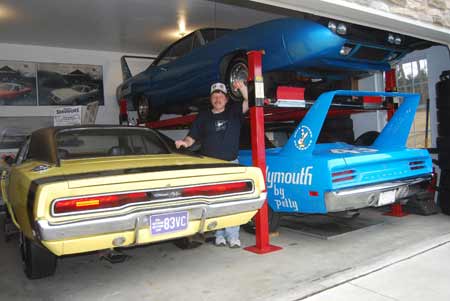

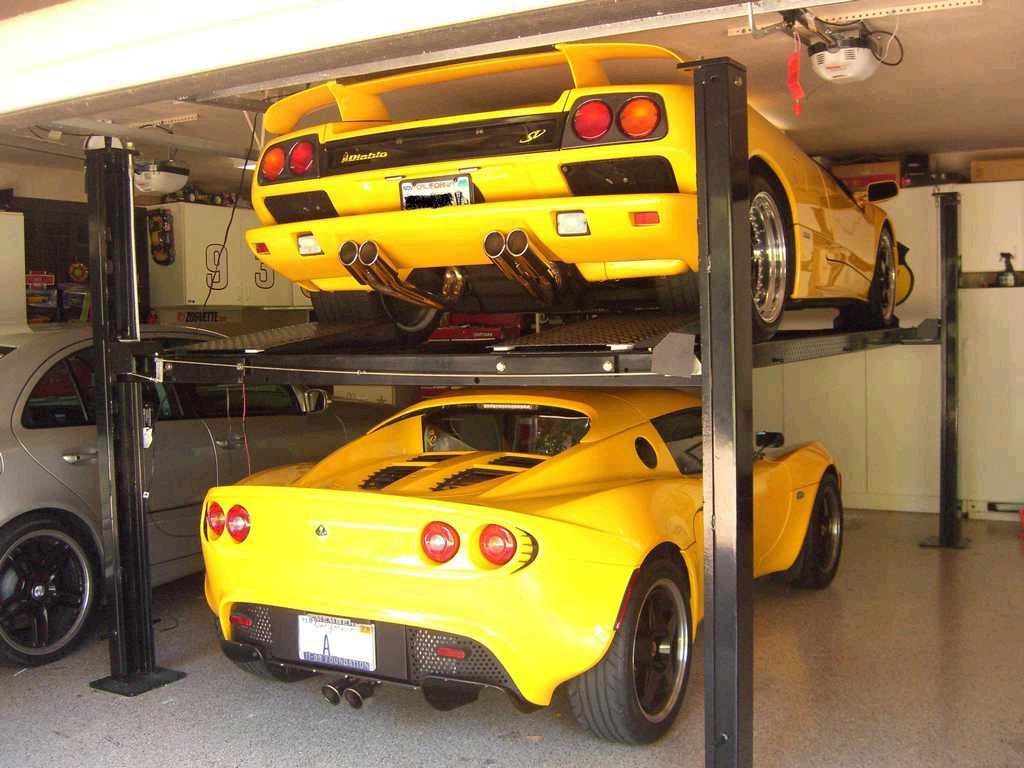

Like so?





Attached Thumbnails
Garage Lifts-lift1_zps8b7fafbe.jpg   Garage Lifts-winter-09_zps02f37431.jpg   Garage Lifts-two_post_tilting_mechanical_hydraulic_car_home_garage_2_levels_parking_lift_zps4107e0b5.jpg
Ryan_G is offline   Reply With Quote
Old 05-30-2013, 11:49 AM   #16
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

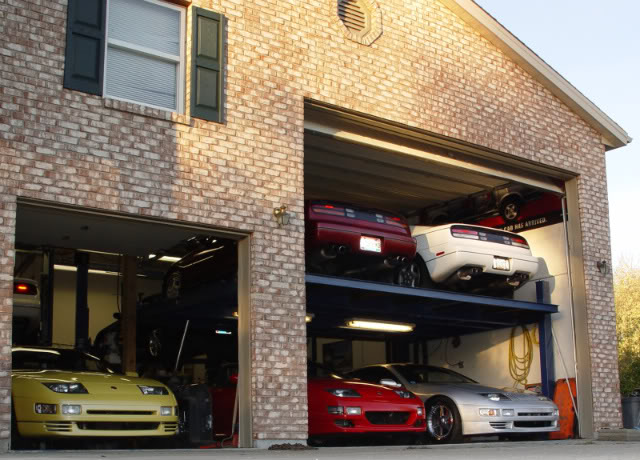

Like this?

Attached Thumbnails
Garage Lifts-tumblr_lxtb27lglq1qhegmfo1_1280.jpg
concealer404 is offline   Reply With Quote
Old 05-30-2013, 12:08 PM   #17
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Default

I am not sure I understand the question. What do you have now and what would you swap the garage door to?

If you have a roll-up garage door (i.e. the normal style), I would think the question of whether or not a 4-post lift will fit is going to be more of a function of your ceiling height.
Scrappy Jack is offline   Reply With Quote
Old 05-30-2013, 12:27 PM   #18
Senior Member
iTrader: (5)

Join Date: Apr 2007
Location: Atlanta
Posts: 581
Total Cats: 33
Default

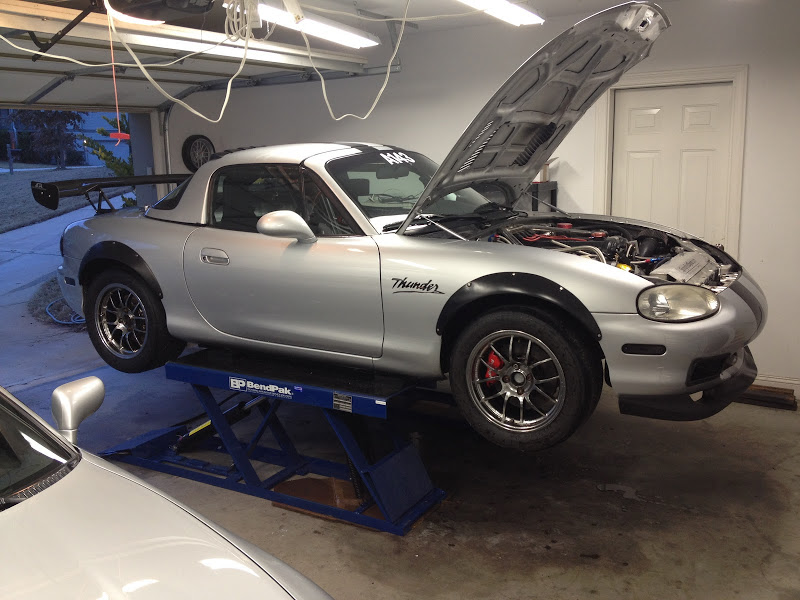

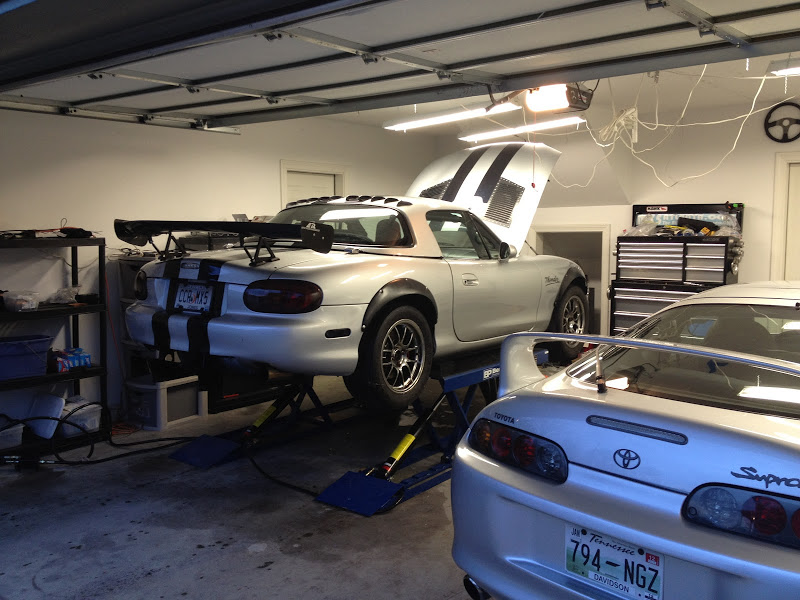

I bought this Bend Pak P6 for $1300 brand new. I've had it for a year and it has already paid for itself in time savings and reduced hassle. Can I stand underneath it? No. Does it save time on a ton of common jobs? Absolutely. It takes me all of about 10 minutes to change four wheels and tires (and two front brake pads) now to get ready for the track.

The center section is entirely open, so no problem using it for working on transmission, clutch, exhaust, suspension, or the underside of the motor/ engine bay.

For a value option, this one is hard to beat.





Attached Thumbnails
Garage Lifts-photo.jpg   Garage Lifts-photo.jpg
nickt93 is offline   Reply With Quote
Old 05-30-2013, 12:54 PM   #19
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Thats really interesting. I have not seen a scissor lift in that style before.

For the ceiling limited wanting a bit more than that scissor style. There's always a 4 post lift. IMO in a residential install they're safer than a 2 post because there's less change of a tipping failure. And you you put it on a standard thickness concrete pad rather than an extra thick one.
Leafy is offline   Reply With Quote
Old 05-30-2013, 12:59 PM   #20
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

I'm ceiling challenged. That Bend Pak looks like a nice option. Hmmmmm . . . .

Curly, can I borrow your fiancee to ask permission?
hornetball is offline   Reply With Quote
