Old 04-12-2007, 02:48 AM   #61
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

just use the miata clips, both me and Y8tes have used em no problem, and they lock in pretty good. If i need to pop em out, i got the prybar for the job so im not worried about that.
akaryrye is offline   Reply With Quote
Old 04-12-2007, 02:57 AM   #62
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

I used miata everything though... yanked diff, swapped in KAAZ, reinstalled diff.
y8s is offline   Reply With Quote
Old 05-28-2009, 02:00 PM   #63
Newb

Join Date: Aug 2006
Posts: 23
Total Cats: 0
Default

Just for future reference in case someone is searching through these old threads...

It's been confirmed that the 84-85 diffs cannot be made to work without leaking.

86-88 diffs are the only ones that will work correctly.

I searched through these threads over and over when I was starting my RX7 LSD project and couldn't find any info about 84-85 diffs leaking so I spent months trying to make an 85 work. Don't be like me! Start with an 86-88 and save yourself the hassle!
Link is offline   Reply With Quote
Old 06-02-2009, 06:20 AM   #64
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

How common are the circlips? Will most auto part stores carry them? Will dealerships carry them?

I have a 88 RX7 Clutch Type Diff, I am planning on using the axles from my 97', front pinion housing from my 97', Polyurethane Miata Diff Bushings , RX7 Rear Housing, RX7 Circlips and seals. Does this sound correct?
FRT_Fun is offline   Reply With Quote
Old 10-28-2009, 06:26 PM   #65
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

necrothread:
So can you hammer in 1-piece axles with the miata clips or do I need to put RX7 style clips on there? I was under the impression that I had to get a groove machined inside the trunion shafts.

Also, where can I get a new clutch-pack?
hustler is offline   Reply With Quote
Old 10-28-2009, 07:09 PM   #66
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

pick the circlip per the axle type. the grooves in the axles are different from the rx7 stubs and the miata stubs/axles. Mazdacomp has discs.
Braineack is offline   Reply With Quote
Old 10-29-2009, 11:37 AM   #67
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

so do I need to get a groove cut in the trunions or not? Some say I do, some don't.
hustler is offline   Reply With Quote
Old 10-29-2009, 11:45 AM   #68
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

what year diff is it?

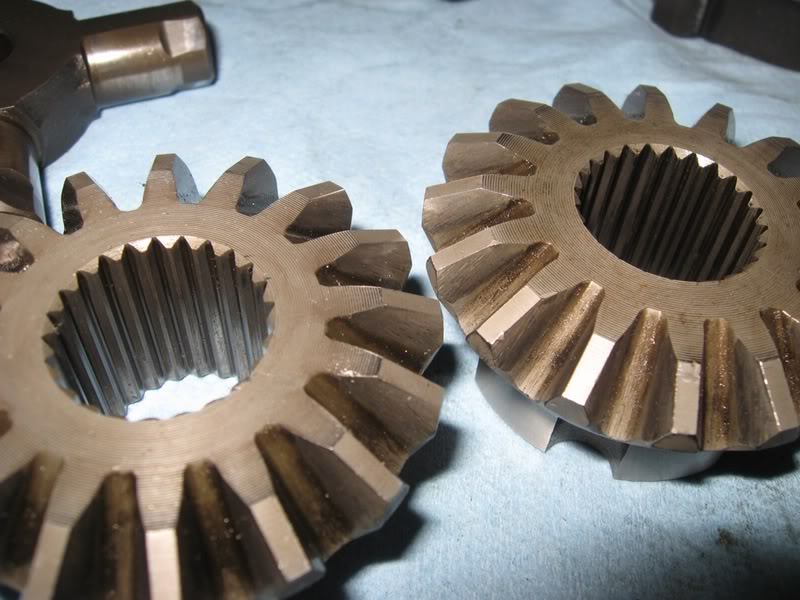

The problem some, myself included, were that the late model 84-85 units had solid axles. so while everything dropped in place, there were no groves on the 'trunnions' for the circlips to expand into:

Name:  IMG_1534.jpg
Views: 1
Size:  80.1 KB

It's just splined.

If you source a 86-87 unit, there are grooves cut into the end so once you push the axle far enough, the circlip will grab against something:

Name:  IMG_2122.jpg
Views: 1
Size:  67.9 KB
Braineack is offline   Reply With Quote
Old 10-29-2009, 12:18 PM   #69
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I have the early rear end. What do I need to do...take the splined trunions out and get the splines cut down? Any idea how deep I need to cut?

Thanks.
hustler is offline   Reply With Quote
Old 10-29-2009, 12:20 PM   #70
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

no idear. you could PM LINK over at m.net and ask him...those are his pics. Probably going to have to crack it open and take measurements and crap.
