Old 04-14-2007, 08:06 PM   #1
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default To Tom



Love Scott

Last edited by Braineack; 10-02-2007 at 04:02 PM.
Braineack is offline   Reply With Quote
Old 04-14-2007, 08:08 PM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Is that a template or a cover?
cjernigan is offline   Reply With Quote
Old 04-14-2007, 09:19 PM   #3
Senior Member
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default

You ROCK!

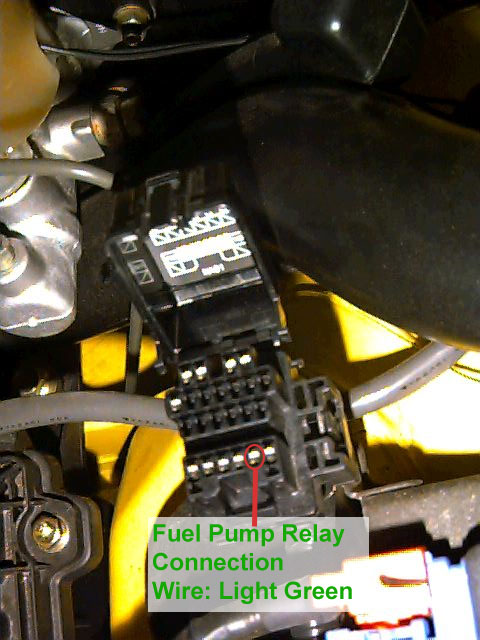

Anyway, here's the pic for you!
Attached Thumbnails
To Tom-fuelpump.jpg
brgracer is offline   Reply With Quote
Old 04-14-2007, 09:23 PM   #4
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Are you cutting the duct in all the way to the hood side edge of the lid?

I'd be concerned about a small strip of lid material remaining between the wide end of the duct and the hood breaking away.
Ben is offline   Reply With Quote
Old 04-14-2007, 09:34 PM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

whoa, I have green brake fluid too. lol
hustler is offline   Reply With Quote
Old 04-14-2007, 09:56 PM   #6
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

He is missing an AFM now.

And I guess making another one?
miatamania is offline   Reply With Quote
Old 04-14-2007, 10:01 PM   #7
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

I'm making Tom a NACA duct like mine since he was helpful in sourcing some wheels for me. The pic is the template layed out before cutting. 8/10 of the cuts are made, then I gotta fibergalss it together and it's pretty much done.

(btw, buy touch-up paint :gay

----

the AFM is gone cause no need it anymore.

----

I figured that was the place to source the FP GND, I must have misinterpted the post I read....I still think there is a GND in the AFM harness, I'm going to try to ground it and see what happens before I rewire it there.

----

Ben, that place is sturdy, been like that on mine for a while, and I constantly put weight on it cranking on the turbo...the duct itself does a good job keep the structural integrity in place.
Braineack is offline   Reply With Quote
Old 04-14-2007, 10:28 PM   #8
Junior Member

Join Date: Mar 2006
Location: Maryville, TN
Posts: 79
Total Cats: 0
Default

What poor BRG had to die to make your NACA duct??? couldn't have used one of the thousands of faded-red miatae for it eh?

lol, j/k
Miata-MS is offline   Reply With Quote
Old 04-14-2007, 10:45 PM   #9
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

**** BRGs
Braineack is offline   Reply With Quote
Old 04-14-2007, 10:48 PM   #10
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

do those actually get enough air through that little hole to make a difference?
hustler is offline   Reply With Quote
Old 04-14-2007, 10:53 PM   #11
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

yes, very much so.

I'm talking cool to the touch piping (80*) vs. hot-*** pipes (140-160*)

based on the surface temps I've taken of the pipe that used to sit directly behind it. Even the filter could burn my hand without it.

I'm consierding buying the BEGi intake and coldair box...I'm more conserned about lowering the intake temp than the bay.
Braineack is offline   Reply With Quote
Old 04-14-2007, 11:22 PM   #12
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Tom, looking here: http://www.madracki.com/miata/images/wiring/93diag.pdf

the wire I tapped is the ground...so it should work(Figure 2. Section C on the right)

also, those ABS gears...well they turned out to be non-abs....so, i got smart and pulled the entire assembly that goes into the hub and swapped them...they are identical, so now my 1.8 axles have the abs gears
Braineack is offline   Reply With Quote
Old 04-14-2007, 11:27 PM   #13
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

on th afm the two wires on the right most side can be jumpered to keep the fuel pump on with the ingnition switch i am gonna do that on a toggle with mine,
magnamx-5 is offline   Reply With Quote
Old 04-14-2007, 11:44 PM   #14
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

yeah, it was my understanding that the AFM grounded the FP to tuen it on...looks like that way in the wiring diagram. Same thing as doing GND and F/P on the Diag. Box....although I don't see the need for a toggle switch, as the MS should control the ground circuit.
Braineack is offline   Reply With Quote
Old 04-15-2007, 12:27 AM   #15
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Scott, I would recommend jumping FP and GND from the underside of the diag connector (you can get into the underside). I would run the jumper through an inertia switch though.

So FP----->Inertia Switch------>GND

The purpose of mazda putting the afm in the fuel pump circuit was to act as a safety switch. When the flapper door completely closes due to no airflow, it opens the fuel pump circuit.

That way in case you get in an accident, the intertia switch will open the fuel pump circuit and shut it off. Otherwise, if you were unable to shut off the ignition, the pump would continue to run. I think magna was planning to use the toggle as a safety switch, but if you're unable to turn the key to off, then you're also going to be unable to flip a toggle. Though the idea of a toggle in a conceled area could definitely be used as a theft deterrent kill switch.
Ben is offline   Reply With Quote
Old 04-15-2007, 12:50 AM   #16
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

It was to my understanding that just tapping into the wire to the MS would be enough, I don't want to just ground it out.
Braineack is offline   Reply With Quote
Old 04-15-2007, 12:57 AM   #17
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

If you run it off the MS, you should still install an inertia switch between the MS and FP. Same concept: if you wreck, the intertia switch will cut the FP circuit.

It's solely a safety feature. You can rip the switch out of a junker at the pick n pull.
Ben is offline   Reply With Quote
Old 04-15-2007, 12:58 AM   #18
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

if i crash, i hope it goes up in flames....
Braineack is offline   Reply With Quote
Old 04-15-2007, 01:17 AM   #19
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

lol.
miatamania is offline   Reply With Quote
Old 04-15-2007, 01:20 AM   #20
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Does your insurance cover you at the track?

Mine doesn't.
Ben is offline   Reply With Quote
