Default Totally unrelated fab project

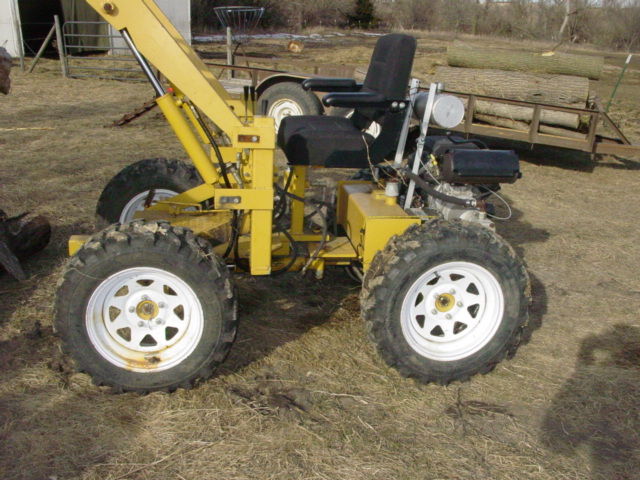

I built this little articulating 4WD loader a few years ago. It usually wears a 48" bucket for general dirt moving, cleaning out the horse barn, etc.

I cut a lot of firewood. We have a wood stove in the basement and I heat my shop with wood. (It was close to 0* last night with a 45 mph wind, but the shop was 74*

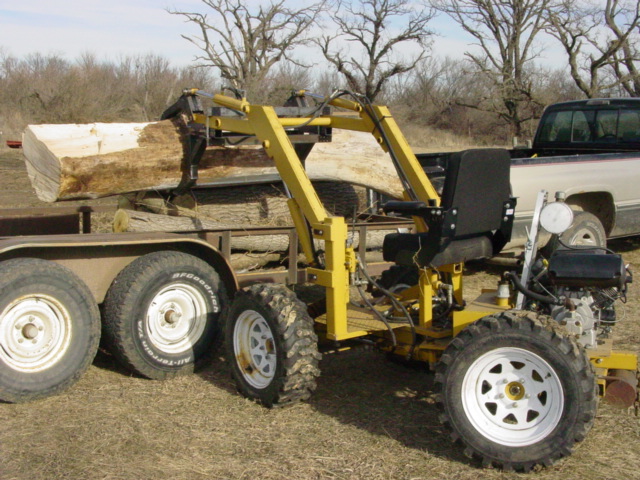

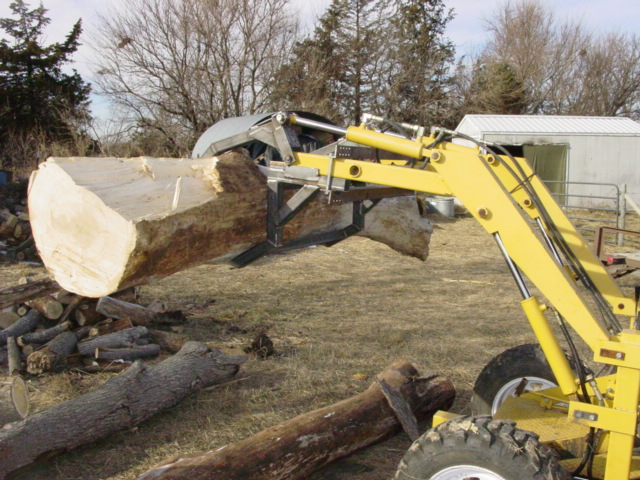

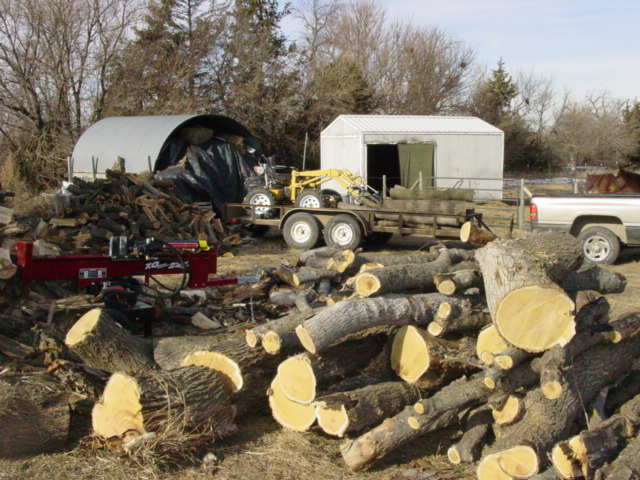

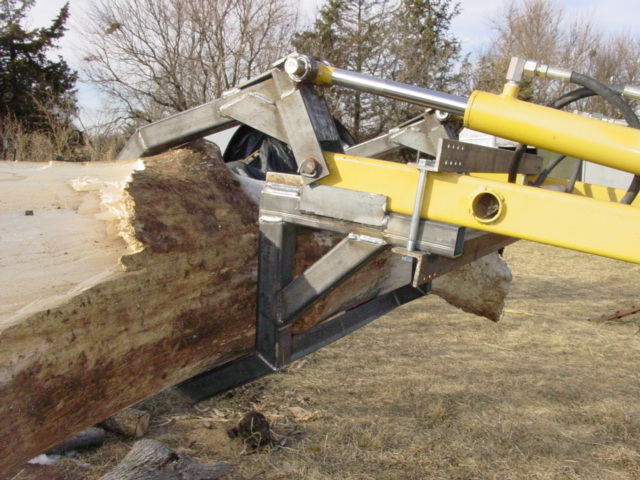

Anyway, I got tired of lugging wood to the truck when cutting firewood, so I built this grapple for my loader. Now I can cut 8' lengths, pick them up and load them into the trailer. When the front half of the trailer is full, I drive the loader back on and go home. Use the loader to unload the wood at the splitter and cut into firewood chunks right at the splitter.

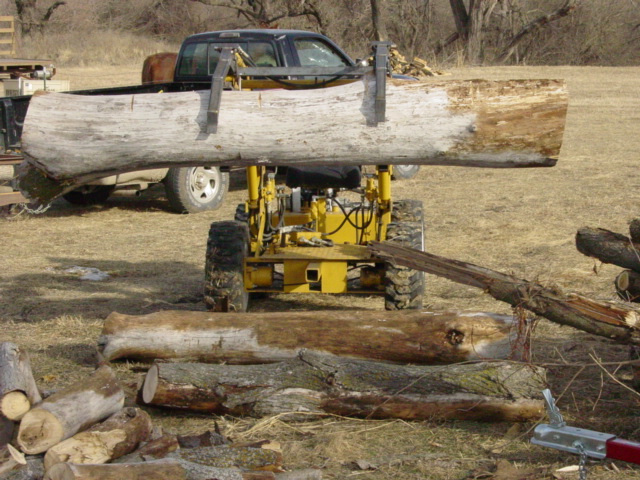

It has handled as big of a piece as I have cut so far. Lifting capacity is supposed to be 500 lbs, but that is with a 200 lb bucket on it, so it will handle a pretty good chunk of wood.
Attached Thumbnails
Totally unrelated fab project-picture-173.jpg   Totally unrelated fab project-picture-175.jpg   Totally unrelated fab project-picture-176.jpg   Totally unrelated fab project-picture-177.jpg   Totally unrelated fab project-picture-181.jpg

Totally unrelated fab project-picture-179.jpg   Totally unrelated fab project-picture-182.jpg
Stein is offline   Reply With Quote
Old 01-13-2009, 11:05 AM   #2
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,242
Total Cats: 290
Default

whoa- and thought frame rail stiffeners were cool. More details on the driveline!
m2cupcar is offline   Reply With Quote
Old 01-13-2009, 11:21 AM   #3
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by m2cupcar View Post
More details on the driveline!

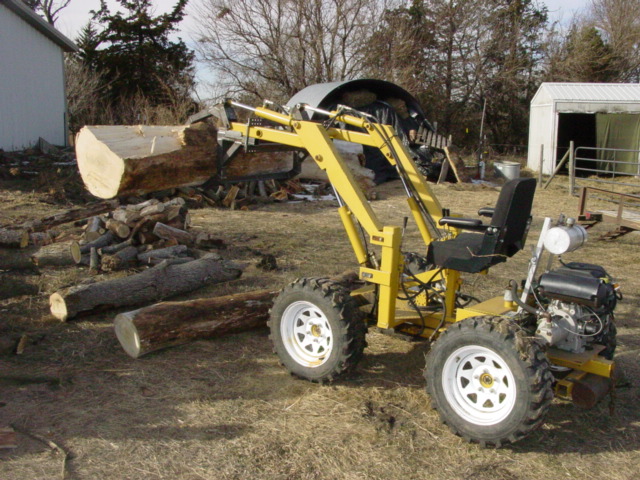

It is similar to a skidsteer loader. Four independent hydraulic wheel drive motors run in series on each side to provide a LSD. All driven by a single hydraulic pump with a rotary flow divider to split the flow. Steering is by a hydraulic cylinder that bends the machine at the articulating joint in the center. It can be seen in the "turning" configuration in the second pic. I didn't design it. I built it from plans so I can't take credit for the design or drive mechanism.
Stein is offline   Reply With Quote
Old 01-13-2009, 12:16 PM   #4
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

Very nice!

I never thought about having one that small and inexpensive. Hydrostatic drive is the way to go on machines that size.

You could probably build them and make money on them if it's not to big a pain to do.
Mom and pop landscape shops and people with a couple of acres could probably see the value in one.

I sell these for a living - Kawasaki Construction Machinery Corp. of America — ZV-2 Wheel Loaders
sixshooter is offline   Reply With Quote
Old 01-13-2009, 12:36 PM   #5
Junior Member
iTrader: (2)

Join Date: Jun 2007
Location: Western N.C.
Posts: 447
Total Cats: 1
Default

Quote:
Originally Posted by sixshooter View Post
Very nice!

I never thought about having one that small and inexpensive. Hydrostatic drive is the way to go on machines that size.
Inexpensive was not what came to mind when i noticed the hydraulic drive units on each corner.
Milton Tucker is offline   Reply With Quote
Old 01-13-2009, 12:56 PM   #6
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by Milton Tucker View Post
Inexpensive was not what came to mind when i noticed the hydraulic drive units on each corner.
Yeah, those were about $300 each then, now $400 each. I have right at $7K in it with all new parts including the 18 hp briggs, pump, valves, steel. Depends on what you call inexpensive. When I see acreage owners spending $9K on ZTR mowers and $20-30K acreage tractors, it probably is inexpensive.
Stein is offline   Reply With Quote
Old 01-13-2009, 01:00 PM   #7
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by sixshooter View Post
Very nice!

I never thought about having one that small and inexpensive. Hydrostatic drive is the way to go on machines that size.

You could probably build them and make money on them if it's not to big a pain to do.
Mom and pop landscape shops and people with a couple of acres could probably see the value in one.

I sell these for a living - Kawasaki Construction Machinery Corp. of America — ZV-2 Wheel Loaders
Landscape guys or arborists for sure. I can sit in the yard and do donughts without damaging the lawn a bit. And, yes, inexpensive when compared to yours. One wheel and tire of yours costs what my whole unit did.
Stein is offline   Reply With Quote
Old 01-13-2009, 01:53 PM   #8
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

Wow Stein Im very impressed, thats cool. Thought at first you ment you made the claws, which was cool, then I reread it. Love to have the materials to build stuff like that.
icantthink4155 is offline   Reply With Quote
Old 01-13-2009, 07:49 PM   #9
I'm Miserable!
iTrader: (5)

bryantaylor's Avatar

Join Date: Dec 2006
Location: jacksonville, fl
Posts: 1,720
Total Cats: 0
Default

kick *** man.
