Old 02-13-2009, 07:53 PM   #61
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

I'll try that before pulling the head...

what made it worse was i started with a small hole and decided to step it up so the bit wouldn't snap off...



Dirlling the stud was easy, so if i can get the hardened junk out I should be able to start from square one again. Are left-handed drill bits common at the major stores?
Braineack is offline   Reply With Quote
Old 02-13-2009, 07:59 PM   #62
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

I've never seen an extractor work. I've heard countless people break them off in the work though.

But seriously, left hand drill bits are awesome. Assuming you didn't already have an extractor broke off in the work , you just center punch the broken fastener making SURE you get punch it dead nuts center. Get out your left hand drill bit set you bought at autozone for 10 bucks. Then drill a pilot hole. Use a bit bigger than 1/8" if it's grade 5 or 8 as to not break the bit. Start drilling one size at a time, keep it square, etc. When you get to that last bit that will drill before wiping out the threads, drill it about 2/3 of the way through the fastener and then jam the bit, forcing it to dig into the fastener. It will likely hang up and either stop the drill, break the bit, or screw the fastener out. I've got ~50% success rate of it screwing the fastener out. Then your done. If not, drill out the bolt and threads completely. Then tap. Then helicoil. Now it's stronger than new because helicoils are the ****.
patsmx5 is offline   Reply With Quote
Old 02-13-2009, 08:20 PM   #63
Senior Member
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,282
Total Cats: 0
Default

Quote:
Originally Posted by SamS View Post
Pretty sure mine were sewn in, but I also got the cam-lock, maybe yours are different
Sorry Sam but I think you were smoking crack that day lol. My 6pt camlocks from two years ago weren't sewn in either.
ApexOnYou is offline   Reply With Quote
Old 02-13-2009, 10:22 PM   #64
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by patsmx5 View Post
I've never seen an extractor work. I've heard countless people break them off in the work though.

But seriously, left hand drill bits are awesome. Assuming you didn't already have an extractor broke off in the work , you just center punch the broken fastener making SURE you get punch it dead nuts center. Get out your left hand drill bit set you bought at autozone for 10 bucks. Then drill a pilot hole. Use a bit bigger than 1/8" if it's grade 5 or 8 as to not break the bit. Start drilling one size at a time, keep it square, etc. When you get to that last bit that will drill before wiping out the threads, drill it about 2/3 of the way through the fastener and then jam the bit, forcing it to dig into the fastener. It will likely hang up and either stop the drill, break the bit, or screw the fastener out. I've got ~50% success rate of it screwing the fastener out. Then your done. If not, drill out the bolt and threads completely. Then tap. Then helicoil. Now it's stronger than new because helicoils are the ****.
Assuming I can break the extractor bit out I shouldn't have issues doing the rest. I was able to drill a 1/8" then 3/16" hole through the stud.

I have had success with an extractor before:



that's actually the one I broke today.
Braineack is offline   Reply With Quote
Old 02-13-2009, 10:36 PM   #65
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

photoshoped
patsmx5 is offline   Reply With Quote
Old 02-14-2009, 03:31 AM   #66
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Remove head, take it to a machine shop. You've got some $$$/Time invested in this head, don't be a ******* hillybilly and attempt the fix yourself and cause more damage. Know when you've been defeated and buck up.
jayc72 is offline   Reply With Quote
Old 02-14-2009, 04:08 AM   #67
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Quote:
Originally Posted by Braineack View Post
I made the mistake of using an extractor bit....since it's my luck, it broke off in the stud. and since it's hardened...
Gotta laugh, thats the story of my life. I bet I have done that 3 or 4 times and still havent learned. The last time it wasnt me, but it was my part.
NA6C-Guy is offline   Reply With Quote
Old 02-14-2009, 01:11 PM   #68
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Were you using an extractor bit in a power drill?
jayc72 is offline   Reply With Quote
Old 02-14-2009, 02:21 PM   #69
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by jayc72 View Post
Were you using an extractor bit in a power drill?

not yesterday, no.
Braineack is offline   Reply With Quote
Old 02-14-2009, 02:27 PM   #70
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by jayc72 View Post
Remove head, take it to a machine shop. You've got some $$$/Time invested in this head, don't be a ******* hillybilly and attempt the fix yourself and cause more damage. Know when you've been defeated and buck up.
Meh, some people are handy. If it's fucked and he needs to pull it and take it to a shop to have it fixed, then what's the harm in trying what I mentioned? If it works, great. If it doesn't, he's lost nothing.
patsmx5 is offline   Reply With Quote
Old 02-14-2009, 02:38 PM   #71
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I'm also all for hammering the extractor to pieces. I doubt there is much of it in there anyway. Then left hand drilling to try and get the pieces out with the intent of heli-coiling the hole if there is even a question of it being messed up. After using about 200 helicoils at work in delrin tooling and aluminum baseplates I love them.
I have use extractors successfully. Though I have had way more luck with small cold chisels.

Any chance the stud is sticking out a little for you to dremel a slot? The abrasive wheel will cut into that hardened extractor, it'll just take forever to do right.
cjernigan is offline   Reply With Quote
Old 02-14-2009, 03:07 PM   #72
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by patsmx5 View Post
Meh, some people are handy. If it's fucked and he needs to pull it and take it to a shop to have it fixed, then what's the harm in trying what I mentioned? If it works, great. If it doesn't, he's lost nothing.

exactly, i might as well try breaking the bit up and going at it again. otherwise I pull the head and get it fixed at a machine shop. but in the meantime I'll slap my spare head on so i can acutally have a running car.
Braineack is offline   Reply With Quote
Old 02-14-2009, 09:29 PM   #73
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

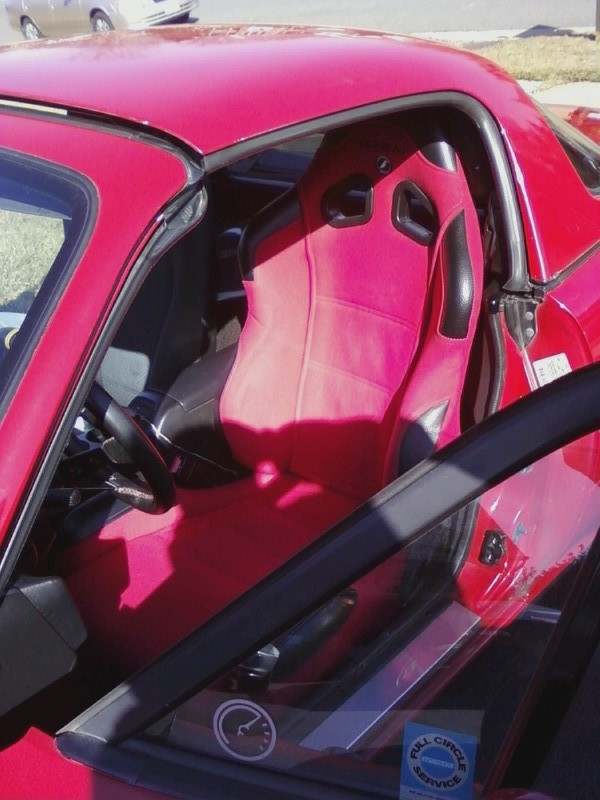

here's my seat...I put it on the stock rails. You can see how it's just too large. Even if I bolt it to the floor it's just not going to be ideal, so tomorrow they'll be sold.
Attached Thumbnails
Toys! Glorious toys! SAD FACE :(-cr1_seat.jpg
Braineack is offline   Reply With Quote
Old 02-14-2009, 10:27 PM   #74
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Corbeau CR1's? Arent the A4's supposed to fit the Miata? They look very similar. Nicer in my opinion.
NA6C-Guy is offline   Reply With Quote
Old 02-15-2009, 12:25 PM   #75
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

y8s is offline   Reply With Quote
Old 02-15-2009, 01:19 PM   #76
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

I searched M.net and found a few others running them...oh wellz. I have a set of fixed back seats that will be mine shortly. Already have someone picking these up today.

Braineack is offline   Reply With Quote
Old 02-15-2009, 02:46 PM   #77
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

shouldn't be using those harnesses with those seats anyways. You need a fixed back and 5 harness holes, anything else is useless. What fixed back seat did you end up buying?

Sorry about the extractor breaking, the first time I used one it worked, so I bought a complete set, thinking they were awesome. I've broken most of those without ever getting a stuck bolt out since.
curly is offline   Reply With Quote
