Default [phenixmt] NA miata g60 supercharger

Hi everyone,

I'm Marc, 25 years old.

I came here to find some good informations to transform an atmo 1.6L 1991 miata to a supercharged version.

I started a rare project (maybe the only one in the world): install a VW G60 supercharger

I'm pretty close to the first start but I will need some tricks to tune it well (I got a MSPnP).

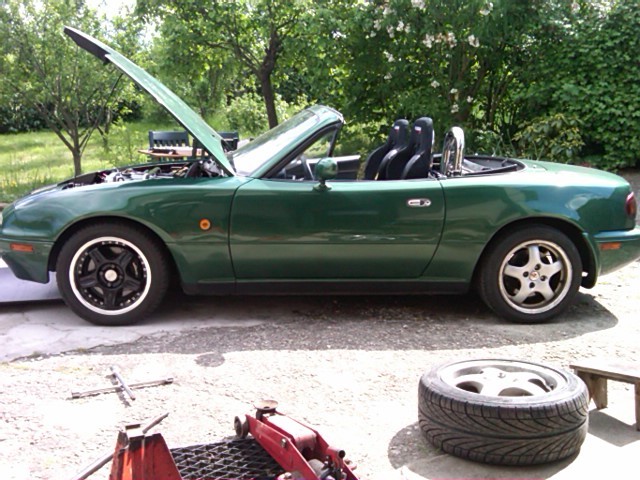

My Car:

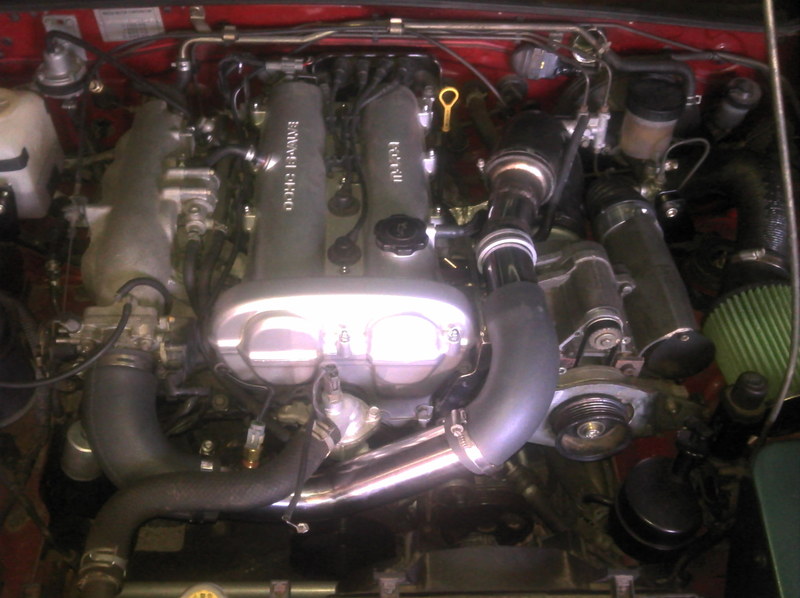

What the engine look likes:

Attached Thumbnails
[phenixmt] NA miata g60 supercharger-20110626185754632.jpg   [phenixmt] NA miata g60 supercharger-img00169201005211620.jpg

Last edited by phenixmt; 08-10-2011 at 12:12 PM. Reason: new photo
phenixmt is offline   Reply With Quote
Old 08-10-2011, 12:10 PM   #2
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

Interesting...how does a scroll-compressor supercharger compare to the more (Miata-)common Roots lobed compressor supercharger?
mgeoffriau is offline   Reply With Quote
Old 08-10-2011, 12:17 PM   #3
"Quality" is my first name.
iTrader: (3)

Quality Control Bot's Avatar

Join Date: Dec 2007
Posts: 2,611
Total Cats: 69
Default

Welcome!
Quality Control Bot is offline   Reply With Quote
Old 08-10-2011, 12:18 PM   #4
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

Something like this:



air enter by the top then exit by the middle.

It works at less RPM than a roots but the air volume is more important. (it must gives 10 psi)
phenixmt is offline   Reply With Quote
Old 08-10-2011, 06:37 PM   #5
Newb
iTrader: (2)

Join Date: Jul 2008
Posts: 22
Total Cats: 0
Default

Interesting... what does the boost curve look like?
silverlegacy is offline   Reply With Quote
Old 08-11-2011, 04:20 AM   #6
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

I don't know yet , I didn't start the engine for now.

I working on the oil feed for the G.
phenixmt is offline   Reply With Quote
Old 08-11-2011, 06:46 PM   #7
Newb
iTrader: (2)

Join Date: Jul 2008
Posts: 22
Total Cats: 0
Default

What amount of boost are you shooting for?
silverlegacy is offline   Reply With Quote
Old 08-11-2011, 06:48 PM   #8
Senior Member

Join Date: Aug 2008
Location: Baton Rouge
Posts: 700
Total Cats: 17
Default

Wow, that is a pretty cool idea!
golftdibrad is offline   Reply With Quote
Old 08-15-2011, 05:27 AM   #9
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

Hi folk!

First strart! Finally!


I didn't decide yet what I gonna do with the IAC hose
phenixmt is offline   Reply With Quote
Old 08-23-2011, 12:51 AM   #10
Junior Member

Join Date: Nov 2010
Location: Chicagoland
Posts: 160
Total Cats: 2
Default

That is a very interesting choice in a supercharger setup. Never seen someone put a g60 on a mx5.
natedawg is offline   Reply With Quote
Old 09-01-2011, 02:10 PM   #11
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

First test drive yesterday.

Rev limiter set at 2500rpm for safety, I drive for 2 miles and everything seems OK.

The G supercharger give 7 psi at 2500rpm
phenixmt is offline   Reply With Quote
Old 09-01-2011, 02:45 PM   #12
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by phenixmt View Post
Rev limiter set at 2500rpm for safety, I drive for 2 miles and everything seems OK.
Is that a joke?
Vashthestampede is offline   Reply With Quote
Old 09-01-2011, 02:50 PM   #13
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

Quote:
Originally Posted by Vashthestampede View Post
Is that a joke?
Please, if you have something to say, be more helpful than this...
phenixmt is offline   Reply With Quote
Old 09-02-2011, 12:03 AM   #14
Newb

Join Date: Sep 2011
Posts: 26
Total Cats: 0
Default

Thats awesome. How much hp is it going to make? Cool project for a 25 year old, I'm 21 and hoping to maybe ditch my mazda 6 soon and get a Miata. Hopefully turbo it.


Anyway, good luck on the build!
sashman15 is offline   Reply With Quote
Old 09-09-2011, 06:28 AM   #15
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

Thanks

The car won't go after 4000 rpm, I think its because of a lack of gazoline.

So, yesterday, I've installed 305cc injectors from Toyota Supra.

Road test this weekend.
phenixmt is offline   Reply With Quote
Old 09-09-2011, 07:29 AM   #16
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

That's a very tidy install you've done.

If you're getting 7psi by 3.5k, you're going to need much much larger injectors than 305cc....

Needs more pictures posting too
richyvrlimited is offline   Reply With Quote
Old 09-09-2011, 10:16 AM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

Thing sound starved for air in the video when you rev it...did you plumb the supercharger backwards?
Braineack is offline   Reply With Quote
Old 09-09-2011, 12:25 PM   #18
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Default

Well, I plan to install 600cc injectors but I found those used supra injectors for 50$ so I told to myself "why not, just try it for a while"
I want to go step by step

For info,
my work is inspire by the Rotrex supercharger kit (the throttle is blown like a turbo kit, not like a Jackson racing kit).
So I've installed a dump valve which I can set up to regulate the pressure from 5psi to 30psi.

If I still got lack of fuel, I will shut down the pressure of the G60 with the BOV untill I buy bigger injector.

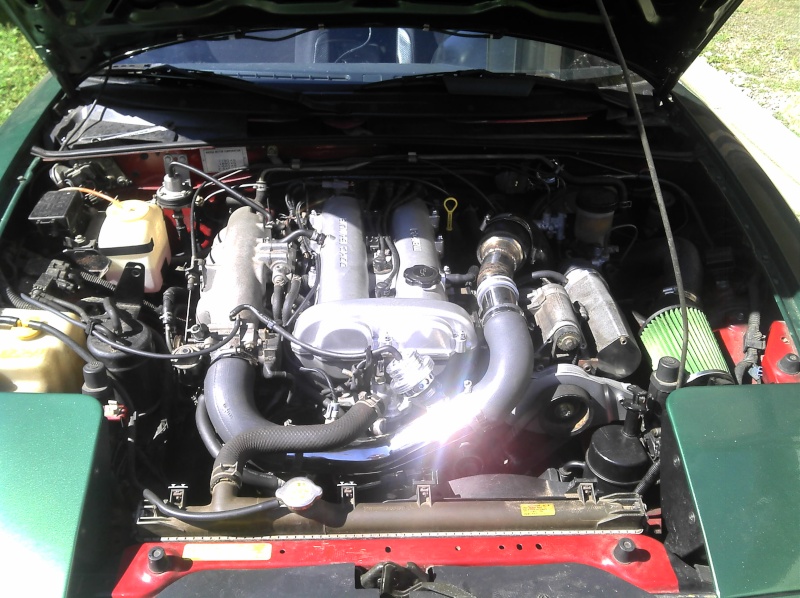

Picture of the actual look of the engine:

Attached Thumbnails
[phenixmt] NA miata g60 supercharger-2011-019.jpg
phenixmt is offline   Reply With Quote
Old 09-09-2011, 12:47 PM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

i didnt say fuel. i said air.
Braineack is offline   Reply With Quote
Old 09-09-2011, 01:07 PM   #20
Junior Member
Thread Starter

Join Date: Aug 2011
Location: France
Posts: 62
Total Cats: 0
Talking

Quote:
Originally Posted by Braineack View Post
i didnt say fuel. i said air.


I didn't mount it backwards. In the first video, the ilde wasn't set up good.

I don't think it's starving for air, listen my BOV... (too much noisy, I'm sick of it)
(10 days old video)
