[phenixmt] NA miata g60 supercharger

Reply Subscribe

Thread Tools

Search this Thread

09-09-2011, 07:56 PM

#21

chicksdigmiatas

Elite Member

iTrader: (11)

Join Date: Apr 2008

Location: Texas, 'Murica

Posts: 2,497

Total Cats: 0

That is awesome. I was under the impression that those superchargers were fairly unreliable, is this true?

09-09-2011, 09:55 PM

#22

eraser87

Newb

Join Date: Mar 2010

Posts: 10

Total Cats: -1

Quote:

Originally Posted by chicksdigmiatas

That is awesome. I was under the impression that those superchargers were fairly unreliable, is this true?

Unfortunately, yes. Here in Germany it is very popular to swap out g-chargers for Turbos because of reliability issues... So its a really unique and cool Project, just know that the g does not like hot shutdowns

09-09-2011, 11:38 PM

#23

chicksdigmiatas

Elite Member

iTrader: (11)

Join Date: Apr 2008

Location: Texas, 'Murica

Posts: 2,497

Total Cats: 0

Quote:

Originally Posted by eraser87

All I know is that I owned one and I was going to put it on my NA saab 9k. Then everyone on the forum talked me out of it (sound familiar) and I just ended up getting a turbo Saab. It still fucked up. Damn my lead food.

09-10-2011, 04:14 AM

#24

phenixmt

Junior Member

Thread Starter

Join Date: Aug 2011

Location: France

Posts: 62

Total Cats: 0

I think, G superchargers are quite reliable untill you don't change the size of the pulley to increase its rotation speed.

I'm running the stock pulley currently.

Even it's less reliable, I not planning to make more than 10 000 miles/year

10-06-2011, 03:57 AM

#25

phenixmt

Junior Member

Thread Starter

Join Date: Aug 2011

Location: France

Posts: 62

Total Cats: 0

Update:

I got 10.5 psi at 4500rpm but my manifold air temp reach more than 210°F.
I'm planning now to install a intercooler before engine failure...

What would be a good air temp target?

10-06-2011, 04:51 AM

#26

richyvrlimited

Elite Member

iTrader: (1)

Join Date: Jun 2006

Location: Warrington/Birmingham

Posts: 2,642

Total Cats: 42

ambient?

FWIW my setup is a coldside MP62 now. i.e. I don't have an intercooler.

When on track intake temps hit way over 150degC (302degF), but no damage has been caused to the engine (I know this as I've recently pulled the head). The key is in proper tuning and timing retardation based on IAT's.

So 210F is quite cold really :-P

If you're really worried add a simple WI setup, that's what I plan on doing (just need to hook my on/off switch up to the MegaSquirt).

Last edited by richyvrlimited; 10-06-2011 at 05:04 AM.

10-06-2011, 05:16 AM

#27

phenixmt

Junior Member

Thread Starter

Join Date: Aug 2011

Location: France

Posts: 62

Total Cats: 0

ambient is 77°F.

I got a Megasquirt PnP and in the logs, IAT sensor can go above 213°F :(

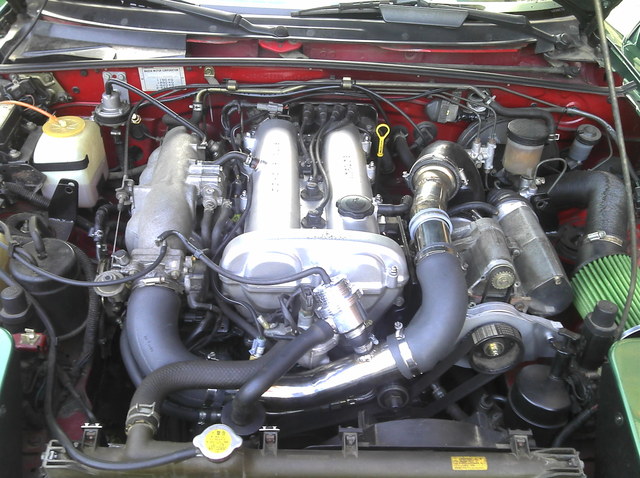

Last pic of my setup: (new dump valve because the other one has melted down)

Attached Thumbnails

[phenixmt] NA miata g60 supercharger-20111001181220523.jpg

10-06-2011, 08:58 AM

#28

golftdibrad

Senior Member

Join Date: Aug 2008

Location: Maryville TN

Posts: 878

Total Cats: 79

Quote:

Originally Posted by richyvrlimited

When on track intake temps hit way over 150degC (302degF), but no damage has been caused to the engine (I know this as I've recently pulled the head). The key is in proper tuning and timing retardation based on IAT's.

I maxed out the sensor on my setup, maxed at 215 F. It would get HOTT when hammering on it.

10-06-2011, 03:54 PM

#29

richyvrlimited

Elite Member

iTrader: (1)

Join Date: Jun 2006

Location: Warrington/Birmingham

Posts: 2,642

Total Cats: 42

My point is I've gone way WAY higher than you whilst working the car very hard, so asking as your tuning is good you'll be fine.

Having an IC will certainly help your power output mind
