Smile Hello from a soon to be turbo'd 92

Hello everyone. My name is Kenny and I have a red 92. It is currently stock but I am in the process of turbo-ing it. I've been lurking around the forums for a few weeks now but this is my first real introduction post. Anyways, my 92 has a 1.6L which has decent compression test numbers. I will be pulling the motor in the upcoming weeks due a small oil leak (which I believe to be the rear main seal). I also planned on re-freshening the head while I am at it. As far as my turbo build, I'm looking to run around 10-12 lbs of boost and hopefully making around 200 whp / 200 ft-lb torque. I have acquired the following parts so far:

Garrett T25 (journal bearing unit from SR20DET)
Flyin' Miata turbo exhaust manifold
BEGi downpipe
ebay intercooler (11"X11.75"X 2.75" core)
1.8L driveshaft/half shafts/differential

Looking to purchase:
DIYPNP ecu
AEM UEGO wideband
clutch kit (Flyin' Miata?)
460cc or 550cc injectors (rx7)

I know my list isn't complete yet but any comments or suggestions would be appreciated. Thanks
fluffypillows is offline   Reply With Quote
Old 02-12-2012, 04:13 PM   #2
"Quality" is my first name.
iTrader: (3)

Quality Control Bot's Avatar

Join Date: Dec 2007
Posts: 2,611
Total Cats: 69
Default

Hi fluffypillows, enjoy your stay :)
Quality Control Bot is offline   Reply With Quote
Old 02-12-2012, 09:30 PM   #3
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

It actually is fairly complete, as far as I can tell.

Don't discount the price of intercooler pipes, couplers, and clamps. I recent changed my over-the-radiator setup to use the same intercooler but go around the radiator instead. I reused a few pipes, and already had half the couplers. The "upgrade" still cost me $100 in a few more pipes, couplers, and clamps.
curly is offline   Reply With Quote
Old 02-12-2012, 10:39 PM   #4
Newb
Thread Starter

Join Date: Jan 2012
Location: SE PA
Posts: 42
Total Cats: 0
Default

I was thinking of purchasing an ebay intercooler piping kit but buying the hoses, couplers and t-clamps from a more reputable source. Good or bad idea? How do most people mock up their pipe routing?
fluffypillows is offline   Reply With Quote
Old 02-13-2012, 07:43 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Thanks for joining, fluffypillows!
Braineack is offline   Reply With Quote
Old 02-13-2012, 01:01 PM   #6
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Quote:
Originally Posted by fluffypillows View Post
I was thinking of purchasing an ebay intercooler piping kit but buying the hoses, couplers and t-clamps from a more reputable source. Good or bad idea? How do most people mock up their pipe routing?
That's a pretty common way to do it. Have a look at build threads, IC routing threads, etc so you can see on how people have put theirs together, and figure out how you want to run yours from there. You pretty much have to mock/build it as you go. You ought to be able to piece together something pretty close buying random piping bends, or just buy a bigger piping kit and chances are you'll have everything you need. Siliconeintakes.com has good quality couplers in my experience, but I always go to a local hydraulic supply shop for t-bolts and hoses.
matthewdesigns is offline   Reply With Quote
Old 02-13-2012, 01:15 PM   #7
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,517
Total Cats: 257
Default

Quote:
Originally Posted by fluffypillows View Post
I was thinking of purchasing an ebay intercooler piping kit but buying the hoses, couplers and t-clamps from a more reputable source. Good or bad idea? How do most people mock up their pipe routing?
The best idea is to buy a bag of random intercooler piping and couplers off craigslist. The biggest "issue" with ebay kits is that you end up with all pipes in same size. Well, if you're using an SR20 T25 turbo, then the turbo outlet is 2" and the throttle body is 2.5". So a common way is 2" hot side and 2.5" cold side. So you need 2 kits or at go 2.5" everywhere or whatever
soviet is offline   Reply With Quote
Old 02-13-2012, 09:14 PM   #8
Newb
Thread Starter

Join Date: Jan 2012
Location: SE PA
Posts: 42
Total Cats: 0
Default

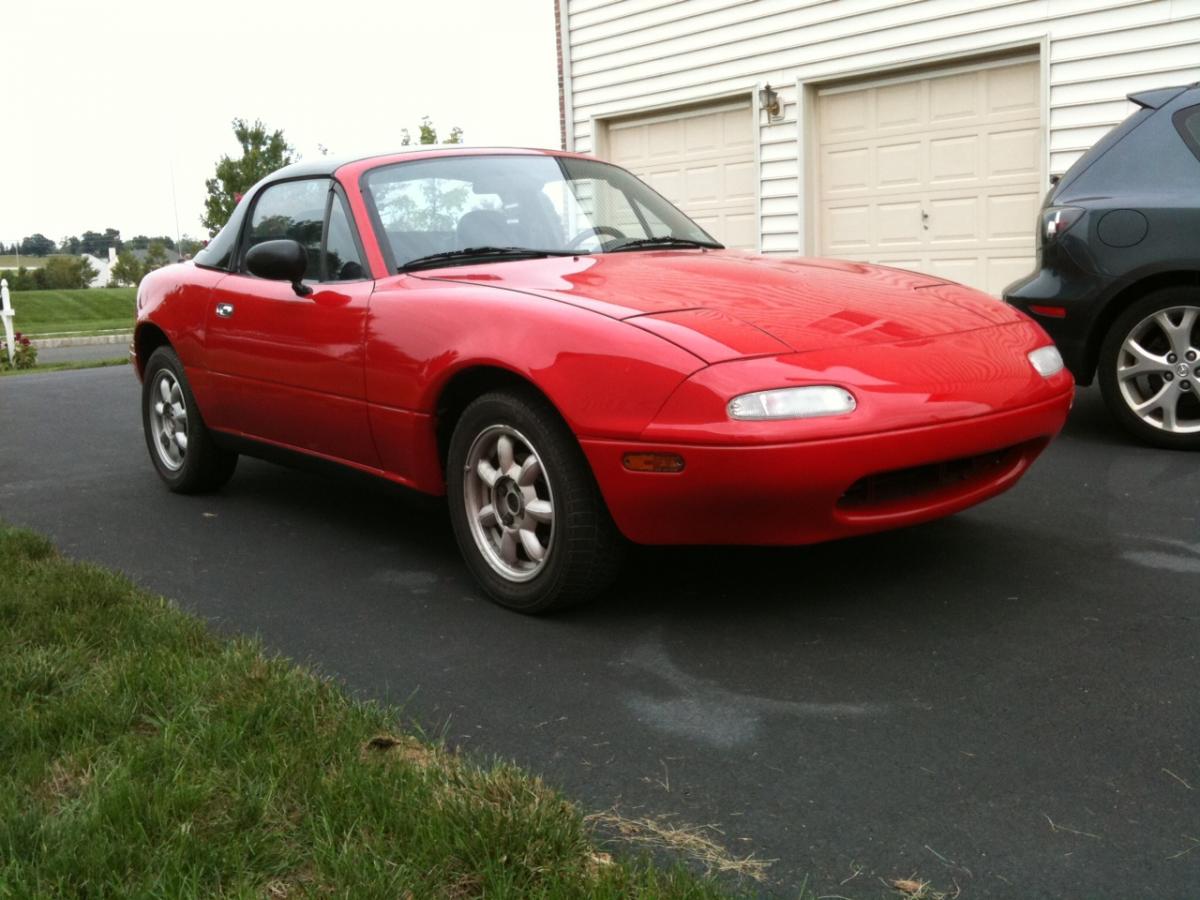

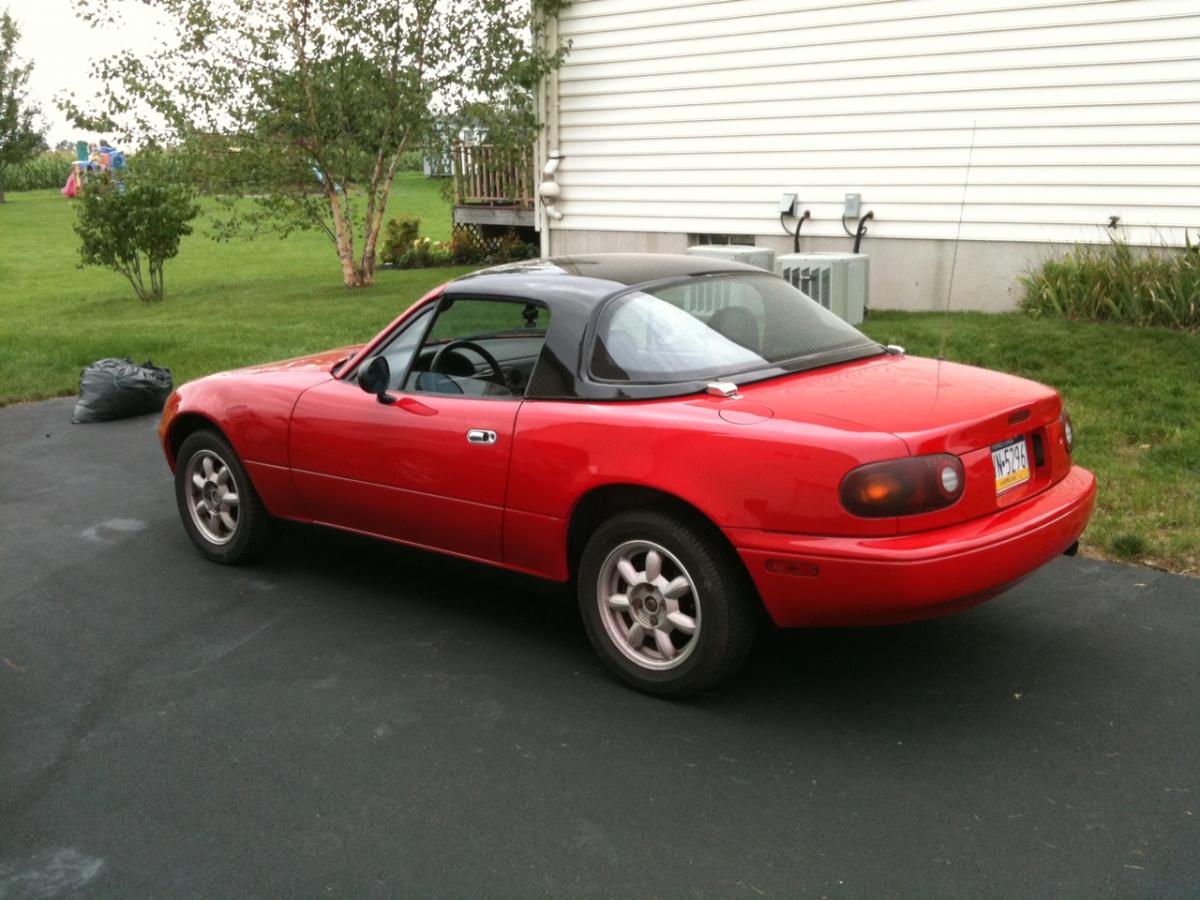

Thanks everyone. I will go ahead and continue to do my research. In the mean time, here are some pictures. I got bumped a few months ago and now there's a long 5-6 inch paint chip on my front bumper
Attached Thumbnails
Hello from a soon to be turbo'd 92-miatanew1.jpg   Hello from a soon to be turbo'd 92-miatanew2.jpg
