Default New Guys Miata

Hi all,

I have read much here but never posted much. I thought with my car together I would post my Turbo build.

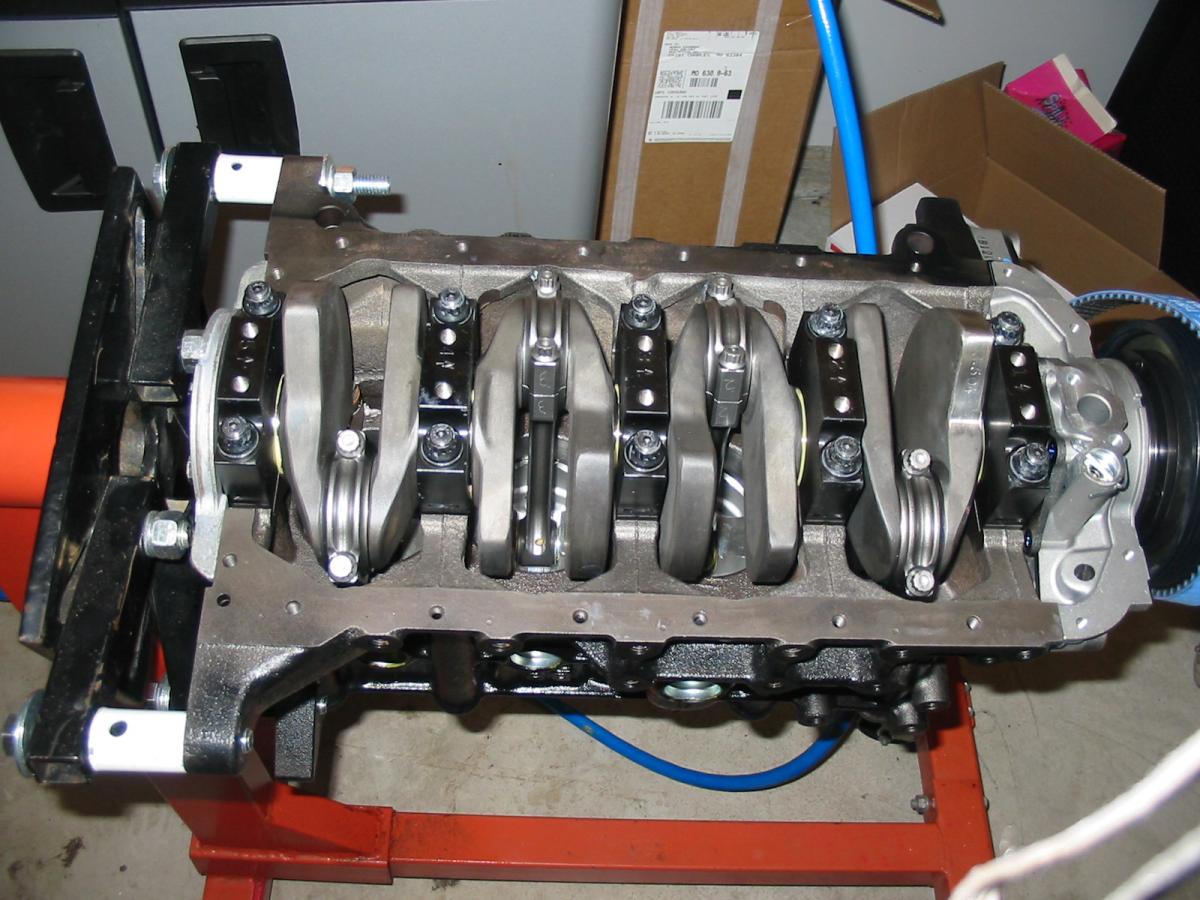

The bottom end is a FM 2.0 stroker kit with H-beam rods and billet main caps.

New Guys Miata-img_5521.jpg

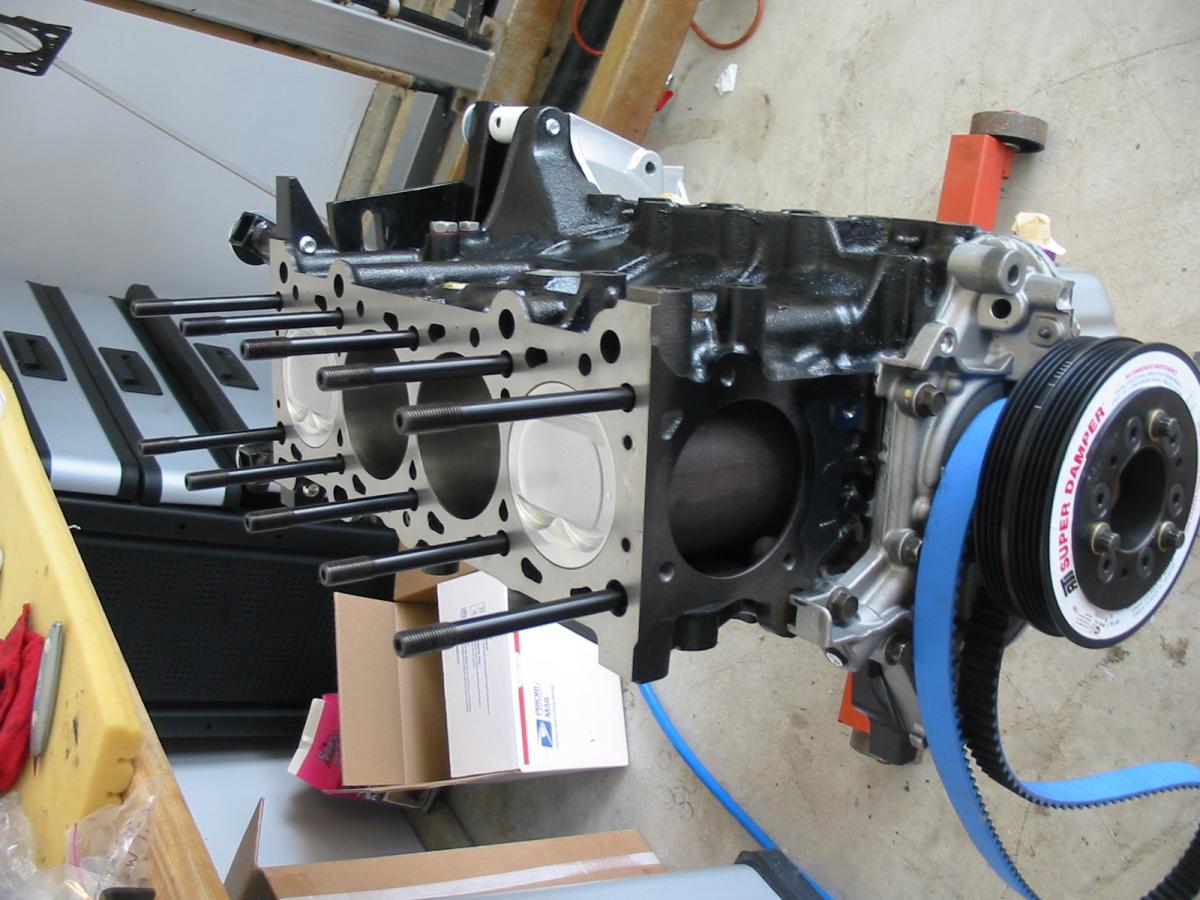

The following shows more images of the bottem end build.

New Guys Miata-img_5555.jpg

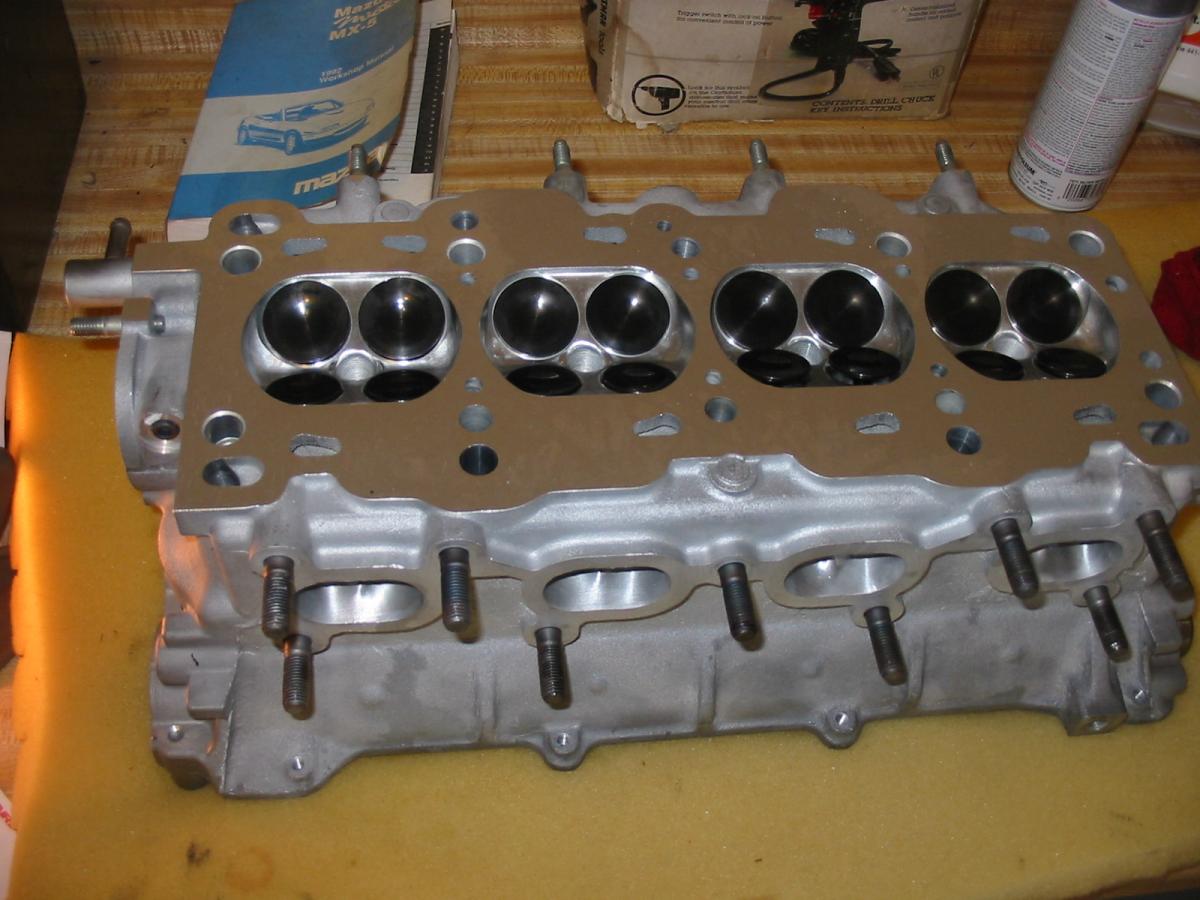

The engine has a FM fully built 99 head.

New Guys Miata-img_5570.jpg

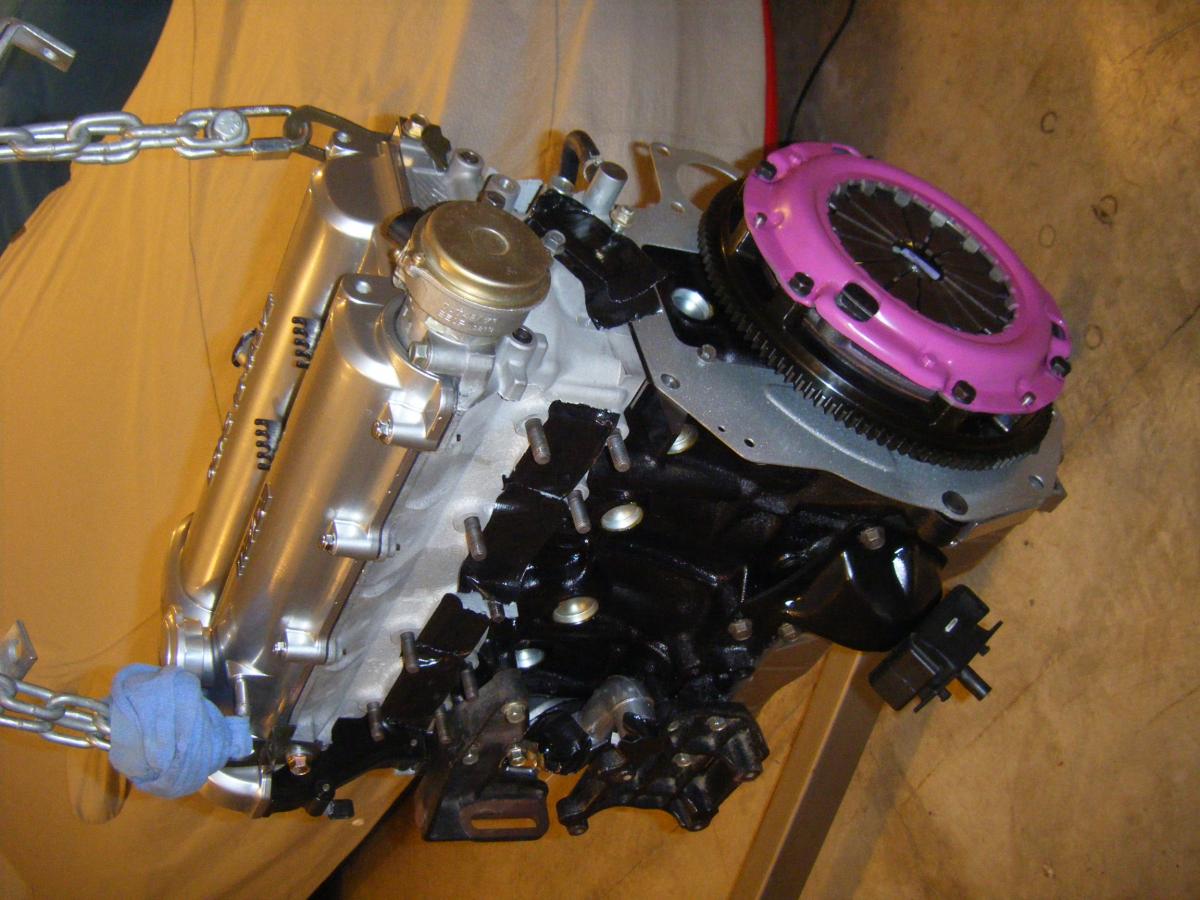

I went with the FM stage II clutch and lightened flywheel.

New Guys Miata-dscf1842.jpg

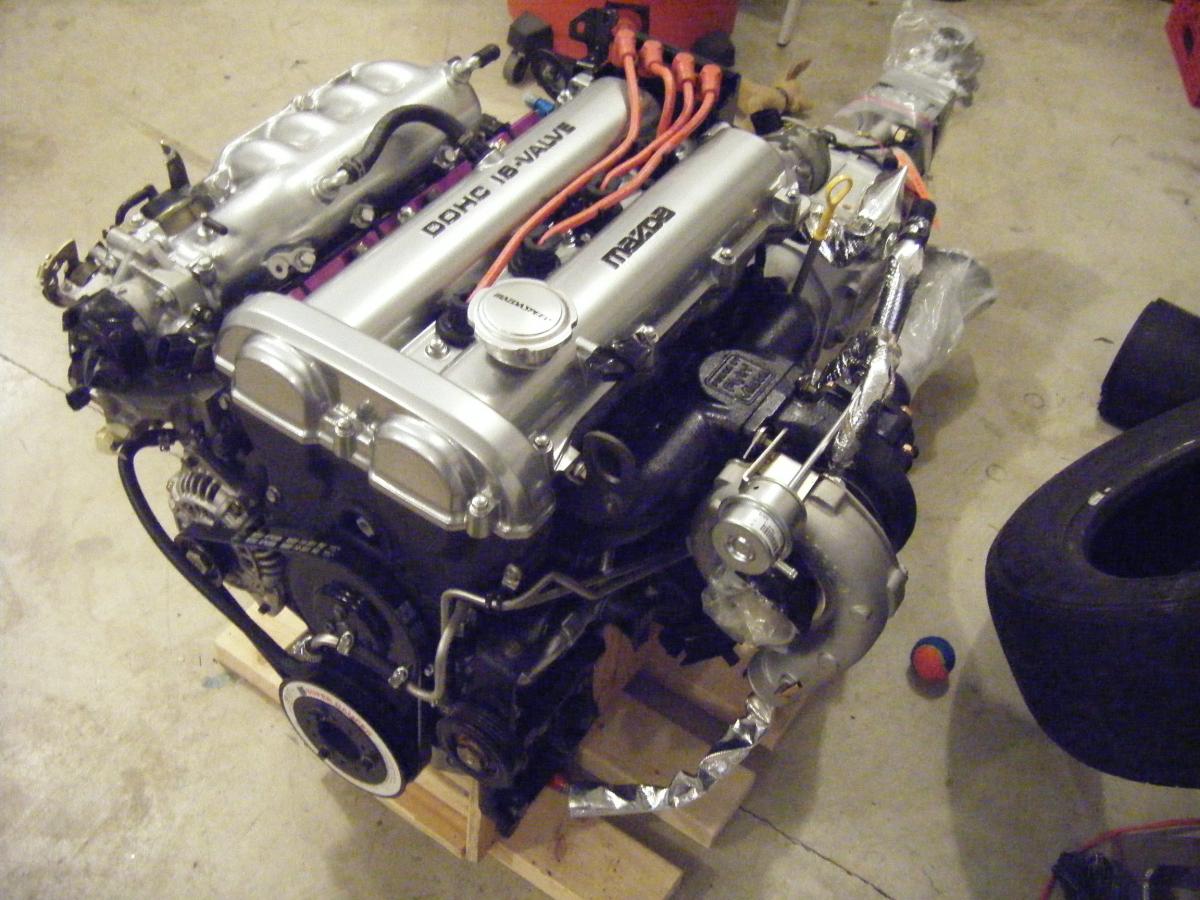

Here is the engine turbo.... FM 3071 and powder coated manifold and turbo.

New Guys Miata-dscf1899.jpg

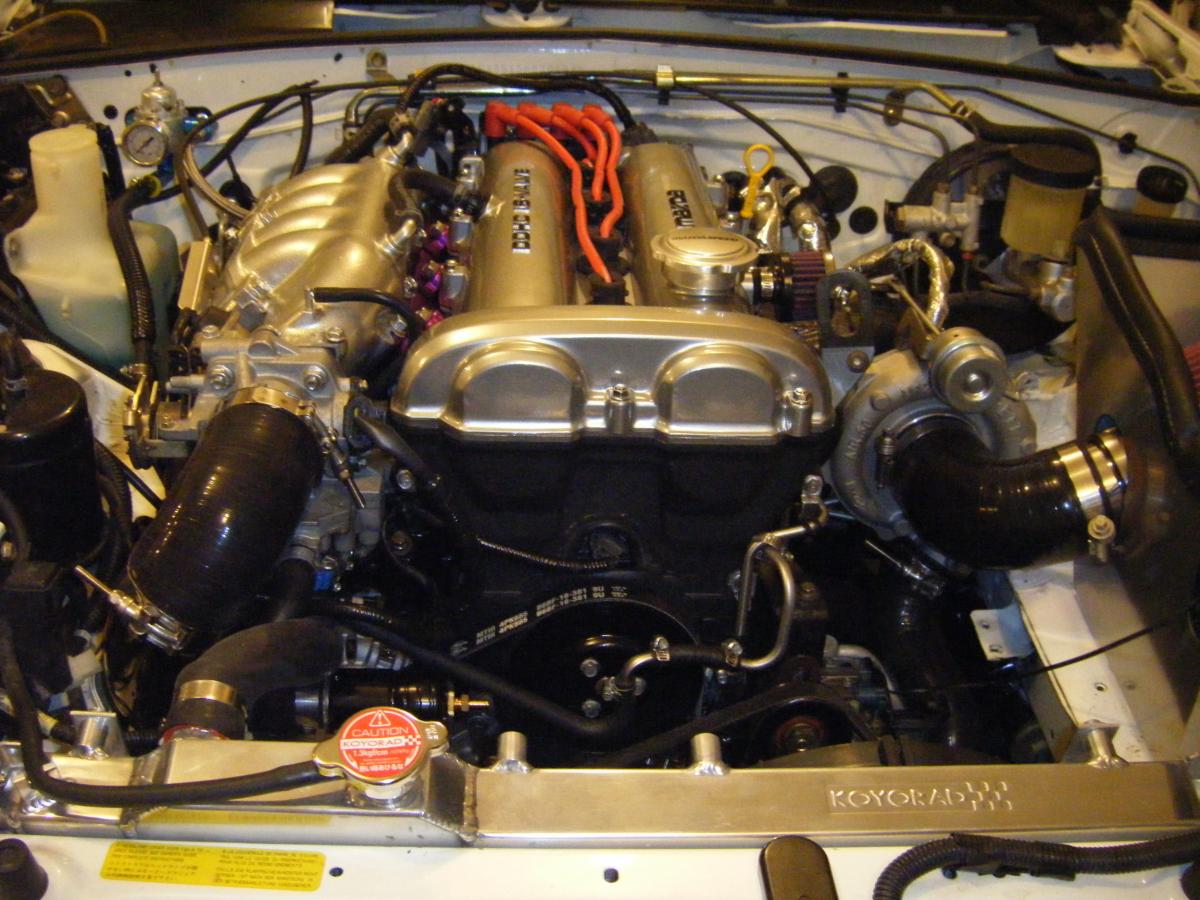

Here is the engine and Quaife transmission in the car (1992 base model I bought new).

New Guys Miata-my-miata-engine.jpg

The engine has been broke in and 100 miles put on it. Waiting for the weather to clear to drive more. I can tell it will be quick. I plan on running 16 psi on 93 octane. I hope to get 300 hp.

Cheers
joemiata is offline   Reply With Quote
Old 12-30-2010, 02:16 PM   #2
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 186
Default

Wow, nice build! I'm certain you will excede your goal with 16 psi on that turbo.
What injectors / Fuel Management will you be running, and what exhaust?
thirdgen is offline   Reply With Quote
Old 12-31-2010, 09:38 AM   #3
Newb
Thread Starter

Join Date: May 2008
Posts: 26
Total Cats: 0
Default

The fuel management is by 750 cc Injectors with Hydra 2.6 ECU. The exhaust is full 3" exhaust.
joemiata is offline   Reply With Quote
Old 12-31-2010, 11:06 AM   #4
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

3071 ftw!
Faeflora is offline   Reply With Quote
Old 12-31-2010, 12:07 PM   #5
Junior Member
iTrader: (4)

Join Date: Dec 2007
Location: Springfield, Mass
Posts: 364
Total Cats: 0
Default

Welcome
seraph is offline   Reply With Quote
Old 12-31-2010, 04:29 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

Welcome.
Nice setup
18psi is offline   Reply With Quote
Old 12-31-2010, 07:14 PM   #7
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Where are you located?

Why the main caps? The only miata with broken mains i heard of was CEO with 800hp.
Faeflora is offline   Reply With Quote
Old 01-01-2011, 09:51 AM   #8
Newb
Thread Starter

Join Date: May 2008
Posts: 26
Total Cats: 0
Default

I live in St. Louis, Missouri. The main caps are just insurance.
joemiata is offline   Reply With Quote
Old 01-01-2011, 01:09 PM   #9
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Are they the FM main caps? I would have got them too but the $ hurt.
