Old 10-13-2015, 05:44 AM   #21
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

So some of the collective wisdom has been imparted to you in rather harsh fashion. But I would listen to what's been said.

a) unfuck what has been done. The previous owner has, to be gentle, not followed best practices. I would not trust anything that has been done to it. Undo it, and get the car to idle / run on the stock ecu.

b) Megasquirt. Listen to the people who have actually installed ECMlink and have it running on live miatas, and are still recommending to you that you run Megasquirt. MS is the way and the light. There will be some learning curve on your part, which you understandably want to avoid, but your miata community support will be OMG SO MUCH LARGER with megasquirt.

You have turbo and ecu experience on different platforms, which will serve you well in general, but our advice is to start from zero with this car, because we don't think the PO made wise decisions. Take it back to running on the stock ecu, then do things properly.
Mobius is offline   Reply With Quote
Old 10-13-2015, 10:32 AM   #22
Newb
Thread Starter

Join Date: Aug 2015
Posts: 13
Total Cats: 0
Default

Quote:
Originally Posted by matthewdesigns View Post
This one guy here typing has a Miata running on ECMLink and it kicks ***. Underdog was the first and it also was a complete success. Nobody else is using it/has tried to use it afaik, though a number of people have inquired with me regarding the setup. The CAS is essentially identical and that makes it all possible, but not easy..

Does Miata CAS incorporate a crank sensor, or is it just a cam sensor?

Quote:
Originally Posted by matthewdesigns View Post
OP, do yourself a favor and listen to what everyone said about what's under the hood, forget about using ECMLink unless you like making custom harnesses, and buy some sort or MS unit to run the whole operation.
I have done just this in my Summit. I repined the entire harness to run DSM Link. This is remarkably simple, once you break everything down in a spreadsheet. The ONLY original sensor that I reused was TPS and that ended up biting me in the *** because despite looking identical, it had reversed pin order. But that was an easy problem to solve.


How similar is the MPI circuit? Did you have to wire in DSM MPI relay or did you make the original relay work?


Looks like gauges are, in fact, Ebay crap. Never cared for gauges, anyway. I usually log everything I care about (other than RPM, boost and engine temp).
Leon R is offline   Reply With Quote
Old 10-13-2015, 10:47 AM   #23
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Quote:
Originally Posted by aidandj View Post
Also. This = someone's baby

(((CLEAN)))

Not the bundle of snakes in that thing.
/humblebrag

But compared to megasquirt which has 4 different off the shelf plug and at ignition trigger methods.
Man that looks really good. Yours? I'm engine out right now for a rebuild and am tempted to go down the tuck and cut rabbit hole. I really just want to drive the car again though lol.
matthewdesigns is offline   Reply With Quote
Old 10-13-2015, 11:07 AM   #24
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,854
Total Cats: 272
Default

Previous owner:


Shell & interior look decent. I'd find a junkyard 1.8, 6spd & diff and remove the fookery from the PO. And rust repair allthethings. Eventually turbo
Girz0r is offline   Reply With Quote
Old 10-13-2015, 11:07 AM   #25
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Quote:
Originally Posted by Leon R View Post
Does Miata CAS incorporate a crank sensor, or is it just a cam sensor?



I have done just this in my Summit. I repined the entire harness to run DSM Link. This is remarkably simple, once you break everything down in a spreadsheet. The ONLY original sensor that I reused was TPS and that ended up biting me in the *** because despite looking identical, it had reversed pin order. But that was an easy problem to solve.


How similar is the MPI circuit? Did you have to wire in DSM MPI relay or did you make the original relay work?
If you can pull it off then go for it, especially with your previous effort. Most of the time when people ask about this they don't even know what a soldering iron looks like, let alone how to use it. However If I ever build another turbo Miata from zero I'll use MS...it's just too easy to start with it and there's tons of support here.

Miata CAS is essentially identical to a 1g CAS in operation, and there is only a cam signal on the B6 1.6. The '96 1.8 I am building had a crank trigger plate/sensor but I'm not incorporating it.

TPS in a 1.6 (maybe BP too?) is an off/on switch, DSM unit needs to be swapped in. I ended up using a 1g throttle body so that I could use both the TPS and the FIAV. Ditched the DSM TB and FIAV for the 1.8 build and just modified the TPS to fit on the native Miata TB, with that FIAV deleted, too...much cleaner install.

I had to swap in the MPI and wire everything related, though I'll admit that this was my first big wiring project and I may have overlooked a shortcut if one was present. I ran over to the Miata fuel pressure relay and used the stock wiring from there back.

I'm speed density so I don't have the huge MAF under the hood, and use the baro input for my flexfuel sensor.

I'm going to swap my fan control over to ECMLink this time around using the fuel pressure solenoid output since I'm rerouting the coolant and have deleted the front waterneck.
matthewdesigns is offline   Reply With Quote
Old 10-13-2015, 11:11 AM   #26
Newb
Thread Starter

Join Date: Aug 2015
Posts: 13
Total Cats: 0
Default

Thanks for the info, Matthew! Makes perfect sense! Sorry if I missed it, which DSM ECU are you running? 1G or 2G?


You guys are missing one point, being a hard core DSMer, I have more than just “logical” reasons to run DSM Link in a Miata. It is like when people choose to do engine swap, even when it is much more involved. At least I am not talking about doing a complete 4G63 swap .



Perhaps this will help you understand, my other three cars setup up or running DSM Link:

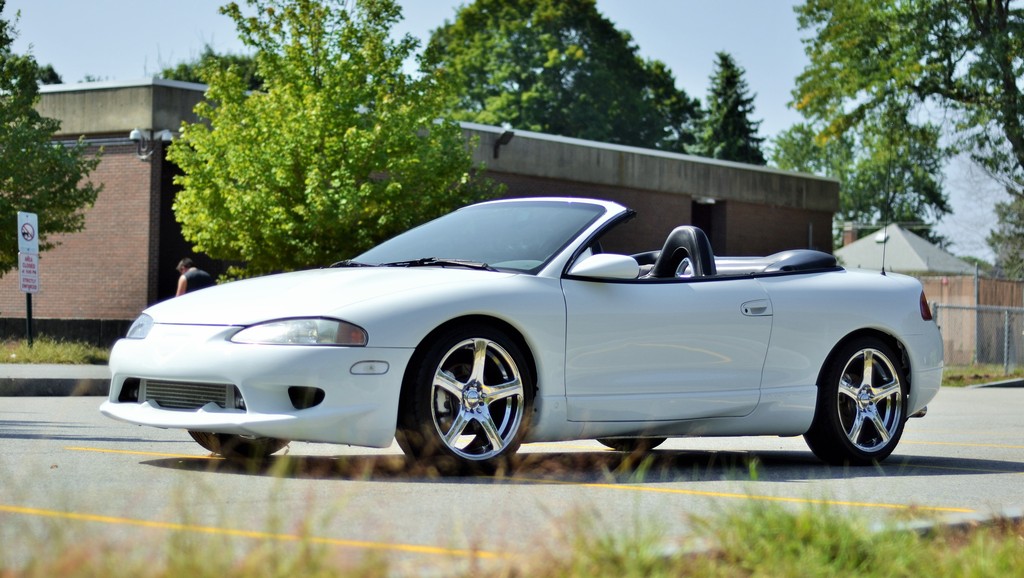

1996 Talon Spyder AWD (originally FWD auto, converted to AWD 5sp)

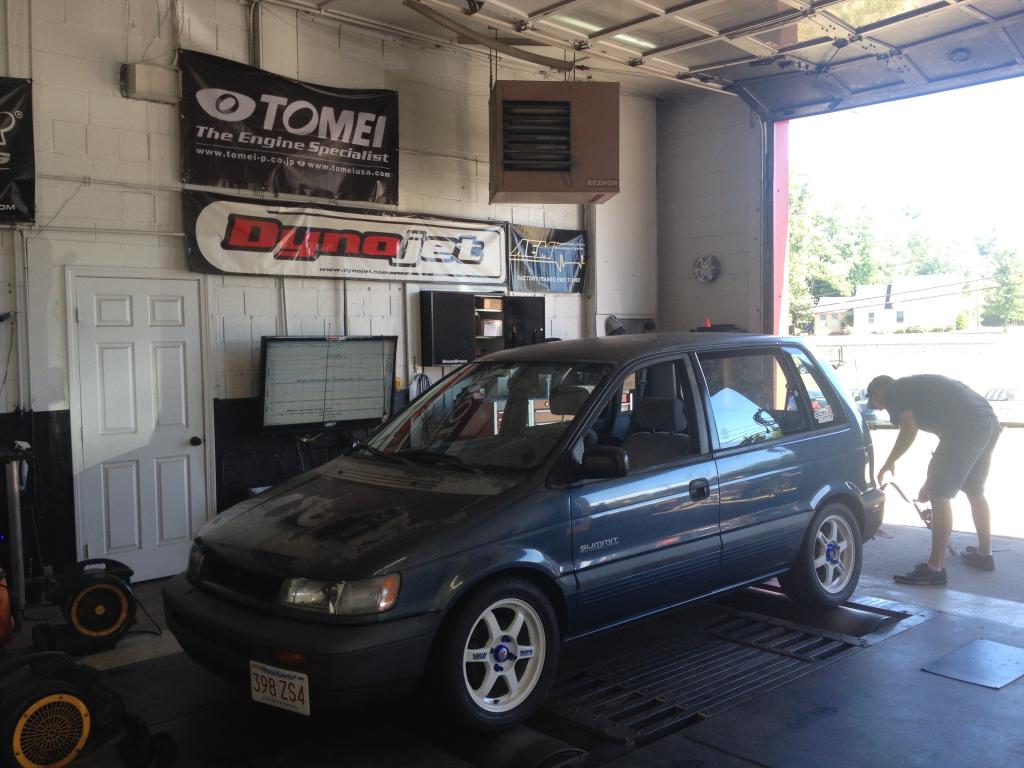

1993 Eagle Summit AWD - 11.6 second minivan (converted to 4G63 – 2G DSM Link)

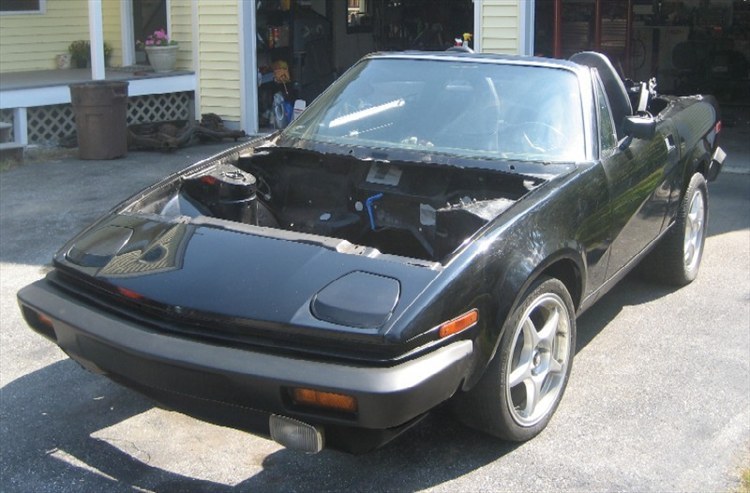

1980 Triumph TR7 (4G63 swap – still in progress, but set up to run 1G DSM Link)



Attached Thumbnails
New Member from Mass - Interesting Turbo Miata-dc4a22a2-aa6a-49e6-8d98-4e6bbd64290d_zpsepds3tci.jpg   New Member from Mass - Interesting Turbo Miata-b3cdeec9-2ba5-479f-a560-0de2de38096d_zpsh7brfvt0.jpg   New Member from Mass - Interesting Turbo Miata-8127b12c-68bc-4106-a83c-2e855de6db6d-1822-00000201d73fc5d1_zps91ab8602.jpg   New Member from Mass - Interesting Turbo Miata-24729990104_large_zpsfnfnv2qq.jpg
Leon R is offline   Reply With Quote
Old 10-13-2015, 11:21 AM   #27
Newb
Thread Starter

Join Date: Aug 2015
Posts: 13
Total Cats: 0
Default

Quote:
Originally Posted by Girz0r View Post
Previous owner: I'd find a junkyard 1.8
The current 1.8 seems to have fine compression.
Leon R is offline   Reply With Quote
Old 10-13-2015, 11:32 AM   #28
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,854
Total Cats: 272
Default

Quote:
Originally Posted by Leon R View Post
The current 1.8 seems to have fine compression.
oh yea 94' IS 1.8 Not awake yet.

Regardless, you're handling a 'special snowflake' project. See if it runs good stock.

You can definitely reuse the BEGi exhaust manifold / turbo (if it's good, no play no leaks) / Downpipe.

Remove musical instrument hose, FMU, bad ecu management etc and you may have a salvageable fun project.
Girz0r is offline   Reply With Quote
Old 10-13-2015, 01:59 PM   #29
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

The pair of gauges in the center console mount appear to be VEI single display gauges. They are not exactly eBay trash, but I and several others have found the senders to be problematic.
EO2K is offline   Reply With Quote
Old 10-13-2015, 02:03 PM   #30
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by Leon R View Post
Joe, I suspect that photo is a methanol injection system, as it is in the truck and has a large tank.
Gotcha. I was looking at that on my phone while doubled-over in gastrointestinal pain earlier, couldn't quite tell what it was.

I'll just re-state what's already been said. If this were my car, I'd go down one of two paths:

1: Rip out every single bit of aftermarket wiring and hardware, repair all the damage to the factory harness, and try to get it running on the stock ECU, or

2: Rip out every single bit of aftermarket wiring and hardware, repair all the damage to the factory harness, and try to get it running on a Megasquirt.


Option 2 is there only because I am extremely experienced with the Megasquirt, and feel comfortable with them.

But the basics remain the same. Every single wire on that car which wasn't there when it left the factor would come out first, and the damage left behind repaired, before I ever even thought about turning the key.
Joe Perez is online now   Reply With Quote
Old 10-13-2015, 02:13 PM   #31
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

Quote:
Originally Posted by Leon R View Post

You guys are missing one point, being a hard core DSMer, I have more than just “logical” reasons to run DSM Link in a Miata. .
Let me make one last observation:
Being a "HARDCORE *insert other car make here* 'ER" is going to hurt you more than help you. Here's why: you're set in your ways.. You can tell us you're humble, and open minded, but in reality this is almost never the case.

The last handful of guys just like you, most of them never delivered. I can find the threads, I can quote their posts, they all talked a big game, they all had hopes and dreams, and all of them were dead set on doing things their own way. Here's the kicker: ALL OF THEM posted the "cool cars" they built in the past trying to impress us.

Want the spoiler alert? most of them amounted to nothing, and quietly stopped posting and then we saw their For Sale threads.

I really hope you don't turn out this way, but it's not promising at this point.

In fact, this is such a common occurrence at this point, that I'm going to save this post just so I can repost it for the next guy, just like you, that will have the same thread, with the same cars, and the same "hardcore *insert other make her* 'er". It will be so similar, I won't even have to change the post.

Good luck
18psi is offline   Reply With Quote
Old 10-13-2015, 02:22 PM   #32
Newb
Thread Starter

Join Date: Aug 2015
Posts: 13
Total Cats: 0
Default

Quote:
Originally Posted by 18psi View Post
Let me make one last observation:
Being a "HARDCORE *insert other car make here* 'ER" is going to hurt you more than help you. Here's why: you're set in your ways.. You can tell us you're humble, and open minded, but in reality this is almost never the case.
I think that you stating the obvious here... I went as far as saying that I am NOT being objective!


I will attempt to get the car running off boost on factory ECU (only) to make sure that everything is OK. Then, I will address the boosted engine management.
Leon R is offline   Reply With Quote
Old 10-13-2015, 03:24 PM   #33
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Yes mathew that's mine. Only part on the car that looks nice

OP, you seem a bit more reasonable than you originally came off.

Running it on ECUlink would suck if the engine won't run on stock ecu. Get it running on the stock ecu then its just a matter of a spreadsheet just like you said.

I don't know about the 1.8 (I'll check in a bit) but the 1.6 megasquirt actually uses the 4G63 ignition trigger algorithm
aidandj is offline   Reply With Quote
Old 10-13-2015, 03:33 PM   #34
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Welcome, Leon R. Check out the Miata Gallery and post up some pics!
Braineack is offline   Reply With Quote
Old 10-13-2015, 03:46 PM   #35
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by aidandj View Post
I don't know about the 1.8 (I'll check in a bit) but the 1.6 megasquirt actually uses the 4G63 ignition trigger algorithm
All '90-'97 Miata Megasquirts use the 4G63.

Until the MS2 came out, we also used to retrofit the 4G63-style pickup onto the newer engines as well.

That said, unless the OP is already intimately familiar with both Megasquirt and the use of a dual-channel oscilloscope, I would not recommend attempting to install MS on a non-running car with a butchered wiring harness. Start with OEM, and move from there.
Joe Perez is online now   Reply With Quote
Old 10-13-2015, 05:31 PM   #36
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

Quote:
Originally Posted by Leon R View Post
I think that you stating the obvious here... I went as far as saying that I am NOT being objective!


I will attempt to get the car running off boost on factory ECU (only) to make sure that everything is OK. Then, I will address the boosted engine management.
sounds like a good plan
18psi is offline   Reply With Quote
Old 10-13-2015, 07:40 PM   #37
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default New Member from Mass - Interesting Turbo Miata

Quote:
Originally Posted by Leon R View Post
Thanks for the info, Matthew! Makes perfect sense! Sorry if I missed it, which DSM ECU are you running? 1G or 2g?
1g, but technically a GVR4 with matching engine harness.

Good job on the other builds, no small feat there on the AWD Spyder. We did a couple at the shop and said **** it, there's an easier way to make a living lol.

Last edited by matthewdesigns; 10-14-2015 at 12:29 AM.
matthewdesigns is offline   Reply With Quote
Old 10-13-2015, 08:05 PM   #38
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

11 second minivan. Hahahaha. I like you OP! (Take that however you wish, this is a Miata forum).

Takes guts to work on a Triumph too. Haven't seen one of those wedges in forever.

What Joe said. It's the way forward. Clean Miata IMHO. Especially for MA.
hornetball is offline   Reply With Quote
Old 10-13-2015, 08:16 PM   #39
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

actually I really like that van too lol
18psi is offline   Reply With Quote
Old 10-13-2015, 10:05 PM   #40
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

I think I may have actually met this person. Come to the next devens event and I'll tell you the DSM link idea is bad to your face. 4G63 swap might actually be less work, just a wide block + early B2600 R-series tranny + some welding + factory dsm engine wiring.
Leafy is offline   Reply With Quote
