Old 10-14-2015, 12:43 AM   #41
Newb
Thread Starter

Join Date: Aug 2015
Posts: 13
Total Cats: 0
Default

Summit has been tremendous fun car! Beyond my wildest expectations!


Here are some videos of it in action:








Wide block with B2600 tranny is so 2005 Bill Hitcher has made an adaptor to attach narrow block 4G63 to just about EVERY popular RWD transmission! At 1/3 the price of other vendors!

Last edited by Leon R; 10-14-2015 at 12:53 AM.
Leon R is offline   Reply With Quote
Old 10-14-2015, 12:48 AM   #42
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

The lesson here is that if anyone driving a minivan ever challenges you to a race, politely decline.
Joe Perez is online now   Reply With Quote
Old 10-14-2015, 12:57 AM   #43
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,584
Default

But what if you're in a minivan too?
18psi is offline   Reply With Quote
Old 10-14-2015, 01:17 AM   #44
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

Quote:
Originally Posted by 18psi View Post
But what if you're in a minivan too?
So long as it's this one:

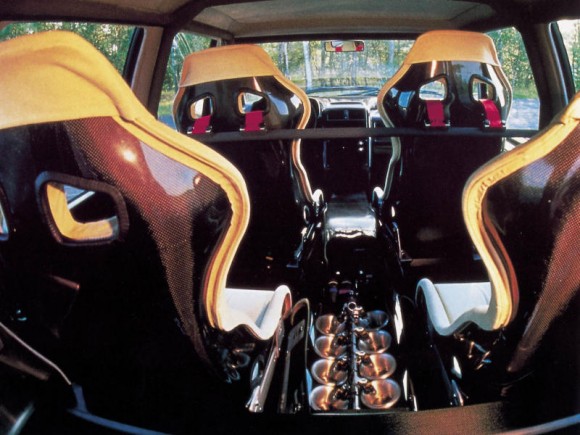

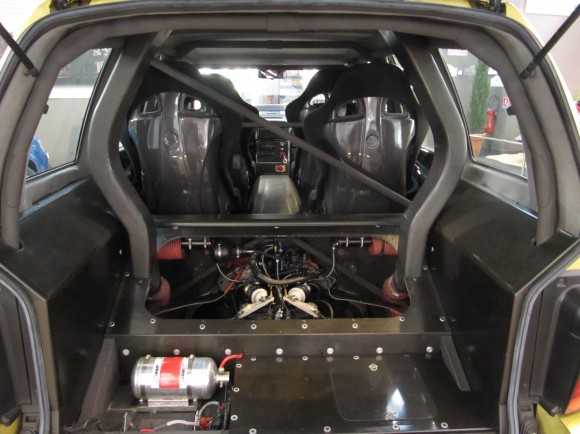

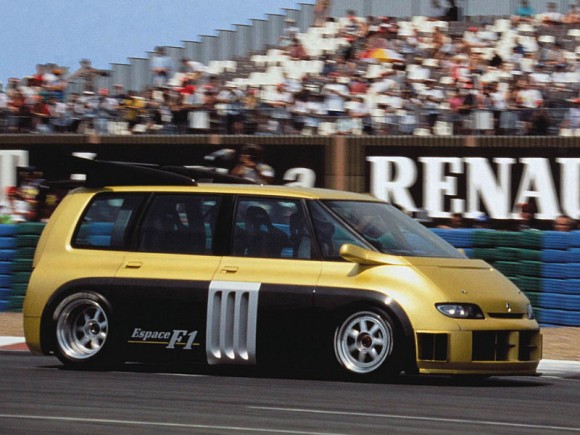

(1995 Renault Espace, with an 800hp Renault F1 engine / transmission / suspension.)

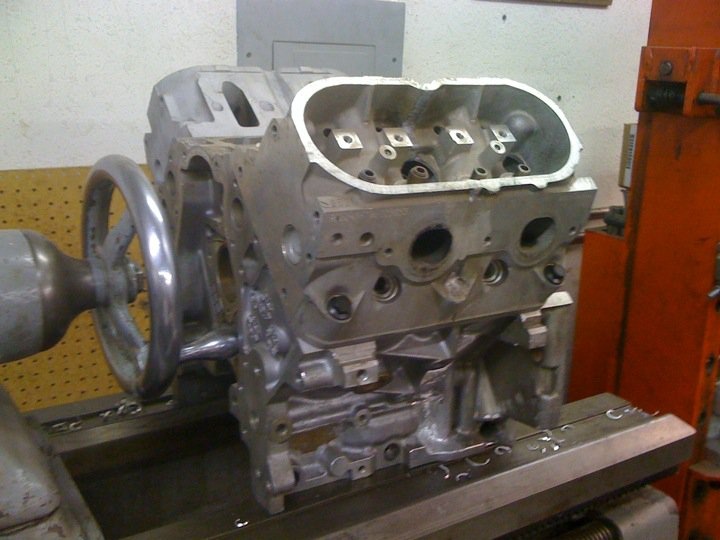

Unrelated: these folks have welded the majority of two LS1 engines together to make a 9 liter V12:



No idea if they have one up and running yet.
Attached Thumbnails
New Member from Mass - Interesting Turbo Miata-12-580x435.jpg   New Member from Mass - Interesting Turbo Miata-2-1-580x434.jpg   New Member from Mass - Interesting Turbo Miata-22-580x435.jpg
Joe Perez is online now   Reply With Quote
Old 10-14-2015, 01:22 AM   #45
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,584
Default

18psi is offline   Reply With Quote
Old 10-14-2015, 01:27 AM   #46
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

You should see the little 4 banger they make from the scrap.

I'm pretty sure I've seen them both run, though it's been a few years. One was a black suburban.


This
The "LS12" - Inside Scoop On the V12 LS Engine - Corvette Online

Attached Thumbnails
New Member from Mass - Interesting Turbo Miata-q1sgqij.jpg
deezums is offline   Reply With Quote
Old 10-14-2015, 11:46 AM   #47
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Why didn't they make a V16?

Can you imagine the sound inside that F1 minivan?

This thread is winning!
hornetball is offline   Reply With Quote
Old 10-16-2015, 04:00 PM   #48
Newb
Thread Starter

Join Date: Aug 2015
Posts: 13
Total Cats: 0
Default

OK guys, the E Manage is out. I can’t say that I was happy with the way it was installed (I saw all type of electrical connections: solder, crimp and vampire clips...) but that is all undone now. Prior to removing it, I would get a quick spark whenever I put key in the “ON” position, but there would be no spark while I am cranking. Now that E Manage is out, I get no such initial spark and it is still not sparking when cranking.


This leads me to a two questions:

Is that initial spark an E manage thing or all Miata’s do this?
I suspect that ECU must get a signal from CAS in order to fire coils and fuel injectors, while cranking. How can I test if ECU is getting that signal?


Thanks
Leon R is offline   Reply With Quote
Old 10-16-2015, 05:41 PM   #49
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

Quote:
Originally Posted by Leon R View Post
Is that initial spark an E manage thing or all Miata’s do this?
It is not normal for the ECU to generate an initial spark at power-on. I can't speak to whether E-Manage ECUs cause this.




Quote:
Originally Posted by Leon R View Post
I suspect that ECU must get a signal from CAS in order to fire coils and fuel injectors, while cranking. How can I test if ECU is getting that signal?
Do you have spark and / or fuel while cranking? If so, the ECU is getting the CAS signal. If not, the ECU is probably* not getting it.

* = On your car, in particular, it's possible that any number of other things could be fucked up. The fuel pump might not be running, voltage might not be getting to the injectors and ignition coils, etc.
Does the fuel pump at least prime when you turn the key on? (You should be able to hear fuel flowing through the pressure regulator at the back of the fuel rail.)
Joe Perez is online now   Reply With Quote
Old 10-17-2015, 09:49 AM   #50
Newb
Thread Starter

Join Date: Aug 2015
Posts: 13
Total Cats: 0
Default

No, there is no priming of fuel pump or any fuel in the return house hose. I suspect that ECU might be fried. I might take it apart and look for some obvious damage.

Where is MPI relay on a Miata?

Voltage was most certainly was interrupted to the coils. It was going through the Emanage first, so that could account for the initial spark. But if ECU was dead, there would be no further sparking. Injector triggers were tapped in parallel, so they never completely interrupted the wire.


Edit: Now that I think about it, there is no CE light, which I assume, must appear when you first turn on the key. So yet another indication that ECU is not righit.

Last edited by Leon R; 10-17-2015 at 01:14 PM.
Leon R is offline   Reply With Quote
