Default 1.6 Diypnp Fan control Circuit

Im looking to remove the themoswitch that controls the rad fan on my '91 1.6.

I'm just checking i've got the wiring route right for a diypnp.

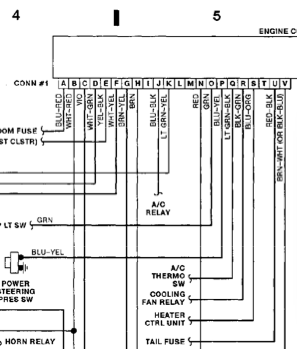

This is the section of wiring from the car:


is it just a case of my running a jumper from aled to 1R on the connector board and turning on aled in tuner studio

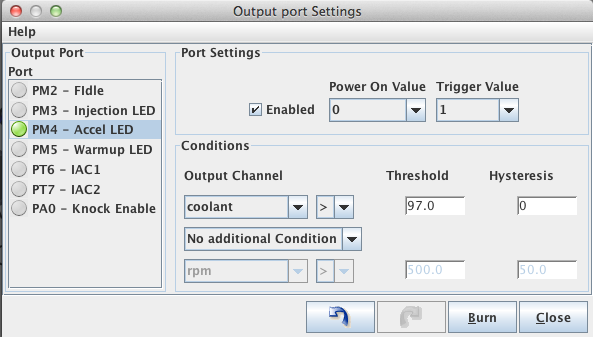

Also, are these settings correct for tuner studio? Im not sure what the hysteresis is? What value does it need to be set to?



Thanks
Mike
Attached Thumbnails
1.6 Diypnp Fan control Circuit-screenshot2011-09-16at234347.png   1.6 Diypnp Fan control Circuit-screenshot2011-09-17at002035.png
Valentinik is offline   Reply With Quote
Old 09-16-2011, 09:23 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

(Posting from my phone.)

Trigger 0 / 1
coolant temp > 200
hysteresis 10
Braineack is offline   Reply With Quote
Old 09-16-2011, 09:24 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

(Posting from my phone.)

You know there a writeup on DiyAutotune on how to build it including all the 90-93 jumpers and a baseman right?
Braineack is offline   Reply With Quote
Old 09-17-2011, 07:06 AM   #4
Newb
Thread Starter

Join Date: Mar 2009
Location: Birmingham,England
Posts: 43
Total Cats: 0
Default

Thanks for the settings. I have looked through the diypnp build guide a few times, but I couldn't see anything specific on fan control, just suggested outputs.
