1990 DIYPNP Not Starting
#1
1990 DIYPNP Not Starting
Hey all. Current tune attached, and a short datalog of me cranking the car. Turns over but won't start, not a single sputter or catch. Just cranks.
When I turn the key I get no fuel pump. I moved the jumper from the MAF connector to the diag box, F/P to ground. Then I did hear the fuel pump running, but the car still won't start. Cranks over and over, no start, no sputter, pressing the throttle does nothing.
Timing issue? I believe I had timing set at 14 degrees prior to MS install. During cranking though I noticed it was at 17 degrees but I figure that's just until it warms up.
any other ideas? I'm losing this garage space in a week so I'm up against it. Thanks in advance.
- 1990
- 1.8L from a '94 with stock tan-top injectors
- DIYPNP
- MAF delete, GM IAT sensor

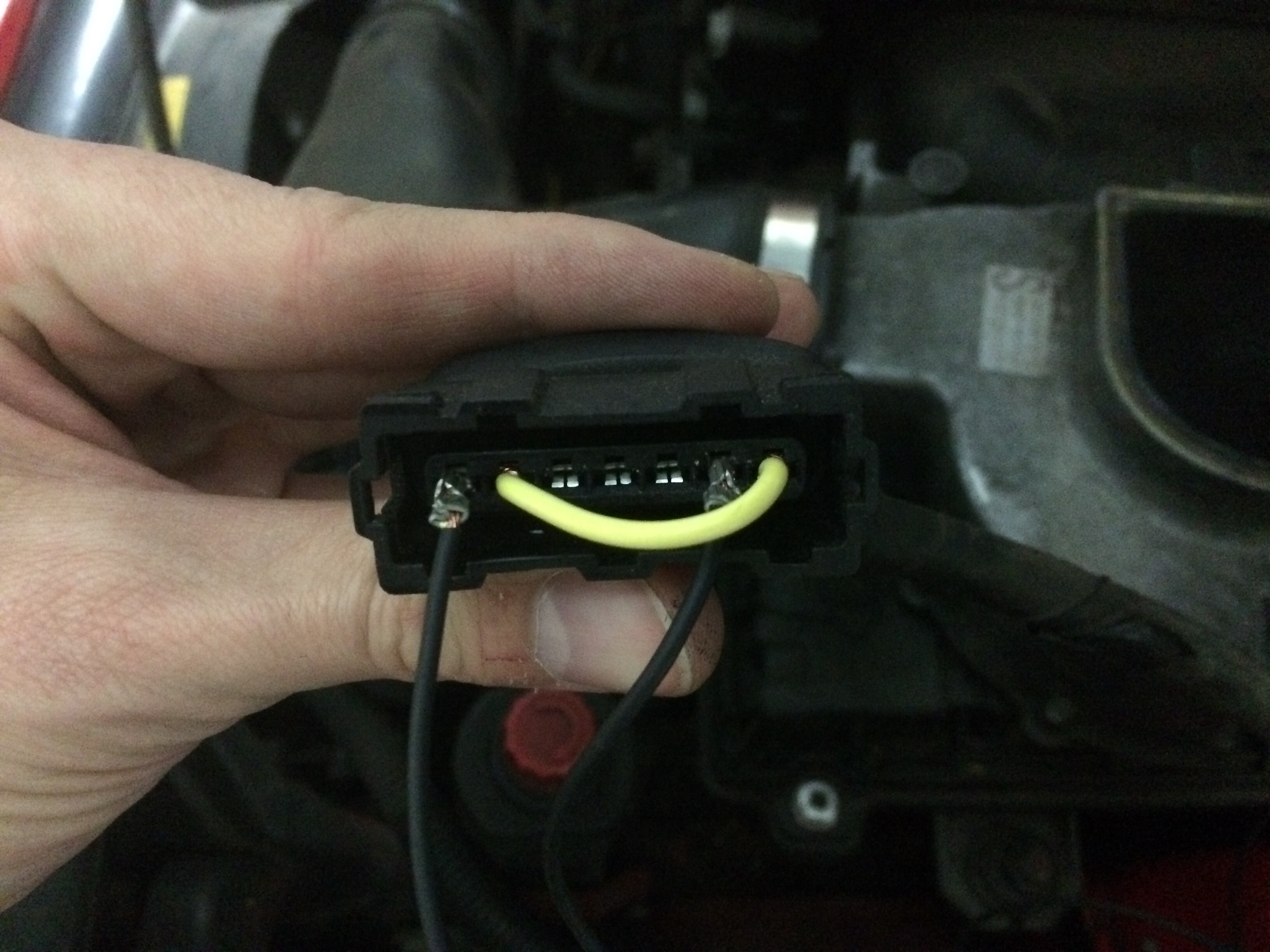

- MAF has IAT wires attached and wire jumper for fuel, pic attached.
- AEM UEGO wb02
- I believe sensors are calibrated correctly
- Removed SIG fuse prior to start
- Followed DIYautotune's documentation for setting up the fuel circuit in the DIYPNP
When I turn the key I get no fuel pump. I moved the jumper from the MAF connector to the diag box, F/P to ground. Then I did hear the fuel pump running, but the car still won't start. Cranks over and over, no start, no sputter, pressing the throttle does nothing.
Timing issue? I believe I had timing set at 14 degrees prior to MS install. During cranking though I noticed it was at 17 degrees but I figure that's just until it warms up.
any other ideas? I'm losing this garage space in a week so I'm up against it. Thanks in advance.
#2
Ok, I think I figured out the fuel circuit issue.
"Jumper from “OUT” of the high side driver circuit to terminal 1C on the connector board." from the documentation. Looks like I skipped that step. I can fix that tomorrow, but since I bypassed that with the diag box jumper, shouldn't the car be starting anyways? What else did I screw up, gang?
"Jumper from “OUT” of the high side driver circuit to terminal 1C on the connector board." from the documentation. Looks like I skipped that step. I can fix that tomorrow, but since I bypassed that with the diag box jumper, shouldn't the car be starting anyways? What else did I screw up, gang?
#5
This gets weirder and weirder. The ignition settings called for in the 90-93 documentation don't match the 90-93 base map ignition settings from diyautotune.
https://www.diyautotune.com/support/...3-mazda-miata/
Trigger Angle: 10
Cranking Dwell: 6
Spark duration: .7
Values in my tune:
Trigger Angle: 8
Cranking Dwell: 7.5
Spark Duration: 1.5
Seems like I should change my tune to match the documentation? Any thoughts?
https://www.diyautotune.com/support/...3-mazda-miata/
Trigger Angle: 10
Cranking Dwell: 6
Spark duration: .7
Values in my tune:
Trigger Angle: 8
Cranking Dwell: 7.5
Spark Duration: 1.5
Seems like I should change my tune to match the documentation? Any thoughts?
#8
Boost Czar
iTrader: (62)
Join Date: May 2005
Location: Chantilly, VA
Posts: 79,501
Total Cats: 4,080
Ok, I think I figured out the fuel circuit issue.
"Jumper from “OUT” of the high side driver circuit to terminal 1C on the connector board." from the documentation. Looks like I skipped that step. I can fix that tomorrow, but since I bypassed that with the diag box jumper, shouldn't the car be starting anyways? What else did I screw up, gang?
"Jumper from “OUT” of the high side driver circuit to terminal 1C on the connector board." from the documentation. Looks like I skipped that step. I can fix that tomorrow, but since I bypassed that with the diag box jumper, shouldn't the car be starting anyways? What else did I screw up, gang?
follow my writeup. that will solve all your issues. I love diyautotune.com, but their writeup and basemaps are way out of date.
#10
Does the datalog show it injecting fuel? And 700 is too high. Set it to 300-400. The engine could easily dip into the 700 rpm range for a number of reasons and cause it to go to crank mode again. I wouldn't discount this happening to you right now.
Brain's stuff is at trubokitty.com, check his sig.
Brain's stuff is at trubokitty.com, check his sig.
#11
It runs now. Thank you Hector and Brain for your help.
DIYautotune's docs on assembling the unit are pretty different to Brain's. But one thing I did see is I had the injector jumpers reversed compared to Brain's setup, so I switched mine. Also, I didn't have tach out set to anything, and I again used Brain's jumper for that. The car still didn't start. What got it going was Brain's base map for 90-93. I'm sensing a pattern here...
In any case, it starts up like a champ and idles, but runs like ****. Really rich and if you give it any gas, it comes back down to an idle of 400ish. I suspect my AEM UEGO isn't calibrating correctly and it's causing the DIYPNP to read wrong values... maybe? I also have a the 4-bar baro sensor upgrade and I'm not sure on what settings I need to make that play nice.
Current tune and data log attached. You guys are awesome, thanks again.
DIYautotune's docs on assembling the unit are pretty different to Brain's. But one thing I did see is I had the injector jumpers reversed compared to Brain's setup, so I switched mine. Also, I didn't have tach out set to anything, and I again used Brain's jumper for that. The car still didn't start. What got it going was Brain's base map for 90-93. I'm sensing a pattern here...
In any case, it starts up like a champ and idles, but runs like ****. Really rich and if you give it any gas, it comes back down to an idle of 400ish. I suspect my AEM UEGO isn't calibrating correctly and it's causing the DIYPNP to read wrong values... maybe? I also have a the 4-bar baro sensor upgrade and I'm not sure on what settings I need to make that play nice.
Current tune and data log attached. You guys are awesome, thanks again.
#13
You have a lot of stuff going on right now so just take your time, read all you can, click on all the help buttons for each setting you want to make, etc. Everyone goes through a learning curve and the better you understand the basics the better you will understand the advanced.
Your o2 is reading 10.1 AFR solid. That is likely not right. Your baro is something like 86kpa. That doesn't sound right for Chicago. Your tune has sequential injection. Do you have sequential injection? If you don't believe the timing mark, check that the damper hasn't slipped by checking TDC through the sparkplug hole. Basics first and one thing at a time.
Your o2 is reading 10.1 AFR solid. That is likely not right. Your baro is something like 86kpa. That doesn't sound right for Chicago. Your tune has sequential injection. Do you have sequential injection? If you don't believe the timing mark, check that the damper hasn't slipped by checking TDC through the sparkplug hole. Basics first and one thing at a time.
#14
Boost Czar
iTrader: (62)
Join Date: May 2005
Location: Chantilly, VA
Posts: 79,501
Total Cats: 4,080
Also, I didn't have tach out set to anything, and I again used Brain's jumper for that. The car still didn't start. What got it going was Brain's base map for 90-93. I'm sensing a pattern here...
I also have a the 4-bar baro sensor upgrade and I'm not sure on what settings I need to make that play nice.
#15
Boost Czar
iTrader: (62)
Join Date: May 2005
Location: Chantilly, VA
Posts: 79,501
Total Cats: 4,080
no, his tune has semi-sequential injection turned on -- while still batch, you can control the injecting timing, and use the injection timing table. But his current map has a fixed timing end-of-squirt of 10° before the intake valves open...
#16
Just trying to get my learn on. What is the difference between batch and semi sequential? IOW, batch sprays how many times and semi-seq sprays how many times per rev? It would seem semi sprays twice with one of those squirts just before TDC and the other just before BDC. Or is it once at TDC and again at TDC? I honestly don't know what "squirts per engine cycle" is referring to; 360* or 720*?
And the advantage would be longer PW's for better injector control for better idle and low speed drivability?
And the advantage would be longer PW's for better injector control for better idle and low speed drivability?
#17
Boost Czar
iTrader: (62)
Join Date: May 2005
Location: Chantilly, VA
Posts: 79,501
Total Cats: 4,080
its exactly the same expect you can control where in the engine cycle you want the squirt to end, since we have a crank and cam signal.
it's just timed firing vs non-timed.
still firing one injector when the intake valve is about to open, and one when it's just closed.
it's just timed firing vs non-timed.
still firing one injector when the intake valve is about to open, and one when it's just closed.
#18
Of course. I forgot to set it back to this after I loaded your base map. That probably why the fuel and AFRs are so off. I'll change this first and see where that takes me.
And I do have a COP setup to install, I just figured I'd get the regular setup working first. Glad I have the right jumper for it though.
Thanks guys!
#19
Ok - the timing is definitely correct.
Car still runs horribly. It idles about 800 when it starts up and will stay that way just fine, but with AFR of 10.0. Smells like it's running rich too. Give it any gas and it'll stumble a bit along the way, then try to idle at 400rpm. If you give it a lot of gas, it won't reach idle again at all, but just die when the RPMs come back down.
Maybe something is up with my WB02? It's an AEM UEGO. With diy's basemap, the gauge showed 14.7 and the on-screen gauge in TS showed about 10. Now with brain's basemap the gauge and TS both show 10. I got the full version of TS and attempted to use VEAL, but I don't think this is a fuel table problem, as that didn't seem to help. Seems like something is wrong with how AFRs are being measured and it's causing the car to run really rich.
Thoughts, gents?
Car still runs horribly. It idles about 800 when it starts up and will stay that way just fine, but with AFR of 10.0. Smells like it's running rich too. Give it any gas and it'll stumble a bit along the way, then try to idle at 400rpm. If you give it a lot of gas, it won't reach idle again at all, but just die when the RPMs come back down.
Maybe something is up with my WB02? It's an AEM UEGO. With diy's basemap, the gauge showed 14.7 and the on-screen gauge in TS showed about 10. Now with brain's basemap the gauge and TS both show 10. I got the full version of TS and attempted to use VEAL, but I don't think this is a fuel table problem, as that didn't seem to help. Seems like something is wrong with how AFRs are being measured and it's causing the car to run really rich.
Thoughts, gents?
