Default 36-2 with vvt - fumbling

OK, newbie here who is fumbling a little with the 36-2 setup.....

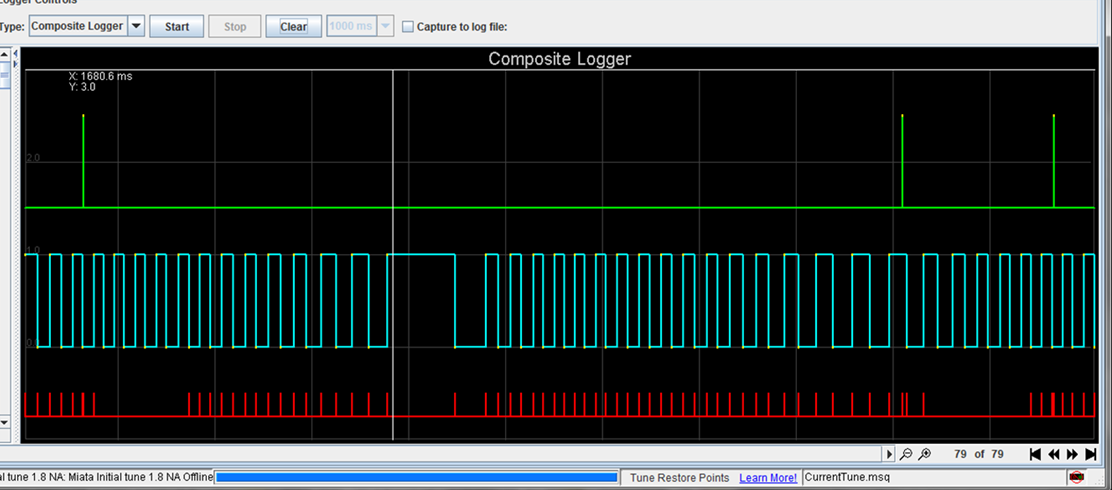

Spec - "94 engine with 36-2 FM wheel, VR sensor and VVT head with hall effect sensor. I can;t seem to get RPM sync - spent about 3 hours trying to tune the VR pots and am not sure they are doing much so wondering if I have something else wrong...Vehicle has been setup with MS3X. Currently on Miata 99-05 but also tried 36-2+2. I would really appreciate if some kind soul would take a look at my screen dump of my composite log and help me interpret which might be going on...
Attached Thumbnails
36-2 with vvt - fumbling-miata-99-05.png
TheV's is offline   Reply With Quote
Old 07-29-2014, 02:13 AM   #2
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

You need to use the 99_00 hybrid setup in there.
bcrx7 is offline   Reply With Quote
Old 07-29-2014, 07:20 AM   #3
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2013
Location: Michigan
Posts: 195
Total Cats: 5
Default

Thanks - I assume you mean spark the mode ? There is a "Miata 99-05" mode - I don't see a 99-00 Hybrid, Is that something I can download/update ?
TheV's is offline   Reply With Quote
Old 07-29-2014, 09:42 AM   #4
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

The correct spark mode is Miata 36-2.
Miata 99-05 requires stock NB 4 tooth crank trigger.
Ben is offline   Reply With Quote
Old 07-29-2014, 10:25 AM   #5
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2013
Location: Michigan
Posts: 195
Total Cats: 5
Default

Great, thanks ! - But...I don't have that mode available in my drop down....eeek ! Is there a way to import that ? I'm running Tuner Studio MS Lite v2.6.01
TheV's is offline   Reply With Quote
Old 07-29-2014, 10:31 AM   #6
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Update your firmware
Ben is offline   Reply With Quote
Old 07-29-2014, 12:40 PM   #7
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2013
Location: Michigan
Posts: 195
Total Cats: 5
Default

Quote:
Originally Posted by Ben View Post
Update your firmware
Great, thanks, will do !

Appreciate your help Sir !
TheV's is offline   Reply With Quote
Old 07-31-2014, 01:15 PM   #8
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2013
Location: Michigan
Posts: 195
Total Cats: 5
Default It worked !

Extremely happy, rpm's, timing set - really stable ! now to make some real explosions !

Miata 36-2 rocks !

Thanks for your help guys !
TheV's is offline   Reply With Quote
Old 07-31-2014, 03:57 PM   #9
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Ben is offline   Reply With Quote
Old 08-01-2014, 08:24 AM   #10
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

To be honest, you won't notice the 36-2 effect on a stock, well-running car.

I installed one on my own 2002, and I didn't notice any improvement in the way the car idles or accelerates. If I can't tell the difference, you probably won't either.

I did notice that the RPM signal in Tunerstudio updates way faster, this is to be expected of course. Free revving the engine, the tabs on the pulley are solid, but then again, they were also solid with the stock 4T wheel.
Reverant is online now   Reply With Quote
Old 08-01-2014, 10:07 AM   #11
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Reverant View Post
To be honest, you won't notice the 36-2 effect on a stock, well-running car.

I installed one on my own 2002, and I didn't notice any improvement in the way the car idles or accelerates. If I can't tell the difference, you probably won't either.

I did notice that the RPM signal in Tunerstudio updates way faster, this is to be expected of course. Free revving the engine, the tabs on the pulley are solid, but then again, they were also solid with the stock 4T wheel.
I noticed some minor differences in VVT control, but what you're pointing out is a strength of the MS3.

Steady state (like cruising or idling) I would expect no difference.

Theoretically, the higher tooth count wheel is more precise in transitional events (accel or deccel). Real world, I don't know if I could tell the difference either.
Ben is offline   Reply With Quote
