Default 5psi actuator hitting 10psi-GREDDY

HI Guys

I seem to be hitting like 165Kpa at about 5000rpm on a stock actuator which i believe should only be reaching 5psi.
I have been searching for a few hours on this matter, and have found a few threads with what sounds like the exact issue i am having.
I believe it is called "Boostcreep"? Yeah i am a
The problem is no one ever seems to post up what fixed it.
The threads just end.

I am running a
DIYPNP
ETD MANIFOLD
GREDDY TD04H Turbo
P630 ACTUATOR (i believe it should be 5psi)
TURBO TONY DOWNPIPE
Stock EXHAUST


Here is a log with at least one solid pull.
http://www.mediafire.com/?j0k8rf2rdc3bc0h

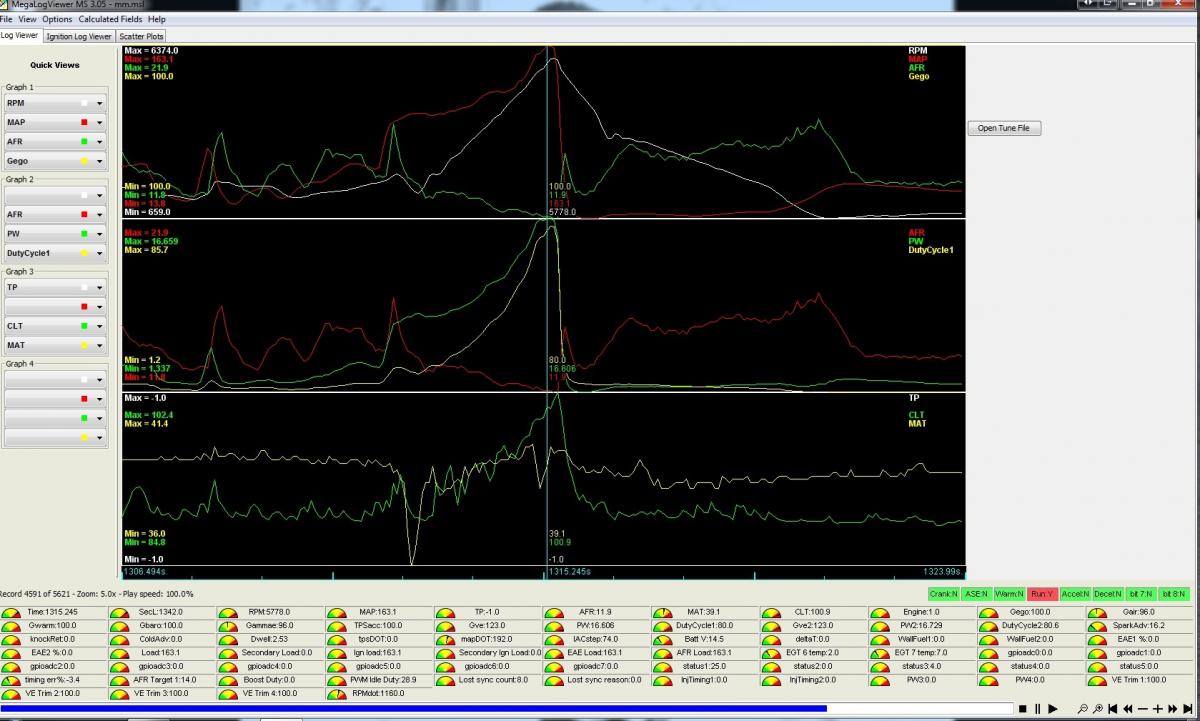

And a quick screenshot.


Any help would be much appreciated.
It appears the Wastegate opens fully when i disconnect the actuator arm.
The arm is quite tight, but i have left it how i received it.

Thanks guys.
Attached Thumbnails
5psi actuator hitting 10psi-GREDDY-log-1.jpg
dweezle is offline   Reply With Quote
Old 02-27-2012, 11:56 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

1st make sure its really a 5psi actuator
if it is, then there's 2 options:
port the internal wastegate hole
or
run external wastegate

the former is the cheaper and easier option
the latter is the best option
18psi is offline   Reply With Quote
Old 02-28-2012, 12:05 AM   #3
Newb
Thread Starter

Join Date: Jun 2011
Posts: 27
Total Cats: 0
Default

Thanks for replying.

I looked for markings on the actuator and the numbers P630 seemed to be the only ones that google found anything related.
That post said it was a 5psi spring.
I will have a search to see how to test the actuator to verify it opens at 5psi.
dweezle is offline   Reply With Quote
Old 02-28-2012, 12:20 AM   #4
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Is it the actuator that came with the greddy kit? If so, it's garbage. I'd highly suggest replacing it with pretty much anything else that will fit before wasting your time trying to fix it.

My boost gauge was jumping all over the place, like, a blurr. I replaced the actuator and it was rock solid, although it tapered off towards red line.

I changed my boost source to Joe Perez's magical source and had rock solid boost all the way to red line.
https://www.miataturbo.net/diy-turbo-discussion-14/boost-sag-no-you-dont-need-ebc-47532/
curly is offline   Reply With Quote
Old 02-28-2012, 01:21 AM   #5
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

You say the actuator arm is very tight fitting onto the wastegate arm? Sounds like it may have a lot of preload on it. Adjust the length of the arm until there is no more preload on the flapper. If it rattles, tighten it just a little bit. TD04s shouldn't need any porting of the wastegate path.
Bryce is offline   Reply With Quote
Old 02-28-2012, 01:31 AM   #6
Newb
Thread Starter

Join Date: Jun 2011
Posts: 27
Total Cats: 0
Default

Thanks again guys.

Bryce, it is so tight i need to force the arm out and over.
Prob about a hole and a half, if that makes sense.

So will do what you said and report results.
Thanks mate.
dweezle is offline   Reply With Quote
Old 02-28-2012, 01:36 AM   #7
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Quote:
Originally Posted by dweezle View Post
Thanks again guys.

Bryce, it is so tight i need to force the arm out and over.
Prob about a hole and a half, if that makes sense.

So will do what you said and report results.
Thanks mate.
That tight eh? Yeah my money is definitely on 'too much preload'.
Bryce is offline   Reply With Quote
Old 02-28-2012, 01:42 AM   #8
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Definitely preload. From the shape of your boost curve, your wastegate is not opening at all.
hornetball is offline   Reply With Quote
Old 02-28-2012, 02:38 AM   #9
Newb
Thread Starter

Join Date: Jun 2011
Posts: 27
Total Cats: 0
Default

Quote:
Originally Posted by hornetball View Post
Definitely preload. From the shape of your boost curve, your wastegate is not opening at all.
So when peeps ask how much boost i am running, i can say, "ALL OF IT"

MY BAD!!

Well it just started Pouring rain here in Sydney, so will go down to the garage and adjust tonight and go for a run tomorrow to test it out if it is not quite so swamp like.
Hopefully this sorts things.

Thanks ALL!!
dweezle is offline   Reply With Quote
Old 02-28-2012, 03:18 AM   #10
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

Definitaly too much preload. Most I'd go is a half hole of preload then opt for a different can. Other can say if I'm wrong on the half hole thing.
TorqueZombie is offline   Reply With Quote
Old 02-28-2012, 08:44 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

helper spring.
Braineack is offline   Reply With Quote
Old 03-01-2012, 04:13 AM   #12
Newb
Thread Starter

Join Date: Jun 2011
Posts: 27
Total Cats: 0
Default

Well guys, Thanks.

It seemed to have worked.
I am at about 7Psi but it creeps upto 8 which i expected.
Actuator was too tight!

Thanks again!!
dweezle is offline   Reply With Quote
Old 03-01-2012, 04:48 AM   #13
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Quote:
Originally Posted by Braineack View Post
helper spring.
Lol, am i in 2006 again? Good 'ol days of helper springs. My first attempt kept the wastegate open constantly. My second attempt was me replacing the actuator.
