Default Check my Tables Please

Hey guys im getting ready to start autotunning and want to double check my afr target table. curly sent me a picture of his table and i copyed it, so i figure it will get it close.
Thanks
Attached Thumbnails
Check my Tables Please-modeled.jpg
redturbomiata is offline   Reply With Quote
Old 02-29-2012, 09:18 PM   #2
Junior Member

Join Date: Nov 2009
Location: Dumfries, VA
Posts: 109
Total Cats: 2
Default

I would recommend just under stoich at idle - about 14-14.5 works for a more stable idle. 15.5 at 5000rpm is a bit high. Also 15.5 at 70kPa is a bit high. Consider dropping both a bit. Also want to be closer to 13:1 at 100kPa for optimum performance and to keep you from blowing the motor. Numbers in the high kPa look decent.
sccaax is offline   Reply With Quote
Old 02-29-2012, 09:42 PM   #3
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

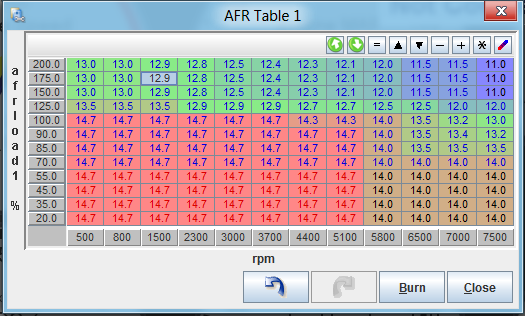

My setups for my street car.

Speed Density



Uploaded with ImageShack.us

MAF
Still fine tuning this one



Uploaded with ImageShack.us
Attached Thumbnails
Check my Tables Please-afrtable.png
Techsalvager is offline   Reply With Quote
Old 02-29-2012, 10:24 PM   #4
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

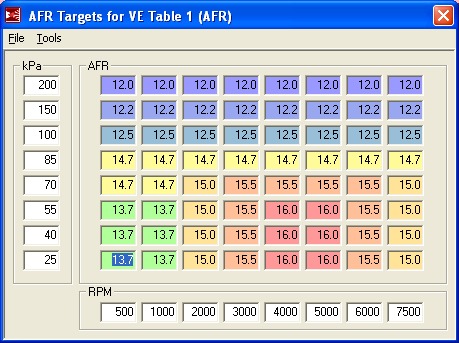

The following is copied from a post I made here: https://www.miataturbo.net/mspnp-55/afr-rpms-fluctuate-62513/

"Your AFR target table should be based upon a knowledge of theoretical engine operating conditions and gasoline chemistry. A few relevant AFR's:
1. Stoichiometric is when gasoline and air combust and theoretically produce nothing by water and carbon dioxide byproducts (i.e., no extra oxygen or unburned fuel present and minimum carbon monoxide). This ratio is 14.7:1 (Air:Fuel). NBO2 sensors are designed to switch at this AFR.
2. Maximum torque happens when your mixture burns the most quickly. ~12.5:1 is the target for this.
3. Richening the mixture past 12.5:1 has the effect of slowing combustion. This helps resist detonation.
4. On the lean side, you can go leaner than 14.7:1 and get some economy benefits in parts of the AFR table where it makes sense to do so.
5. In the idle region, going a bit richer than 14.7:1 usually results in best idle quality. You should have seen that during your idle tuning.

So, based upon the above, this is what I'm doing in my AFR table:


Note that I'm running water injection. If you're not, I recommend you richen the boost region by at least half a point (i.e., the 200kPa row would be 11.5:1)."
hornetball is offline   Reply With Quote
Old 02-29-2012, 10:30 PM   #5
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Quote:
Originally Posted by sccaax View Post
I would recommend just under stoich at idle - about 14-14.5 works for a more stable idle. 15.5 at 5000rpm is a bit high. Also 15.5 at 70kPa is a bit high. Consider dropping both a bit. Also want to be closer to 13:1 at 100kPa for optimum performance and to keep you from blowing the motor. Numbers in the high kPa look decent.
yea, he remembered that was his emissions settings lol. i changed idle to 14.5 per the brain.
And i will change the 100 kpa to, 13. what should the 15.5's you mentioned drop down to.
redturbomiata is offline   Reply With Quote
Old 02-29-2012, 10:33 PM   #6
Junior Member
iTrader: (2)

Join Date: Dec 2009
Posts: 127
Total Cats: 4
Default

Am I the only one that thinks 12.5 is too high for boost? Hustler and Savington saw no gains beyond 11.5, given that wouldnt 11.5 be better as you would have a higher saftey margin and same power?
AnnorexicRoadster is offline   Reply With Quote
Old 02-29-2012, 11:38 PM   #7
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

I think it really depends on the load the motor has on it, I'm not gonna start pulling fuel so easily just because I'm near 100kpa at low rpms
Techsalvager is offline   Reply With Quote
Old 03-01-2012, 12:07 AM   #8
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

oh on a side note how do you change the idle rpm, its sitting at 1300-1500.
redturbomiata is offline   Reply With Quote
Old 03-01-2012, 12:59 AM   #9
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

I would make the following modifications:
100kpa row/7000:12
100kpa row/6000:12.5
100kpa row/5000: 12.7
100kpa row/4000:13
100kpa row/3000:13
100kpa row/2000:13.5
100kpa row/1000:13.5

Interpolate along Y Axis to your 200kpa targets. They are fine.
Faeflora is offline   Reply With Quote
Old 03-01-2012, 01:01 AM   #10
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by AnnorexicRoadster View Post
Am I the only one that thinks 12.5 is too high for boost? Hustler and Savington saw no gains beyond 11.5, given that wouldnt 11.5 be better as you would have a higher saftey margin and same power?
It's not too high but I would do what I recommended which is run fatter at 100kpa and blend upwards. That will make things nice and smooth.
Faeflora is offline   Reply With Quote
Old 03-01-2012, 01:58 AM   #11
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

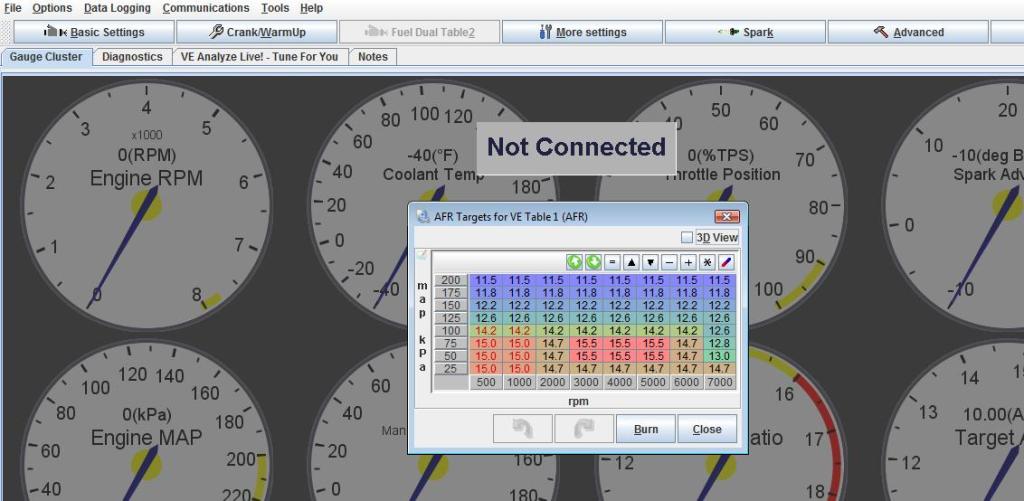

Here's my "real" target table.

I certainly prioritized track reliability over streetability, since it's not a street car. I appreciate the sentiment by stealing my table, but there's probably better ones out there.
Attached Thumbnails
Check my Tables Please-currentafrtargettable-1.jpg
curly is offline   Reply With Quote
Old 03-01-2012, 08:58 AM   #12
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

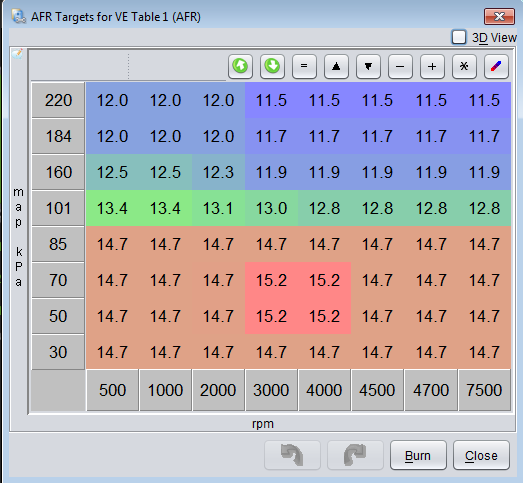

My bauce table:
Attached Thumbnails
Check my Tables Please-trey-afr.png
hustler is offline   Reply With Quote
Old 03-01-2012, 09:16 AM   #13
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

God has spoken. Bow down and burn his table. Not literally.

Last edited by curly; 03-01-2012 at 09:37 AM.
curly is offline   Reply With Quote
Old 03-01-2012, 09:30 AM   #14
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

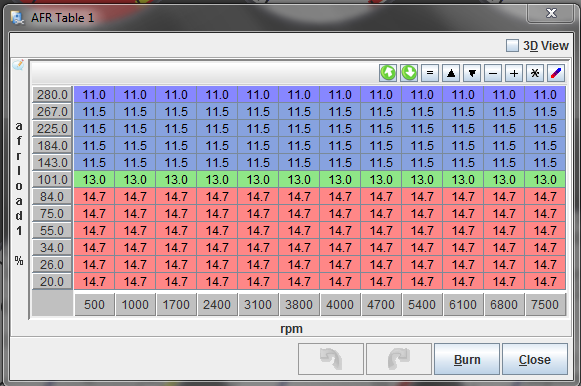

I keep it simple....

Attached Thumbnails
Check my Tables Please-newafr.png
aaronc7 is offline   Reply With Quote
Old 03-01-2012, 09:43 AM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

it migh tbe simple, but I'm sure you don't get the mpgs I do. My timing is fairly advanced in cruise, so I dont need the fuel.
Braineack is offline   Reply With Quote
Old 03-01-2012, 09:45 AM   #16
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

I got 30-31mpg on a long *** 10 hour trip to pick up my hardtop... mainly 2 lane roads, 55mph, going thru some towns here and there. lots of 3rd, 4th gear pulls and some messing around with MS to keep me sane/awake. good enough for me!
aaronc7 is offline   Reply With Quote
Old 03-01-2012, 10:24 AM   #17
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

hmm 14.7 at 4000-5000+ don't want
Techsalvager is offline   Reply With Quote
Old 03-01-2012, 10:43 AM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

when will you be there with a turbo if you're not cruising on the highway in 4th gear?
Braineack is offline   Reply With Quote
Old 03-01-2012, 10:43 AM   #19
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by hustler View Post
My bauce table:
Pretty much exactly what I was saying snuggles
Faeflora is offline   Reply With Quote
Old 03-01-2012, 11:20 AM   #20
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

do not follow the 12.X at 160 kPa at low RPM.

I know you can't boost like that, but I wouldn't put that in the table.
y8s is offline   Reply With Quote
